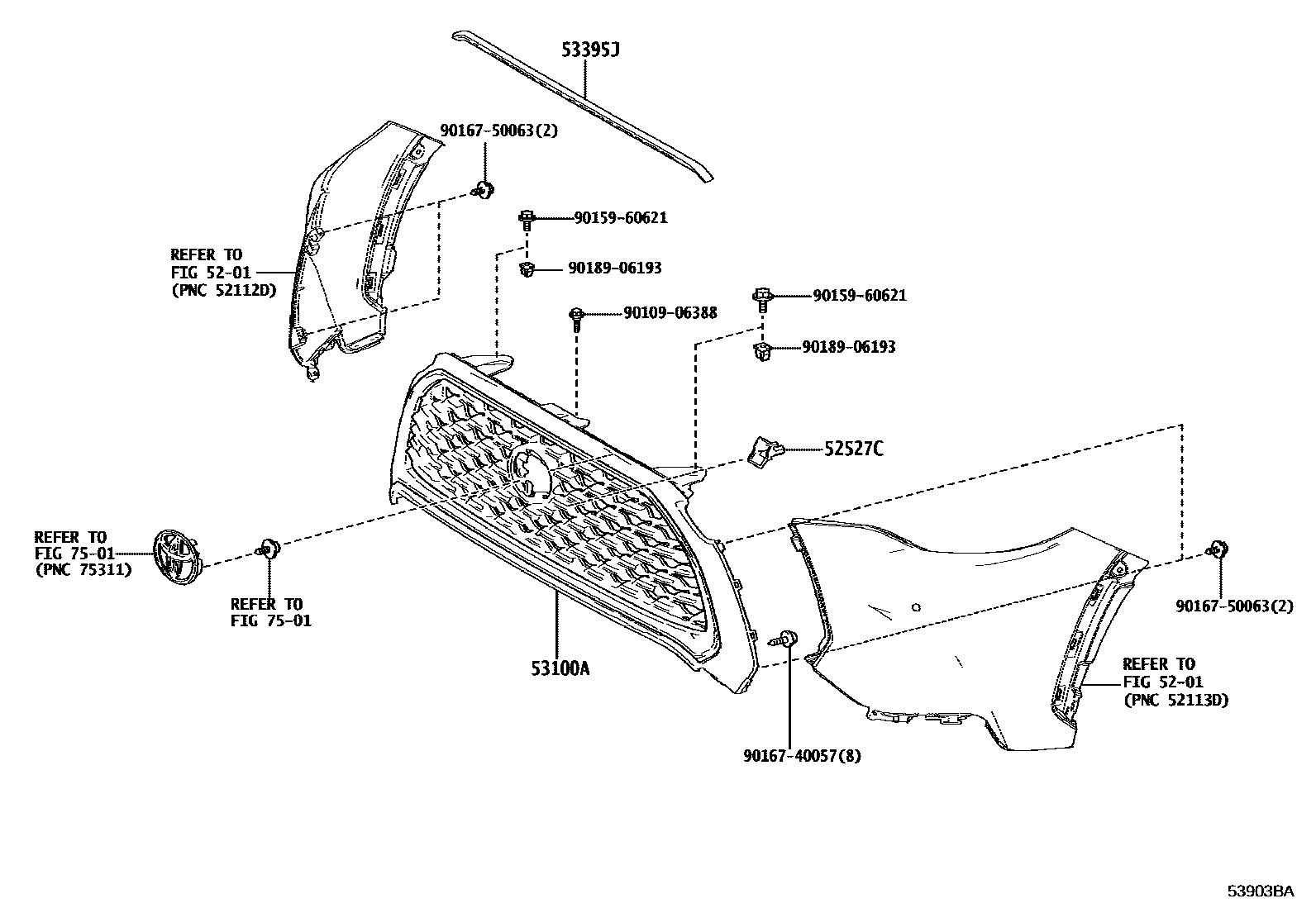

Toyota COROLLA radiator grille — Figure 5301
Toyota COROLLA EPC diagram 5301, radiator grille, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52527C | Front bumper No. 2 lower fixing bracket | 52527-02070 |
| 53100A | Radiator grille assembly | 53100-0A190 · 53100-0A200 |
| 53395J | Engine cover to front end plate seal | 53395-0A090 |
