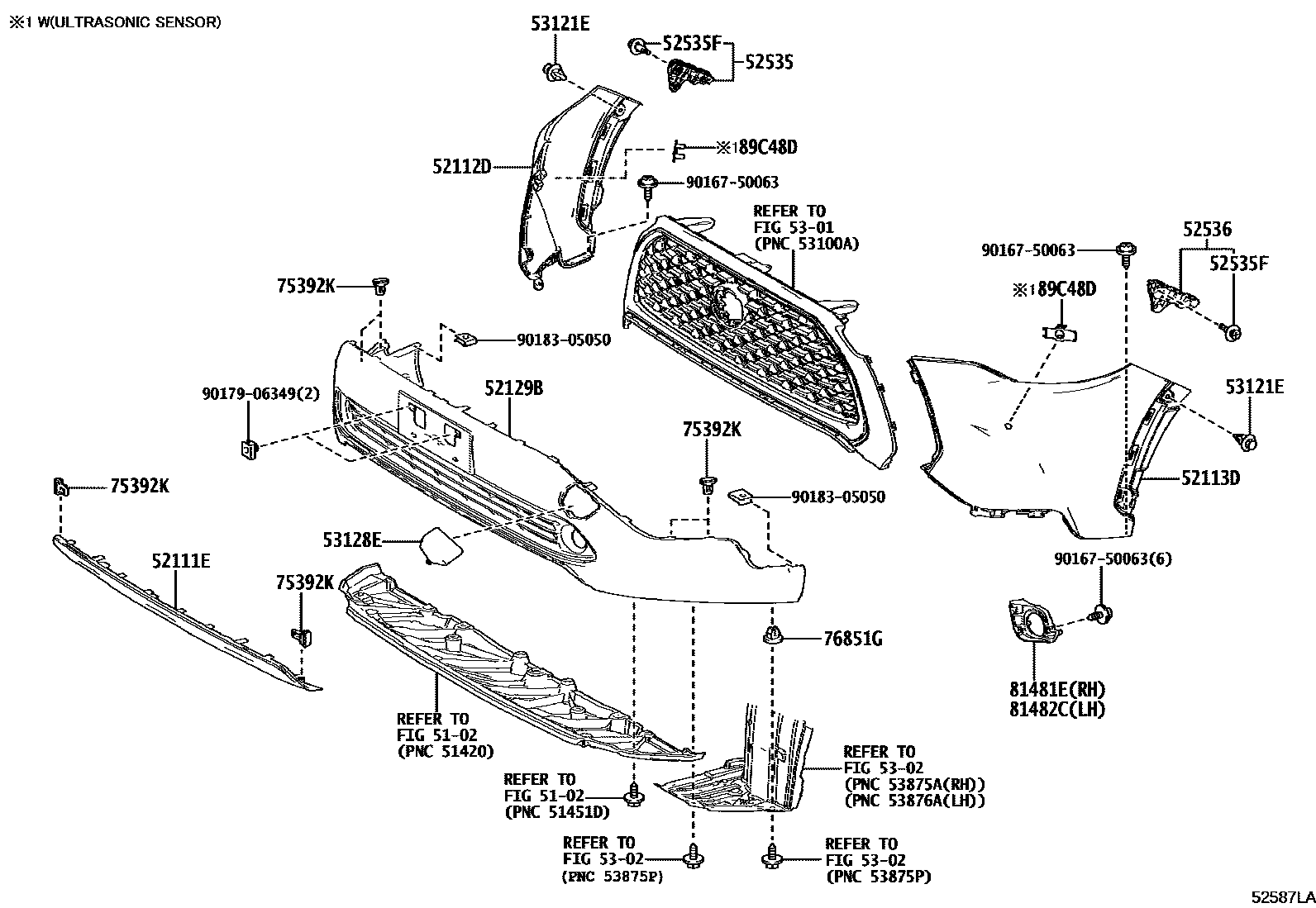

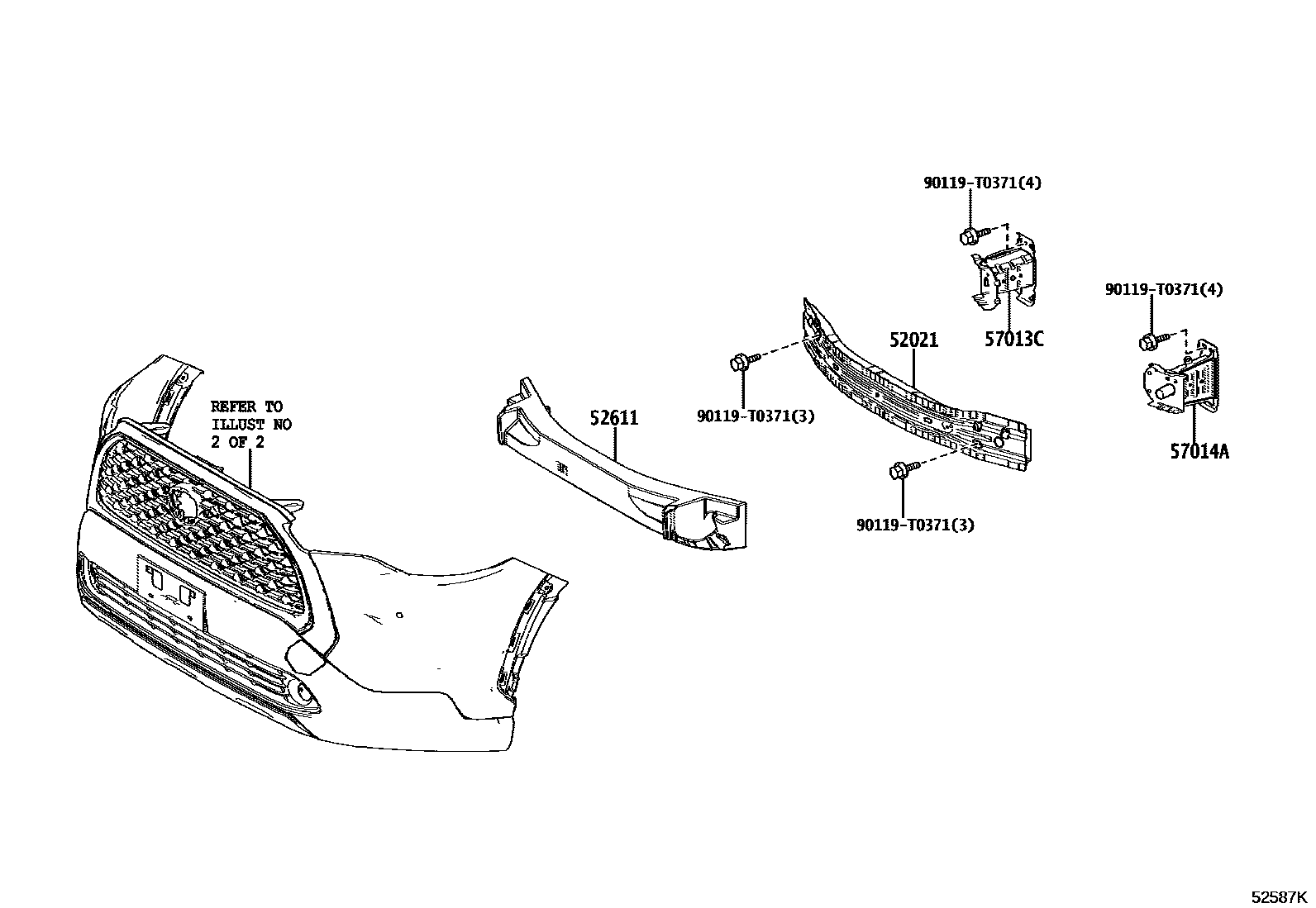

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52021 | Front bumper reinforcement sub-assembly | 52021-02320 |
| 52111E | front bumper stay | 52111-0A907 |
| 52112D | Front bumper right extension | 52112-0A912 · 52112-0A913 |
| 52113D | Front bumper left extension | 52113-0A912 · 52113-0A913 |
| 52129B | Front bumper lower cover | 52129-0A130 |
| 52535 | Front bumper right side fixing bracket | 52535-0A010 |
| 52535F | Front bumper side fixing clip | 90467-09237 |
| 52536 | Front bumper left fixed bracket | 52536-0A010 |
| 52611 | front bumper energy absorber | 52611-0A100 |
| 53121E | Clamp No. 1 (for front bumper) | 90467-07220 |
| 53128E | Lower left radiator grille | 53128-0A100 |
| 57013C | Right front longitudinal beam bracket sub-assembly | 57013-02210 |
| 57014A | Left front longitudinal beam bracket sub-assembly | 57014-02210 |
| 75392K | No. 2 outer protective strip fixings | 75392-0K010 |
| 76851G | No. 1 screw seal | 90189-06193 |
| 81481E | Right fog light cover | 81481-0A150 · 81481-0A160 |
| 81482C | Left fog light cover | 81482-0A150 · 81482-0A160 |
| 89C48D | Front angle ultrasonic sensor holder | 89348-0A060 |
