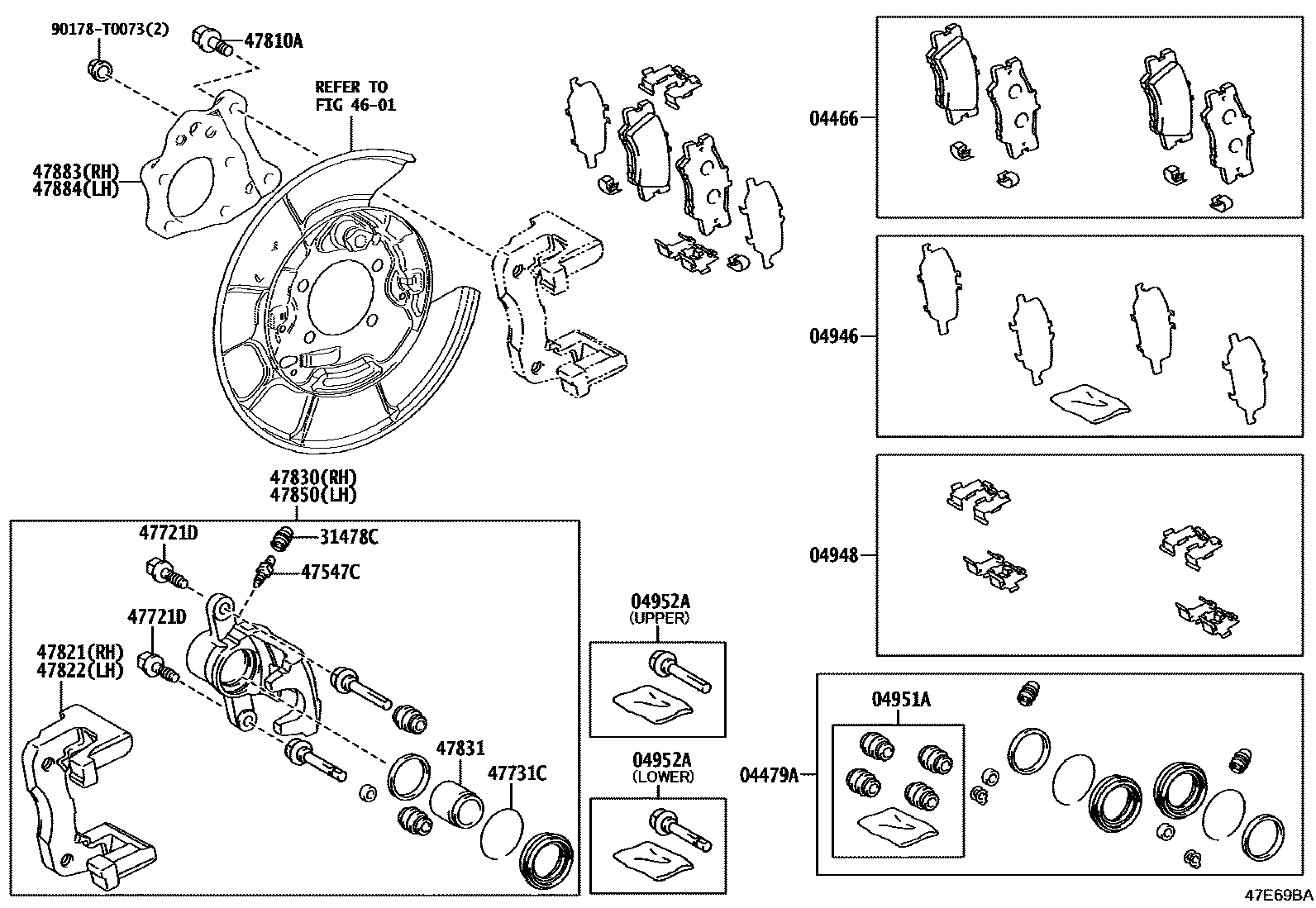

Toyota COROLLA 后盘式制动器卡钳和防尘罩 — Figure 4707
Toyota COROLLA EPC diagram 4707, 后盘式制动器卡钳和防尘罩, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04466 | Rear disc brake pad assembly | 04466-0A010 |
| 04479A | Rear disc brake cylinder assembly | 04479-0A010 |
| 04946 | Silencer spacer assembly (for rear disc brake) | 04946-0A010 |
| 04948 | Rear disc brake mounting assembly | 04948-0A010 |
| 04951A | Rear disc brake bushing assembly | 04951-0K040 |
| 04952A | Rear disc brake cylinder sliding pin assembly | 04952-0K080 · 04952-0K090 |
| 31478C | Bleed plug cap (for rear disc brake) | 31478-06010 |
| 47547C | Bleed plug (for rear disc brake) | 47547-20010 |
| 47721D | Bolt (for rear disc brake cylinder retainer) | 90016-AA603 |
| 47731C | retaining ring (for rear disc brake piston) | 90016-AU501 |
| 47810A | Hexagonal bolt (for rear brake caliper) | 90105-12208 |
| 47821 | Right rear disc brake cylinder retainer | 47821-0A010 |
| 47822 | Left rear disc brake cylinder retainer | 47822-0A010 |
| 47830 | Right rear disc brake cylinder assembly | 47830-0A010 |
| 47831 | rear disc brake piston | 47831-06090 |
| 47850 | Left rear disc brake cylinder assembly | 47850-0A010 |
| 47883 | Right rear brake caliper bracket | 47883-0A010 |
| 47884 | Left rear brake caliper bracket | 47884-0A010 |
