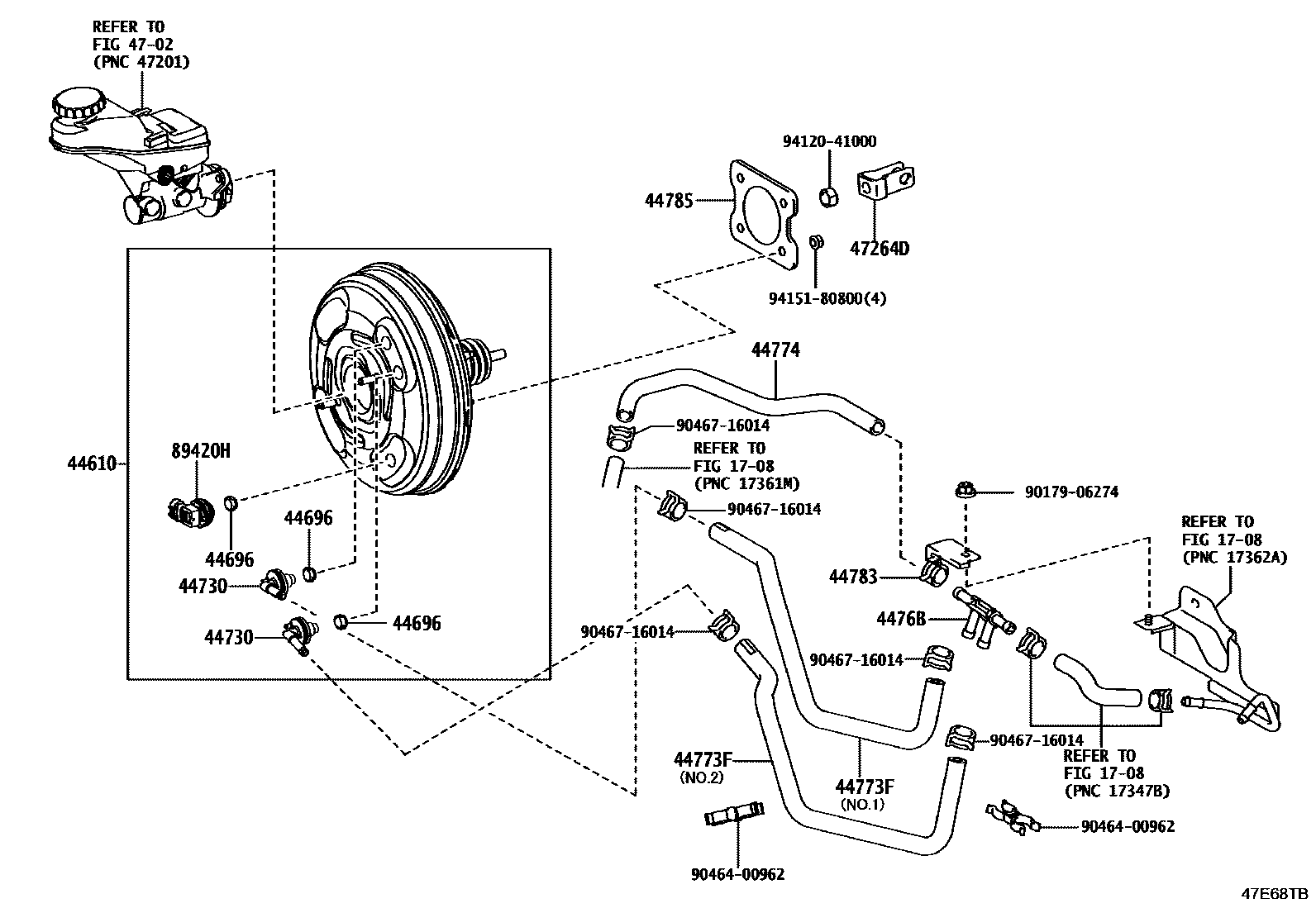

Toyota COROLLA 制动助力器和真空管 — Figure 4703
Toyota COROLLA EPC diagram 4703, 制动助力器和真空管, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-16680 |
| 44696 | One-way valve seal | 90480-24439 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-52010 |
| 4476B | Brake booster vacuum injection pump | 4476B-48010 |
| 44773F | Hoses (connector to check valve) | 44773-16220 · 44773-16230 |
| 44774 | Hoses (joints to connector tubes) | 44774-12A50 |
| 44783 | Vacuum hose clamp | 44783-10010 |
| 44785 | brake booster pad | 44785-12040 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-12060 |
| 89420H | Vacuum sensor assembly | 89421-52020 |
