Toyota COROLLA Parking Brake & Cable — Figure 4601

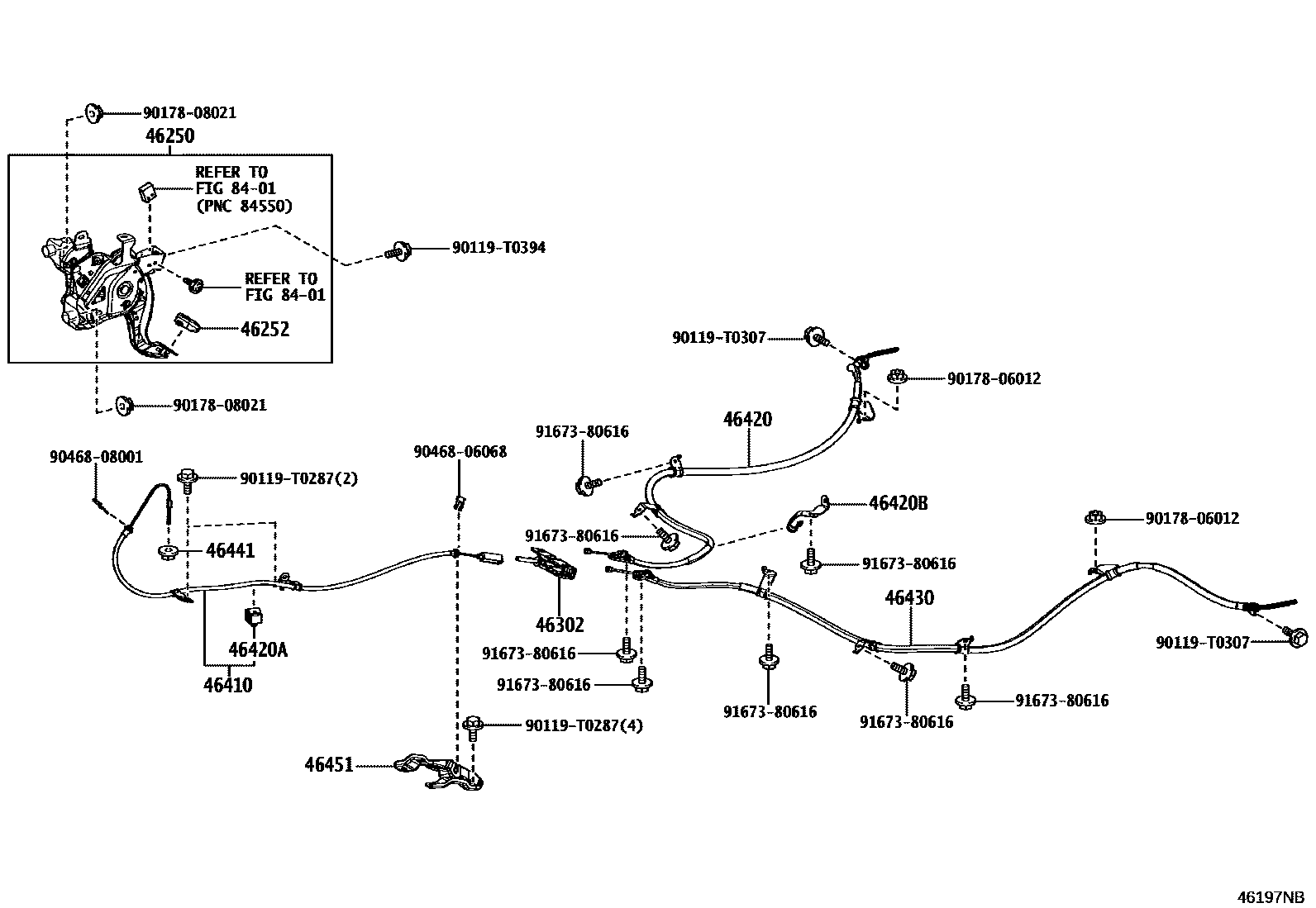

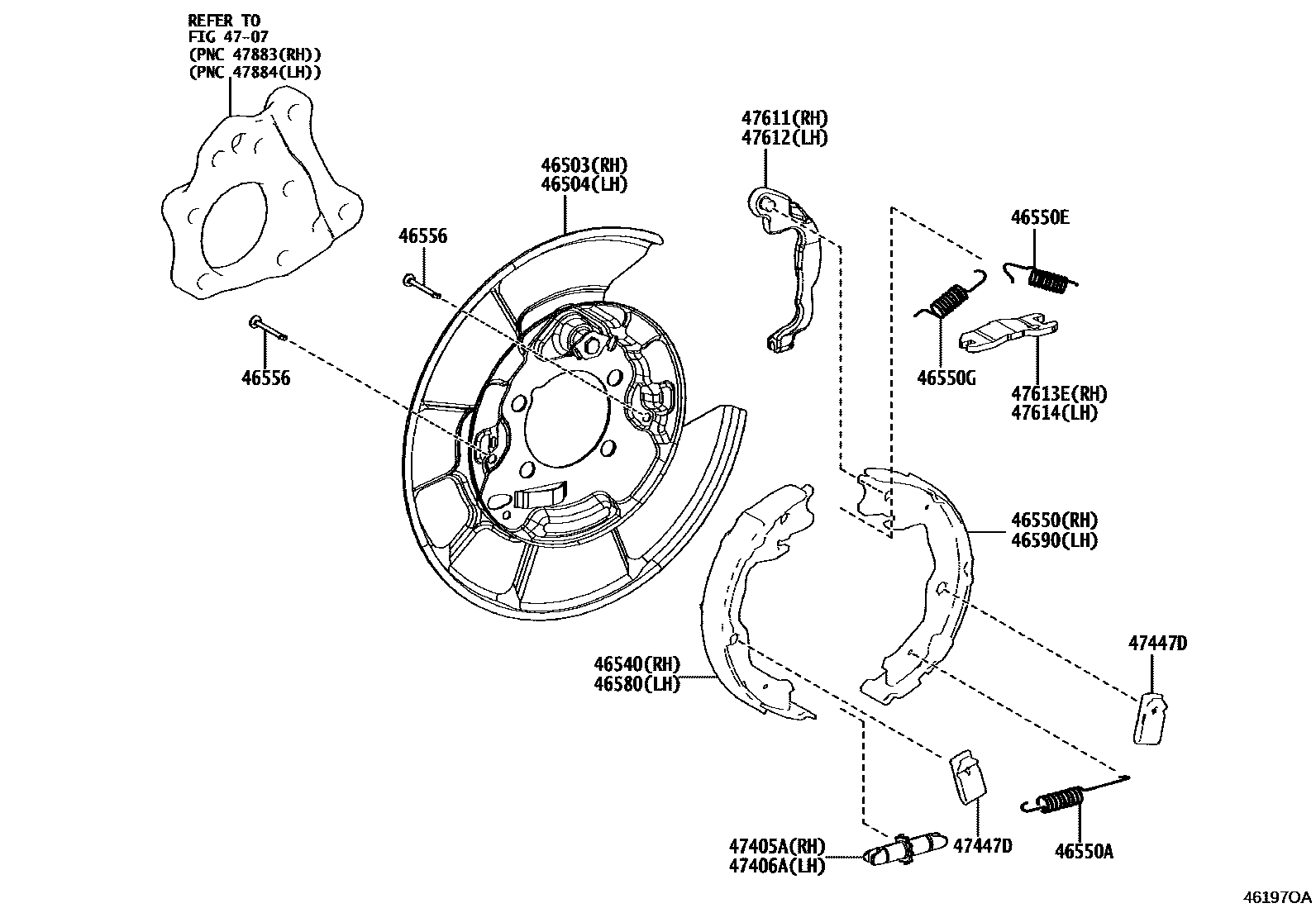

Toyota COROLLA EPC diagram 4601, Parking Brake & Cable, with 2 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46250 | Parking brake pedal assembly without cable | 46250-0A010 |
| 46252 | Parking brake pedal pad | 46252-0A010 |
| 46302 | No. 1 parking brake lever sub-assembly | 46302-0A020 |
| 46410 | Parking brake cable assembly No. 1 | 46410-0A020 |
| 46420 | Parking brake No. 2 cable assembly | 46420-0A020 |
| 46420A | Clamp No. 1 (for parking brake cable) | 46402-12030 |
| 46420B | Clamp No. 2 (for parking brake cable) | 46421-0A010 |
| 46430 | Parking brake No. 3 cable assembly | 46430-0A020 |
| 46441 | No. 1 cable adjustment nut | 90177-06003 |
| 46451 | cable bracket | 46451-0A120 |
| 46503 | Right parking brake pad sub-assembly | 46503-0A010 |
| 46504 | Left parking brake pad sub-assembly | 46504-0A010 |
| 46540 | No. 1 right or middle parking brake shoe assembly | 46540-0A010 |
| 46550 | No. 2 right or middle parking brake shoe assembly | 46540-0A010 |
| 46550A | No. 1 tension spring (used for parking brake shoe return) | 90905-06046 |
| 46550E | No. 2 tension spring (used for parking brake shoe return) | 90015-DY005 · 90015-DY006 |
| 46550G | No. 3 tension spring (used for parking brake shoe return) | 90905-06043 |
| 46556 | Brake shoe limit spring pin | 46556-0A010 |
| 46580 | No. 1 left parking brake shoe assembly | 46540-0A010 |
| 46590 | No. 2 left parking brake shoe assembly | 46540-0A010 |
| 47405A | Right brake shoe adjustment screw assembly (for parking brake) | 46605-0A010 |
| 47406A | Left brake shoe adjustment screw assembly (for parking brake) | 46606-0A010 |
| 47447D | Compression spring (for parking brake shoe limit) | 47446-32010 |
| 47611 | Right parking brake shoe lever | 46601-42040 |
| 47612 | Left parking brake shoe lever | 46602-42040 |
| 47613E | Right parking brake shoe push rod | 46612-42040 |
| 47614 | Left parking brake shoe push rod | 46622-42040 |
