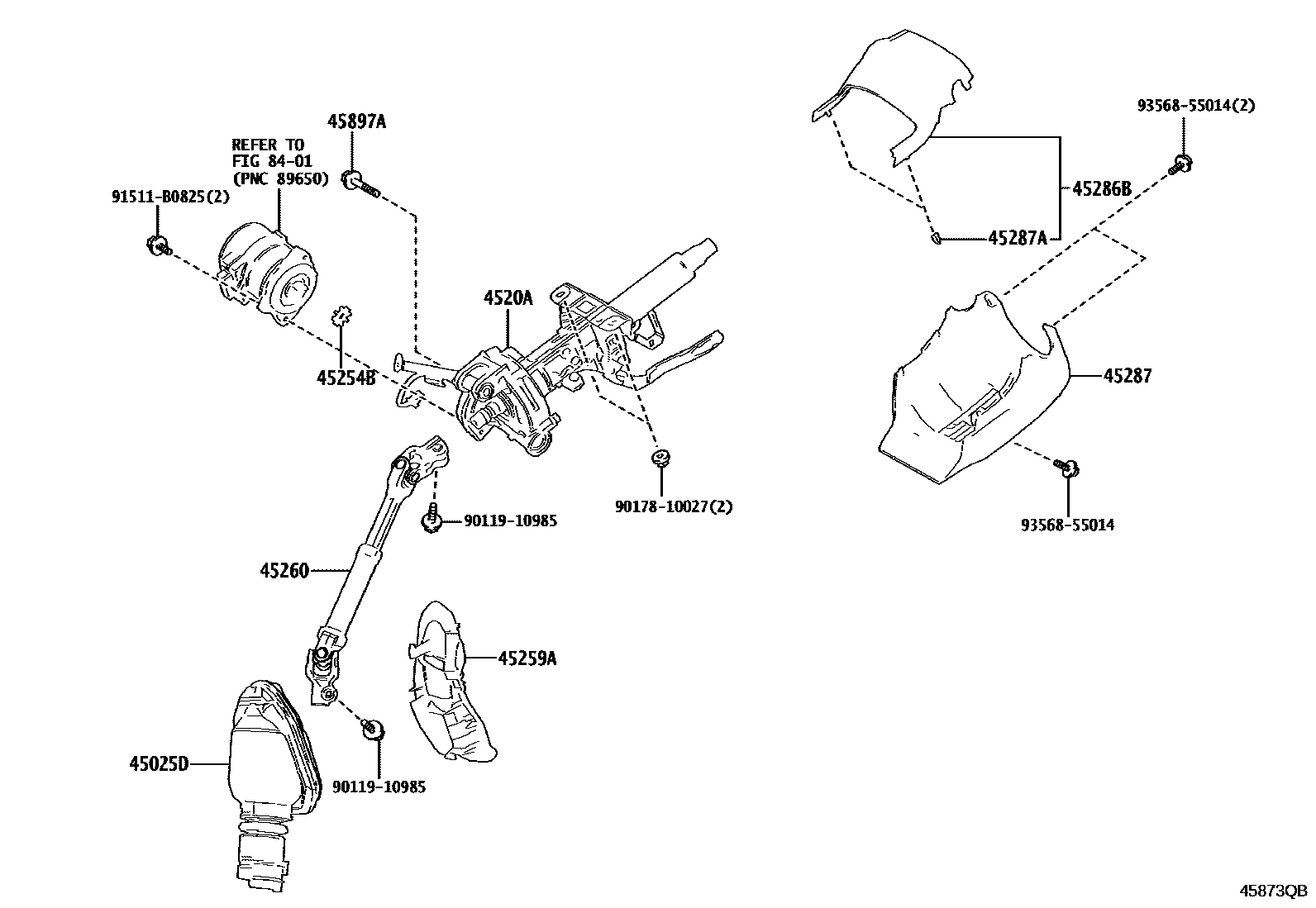

Toyota COROLLA Steering Column & Shaft — Figure 4501
Toyota COROLLA EPC diagram 4501, Steering Column & Shaft, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-0A050 |
| 4520A | Electric steering column sub-assembly | 4520A-0A010 |
| 45254B | Electric steering motor shaft shock absorber | 45254-28040 |
| 45259A | Steering column hole cover silencer plate | 45259-0A050 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-F4030 |
| 45287A | Clip (for steering column cover) | 90467-05171 |
| 45897A | Tilt-adjustable steering pawl retaining bolt | 90119-10981 |
