Toyota COROLLA Front Drive Shaft — Figure 4302

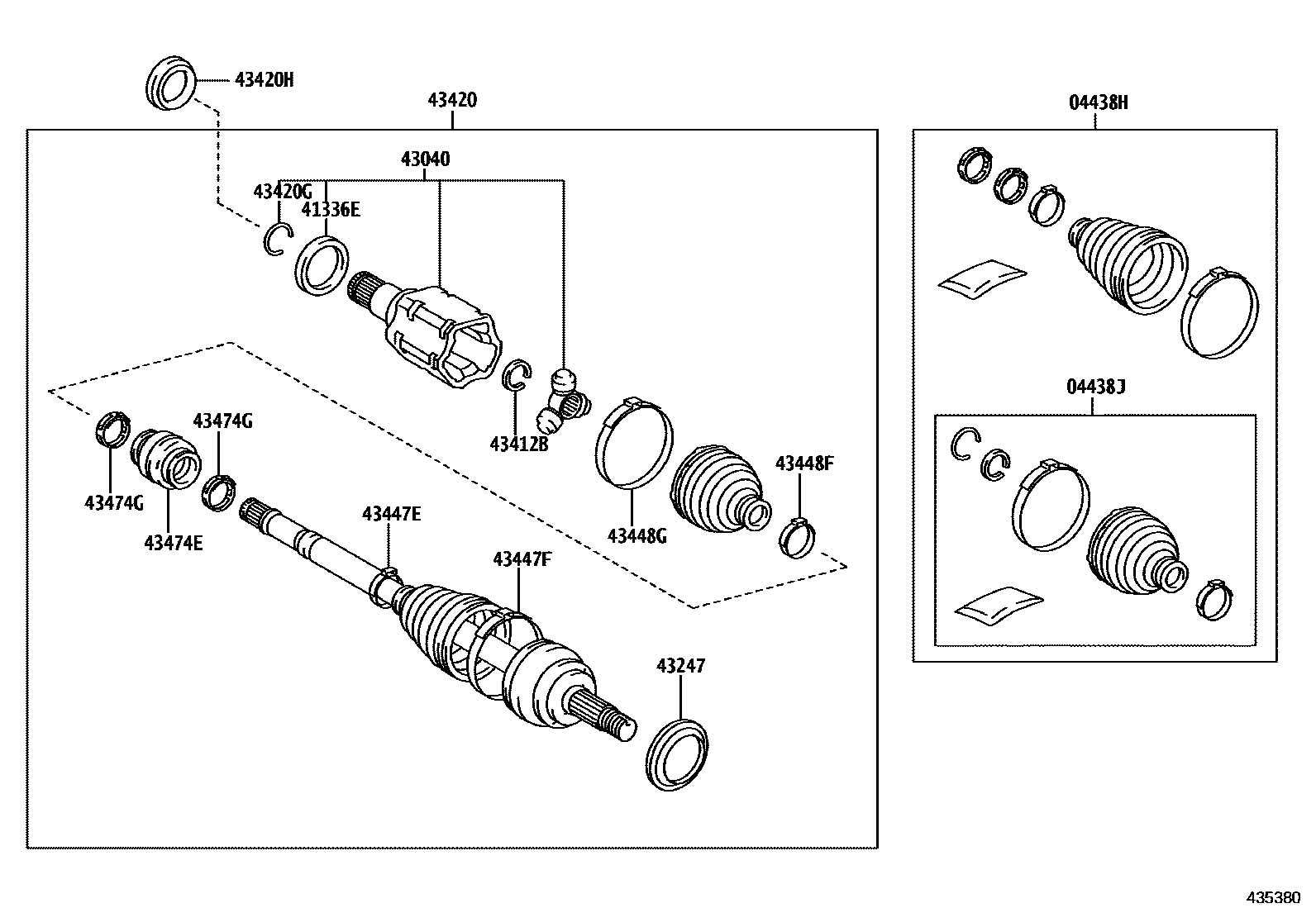

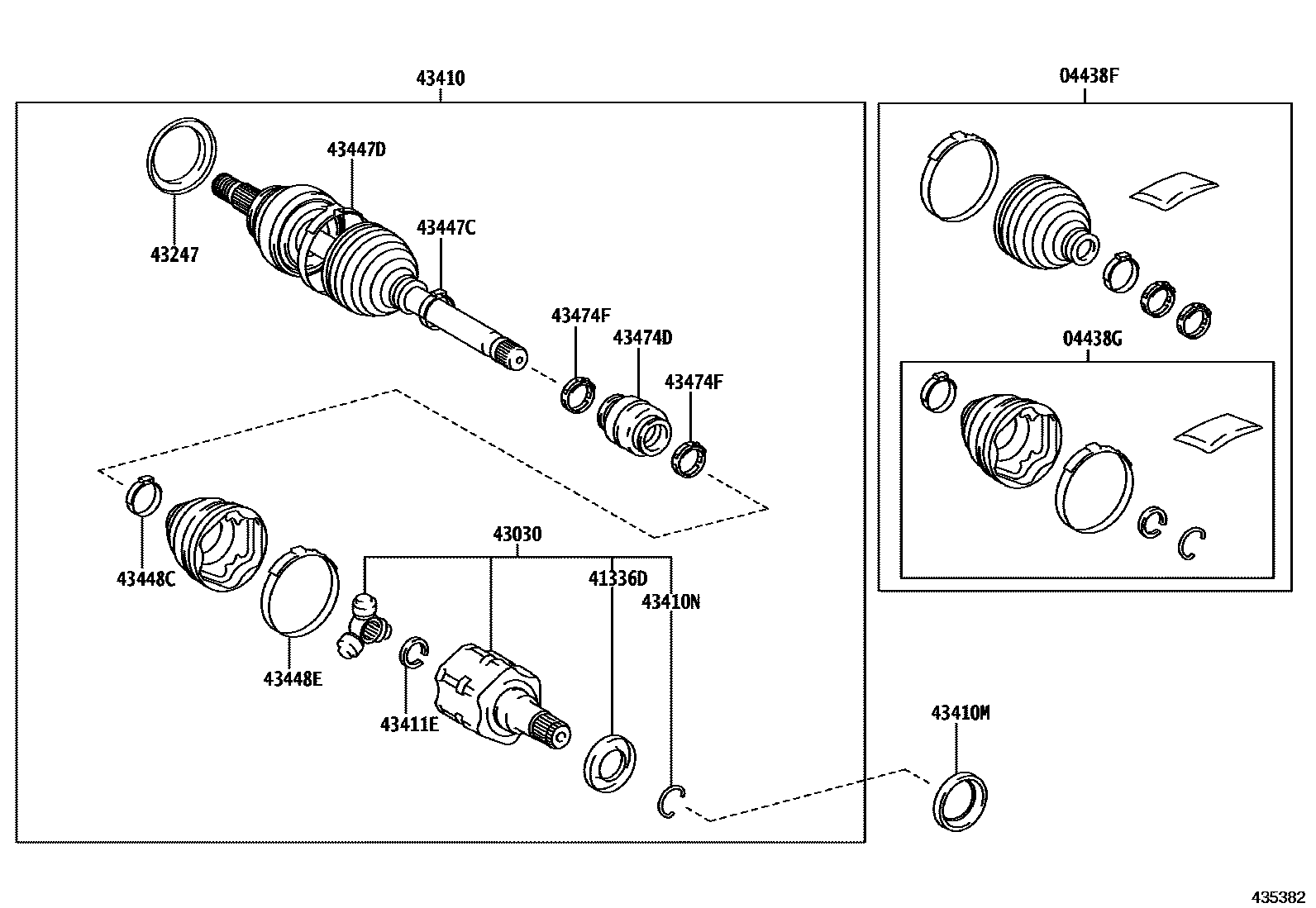

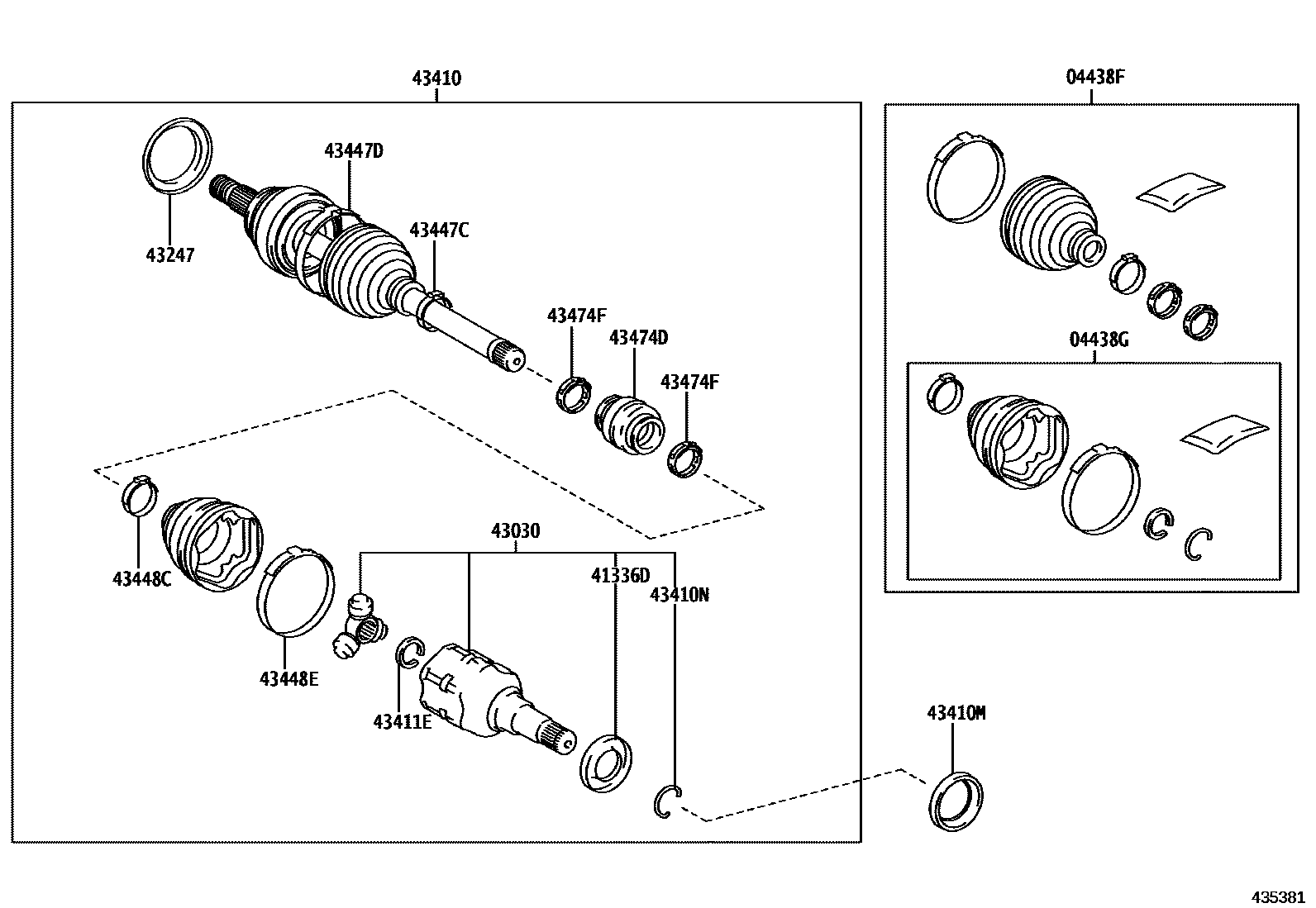

Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 4 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-0D412 · 04427-0D562 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-0D270 · 04437-0D390 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04427-0D412 · 04428-0D542 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04437-0D270 · 04437-0D390 |
| 41336D | Right front driveshaft dust cover | 41336-02360 · 41336-0D130 |
| 41336E | Left front driveshaft dust cover | 41336-02400 · 41336-0D130 |
| 43030 | Right front drive shaft inner universal joint assembly | 43040-02250 · 43040-0D060 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-02500 · 43040-0D060 |
| 43247 | No. 2 front wheel bearing dust cover | 43247-47010 |
| 43410 | Right front driveshaft assembly | 43410-0A070 · 43410-0A080 |
| 43410M | Front drive shaft right oil seal | 90311-35076 · 90311-40038 |
| 43410N | Hole snap ring (for right front driveshaft) | 43425-02610 · 43425-0D440 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-0D420 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-0D420 |
| 43420 | Left front drive shaft assembly | 43420-0A070 · 43420-0A080 |
| 43420G | Hole snap ring (for left front driveshaft) | 43425-02610 · 43425-0D440 |
| 43420H | Front drive shaft left oil seal | 90311-35080 · 90311-50064 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-0DB10 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-0DB30 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-0DB10 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-0DB30 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-0DB10 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-0DB00 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-0DB10 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-0DB00 |
| 43474D | Right front driveshaft shock absorber | 43474-0A010 · 43474-0A030 |
| 43474E | Left front driveshaft shock absorber | 43474-02670 · 43474-0A020 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-02E10 · 42345-0DA50 |
| 43474G | Clamp (for left front driveshaft shock absorber) | 42345-0DA50 |
