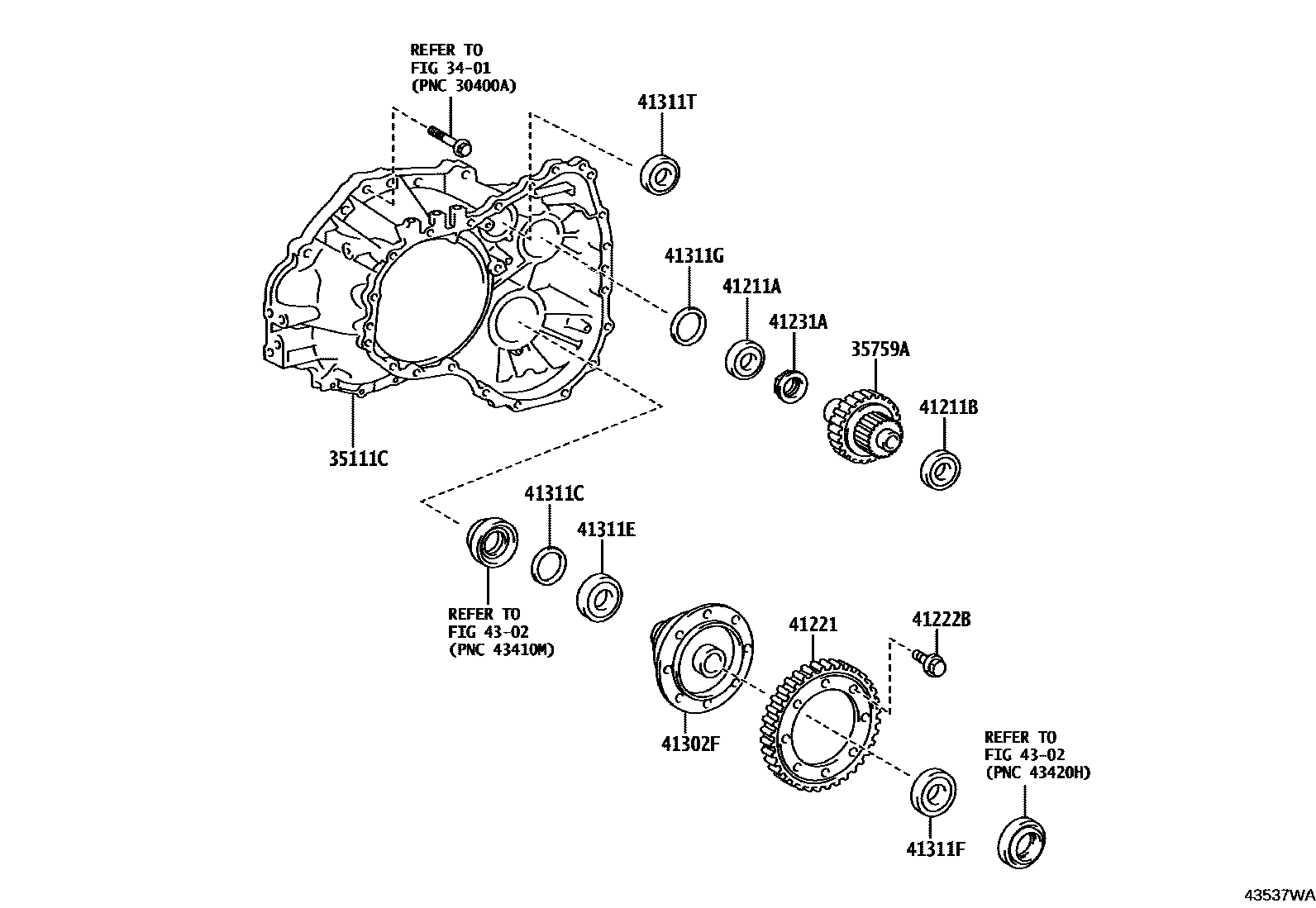

Toyota COROLLA 前桥壳和差速器 — Figure 4301
Toyota COROLLA EPC diagram 4301, 前桥壳和差速器, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35111C | Transmission axle housing | 35105-12091 |
| 35759A | Reduction driven gear | 35705-12030 |
| 41211A | Front roller tapered bearing (for front driving pinion) | 90366-25021 |
| 41211B | Rear tapered bearing (for front driving pinion) | 90366-29010 |
| 41221 | Front differential ring gear | 41221-12620 |
| 41222B | Bolt (for front differential ring gear assembly) | 90105-12379 |
| 41231A | Drive pinion lock nut | 90179-32006 |
| 41302F | Front differential housing sub-assembly | 41301-12381 |
| 41311C | Rear gasket (for front differential case) | 90564-48001 · 90564-48002 · 90564-48003 · 90564-48004 · 90564-48005 · 90564-48006 · 90564-48007 · 90564-48008 · 90564-48009 · 90564-48010 · 90564-48011 · 90564-48012 · 90564-48013 · 90564-48014 · 90564-48015 · 90564-48016 · 90564-48017 · 90564-48018 · 90564-48019 · 90564-48020 |
| 41311E | Roller cone bearing (for front differential housing) | 90366-40117 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-44007 |
| 41311G | Front flat washer (for front differential case) | 90564-47001 · 90564-47002 · 90564-47003 · 90564-47004 · 90564-47005 · 90564-47006 · 90564-47007 · 90564-47008 · 90564-47009 · 90564-47010 · 90564-47011 · 90564-47012 · 90564-47013 · 90564-47014 · 90564-47015 · 90564-47016 · 90564-47017 · 90564-47018 · 90564-47019 |
| 41311T | Roller bearing (for secondary pulley shaft) | 90365-24001 |
