Toyota COROLLA 燃油喷射系统 — Figure 2211

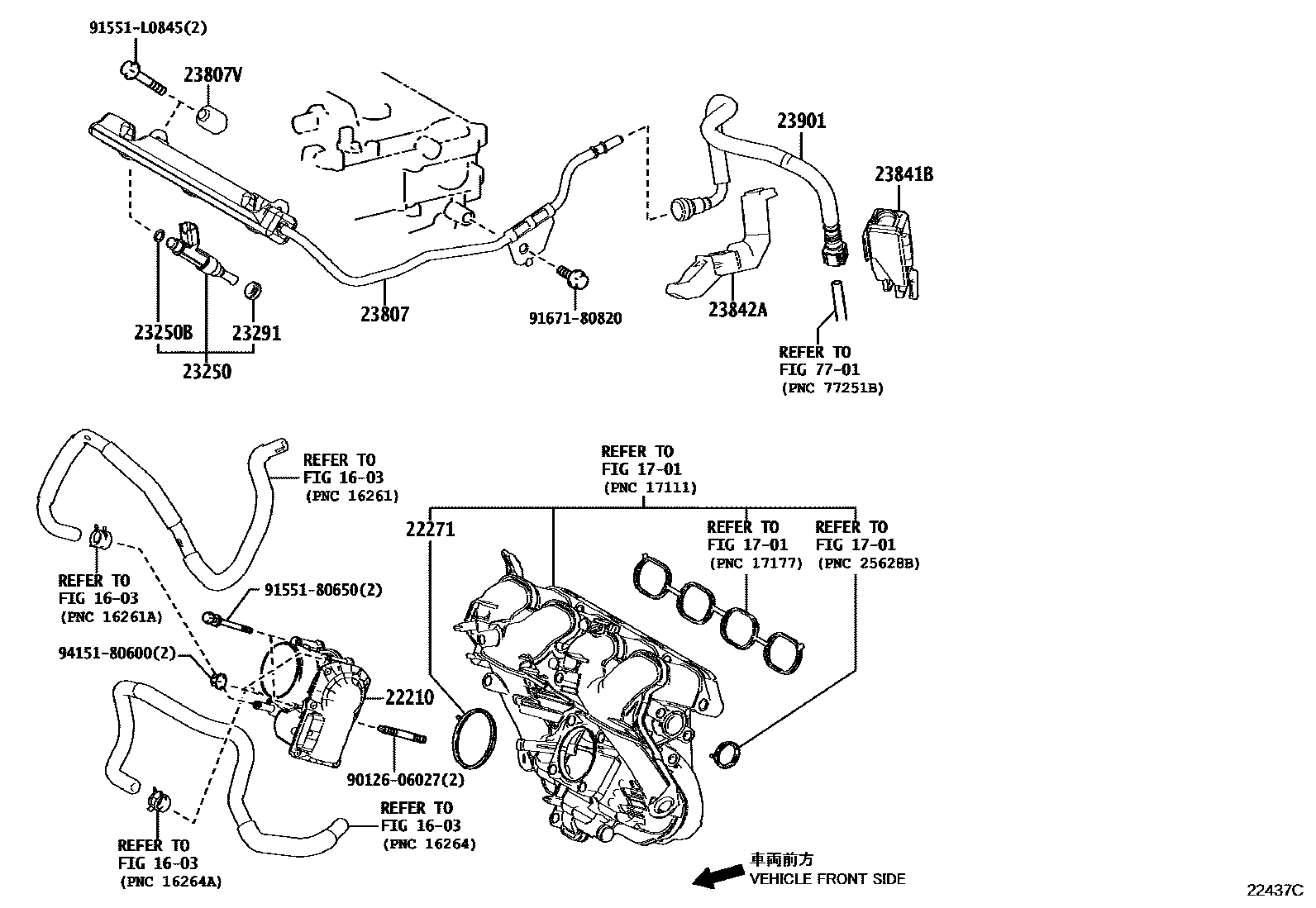

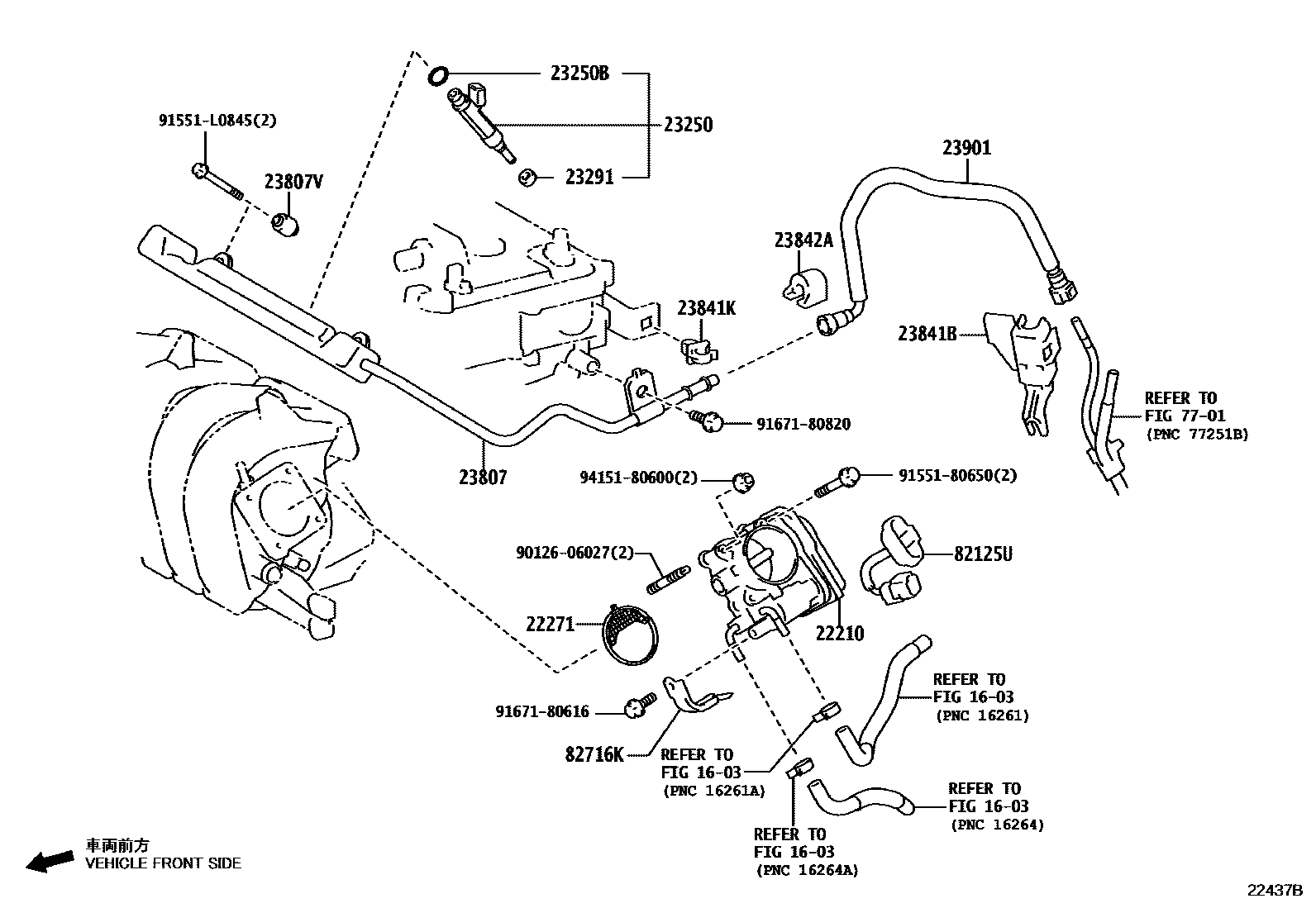

Toyota COROLLA EPC diagram 2211, 燃油喷射系统, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22210 | Throttle body assembly | 22030-37060 · 22030-37090 |
| 22271 | Throttle body gasket | 22271-37020 · 22271-75031 |
| 23250 | Fuel injector assembly | 23209-39146 · 23209-39295 |
| 23250B | O-ring (for fuel injector) | 90301-07037 |
| 23291 | Injector vibration isolation pad | 23291-28020 |
| 23807 | Oil pipe sub-assembly | 23814-37051 · 23814-37100 |
| 23807V | No. 1 spacer (for oil pipe) | 23891-37010 |
| 23841B | No. 1 fuel pipe clamp (for EFI) | 23841-0T042 |
| 23841K | Fuel pipe clamp | 23841-0T130 |
| 23842A | No. 2 fuel line clamp (for EFI) | 23841-37131 · 23842-22020 |
| 23901 | Fuel pipe sub-assembly | 23901-0T280 · 23901-0T290 |
| 82125U | Engine No. 5 wiring harness | 82125-F4010 |
| 82716K | Wire harness clamp bracket | 82715-10400 |
