Toyota COROLLA Alternator — Figure 1903

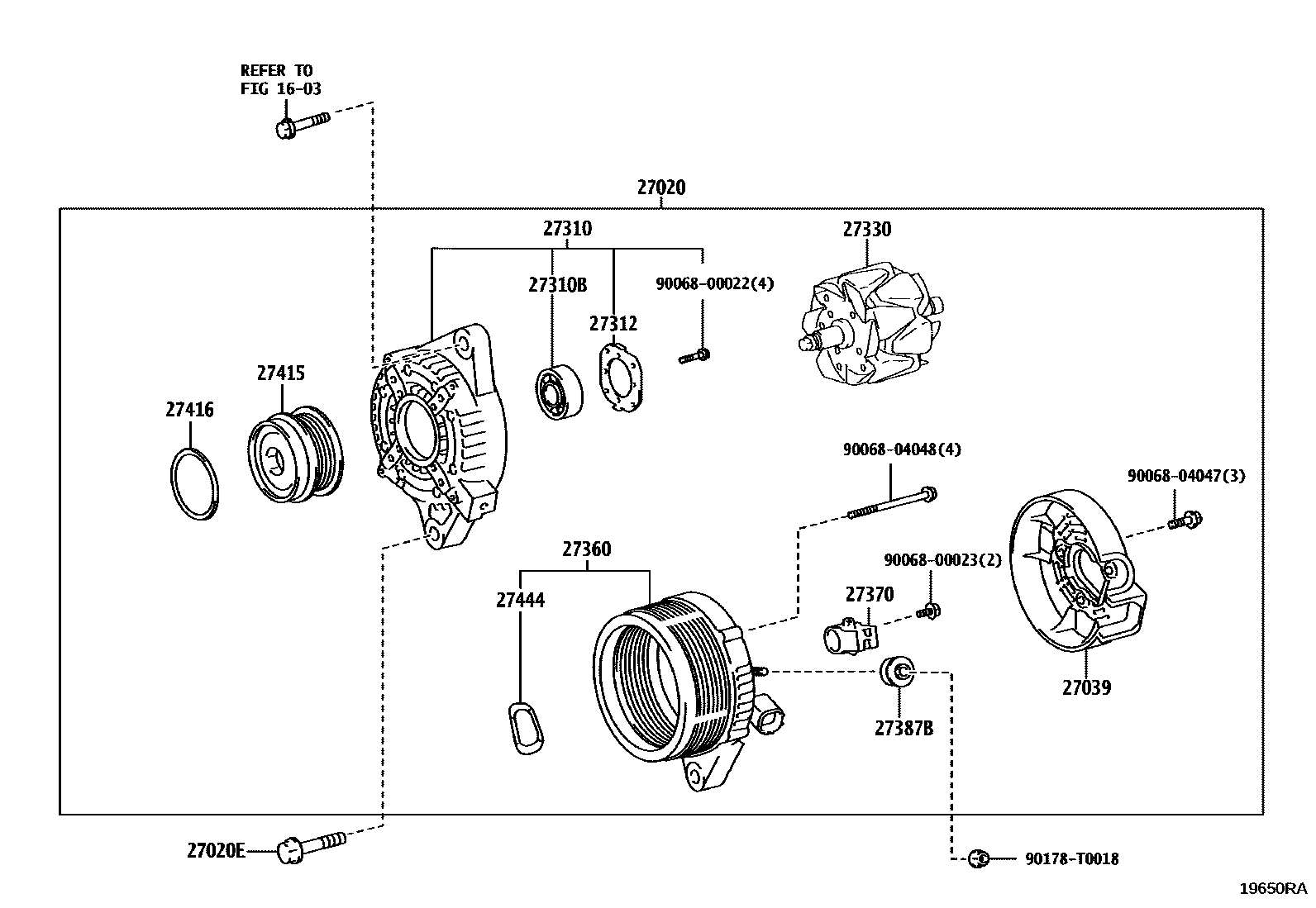

Toyota COROLLA EPC diagram 1903, Alternator, with 1 images and 13 PNC and OE references.

Toyota COROLLA Alternator EPC diagram — 19650RA
Alternator — 19650RA (202312 – 999999)

PNC and OE references

PNCPart nameOE numbers
27020Alternator Assembly27060-0T391 · 27060-0T470
27020EBolts (for generator)90105-10307
27039Alternator Rear End Cover27039-0M100
27310Alternator Drive End Frame Assembly27310-0T270
27310BBearing (for Alternator Drive End Frame)90068-10029
27312Retainer Plate27312-0C020
27330Alternator Rotor Assembly27330-0M100
27360Alternator Stator Coil Assembly27360-0T390
27370Alternator Brush Holder Assembly27370-0M040
27387BGenerator terminal insulation pad27387-0C020
27415PULLEY, ALTERNATOR W/CLUTCH27415-0T070
27416Generator pulley cover27416-0W050
27444Generator bearing cap seals27444-0Y180
