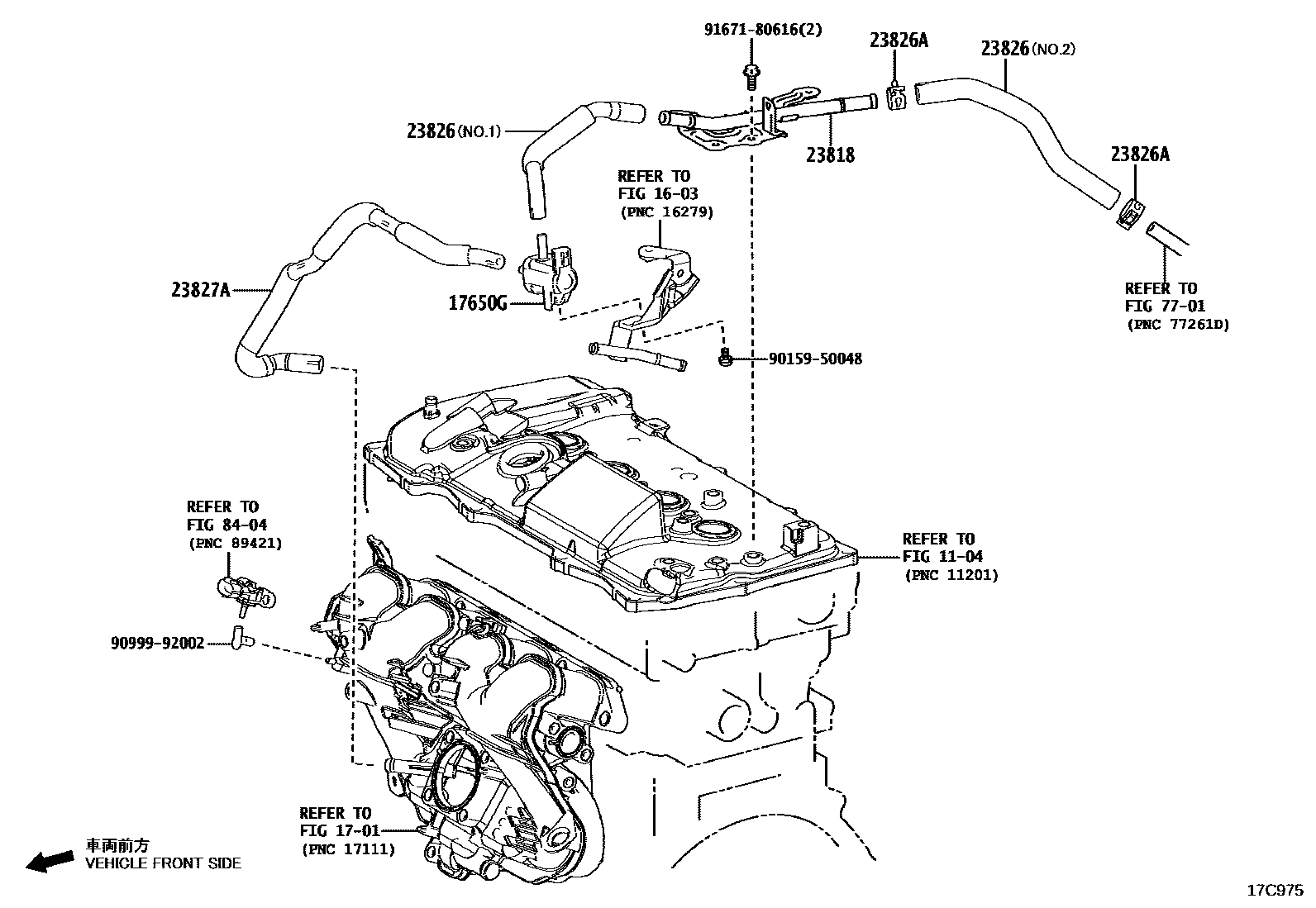

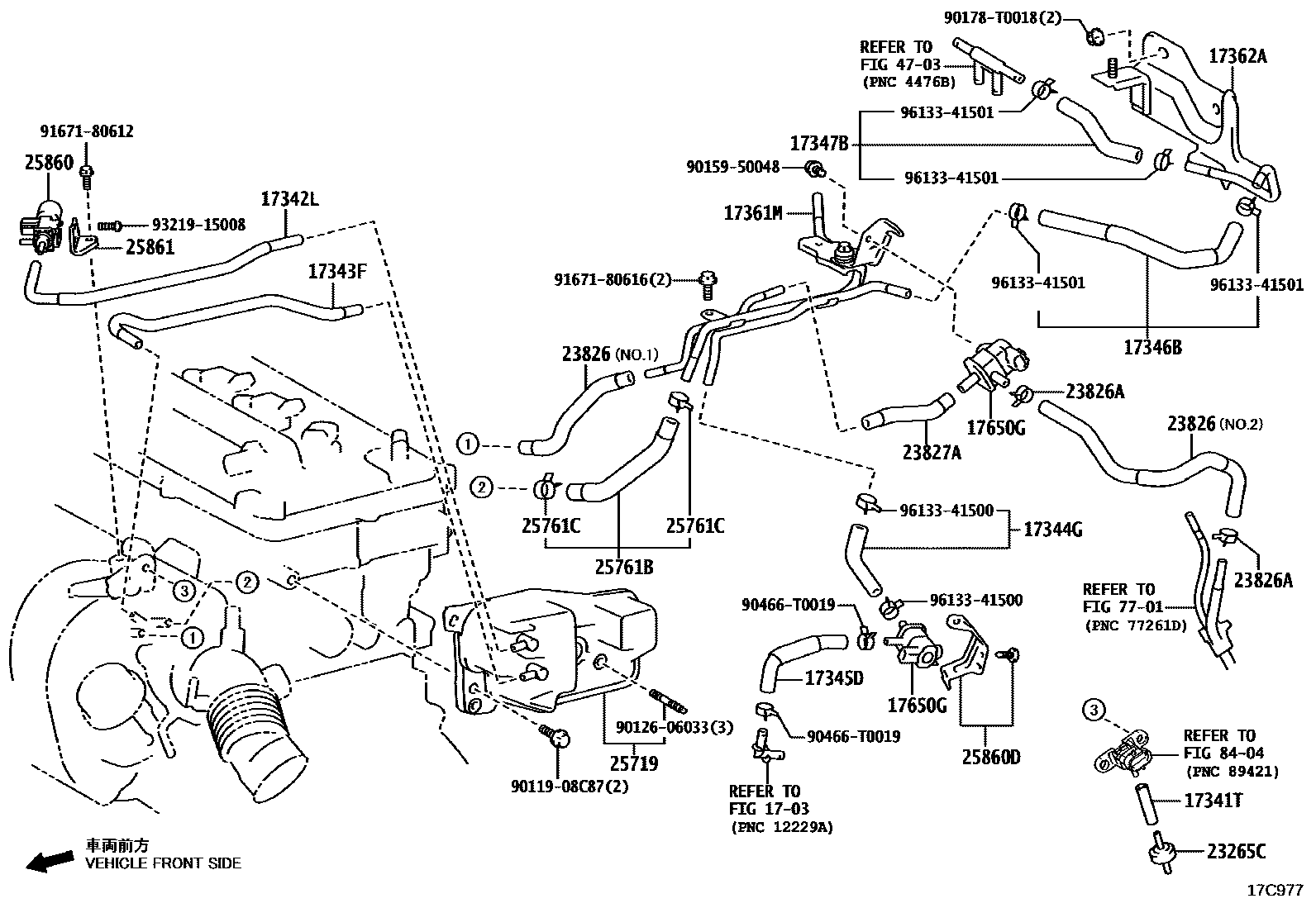

Toyota COROLLA vacuum tube — Figure 1708
Toyota COROLLA EPC diagram 1708, vacuum tube, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17341T | Air hose No. 1 | 17341-37080 |
| 17342L | Air hose No. 2 | 17342-37060 |
| 17343F | No. 3 air hose | 17343-37040 |
| 17344G | No. 4 air hose | 17344-37040 |
| 17345D | No. 5 air hose | 17345-0T040 |
| 17346B | No. 6 air hose | 17346-0T010 |
| 17347B | No. 7 air hose | 17347-0T010 |
| 17361M | air tube | 17361-37120 |
| 17362A | No. 2 air pipe | 17362-0T010 |
| 17650G | Duty cycle controlled vacuum switching valve | 90910-12276 |
| 23265C | gas filter | 90917-11030 |
| 23818 | Fuel vapor supply pipe | 23818-37050 |
| 23826 | No. 1 fuel vapor supply hose | 23826-0T360 · 23826-0T370 · 23826-37250 · 23826-37331 · 23826-37340 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 96132-51300 · 96136-41901 |
| 23827A | No. 2 fuel vapor supply hose | 23827-37060 · 23827-37070 |
| 25719 | Vacuum pressure tank | 25719-37011 |
| 25761B | No. 1 Vacuum Transfer Hose | 25761-37041 |
| 25761C | Clamp (No. 1 vacuum transfer hose) | 96133-41500 |
| 25860 | No. 1 vacuum switch valve assembly | 90910-12281 |
| 25860D | No. 2 vacuum switch valve assembly | 25860-0T020 |
| 25861 | Vacuum switch valve bracket | 25861-37010 |
