Toyota COROLLA RADIATOR & WATER OUTLET — Figure 1603

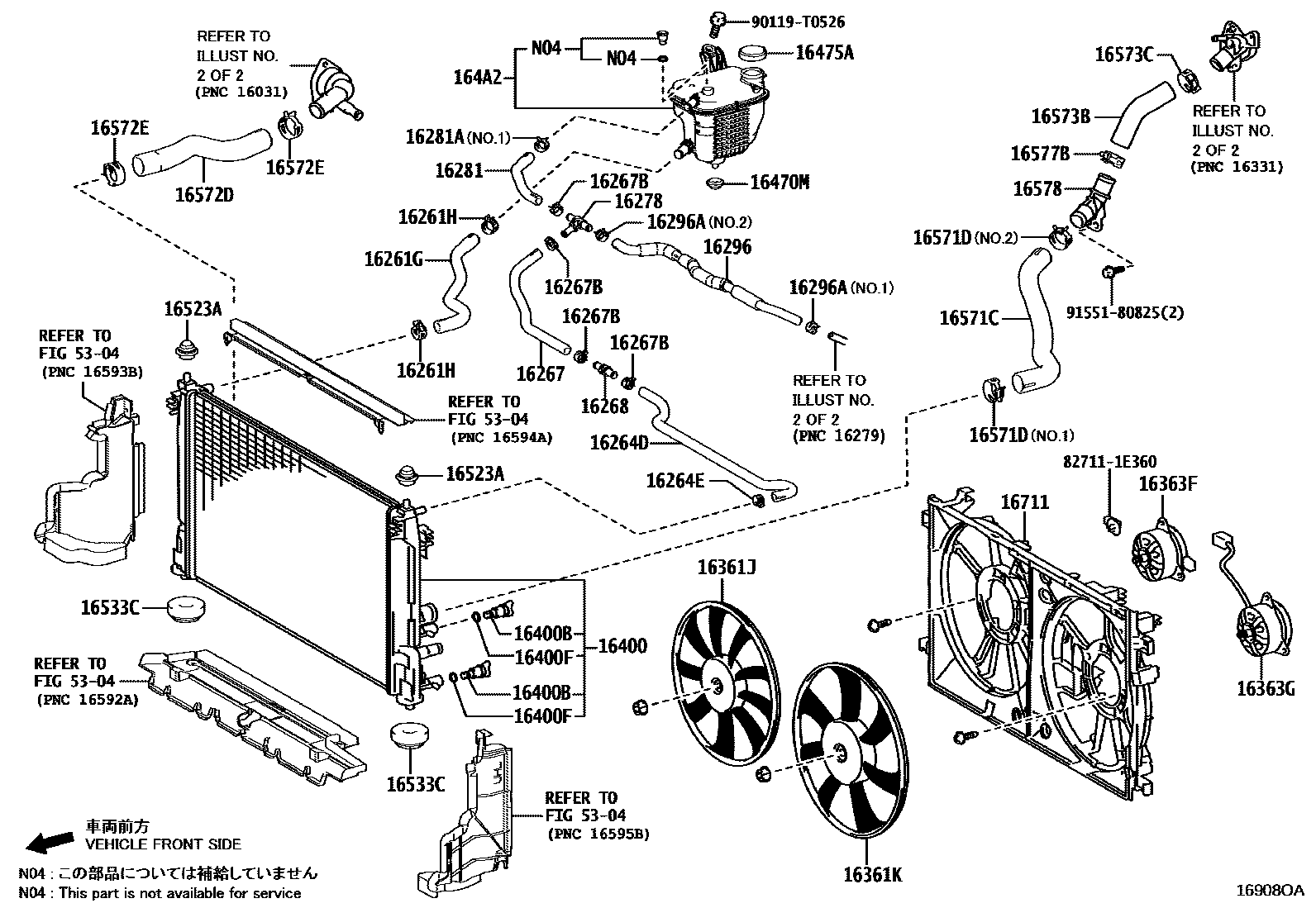

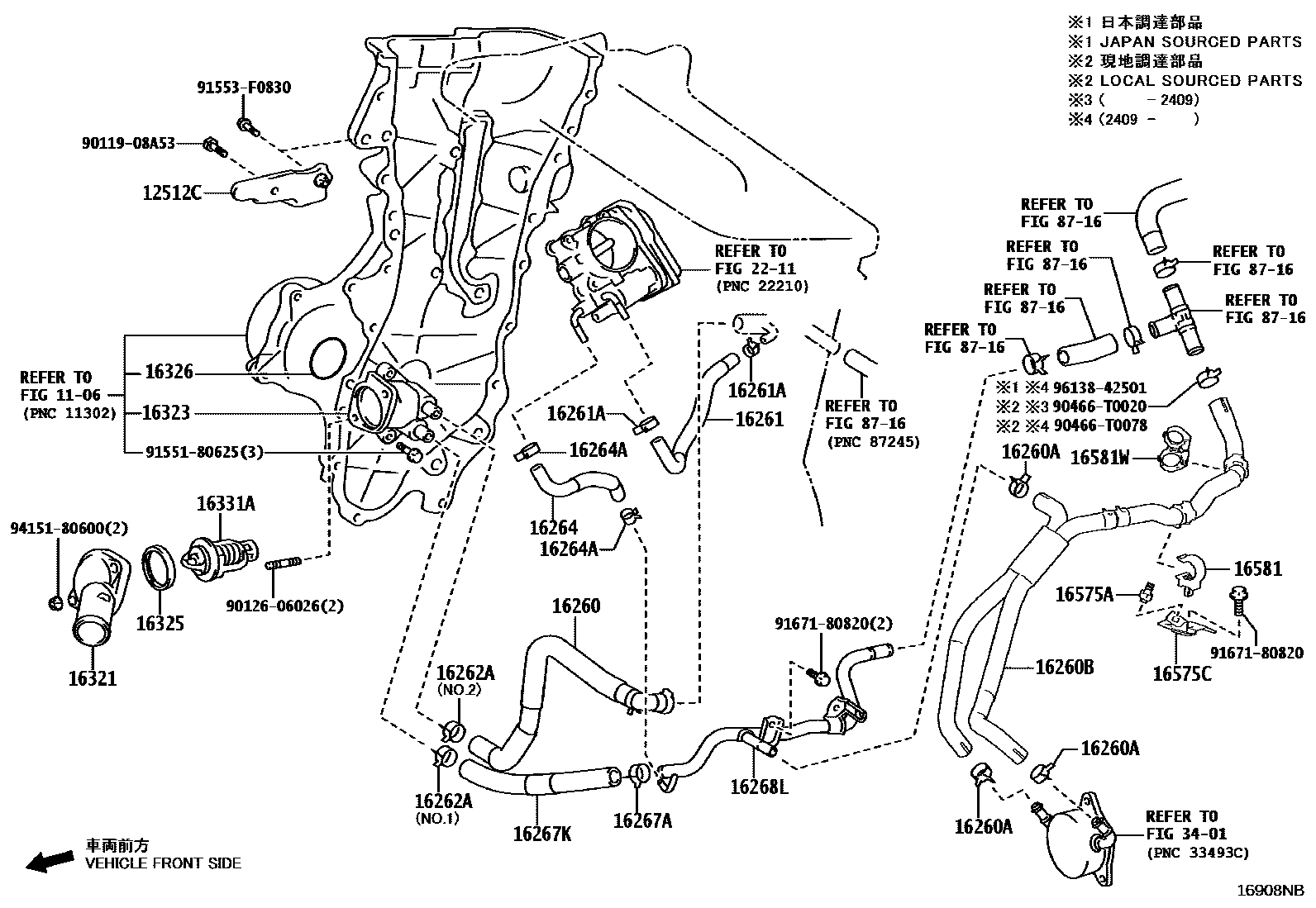

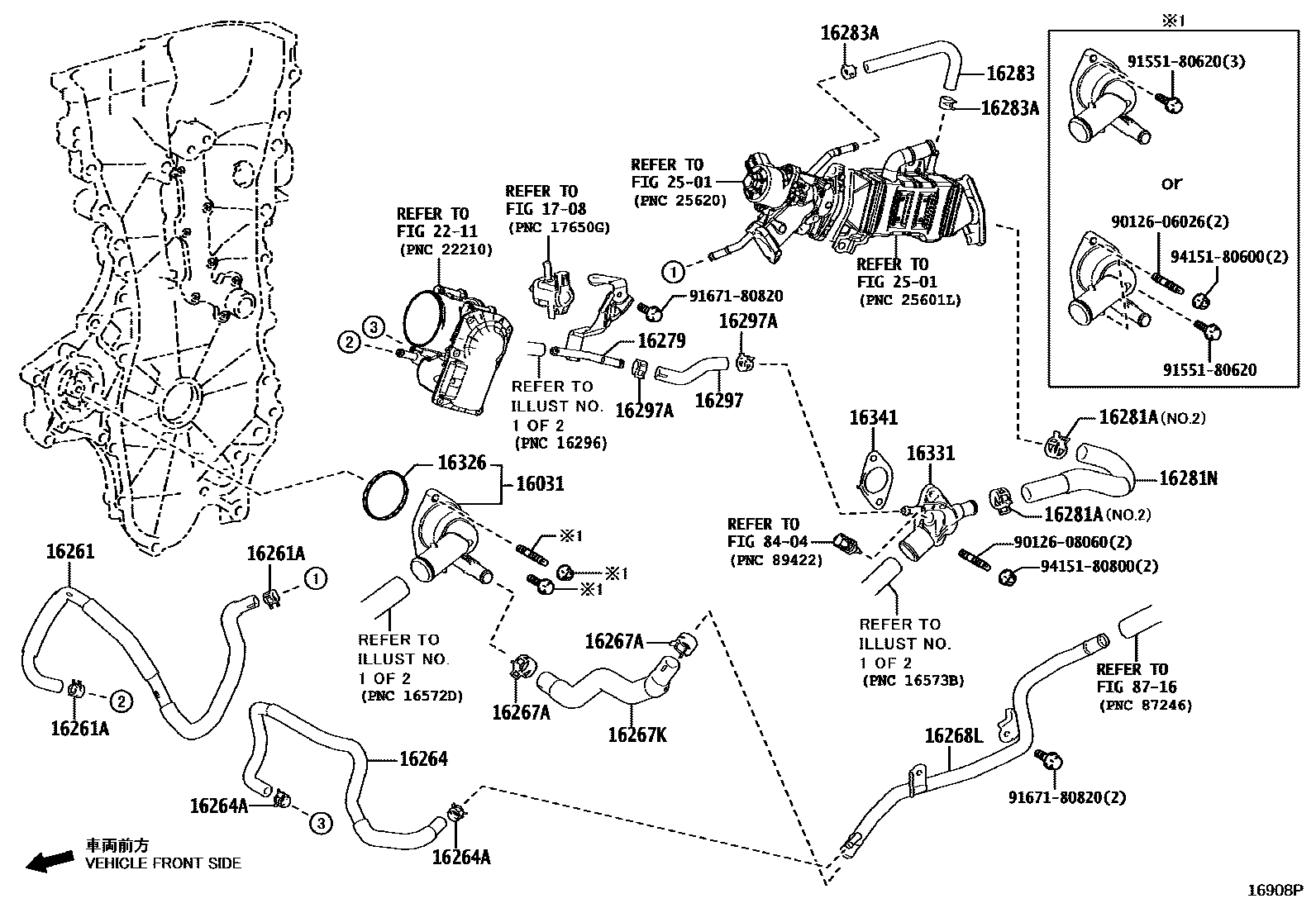

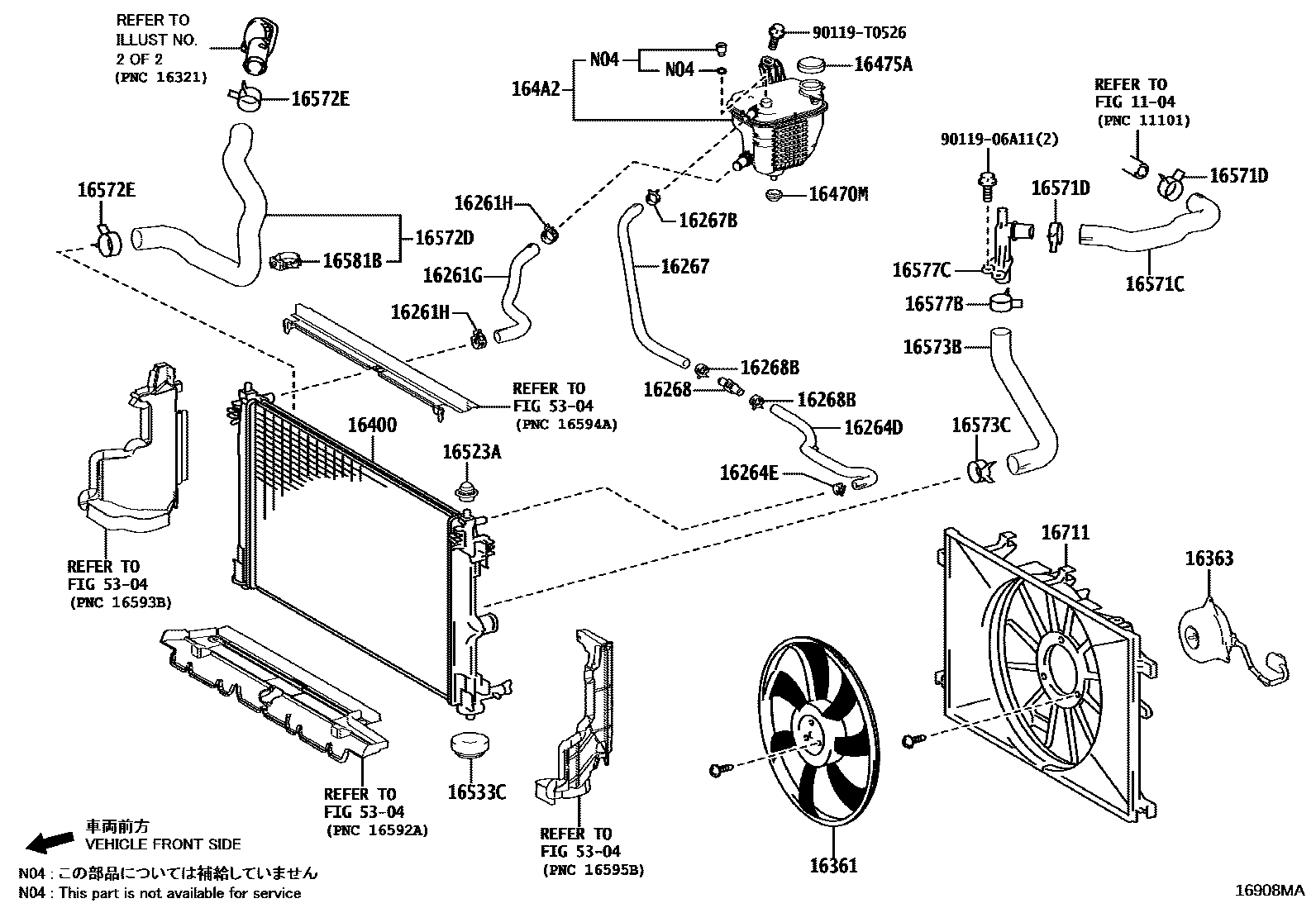

Toyota COROLLA EPC diagram 1603, RADIATOR & WATER OUTLET, with 4 images and 68 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12512C | No. 2 generator bracket | 12512-37010 |
| 16031 | INLET SUB-ASSY, WATER W/THERMOSTAT | 16031-37010 |
| 16260 | Water bypass hose assembly | 16260-37180 |
| 16260A | Clamp (for water bypass hose assembly) | 96134-41900 |
| 16260B | Water bypass pipe assembly | 16260-0T180 |
| 16261 | HOSE, WATER BY-PASS | 16261-37160 · 16261-37200 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 96137-41501 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-0T300 · 16261-0T310 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 90466-T0020 · 90466-T0078 · 96138-42501 |
| 16262A | Clamp (for water inlet hose) | 96136-42501 · 96138-42501 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-37130 · 16264-37210 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 96137-41501 |
| 16264D | HOSE, WATER BY-PASS, NO.2 | 16264-0T250 · 16264-0T270 |
| 16264E | CLIP, WATER BY-PASS HOSE NO.2 | 96136-41901 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-0T220 · 16267-0T240 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 96136-42501 |
| 16267B | Clip (for water bypass hose) | 90466-T0017 · 96136-41901 |
| 16267K | HOSE, WATER BY-PASS, NO.3 | 16267-37010 · 16267-37100 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-0T200 |
| 16268B | Hose clamp or clip (for water bypass pipe) | 96136-41901 |
| 16268L | PIPE, WATER BY-PASS | 16268-37060 · 16268-37150 |
| 16278 | PIPE, WATER BY-PASS, NO.2 | 16268-0T190 |
| 16279 | No. 3 water bypass pipe | 16279-37020 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-0T170 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 90466-T0017 · 96136-42501 |
| 16281N | HOSE, WATER BY-PASS, NO.4 | 16281-37191 |
| 16283 | HOSE, WATER BY-PASS, NO.6 | 16283-37021 |
| 16283A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.6 | 96137-41501 |
| 16296 | HOSE, WATER BY-PASS, NO.8 | 16296-0T020 |
| 16296A | CLIP, WATER BY-PASS HOSE NO.8 | 90466-16004 · 96136-41901 |
| 16297 | No. 9 water bypass hose | 16297-37010 |
| 16297A | Clamp (for No. 9 water bypass hose) | 96137-41701 |
| 16321 | water inlet | 16321-37010 |
| 16323 | HOUSING, WATER INLET | 16323-37040 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-28010 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-37020 · 16326-37030 |
| 16331 | Water outlet | 16331-37100 |
| 16331A | thermostat | 90916-03151 · 90916-03152 |
| 16341 | GASKET, WATER OUTLET | 16341-37010 |
| 16361 | Fan | 16361-0T240 |
| 16361J | Right fan | 16361-37070 |
| 16361K | left fan | 16361-37060 |
| 16363 | cooling fan motor | 16363-0T240 |
| 16363F | Right cooling fan motor | 16363-24160 |
| 16363G | Left cooling fan motor | 16363-24170 |
| 16400 | Radiator assembly | 16400-0T640 · 16400-37410 |
| 16400B | Radiator drain switch screw plug | 16417-21280 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 |
| 16470M | gasket | 90480-18010 |
| 16475A | Reservoir tank cover | 16475-28140 |
| 164A2 | Closed reservoir water tank without lid | 164A2-0T050 |
| 16523A | Radiator bracket cushion | 16523-0T100 |
| 16533C | Gasket (for radiator bracket) | 90480-40021 |
| 16571C | Radiator hose No. 1 | 16571-0T320 · 16571-0T340 |
| 16571D | No. 1 radiator hose clip | 96136-43901 · 96136-44301 |
| 16572D | Radiator hose No. 2 | 16572-0T260 · 16572-0T280 |
| 16572E | No. 2 radiator hose clip | 96136-44301 |
| 16573B | Radiator hose No. 3 | 16573-0T160 · 16573-0T180 |
| 16573C | No. 3 radiator hose clamp or clip | 96136-43901 · 96136-44301 |
| 16575A | No. 5 radiator hose clip | 90949-01C99 |
| 16575C | No. 1 water hose clamp bracket | 16575-0T100 |
| 16577B | Hose clamps or clips (for radiator pipes) | 96136-43901 |
| 16577C | radiator pipe | 16577-0T170 |
| 16578 | Radiator pipe No. 2 | 16577-0T160 |
| 16581 | Hose clamp (for water hose) | 16581-0T170 |
| 16581B | Hose clamp (for radiator hose) | 16581-25030 |
| 16581W | Hose clamp (for water hose) | 16581-0T130 |
| 16711 | fan cover | 16711-0T420 · 16711-37160 |
