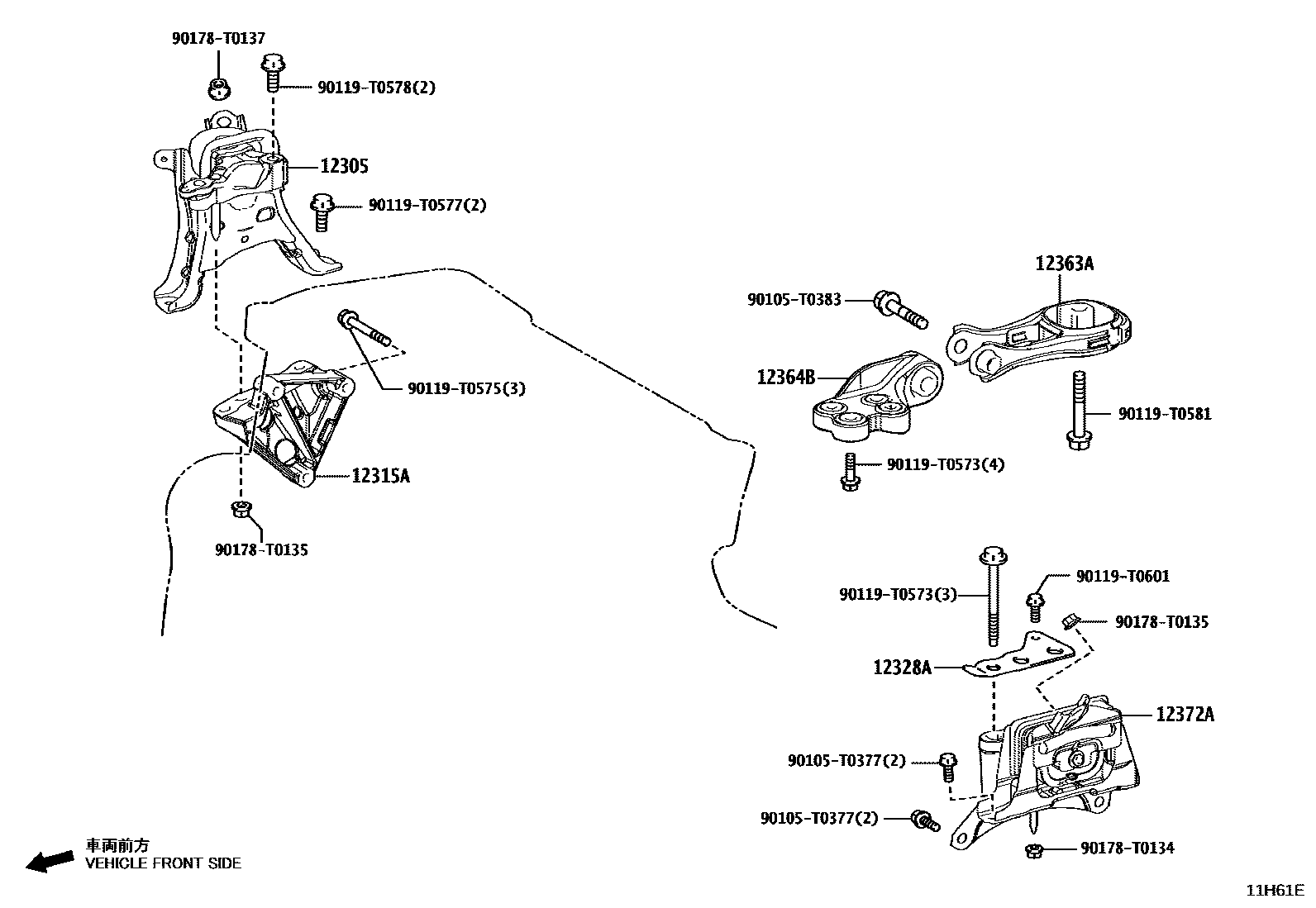

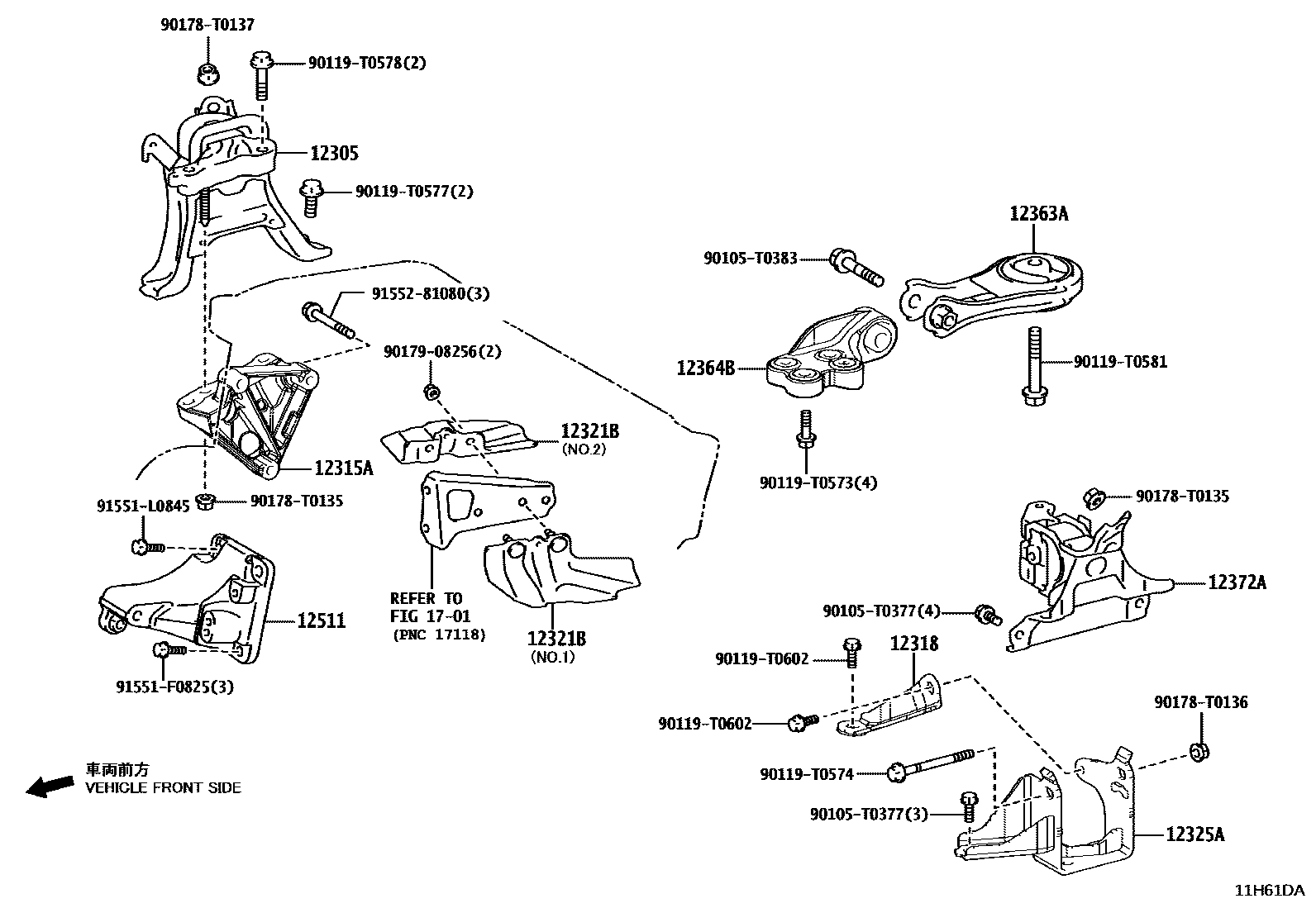

Toyota COROLLA Engine Mounting — Figure 1107
Toyota COROLLA EPC diagram 1107, Engine Mounting, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-0T381 · 12305-0T440 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-37060 |
| 12318 | Engine left mounting bracket | 12318-0T050 |
| 12321B | Drive shaft heat insulation pad sub-assembly | 43409-02031 · 43498-02061 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-0T550 |
| 12328A | Engine No. 2 left side mounting bracket | 12328-0T020 |
| 12363A | Engine movement control lever | 12363-0T100 · 12363-0T120 |
| 12364B | Engine No. 2 motion control lever | 12364-0T140 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-0T630 · 12372-37313 |
| 12511 | No. 1 generator bracket | 12501-37020 |
