Toyota COROLLA Timing Gear Cover & Rear End Plate — Figure 1106

Toyota COROLLA EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 2 images and 2 PNC and OE references.

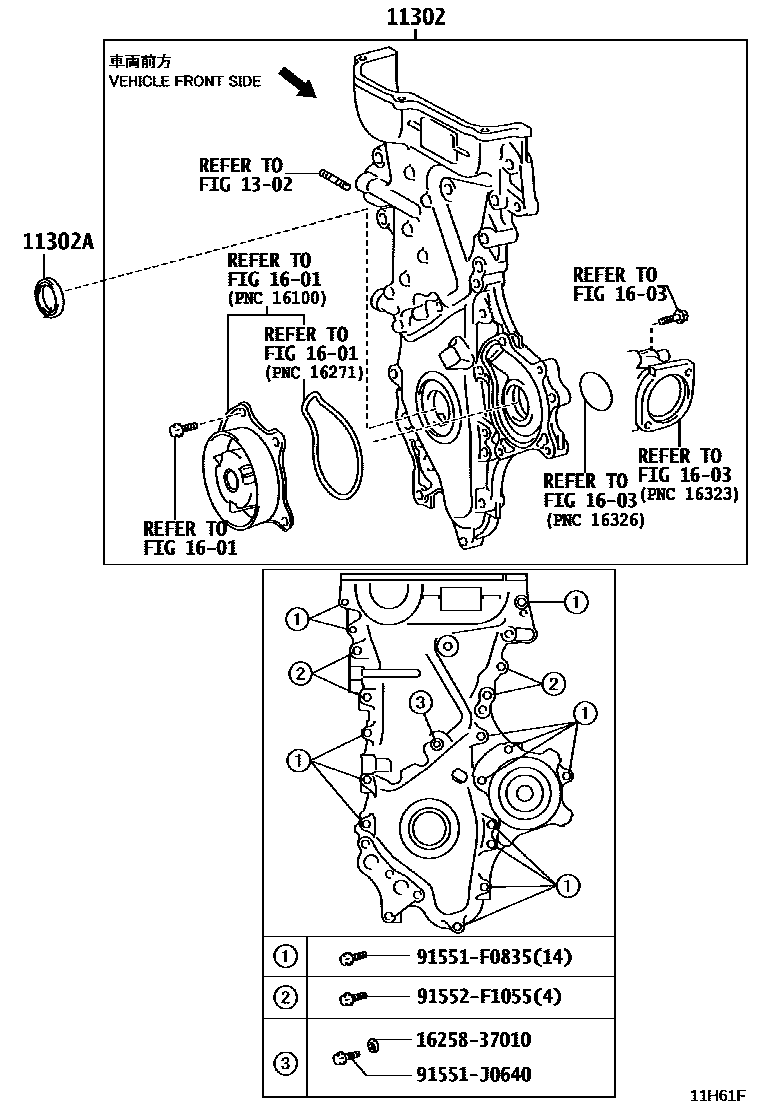

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 11H61F
Timing Gear Cover & Rear End Plate — 11H61F (202402 – 999999)

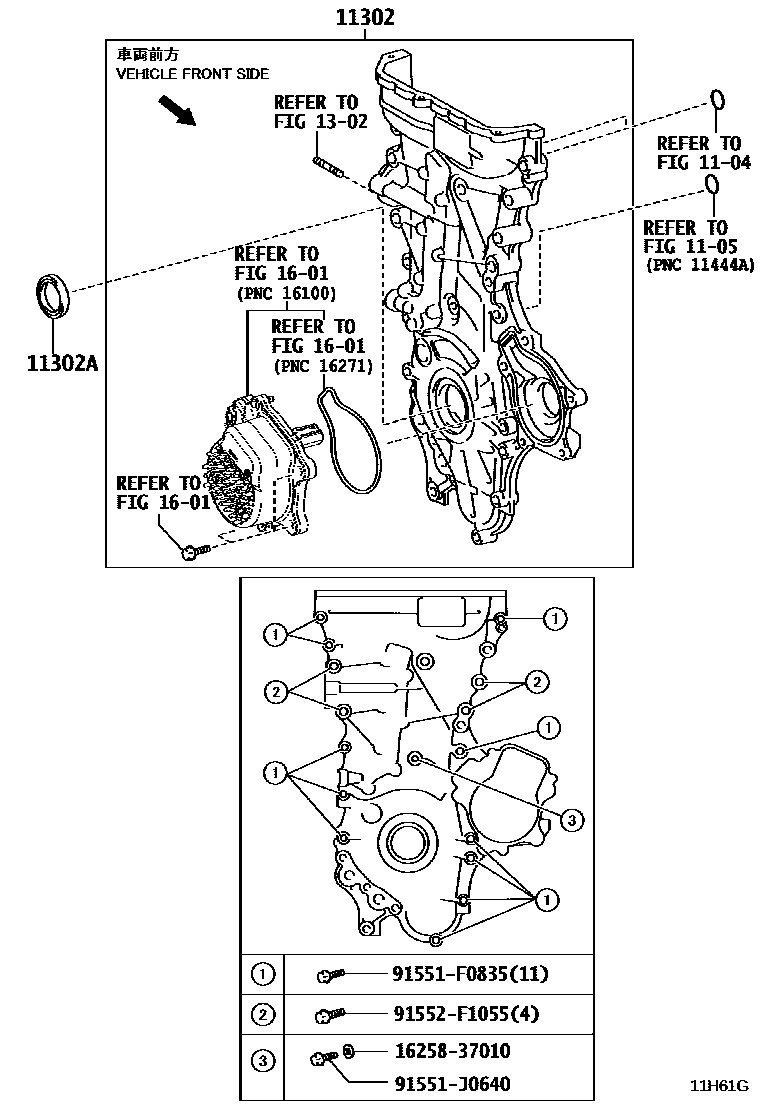

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 11H61G
Timing Gear Cover & Rear End Plate — 11H61G (202312 – 999999)

PNC and OE references

PNCPart nameOE numbers
11302TIMING CHAIN OR BELT COVER SUB-ASSY11310-37040 · 11310-37090
11302AOil seal (for timing chain or timing belt cover)90311-38096
