Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 4 images and 2 PNC and OE references.

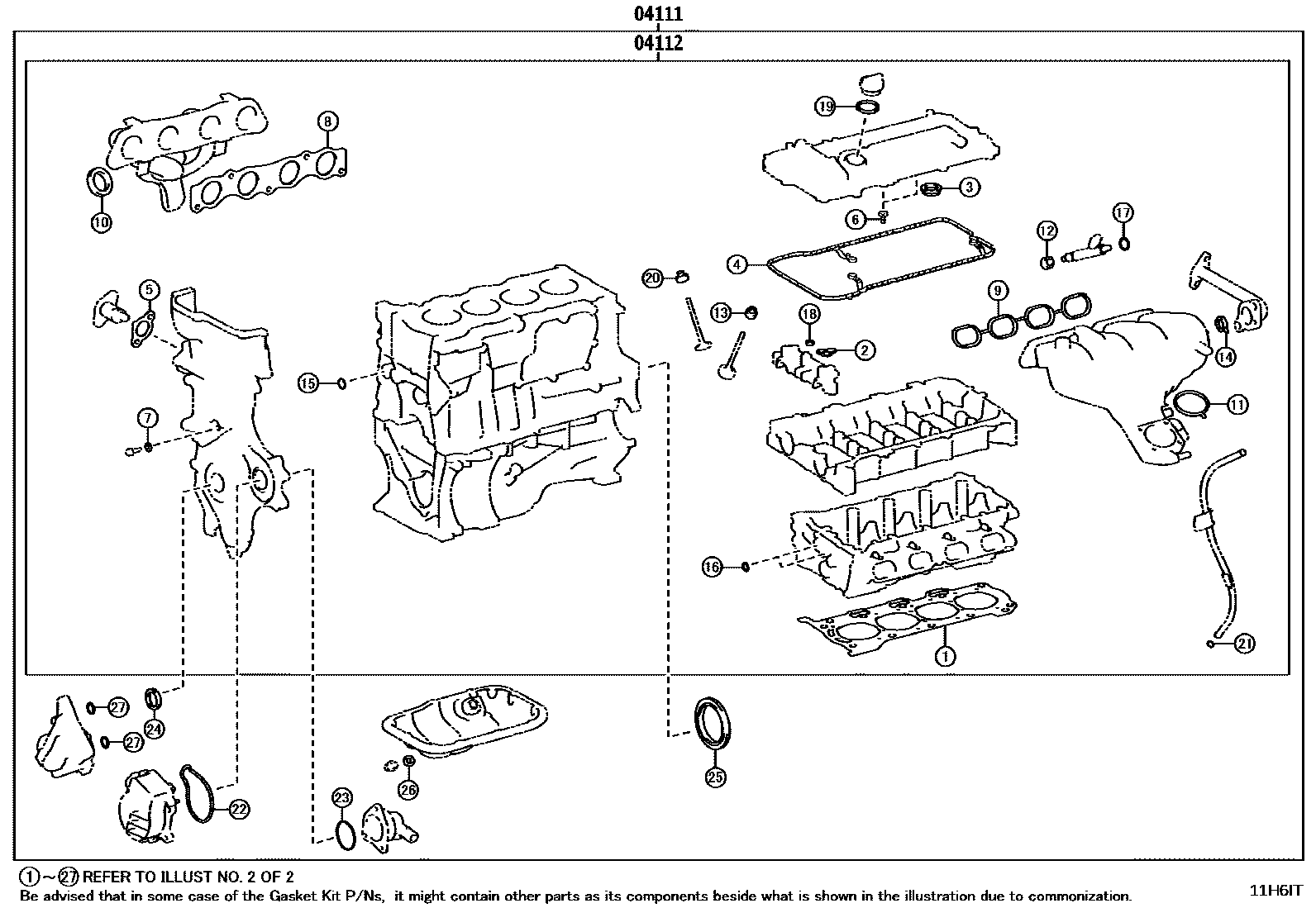

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11H6IT — Engine Overhaul Gasket Kit — 11H6IT (202312 – 999999)

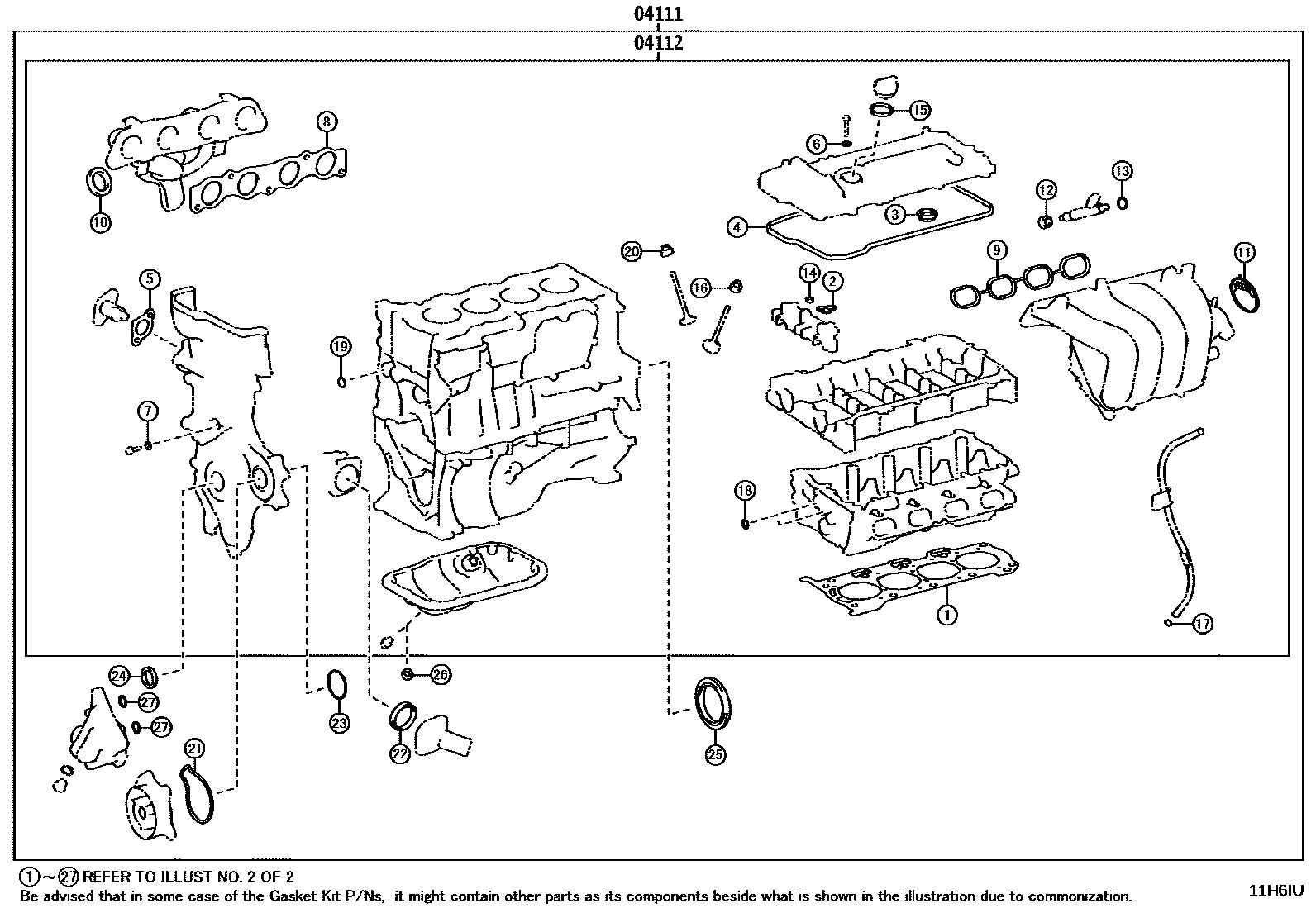

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11H6IU — Engine Overhaul Gasket Kit — 11H6IU (202402 – 999999)

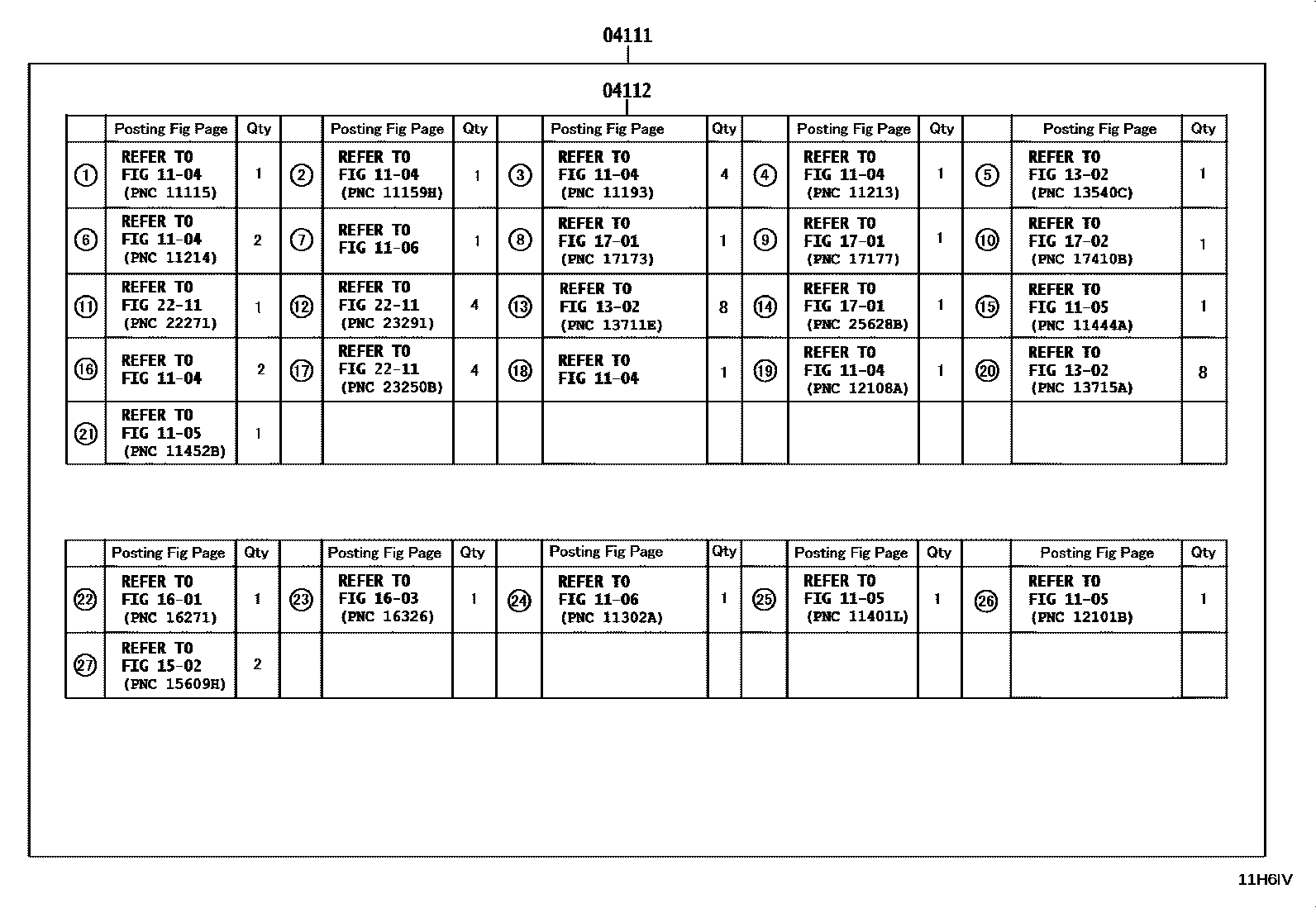

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11H6IV — Engine Overhaul Gasket Kit — 11H6IV (202312 – 999999)

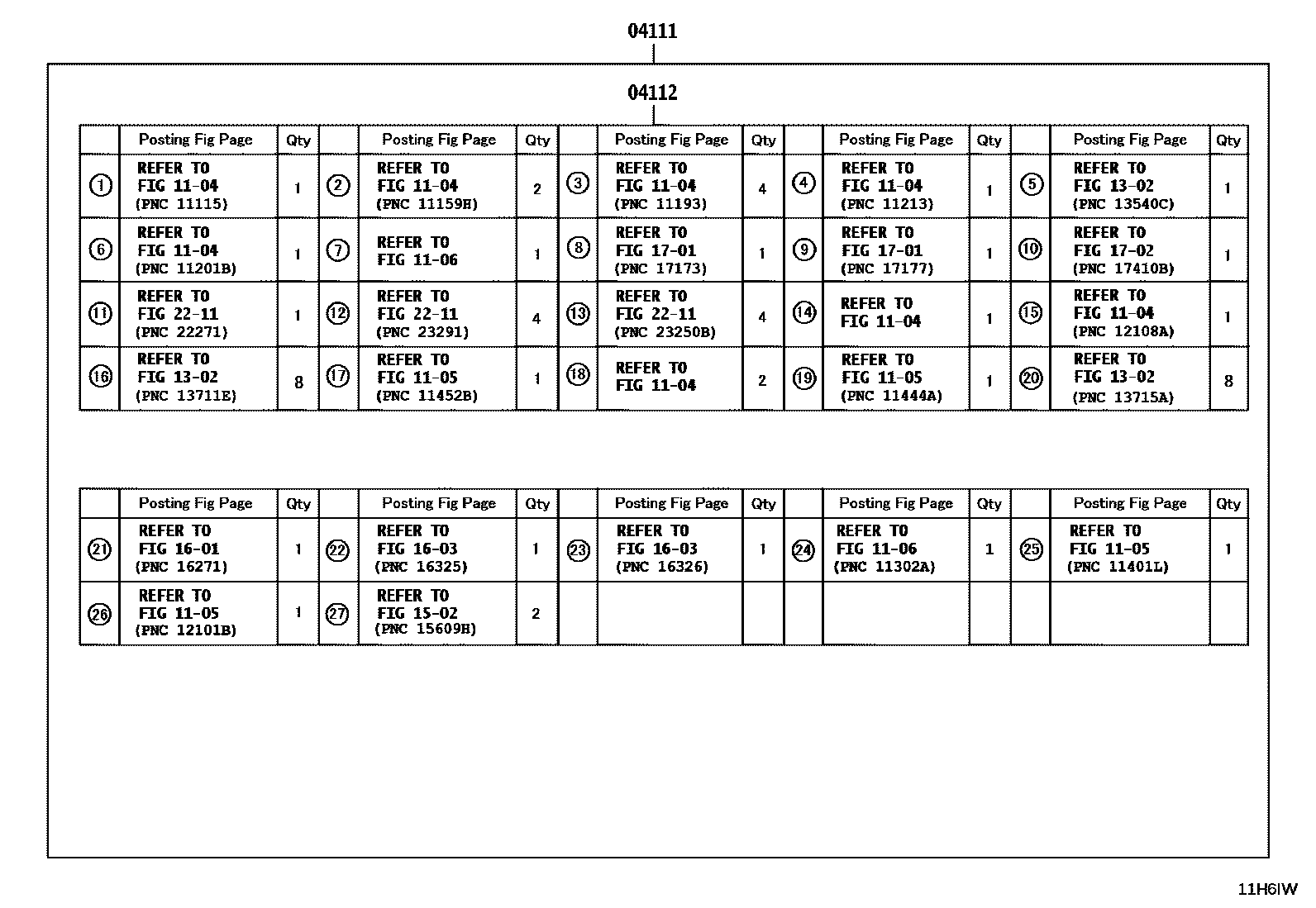

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11H6IW — Engine Overhaul Gasket Kit — 11H6IW (202402 – 999999)

PNC and OE references

PNC	Part name	OE numbers
04111	Engine overhaul gasket assembly	04111-0T293 · 04111-37511
04112	Engine valve grinding pad assembly	04112-0T243 · 04112-37077
