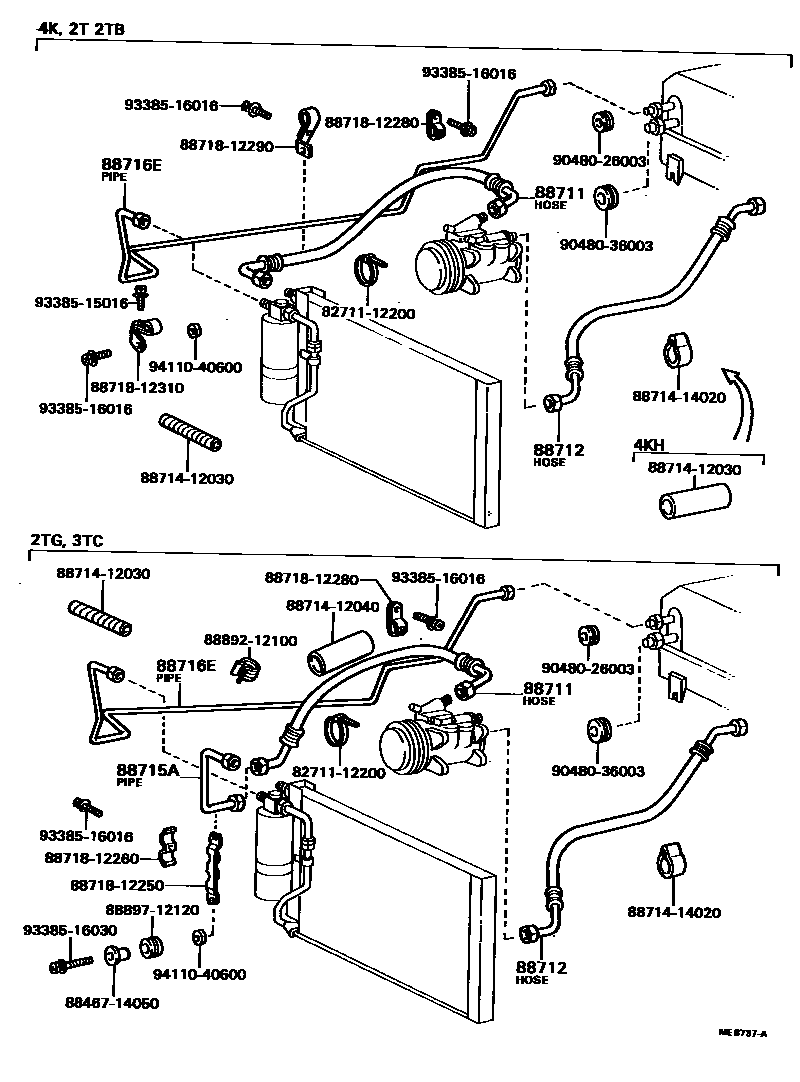

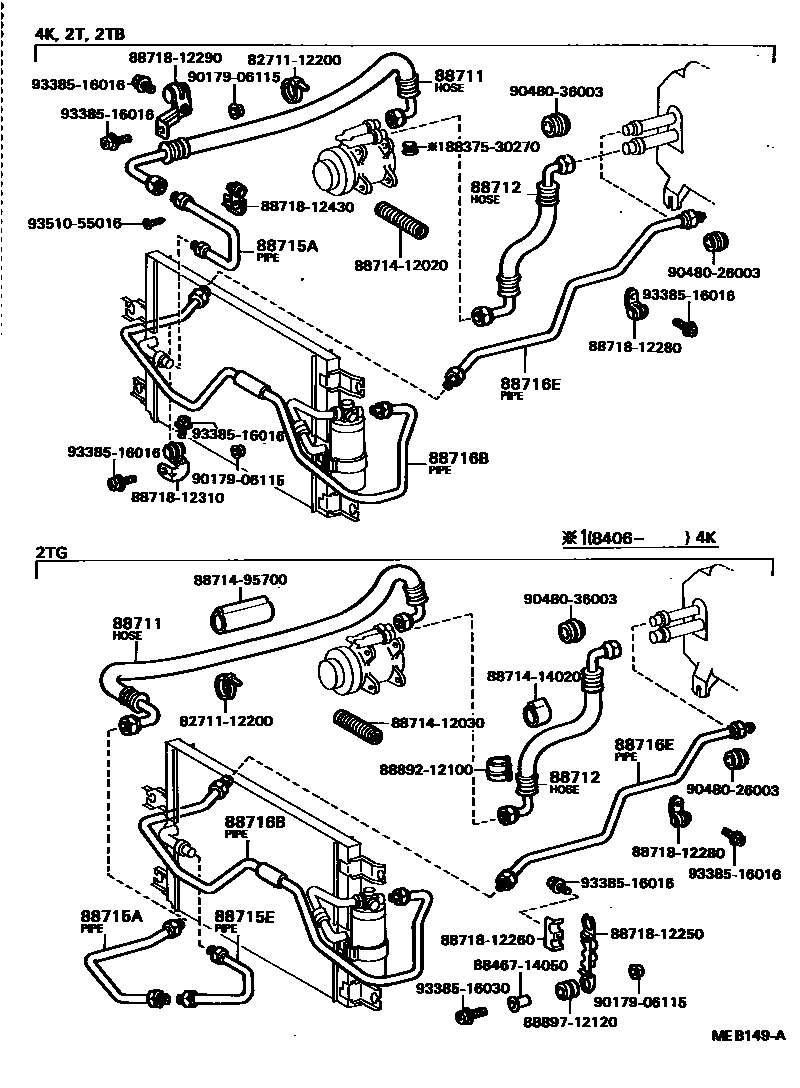

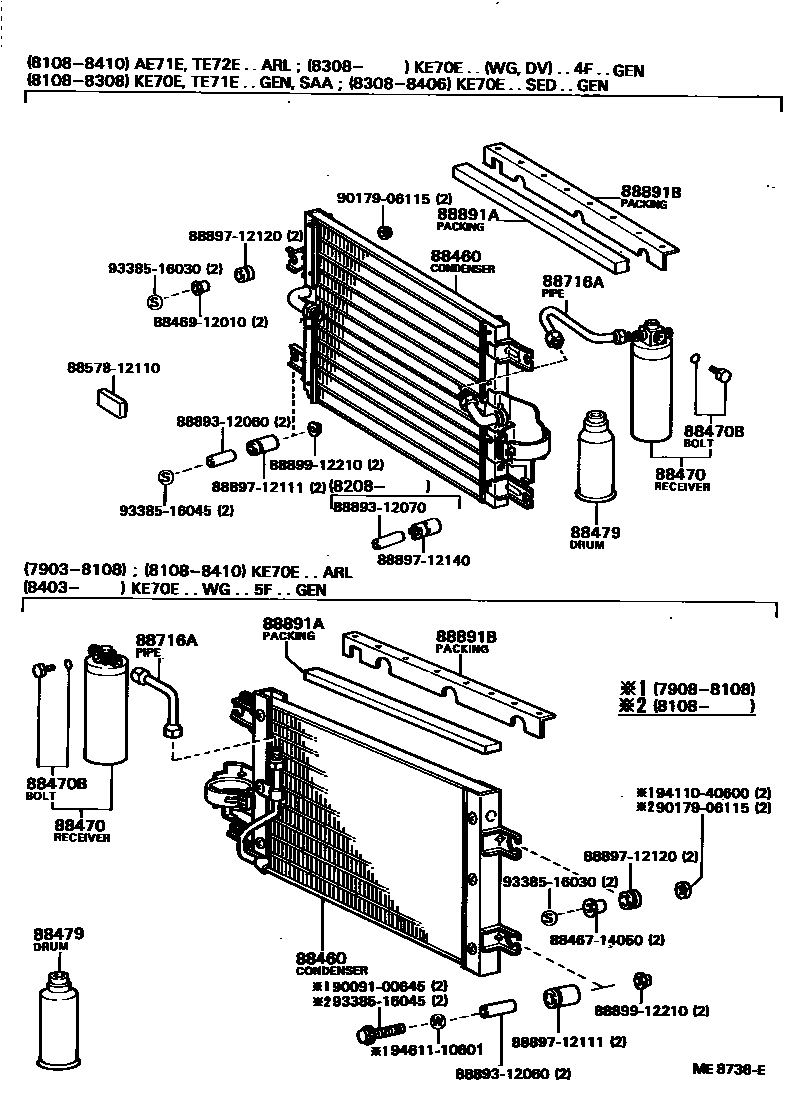

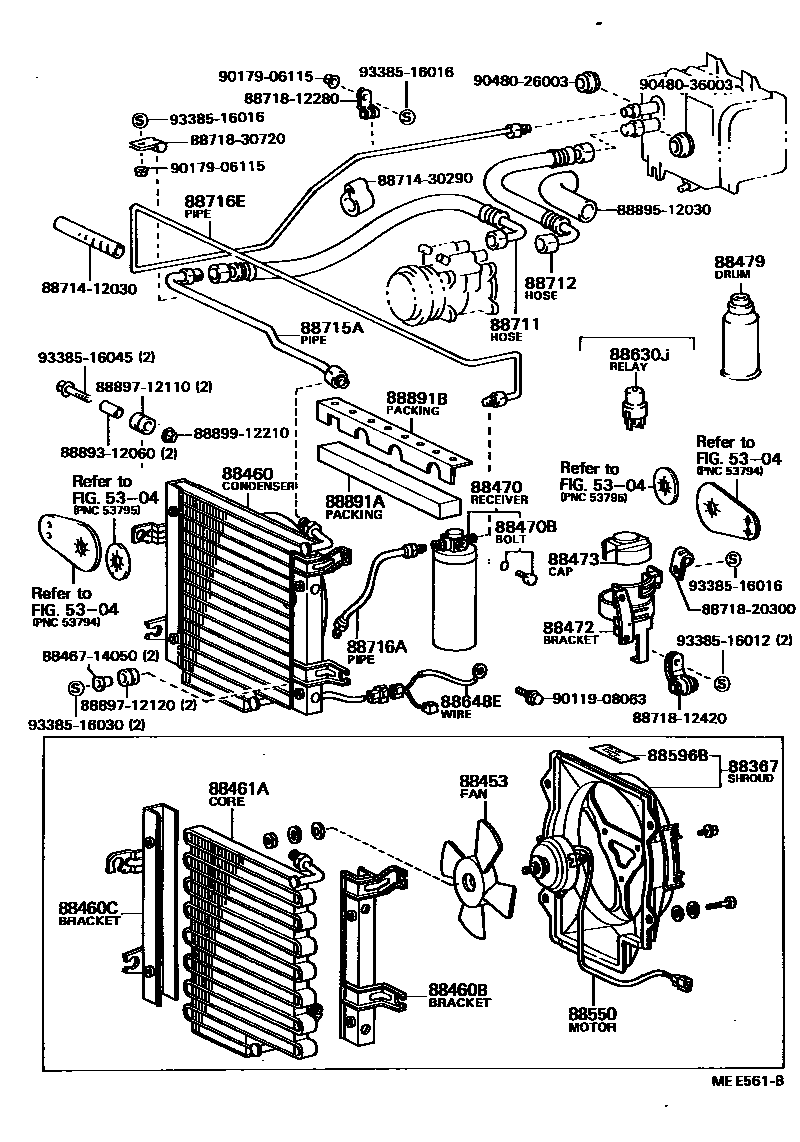

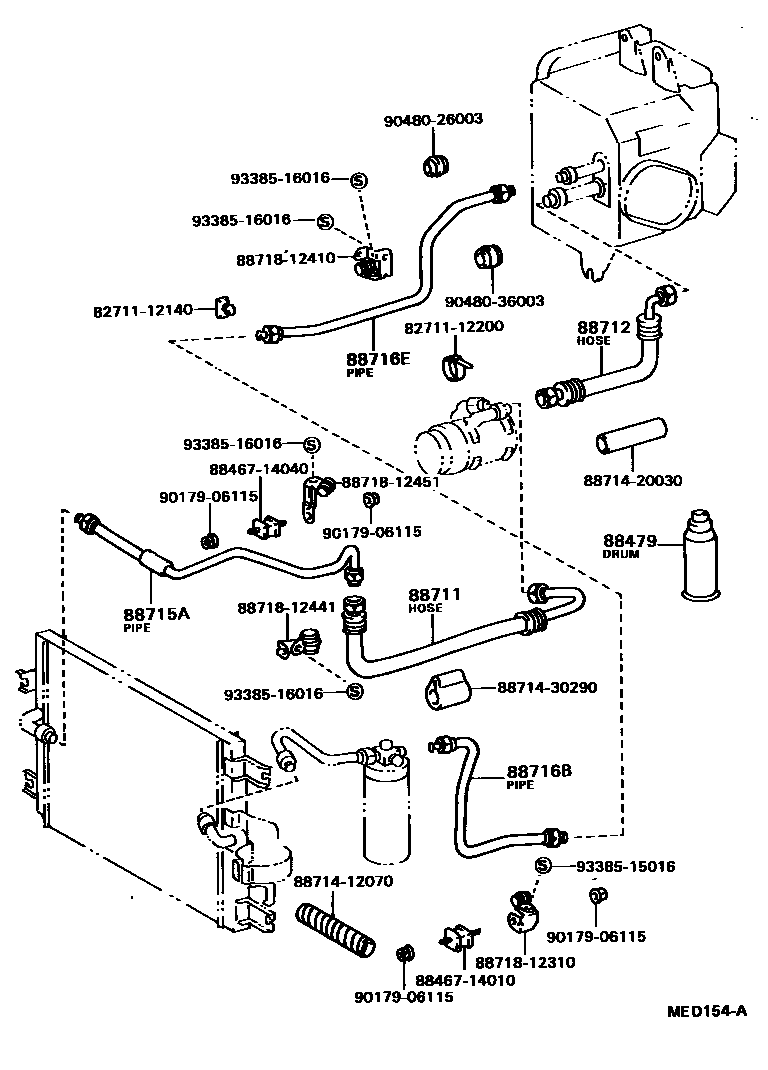

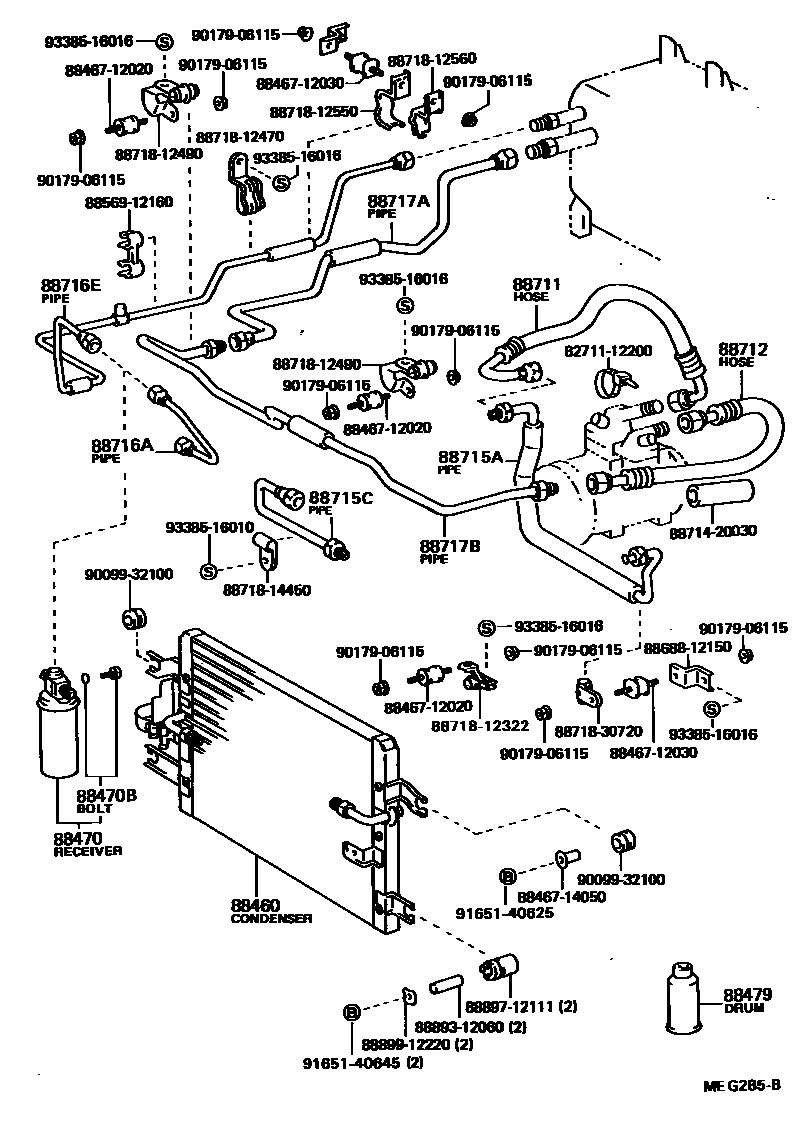

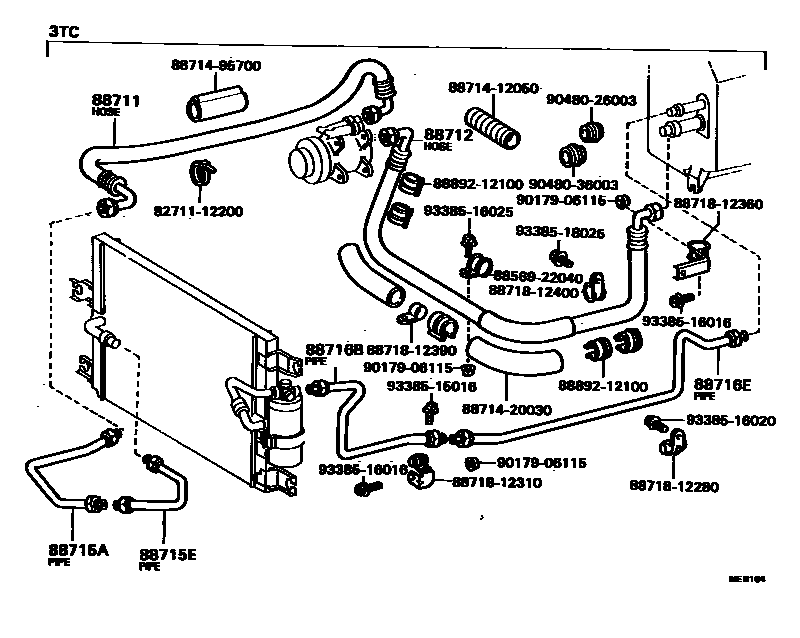

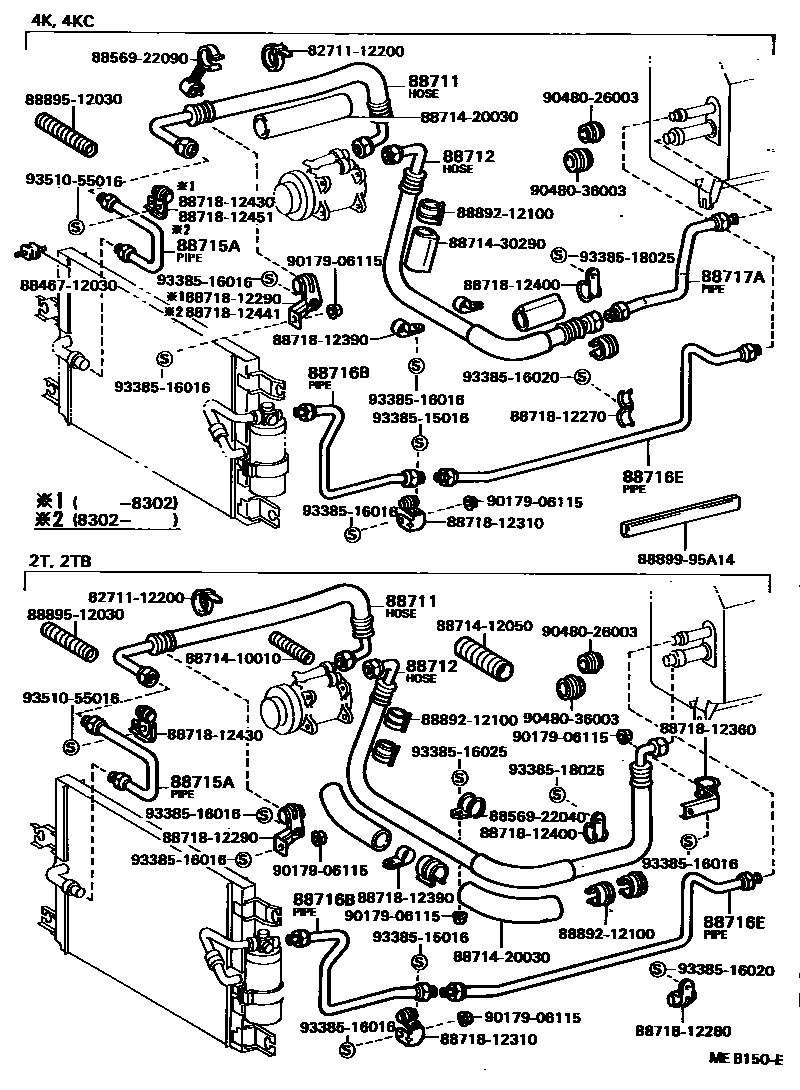

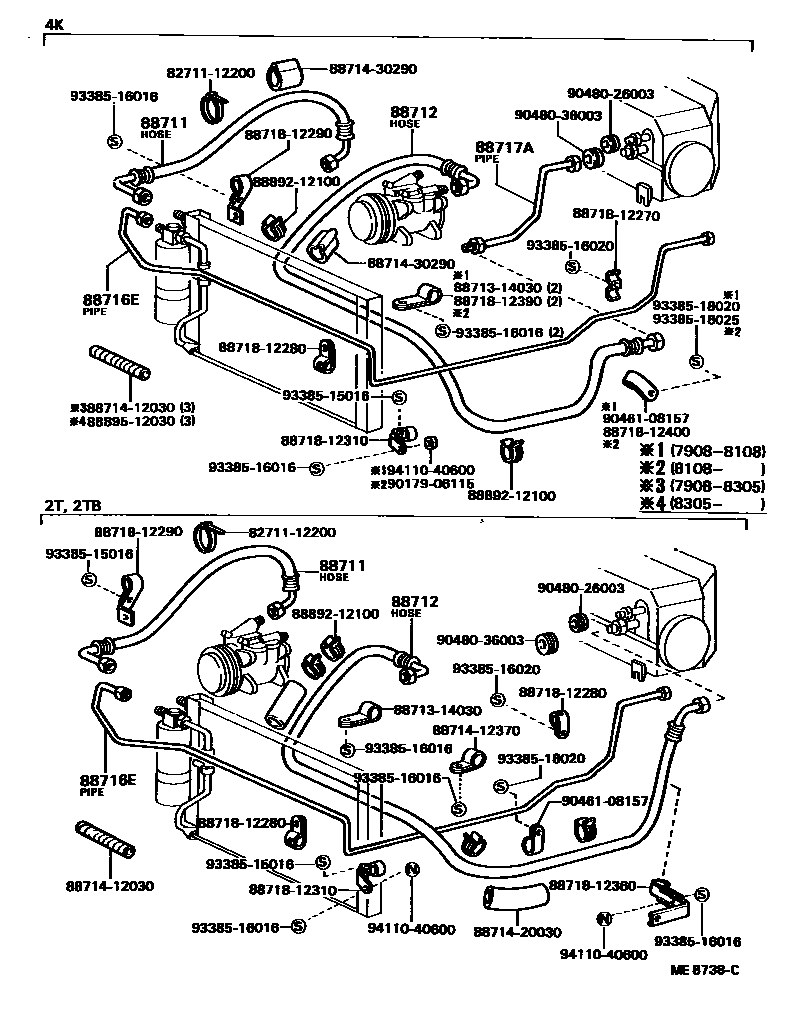

Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 9 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88367 | Cooler blower fan cover | 88454-12040 |
| 88453 | Cooling fan (for condenser) | 88453-16010 |
| 88460 | Air conditioning condenser assembly | 88460-12110 · 88460-12120 · 88460-12170 · 88460-12190 |
| 88460B | No. 1 air conditioner condenser bracket | 88463-12010 |
| 88460C | No. 2 air conditioner condenser bracket | 88463-12020 |
| 88461A | Air conditioning condenser core | 88461-12010 |
| 88470 | Cooler reservoir and dryer assembly | 88470-12050 · 88470-12061 · 88470-12070 · 88470-14010 |
| 88470B | fuse bolt | 88475-12020 · 90099-04579 |
| 88472 | No. 1 liquid storage tank bracket | 88472-12180 |
| 88473 | Cooler reservoir cap | 88894-12111 |
| 88479 | Air conditioning Freon gas (cooler refrigerant drum) | 90986-02001 |
| 88550 | Blower motor assembly (for condenser) | 88550-10020 |
| 88596B | No. 1 warning nameplate | 88596-24010 |
| 88630J | Relay assembly (for condenser motor) | 90987-02004 |
| 88648E | Cooler wiring harness | 88648-12140 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-12130 · 88711-12140 · 88711-12150 · 88711-12151 · 88711-12190 · 88711-12200 · 88711-12230 · 88711-12250 · 88711-12290 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-12300 · 88712-12310 · 88712-12320 · 88712-12321 · 88712-12330 · 88712-12360 · 88712-12370 · 88712-12400 · 88712-12480 |
| 88715A | Cooler refrigerant discharge pipe A | 88715-12120 · 88715-12131 · 88715-12140 · 88715-12160 · 88715-12180 · 88715-12230 · 88715-12232 |
| 88715C | O-ring (for cooler refrigerant discharge pipe) | 88715-12220 |
| 88715E | Cooler refrigerant discharge pipe E | 88715-12170 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-12420 · 88716-12430 · 88716-12540 · 88716-12630 |
| 88716B | Cooler refrigerant liquid pipe B | 88716-12560 · 88716-12580 |
| 88716E | Cooler refrigerant liquid pipe E | 88716-12410 · 88716-12450 · 88716-12550 · 88716-12570 · 88716-12590 · 88716-12650 · 88726-12010 |
| 88717A | Cooler refrigerant suction pipe A | 88717-12130 · 88717-12160 |
| 88717B | Cooler refrigerant suction pipe B | 88717-12170 |
| 88891A | Seal A (for cooler) | 53291-12030 · 53291-12050 |
| 88891B | Seal B (for cooler) | 53381-12110 |
