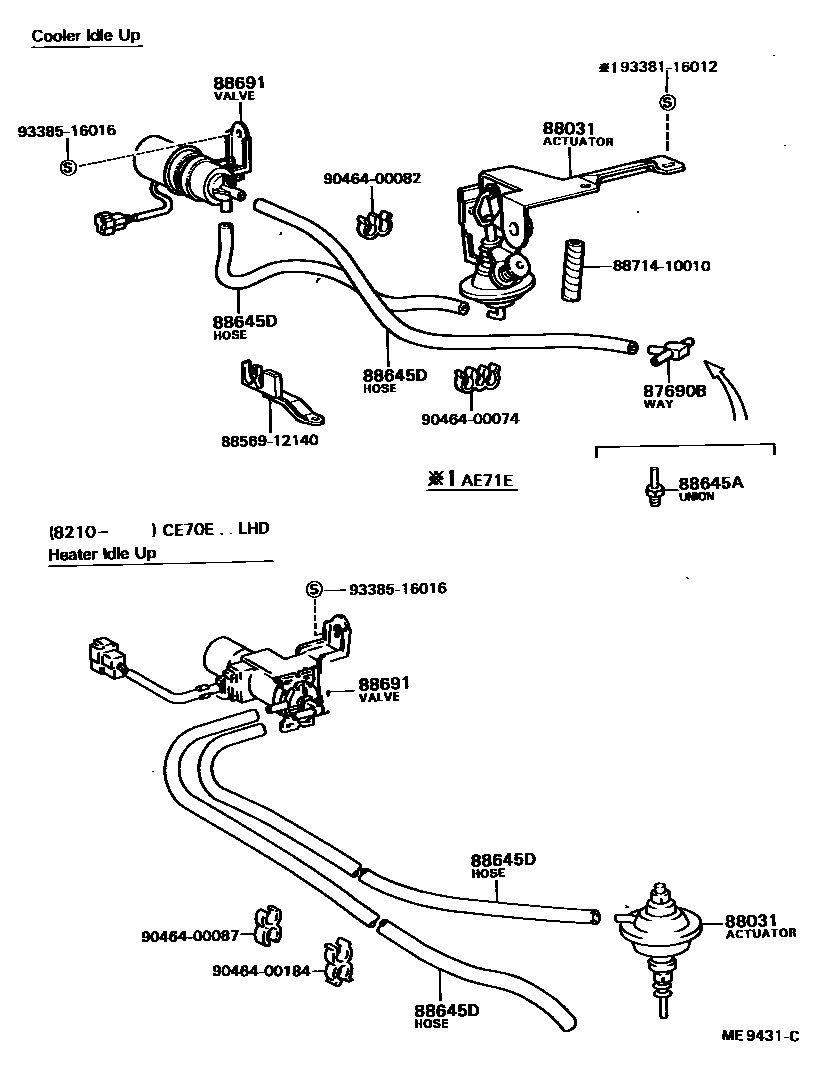

Toyota COROLLA 暖风和空调系统 - 真空管 — Figure 8717
Toyota COROLLA EPC diagram 8717, 暖风和空调系统 - 真空管, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87690B | tee pipe | 90413-04005 |
| 88031 | Idle speed lift actuator assembly | 88031-12060 · 88031-12071 · 88031-12081 · 88031-12082 · 88031-12090 · 88031-12120 · 88031-16020 |
| 88645A | Connector (for idle lift device) | 90404-51010 · 90404-51093 |
| 88645D | Hoses (for idle lift) | 90445-08222 · 95411-10030 |
| 88691 | Solenoid valve (for idle speed lifting device) | 88690-12140 · 88690-12141 · 88690-12151 · 88690-12152 · 88690-12161 · 88690-12200 · 88690-12230 · 88691-30430 |
