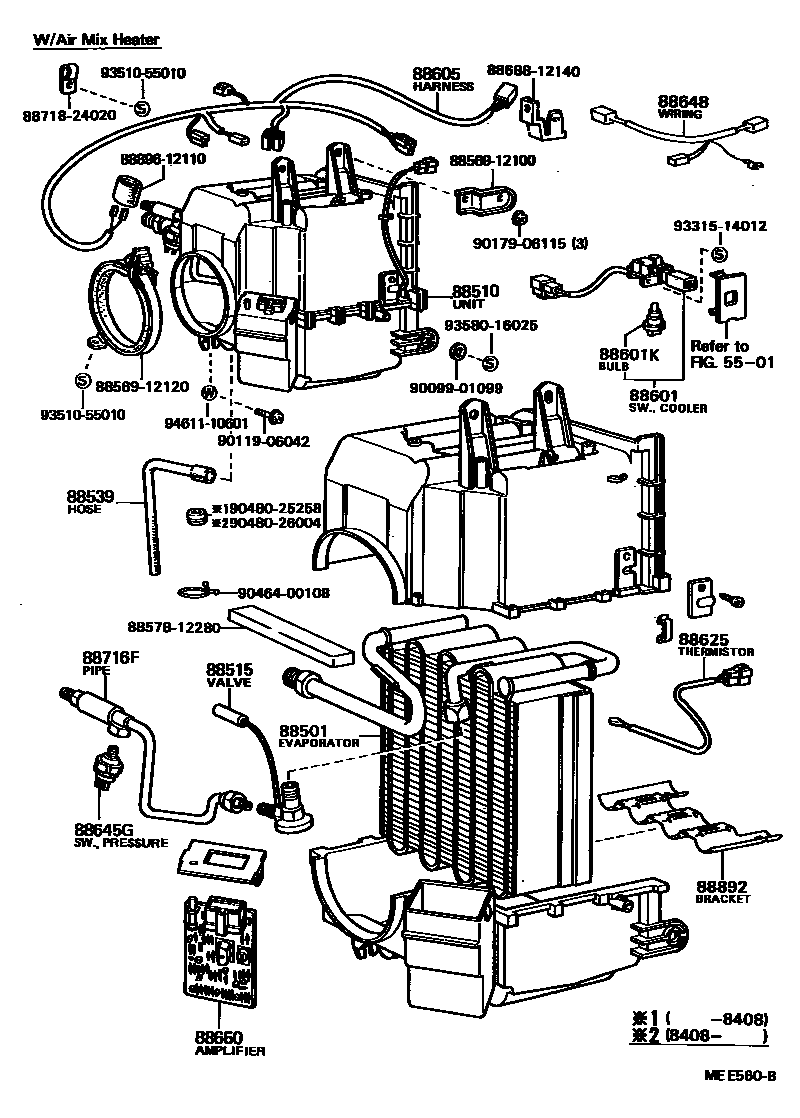

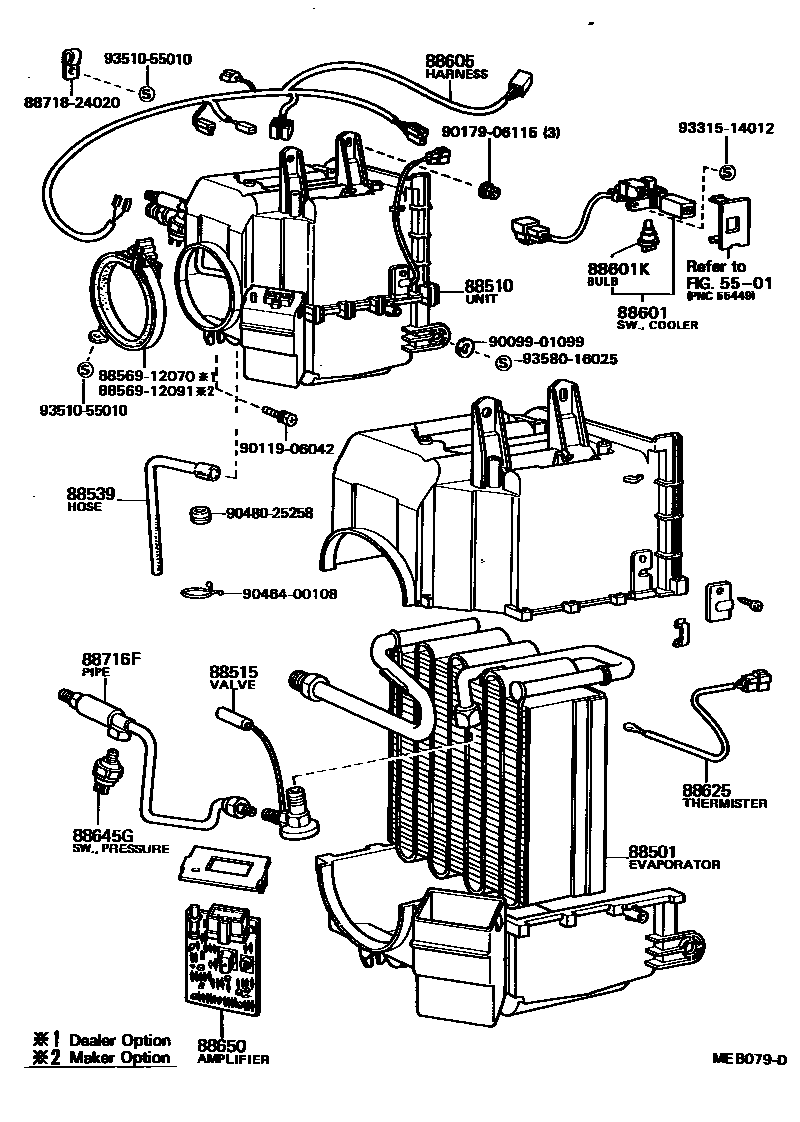

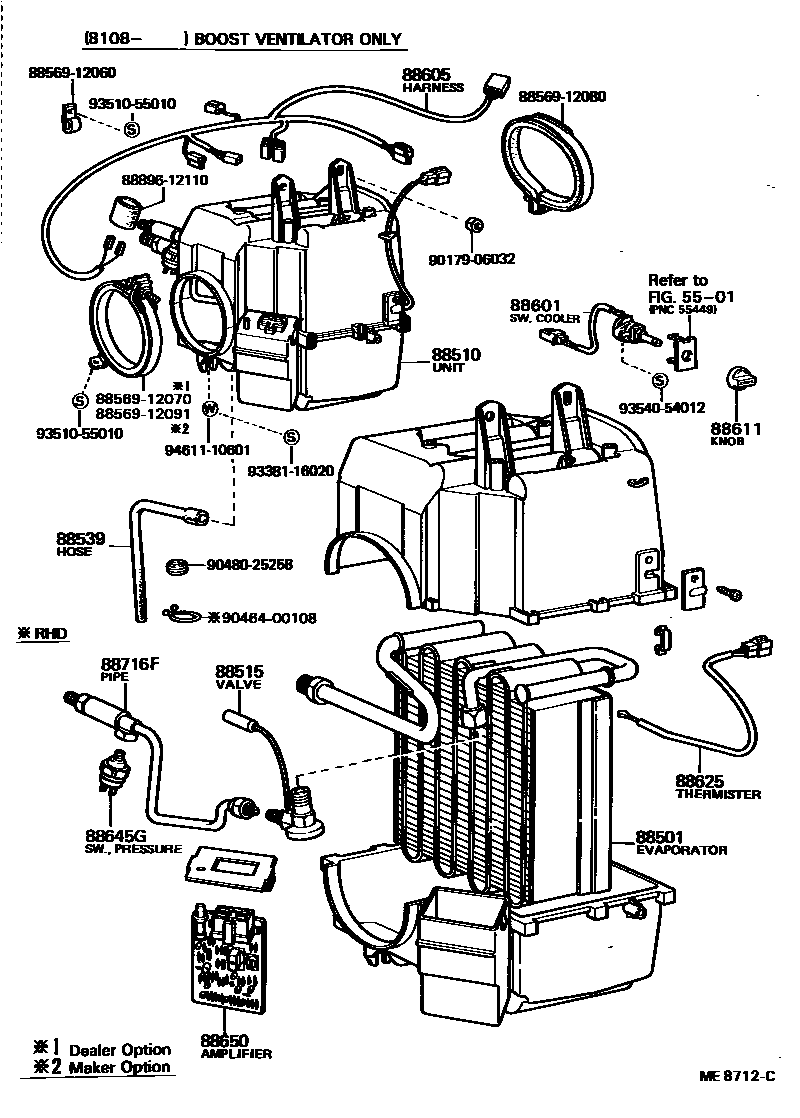

Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-12231 · 88501-12232 · 88501-12233 · 88501-12240 · 88501-12241 · 88501-12242 · 88501-12260 · 88501-12261 · 88501-12262 · 88501-12270 |
| 88510 | Cooler device assembly | 88510-12230 · 88510-12251 · 88510-12252 · 88510-12260 · 88510-12271 · 88510-12280 · 88510-12300 · 88510-12330 · 88510-12331 · 88510-12340 · 88510-12490 · 88510-12491 · 88510-12500 · 88510-12501 · 88510-12700 · 88510-12701 · 88510-12710 · 88510-12711 |
| 88515 | Cooler expansion valve | 88515-16031 · 88515-20040 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-12040 · 88539-12050 |
| 88601 | Cooler control switch sub-assembly | 84660-12010 · 84660-12020 · 88610-12020 · 88610-12021 · 88610-12030 · 88610-12031 |
| 88601K | Light bulb (for cooler switch) | 88607-14020 |
| 88605 | No. 1 cooler wiring harness sub-assembly | 88605-12201 · 88605-12210 · 88605-12211 · 88605-12221 · 88605-12240 · 88605-12241 · 88605-12310 |
| 88611 | Cooler control switch button | 88611-12030 · 88611-12031 |
| 88625 | Cooler No. 1 Thermistor | 88625-12050 · 88625-12070 |
| 88645G | pressure switch | 88645-12020 · 88645-30250 |
| 88648 | No. 1 cooler wiring harness | 88648-12300 |
| 88650 | Cooler stabilized amplifier assembly | 88650-14070 · 88650-16020 |
| 88716F | Cooler refrigerant liquid pipe F | 88716-12470 · 88716-12490 · 88716-12530 |
| 88892 | Cooler evaporator mounting bracket | 88892-12150 |
