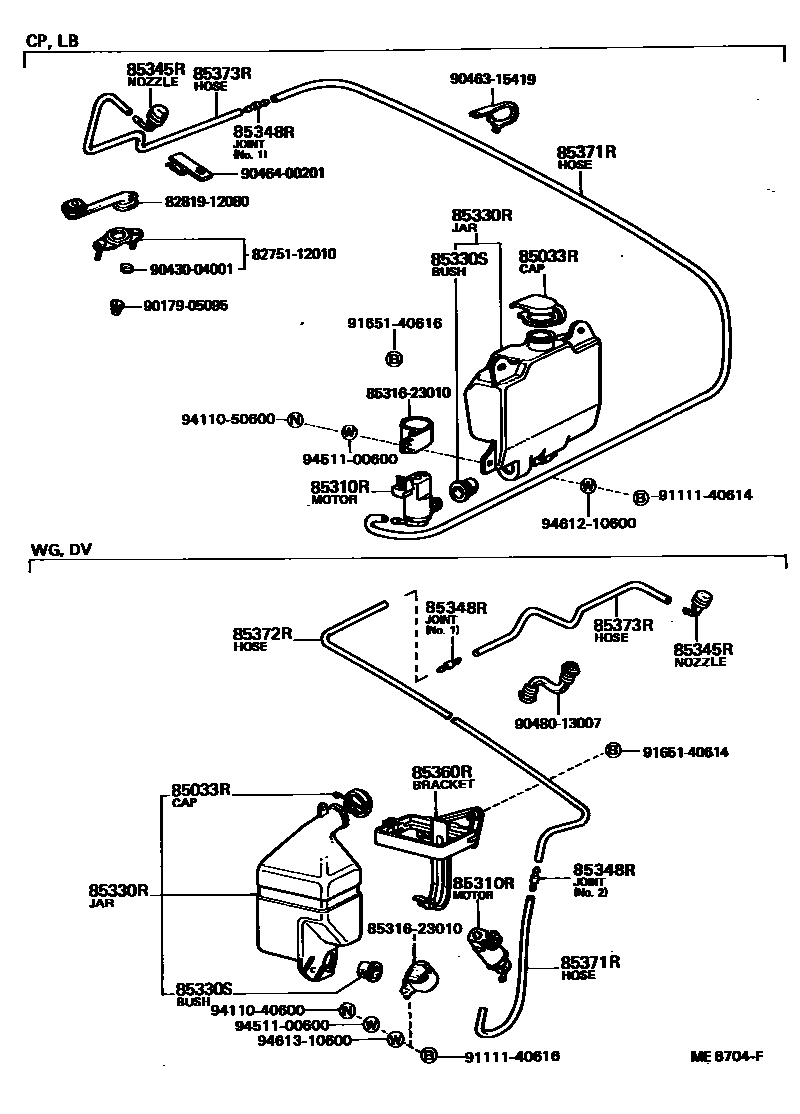

Toyota COROLLA 后清洗器 — Figure 8504
Toyota COROLLA EPC diagram 8504, 后清洗器, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85033R | Rear washer cover assembly | 85033-36120 |
| 85310R | Rear washer motor assembly | 85310-20100 · 85310-22080 |
| 85330R | Rear cleaning fluid tank assembly | 85330-12110 · 85330-23011 |
| 85330S | Rear washer fluid tank bushing | 90099-32089 |
| 85345R | Rear washer nozzle | 85035-12110 · 85035-16040 · 85035-23030 |
| 85348R | No. 1 rear washer hose connector | 85349-89122 · 85355-87201 |
| 85360R | Rear washer bracket assembly | 85360-13020 |
| 85371R | Rear washer hose (from motor to connector) | 90446-06006 · 90446-06279 · 90446-06300 |
| 85372R | Rear washer hose (from fitting to fitting or nozzle) | 90099-33315 · 90446-07012 |
