Toyota COROLLA 挡风玻璃清洗器 — Figure 8503

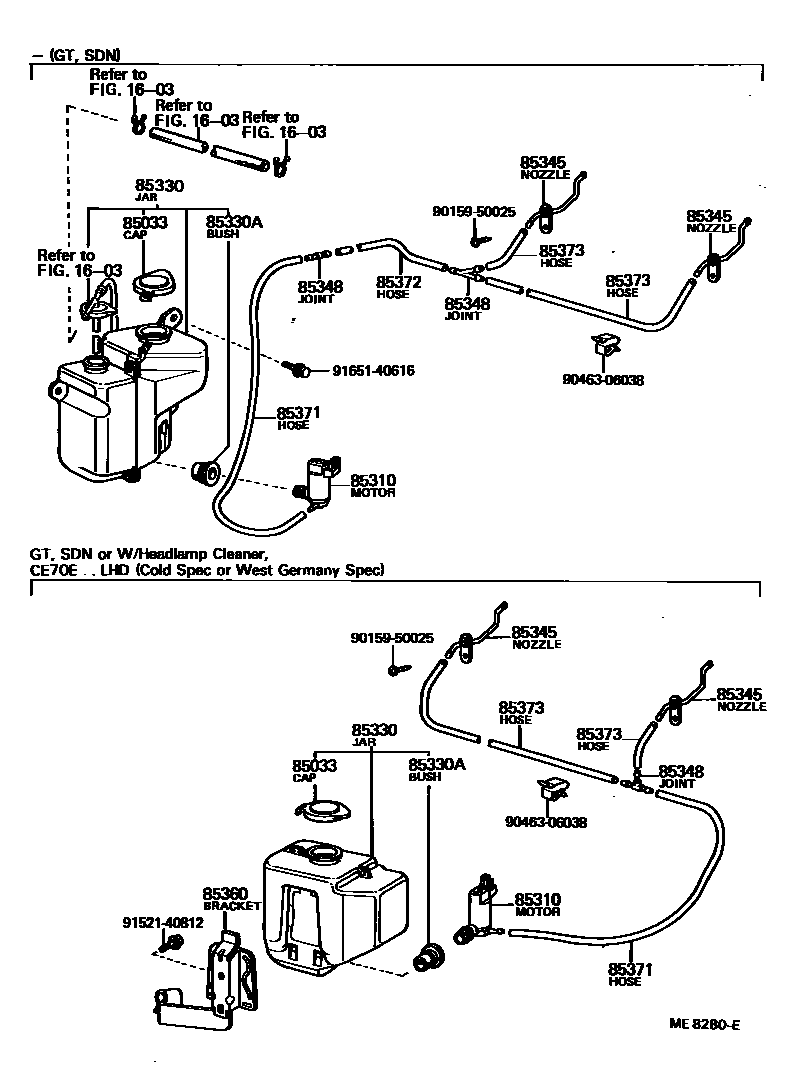

Toyota COROLLA EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85033 | Windshield washer cover assembly | 85332-16010 · 85332-20060 |
| 85310 | Windshield washer motor and pump assembly | 85310-10130 · 85310-20100 · 85310-22080 |
| 85330 | Windshield washer fluid tank assembly | 85330-12090 · 85330-12091 · 85330-12130 · 85330-12160 · 85330-12171 · 85330-12220 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 |
| 85345 | windshield washer nozzle | 85341-12110 · 85341-12130 · 85341-12150 |
| 85348 | Windshield washer hose connector No. 1 | 85348-12011 · 85355-14010 · 85355-87201 |
| 85360 | Windshield washer bracket assembly | 85361-12120 |
| 85371 | Windshield washer hose (from motor to connector) | 90446-06341 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90446-06006 · 90446-06014 |
