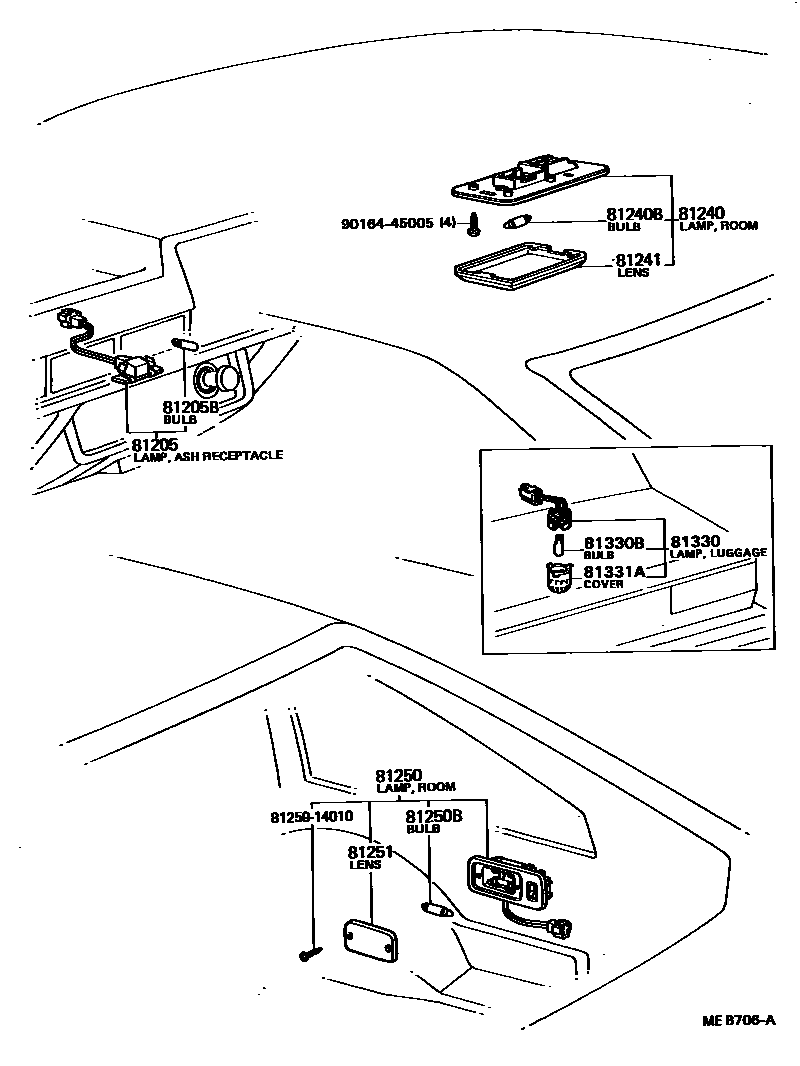

Toyota COROLLA 车内灯 — Figure 8121
Toyota COROLLA EPC diagram 8121, 车内灯, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81205 | Ashtray light sub-assembly | 81205-12040 · 81205-12041 |
| 81205B | ashtray light bulb | 90981-11018 |
| 81240B | Interior light bulb No. 1 | 90981-11015 · 99132-12100 |
| 81241 | Interior light cover No. 1 | 81241-10030 · 81241-16010 · 81241-20060 |
| 81250B | Interior light bulb No. 2 | 99132-13050 |
| 81251 | Interior light cover No. 2 | 81231-14010 · 81231-30010 |
| 81330 | No. 1 trunk light assembly | 81330-22030 |
| 81330B | trunk light bulb | 99132-12050 |
| 81331A | Trunk light cover | 81331-22030 |
