Toyota COROLLA 前示宽灯 — Figure 8104

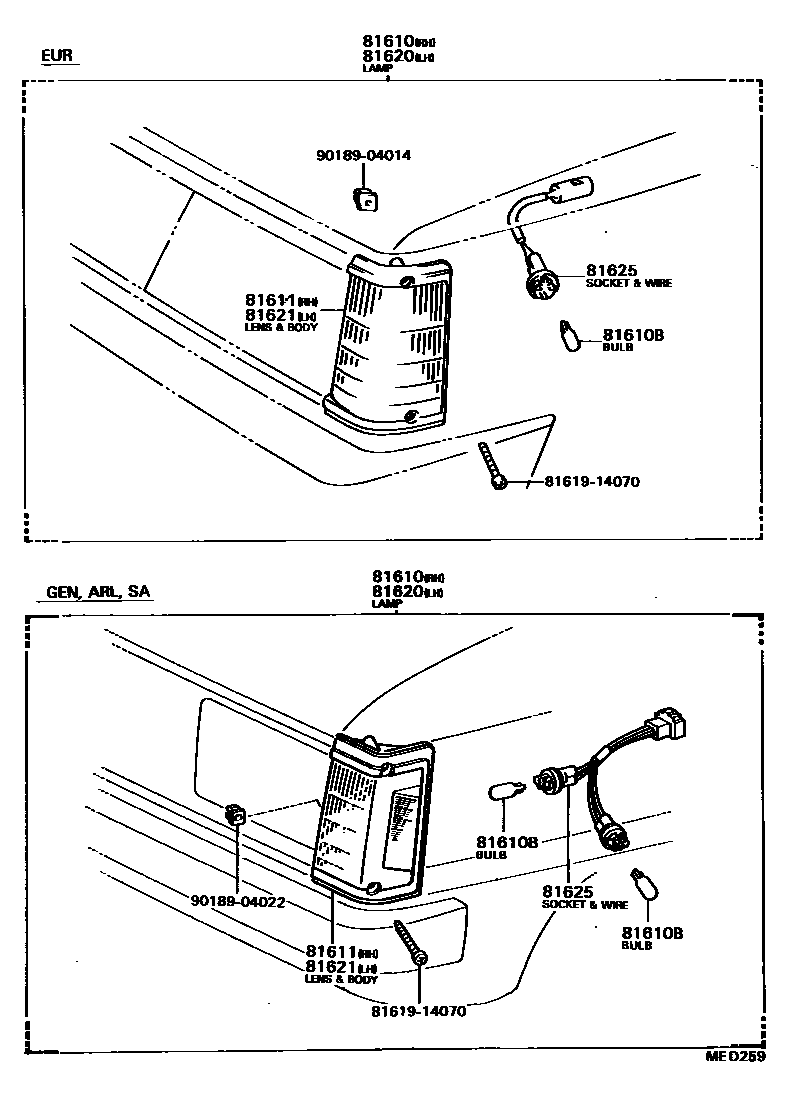

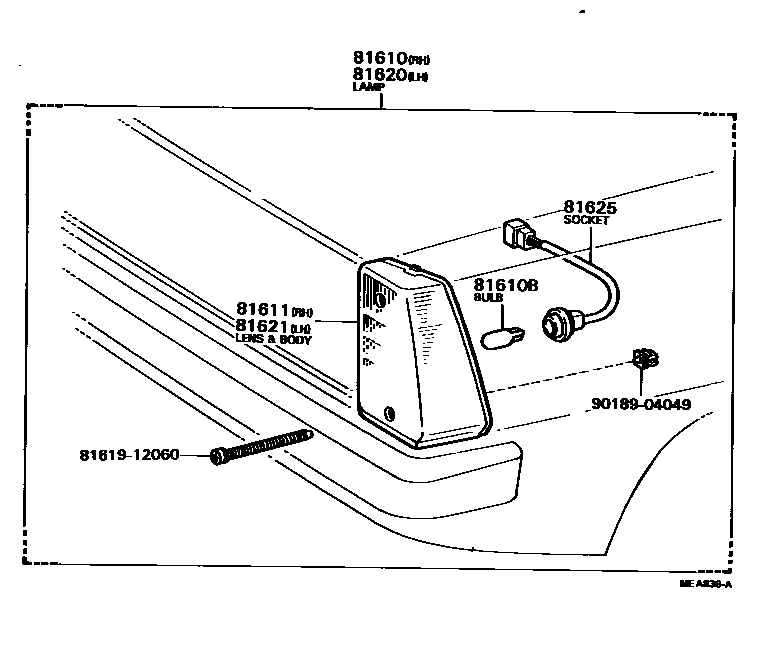

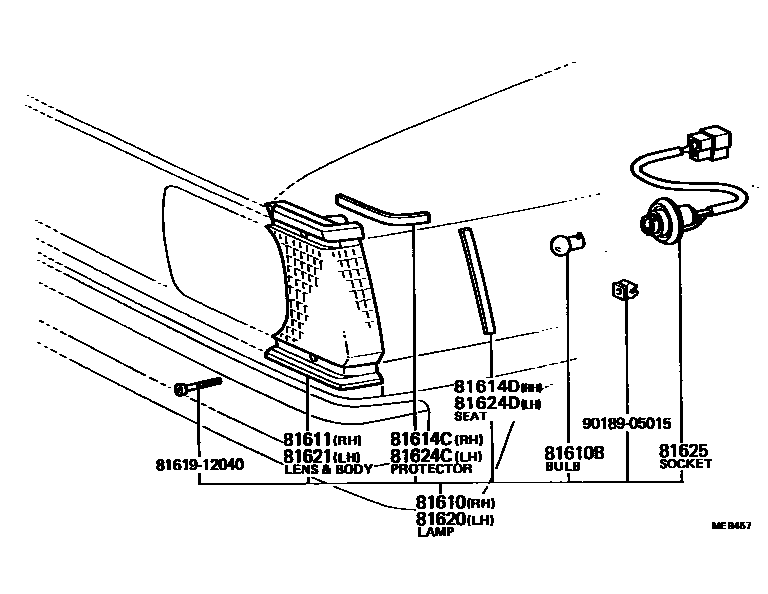

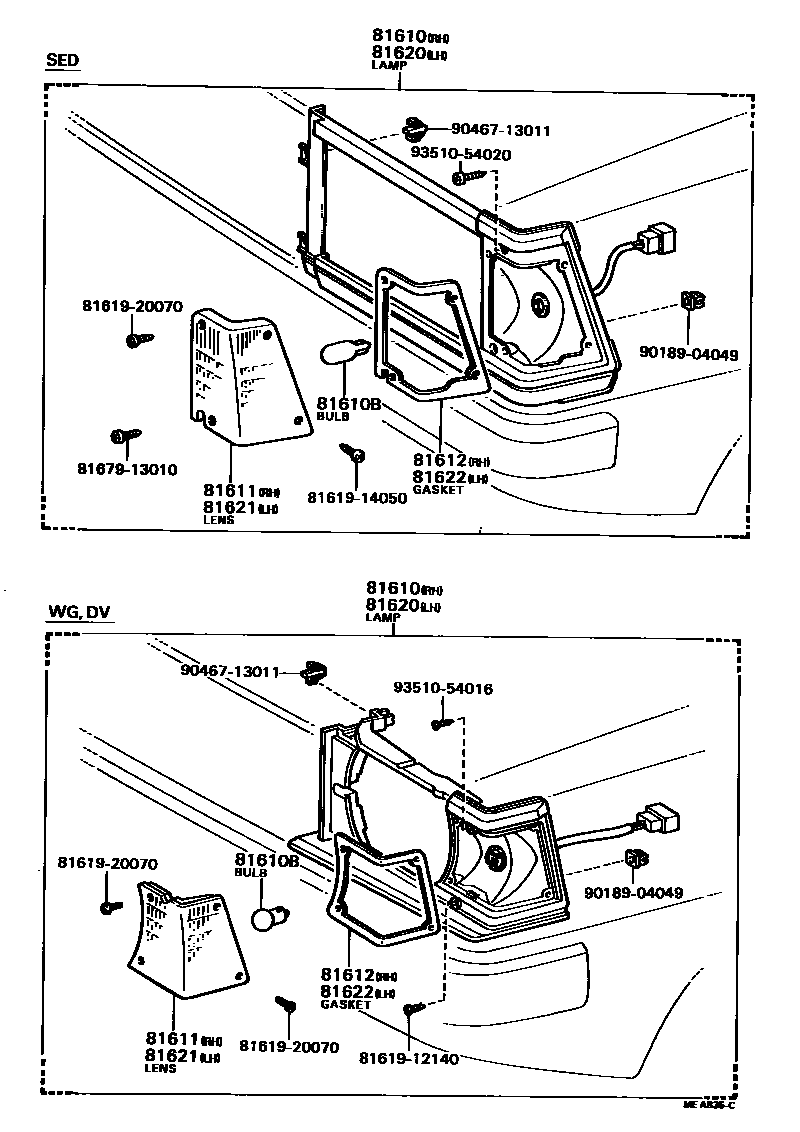

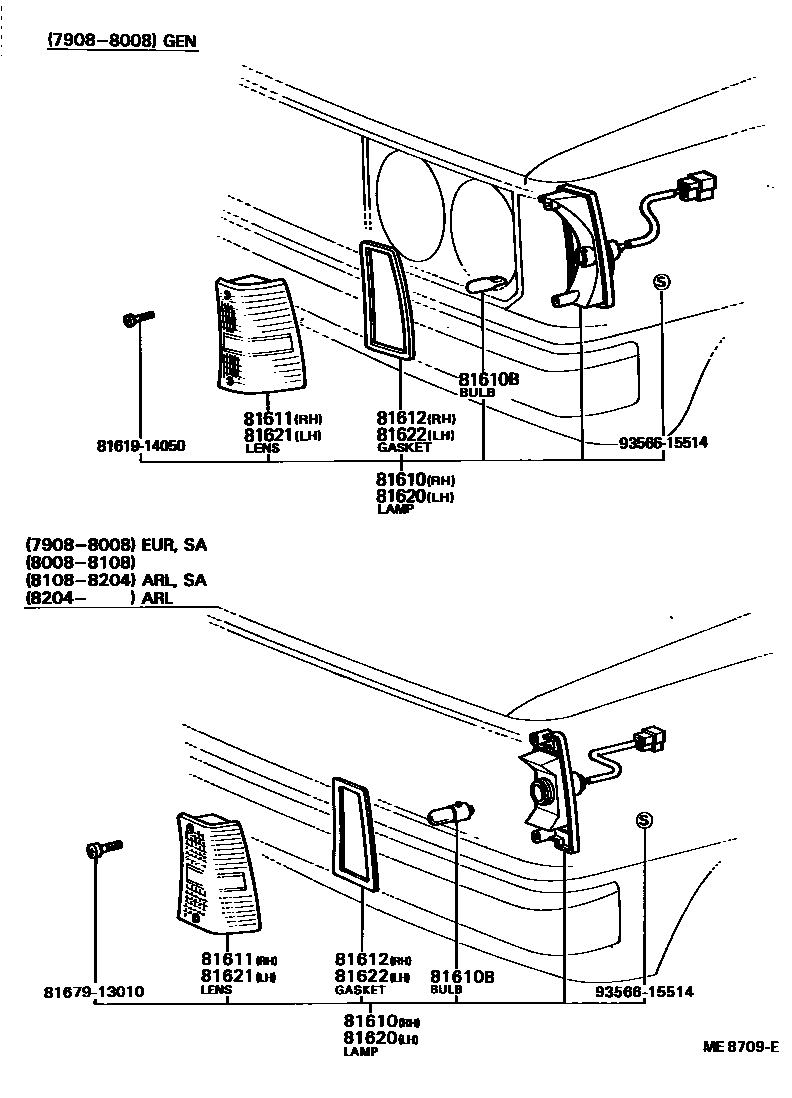

Toyota COROLLA EPC diagram 8104, 前示宽灯, with 5 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81610 | Right parking light and width indicator light assembly | 81610-19185 · 81610-19206 · 81610-19216 · 81610-19255 · 81610-19265 · 81610-19275 · 81610-19335 · 81610-19345 · 81610-19425 · 81610-19435 · 81610-19505 |
| 81610B | Bulbs (for parking lights and side lights) | 99132-11050 · 99132-12050 |
| 81611 | Right parking light and width indicator light cover | 81611-12030 · 81611-12031 · 81611-12051 · 81611-12061 · 81611-12100 · 81611-12110 · 81611-12120 · 81611-12140 · 81611-13010 |
| 81612 | Right parking light and width indicator light housing gasket | 81612-12030 · 81612-12031 · 81612-12100 · 81612-12140 |
| 81614C | Right side width indicator light protective cover | 81614-12041 |
| 81614D | Right side width indicator lamp housing | 81612-12040 |
| 81620 | Left parking light and width indicator light assembly | 81620-19185 · 81620-19206 · 81620-19216 · 81620-19255 · 81620-19265 · 81620-19275 · 81620-19335 · 81620-19345 · 81620-19425 · 81620-19435 · 81620-19505 |
| 81621 | Left parking light and width indicator light cover | 81621-12030 · 81621-12031 · 81621-12051 · 81621-12061 · 81621-12100 · 81621-12110 · 81621-12120 · 81621-12140 · 81621-13010 |
| 81622 | Left parking light and width indicator light housing gasket | 81612-12030 · 81612-12031 · 81612-12100 · 81612-12140 |
| 81624C | Left side width indicator light protective cover | 81624-12041 |
| 81624D | Left side width indicator light housing holder | 81612-12040 |
| 81625 | Parking light and width indicator lamp holder and wiring harness | 81615-12051 · 81615-12060 · 81615-12120 · 81615-12220 · 81615-13010 |
