Toyota COROLLA accelerator pedal connecting rod — Figure 7801

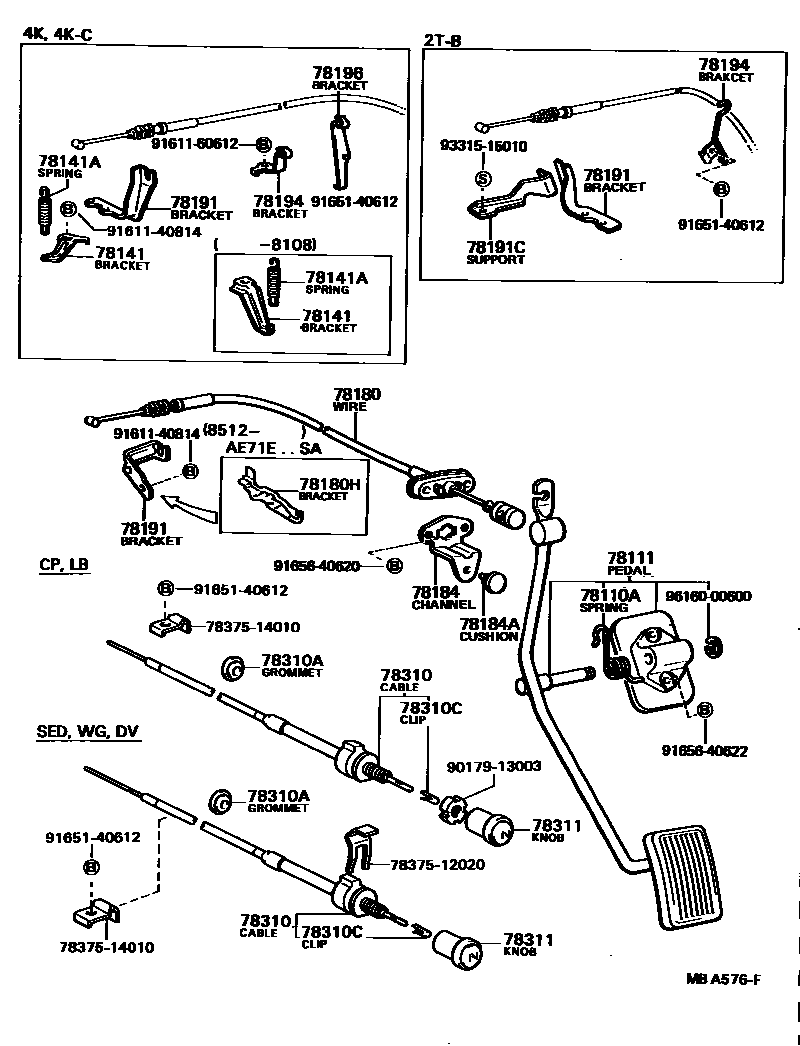

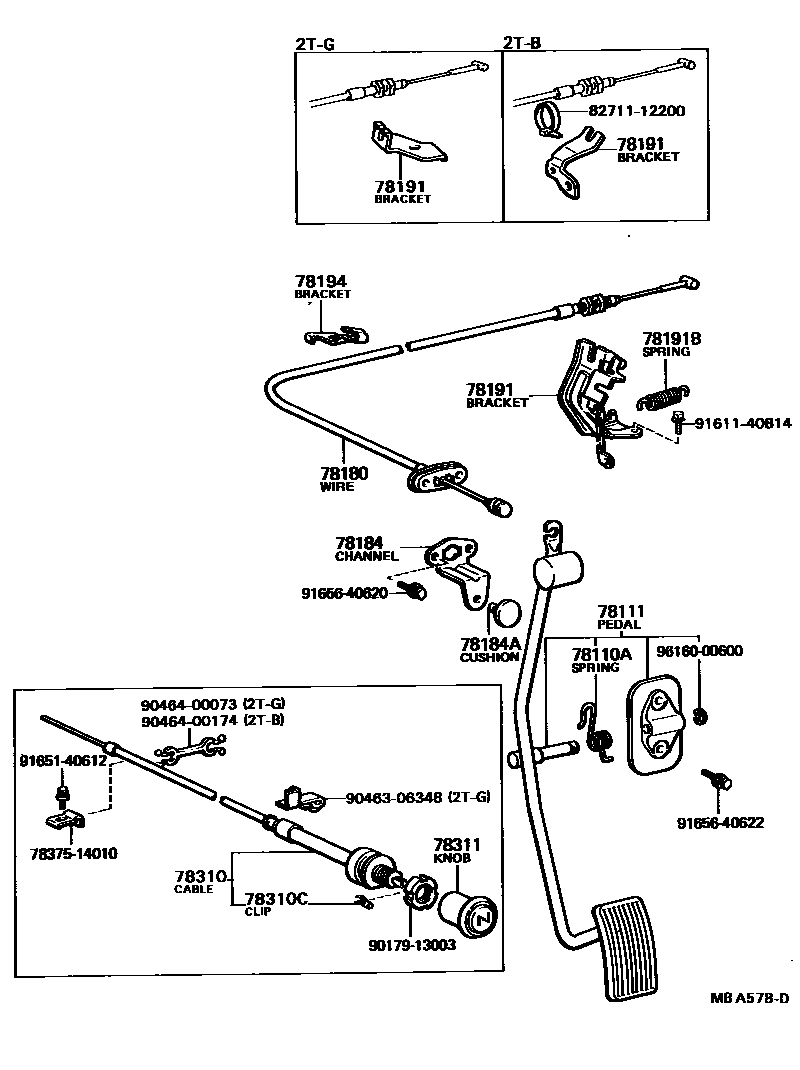

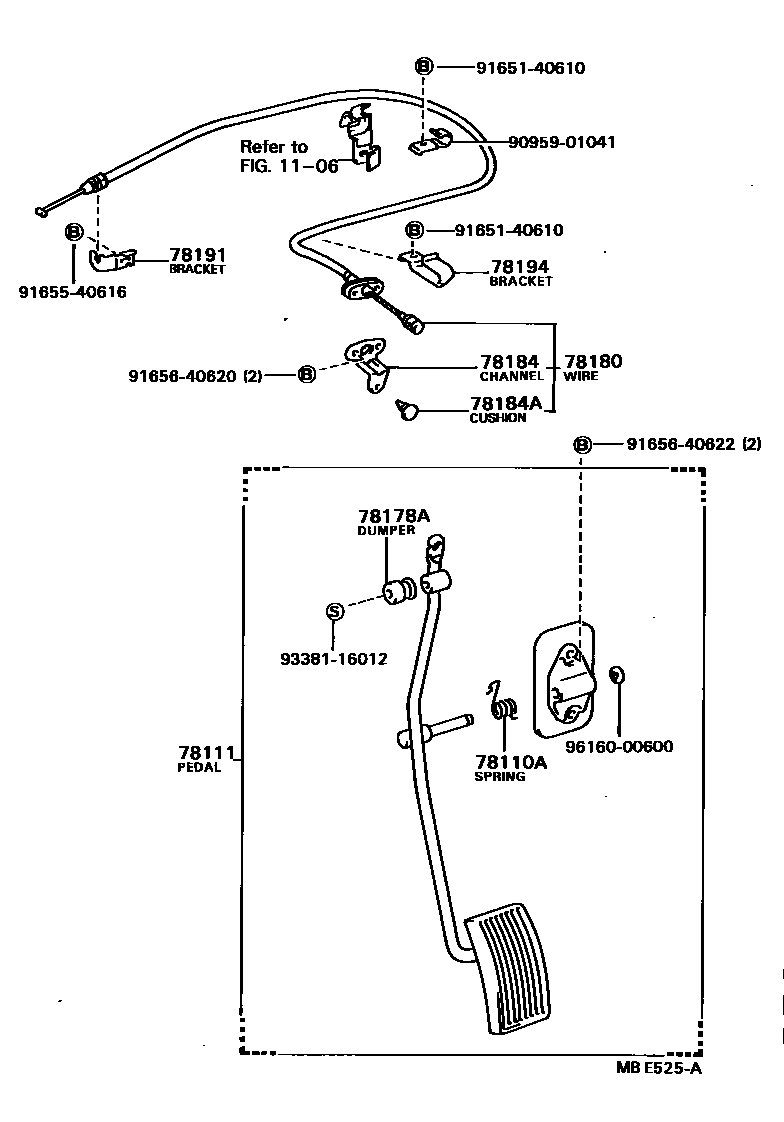

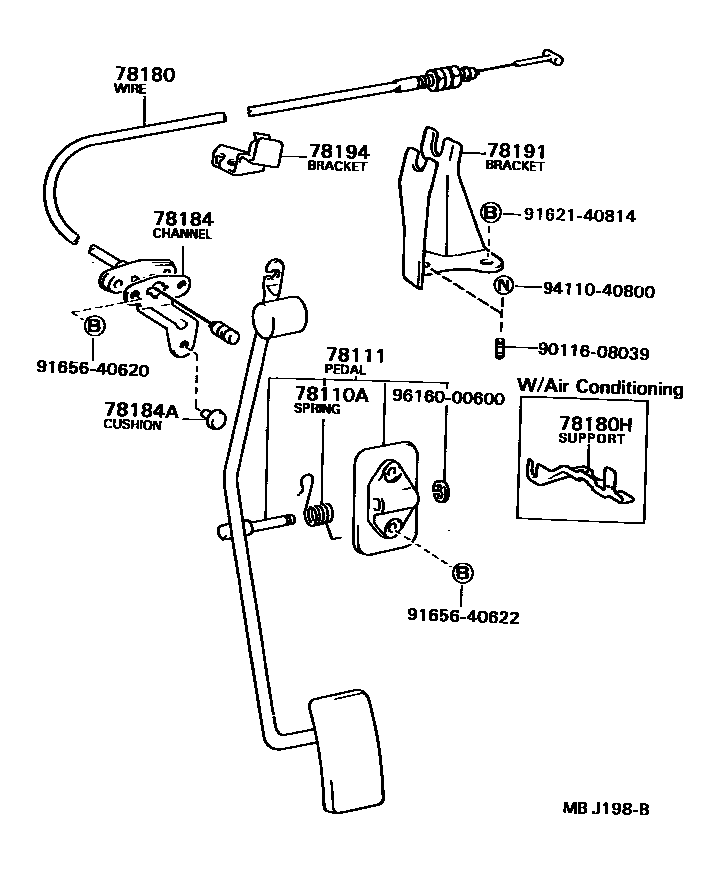

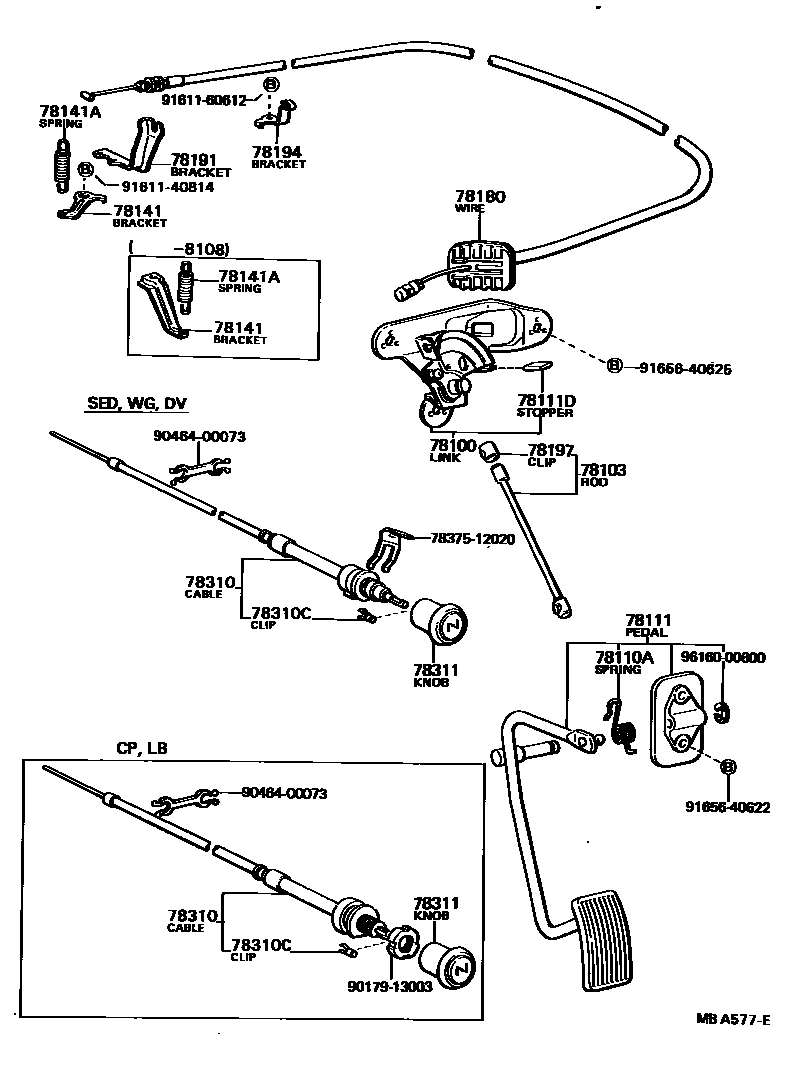

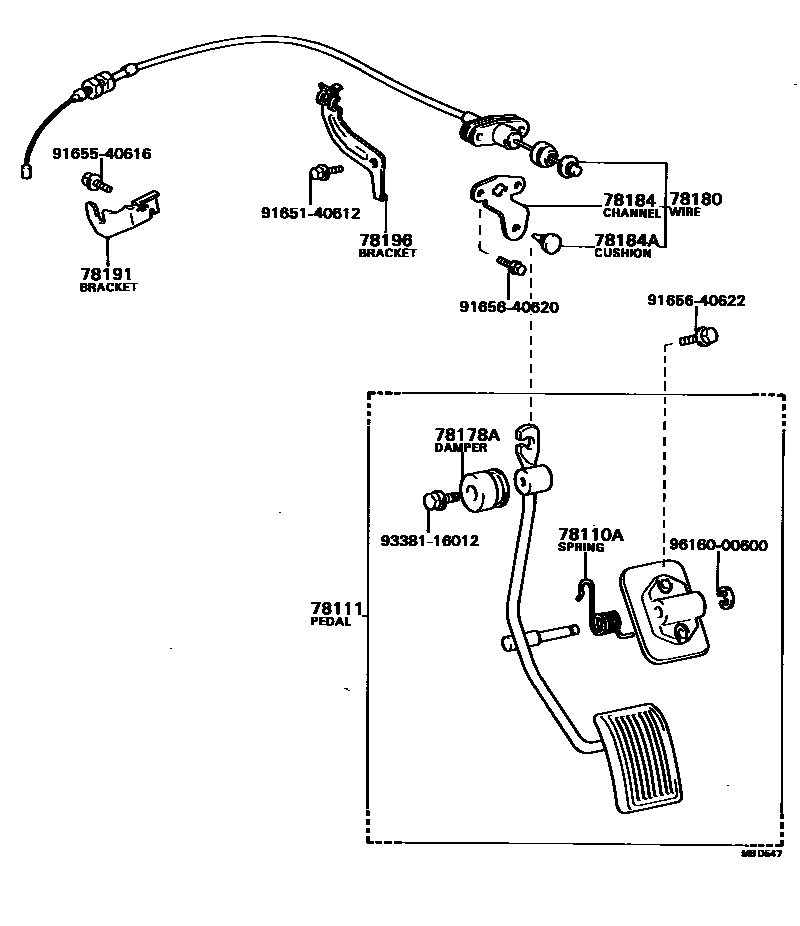

Toyota COROLLA EPC diagram 7801, accelerator pedal connecting rod, with 6 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78100 | Accelerator pedal connecting rod assembly | 78100-12030 |
| 78103 | No. 1 accelerator pedal connecting rod sub-assembly | 78103-12040 |
| 78110A | Spring (for accelerator pedal lever) | 90508-18055 · 90508-18398 · 90508-20402 |
| 78111 | accelerator pedal | 78010-12040 · 78010-12060 · 78010-12070 · 78010-12080 · 78010-12090 |
| 78111D | Stopper (for accelerator pedal) | 78118-12010 |
| 78141 | Throttle cable return spring bracket | 78141-12011 · 78187-12050 |
| 78141A | Tension spring (for throttle cable return spring) | 90507-12021 |
| 78178A | Accelerator pedal lever dynamic damper | 78178-12020 |
| 78180 | Throttle cable assembly | 78180-12250 · 78180-12280 · 78180-12290 · 78180-12330 · 78180-12340 · 78180-12350 · 78180-12360 · 78180-12361 · 78180-12370 · 78180-12390 · 78180-12400 · 78180-12530 |
| 78180H | Throttle pedal control cable bracket | 21524-16110 |
| 78184 | Accelerator pedal idle speed adjustment stop slot | 78181-12051 · 78181-12080 |
| 78184A | Cushion pad (for accelerator pedal adjustment stop groove) | 90541-06008 |
| 78191 | Throttle cable bracket | 21524-88220 · 78024-12010 · 78184-12040 · 78184-12050 · 78184-12070 · 78184-12110 · 78184-12140 · 78184-14050 · 78184-14060 · 78189-12010 |
| 78191B | Tension spring (for throttle cable bracket) | 90507-08002 |
| 78191C | Accelerator pedal control cable reinforcement | 78198-12010 |
| 78194 | No. 2 throttle cable bracket | 78186-12041 · 78186-12100 · 78186-12110 · 78186-12120 · 78186-12140 · 78186-12150 |
| 78196 | No. 3 throttle cable bracket | 78189-12010 |
| 78197 | Accelerator pedal ball joint clip | 78197-10010 |
| 78310 | Choke door cable assembly | 78310-12370 · 78310-12371 · 78310-12380 · 78310-12381 · 78310-12390 · 78310-12391 · 78310-12400 · 78310-12401 · 78310-12410 · 78310-12411 · 78310-12420 · 78310-12421 · 78310-12430 · 78310-12431 · 78310-12440 · 78310-12441 · 78310-12450 · 78310-12451 · 78310-12460 · 78310-12461 · 78310-12470 · 78310-12471 · 84506-12011 |
| 78310A | Choke cable retaining ring | 90480-13055 |
| 78310C | Clip (for choke cable) | 78312-12010 |
| 78311 | Choke control cable button | 78311-12020 · 78311-12021 · 78311-12030 · 78311-12031 · 78311-12040 · 78311-12041 · 78311-12050 · 78311-12051 |
