Toyota COROLLA 侧防护条 — Figure 7503

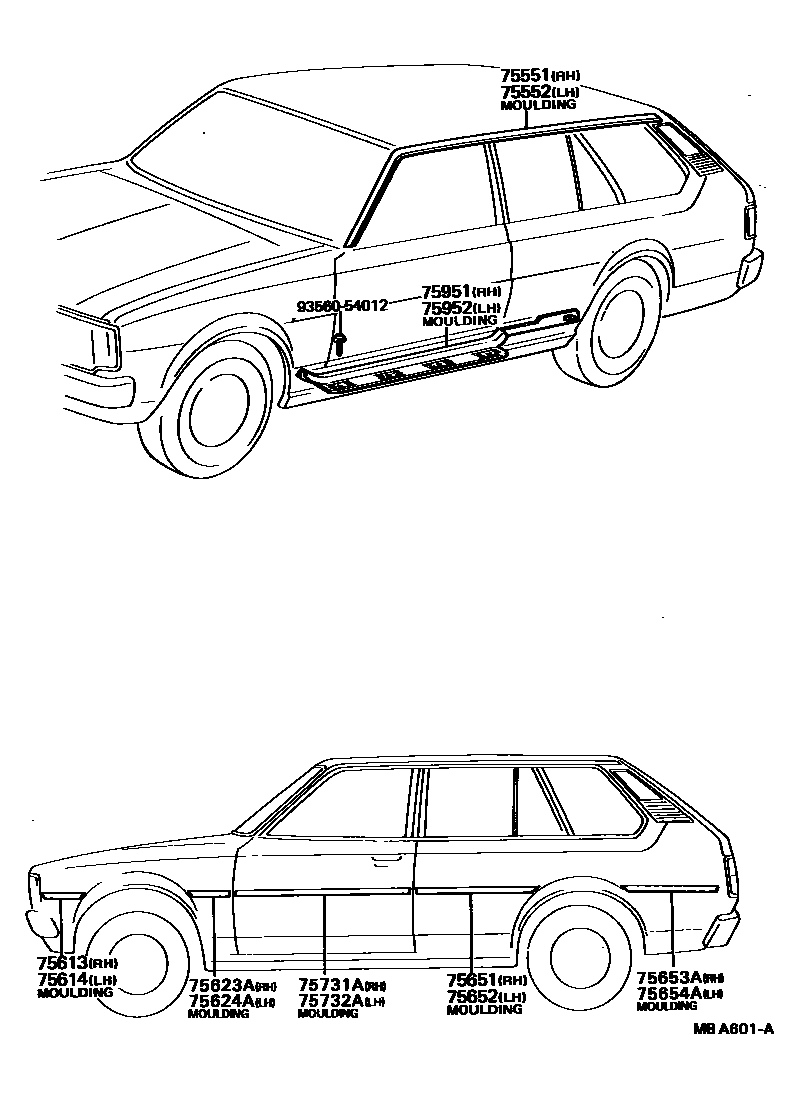

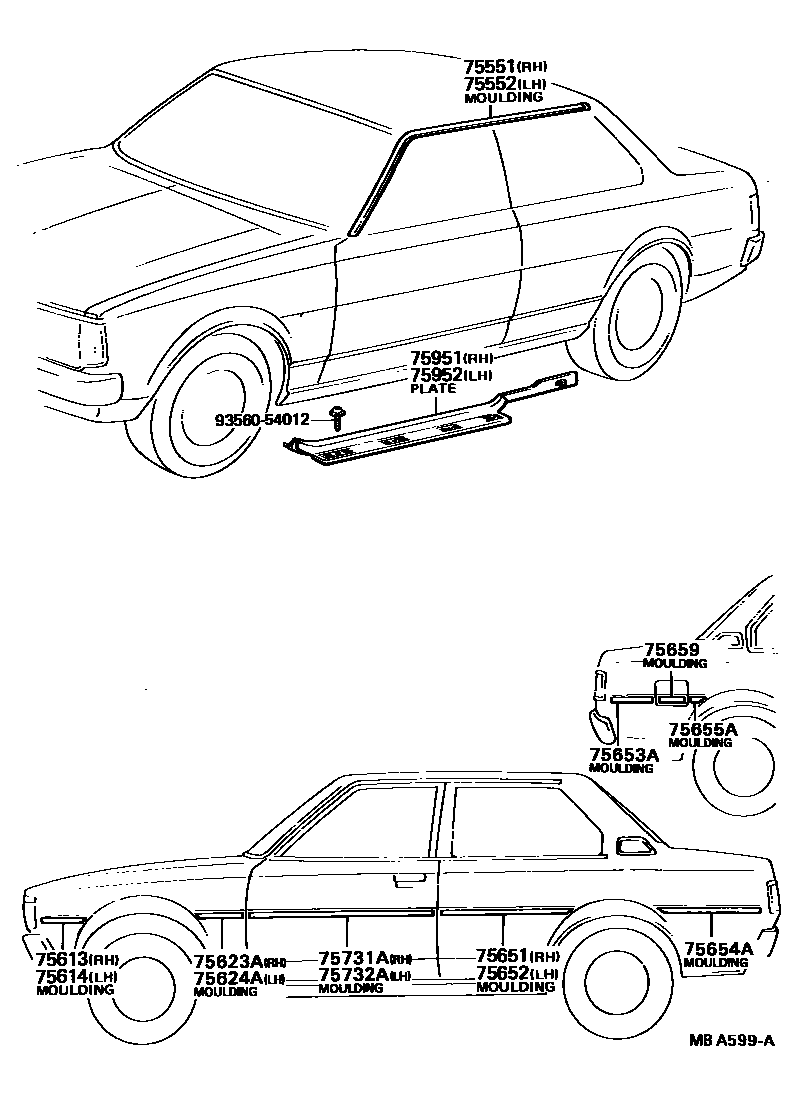

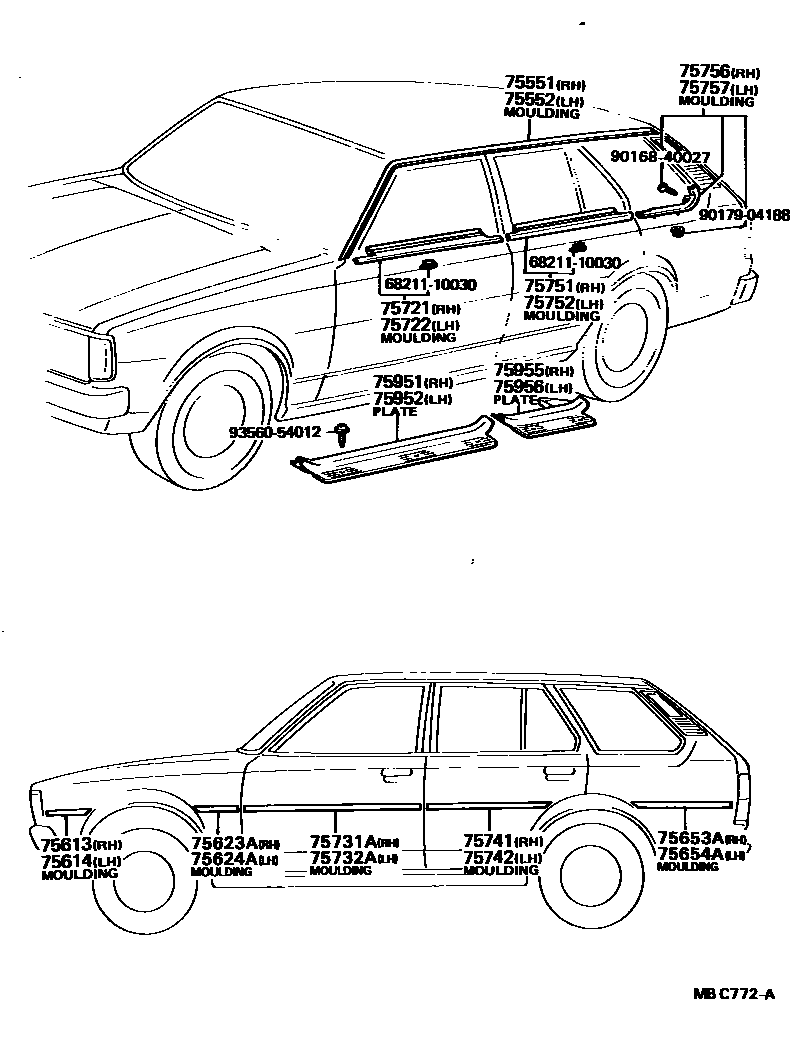

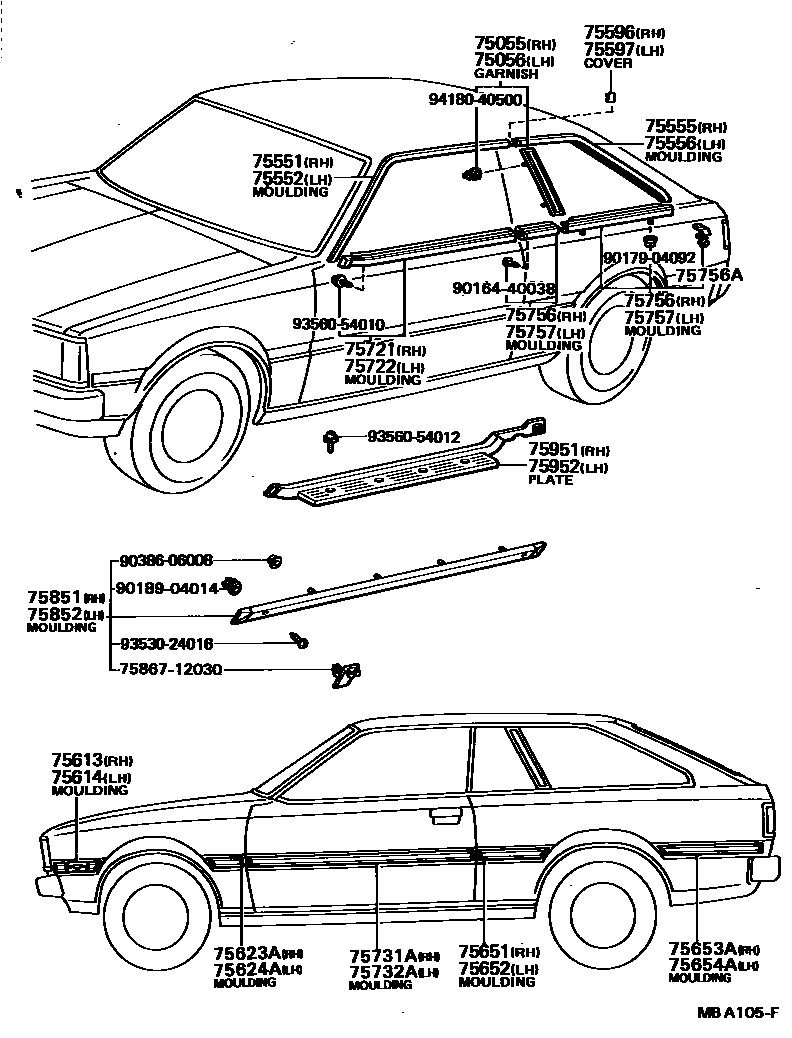

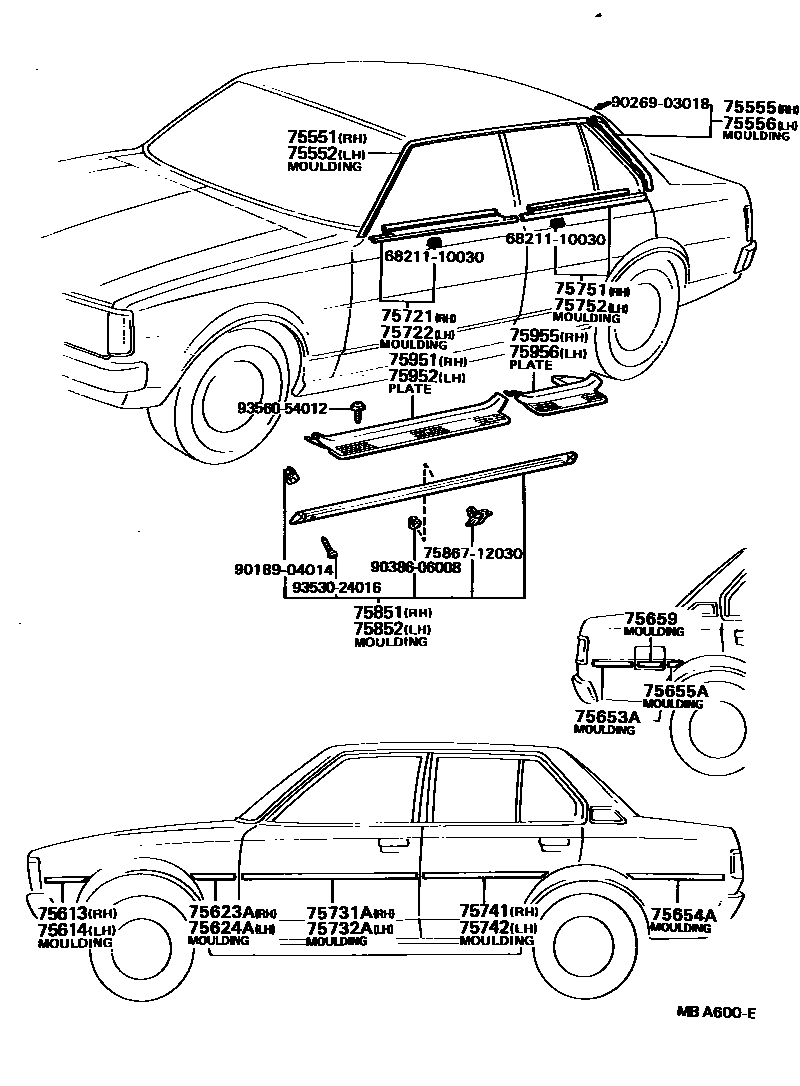

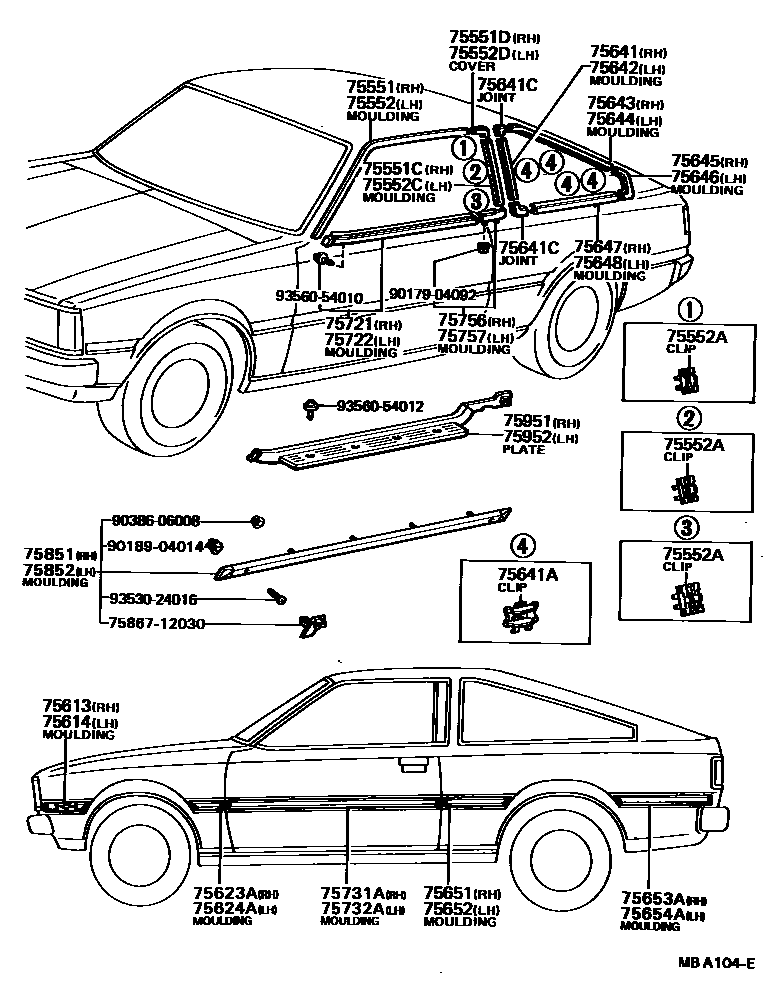

Toyota COROLLA EPC diagram 7503, 侧防护条, with 6 images and 46 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75055 | Right side column outer decorative panel | 75555-19066 · 75555-19075 · 75555-19085 |
| 75056 | Left side column outer decorative panel | 75556-19066 · 75556-19075 · 75556-19085 |
| 75551 | Drainage groove side decorative strip on the right side of the roof | 75551-12210 · 75551-12230 · 75551-12240 · 75551-12260 · 75551-12270 · 75551-13050 · 75551-13060 |
| 75551C | Right center panel outer protective strip | 75655-12050 · 75655-12060 |
| 75551D | Cover (for the outer protective strip of the right center panel) | 75578-12020 · 75578-12030 |
| 75552 | Drainage groove side decorative strip on the left side of the roof | 75552-12210 · 75552-12230 · 75552-12240 · 75552-12260 · 75552-12270 · 75552-13050 · 75552-13060 |
| 75552A | Center side panel outer protective strip clip | 75395-12020 · 75396-12020 · 75397-12020 |
| 75552C | Left center panel outer protective strip | 75656-12050 · 75656-12060 |
| 75552D | Cover (for left center panel outer protective strip) | 75579-12010 · 75579-12020 |
| 75555 | Decorative strip on the right side of the roof, rear gutter side | 75055-12060 · 75055-12070 · 75553-19075 |
| 75556 | Decorative strip on the left side of the roof, rear gutter side | 75056-12060 · 75056-12070 · 75554-19075 |
| 75596 | Drainage channel side decorative strip joint cover on the right side of the roof | 75596-12080 |
| 75597 | Drainage channel side decorative strip joint cover on the left side of the roof | 75596-12080 |
| 75613 | Right front fender outer protective strip | 75611-12160 · 75611-12240 · 75611-12250 · 75611-12900 · 75611-12902 |
| 75614 | Left front fender outer protective strip | 75612-12120 · 75612-12200 · 75612-12210 · 75612-12900 · 75612-12902 |
| 75623A | Right front fender outer rear protective strip | 75623-12020 · 75623-12060 · 75623-12900 |
| 75624A | Left front fender outer rear protective strip | 75624-12020 · 75624-12060 · 75624-12900 |
| 75641 | Right front corner window outer protective strip | 75641-12080 · 75641-12090 |
| 75641A | Clip (for corner window protective strip) | 75395-12020 |
| 75641C | Corner window protective strip joint | 76651-12010 · 76651-12020 · 76652-12010 · 76652-12020 · 76653-12010 · 76653-12020 · 76654-12010 · 76654-12020 |
| 75642 | Left front corner window protection strip | 75642-12080 · 75642-12090 |
| 75643 | Protective strip on the outside of the right corner window | 75643-12010 · 75643-12020 |
| 75644 | Protective strip on the outside of the left corner window | 75644-12010 · 75644-12020 |
| 75645 | Right rear corner window protection strip | 75645-12010 · 75645-12020 |
| 75646 | Left rear corner window protection strip | 75646-12010 · 75646-12020 |
| 75647 | Right corner window outer lower protective strip | 75647-12010 · 75647-12020 |
| 75648 | Left corner window outer lower protective strip | 75648-12010 · 75648-12020 |
| 75651 | Right side outer protective strip | 75651-12210 · 75651-12270 · 75651-12914 |
| 75652 | Left side outer protective strip | 75652-12210 · 75652-12270 · 75652-12914 |
| 75653A | Right rear side panel outer protective strip | 75653-12190 · 75653-12250 · 75653-12900 · 75653-13030 · 75653-13050 |
| 75654A | Left rear side panel outer protective strip | 75654-12160 · 75654-12230 · 75654-12900 · 75654-13030 · 75654-13050 |
| 75655A | Right center panel outer protective strip | 75655-12070 · 75655-12100 |
| 75659 | Fuel filler cap protective strip | 75659-12010 · 75659-12040 |
| 75721 | Right front door waistline protection strip | 75710-12160 · 75710-12270 · 75710-19035 · 75710-19036 · 75710-19037 · 75710-19045 · 75710-19046 · 75710-19047 · 75710-19075 · 75710-19085 · 75710-19105 · 75710-19115 |
| 75722 | Left front door waistline protection strip | 75720-12160 · 75720-12270 · 75720-19035 · 75720-19036 · 75720-19037 · 75720-19045 · 75720-19046 · 75720-19047 · 75720-19075 · 75720-19085 · 75720-19105 · 75720-19115 |
| 75731A | Right front door outer protective strip | 75731-12260 · 75731-12270 · 75731-12320 · 75731-12330 · 75731-12900 |
| 75732A | Left front door outer protective strip | 75731-12260 · 75731-12270 · 75731-12900 · 75732-12160 · 75732-12170 |
| 75741 | Right rear door outer protective strip | 75741-12150 · 75741-12180 |
| 75742 | Left rear door outer protective strip | 75742-12140 · 75742-12170 |
| 75751 | Right rear door waistline protection strip | 75730-12030 |
| 75752 | Left rear door waistline protection strip | 75740-12120 |
| 75756 | Right corner window decorative strip | 75067-19035 · 75067-19045 · 75608-19045 · 75608-19055 · 75660-19185 · 75660-19195 · 75660-19215 |
| 75756A | Waistline side protective strip clip | 75791-12010 |
| 75757 | Left corner window decorative strip | 75068-19035 · 75068-19045 · 75609-19065 · 75609-19075 · 75670-19185 · 75670-19195 · 75670-19215 |
| 75851 | Right side door sill panel protective strip | 75850-19115 · 75850-19125 |
| 75852 | Left side door sill panel protective strip | 75860-19115 · 75860-19125 |
