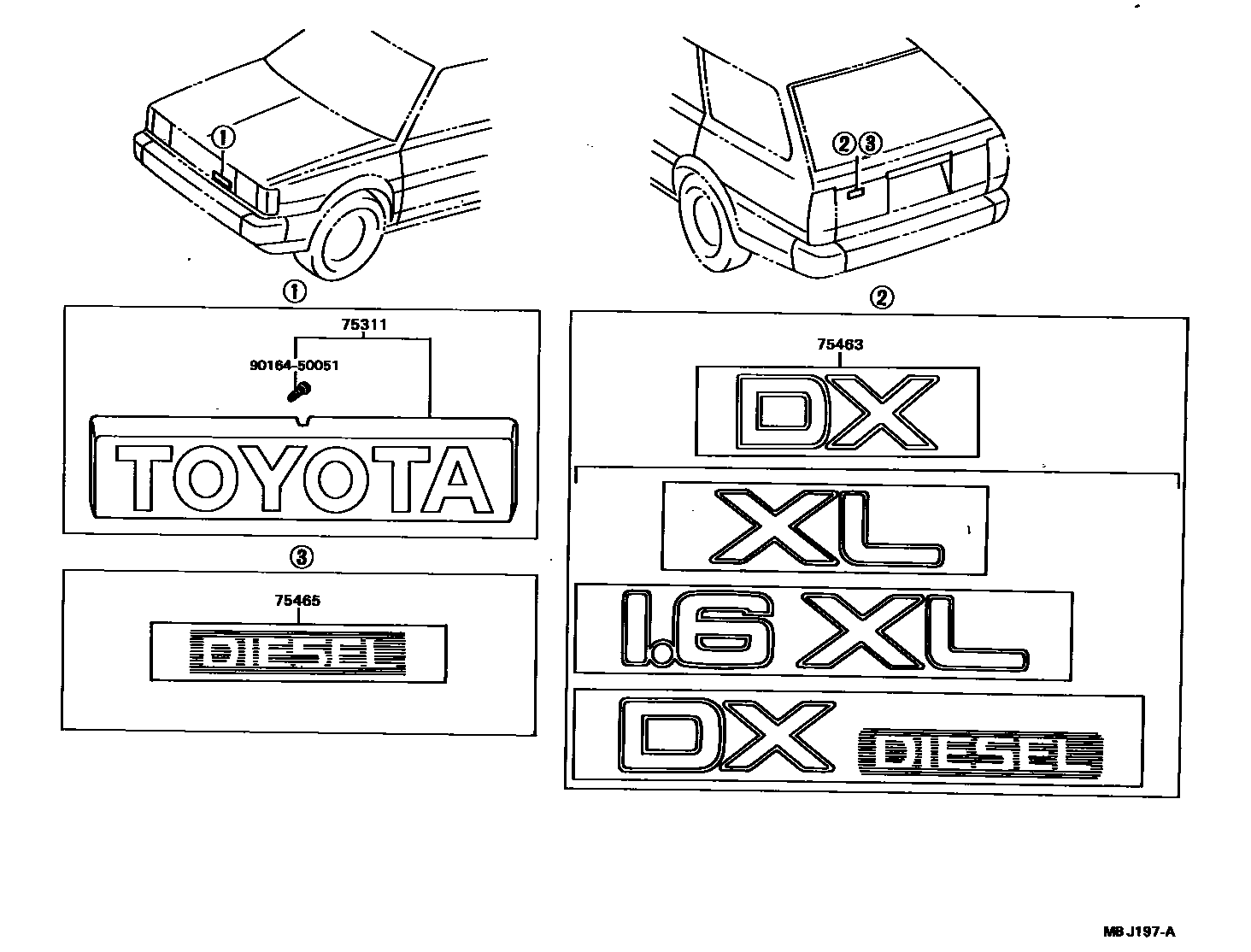

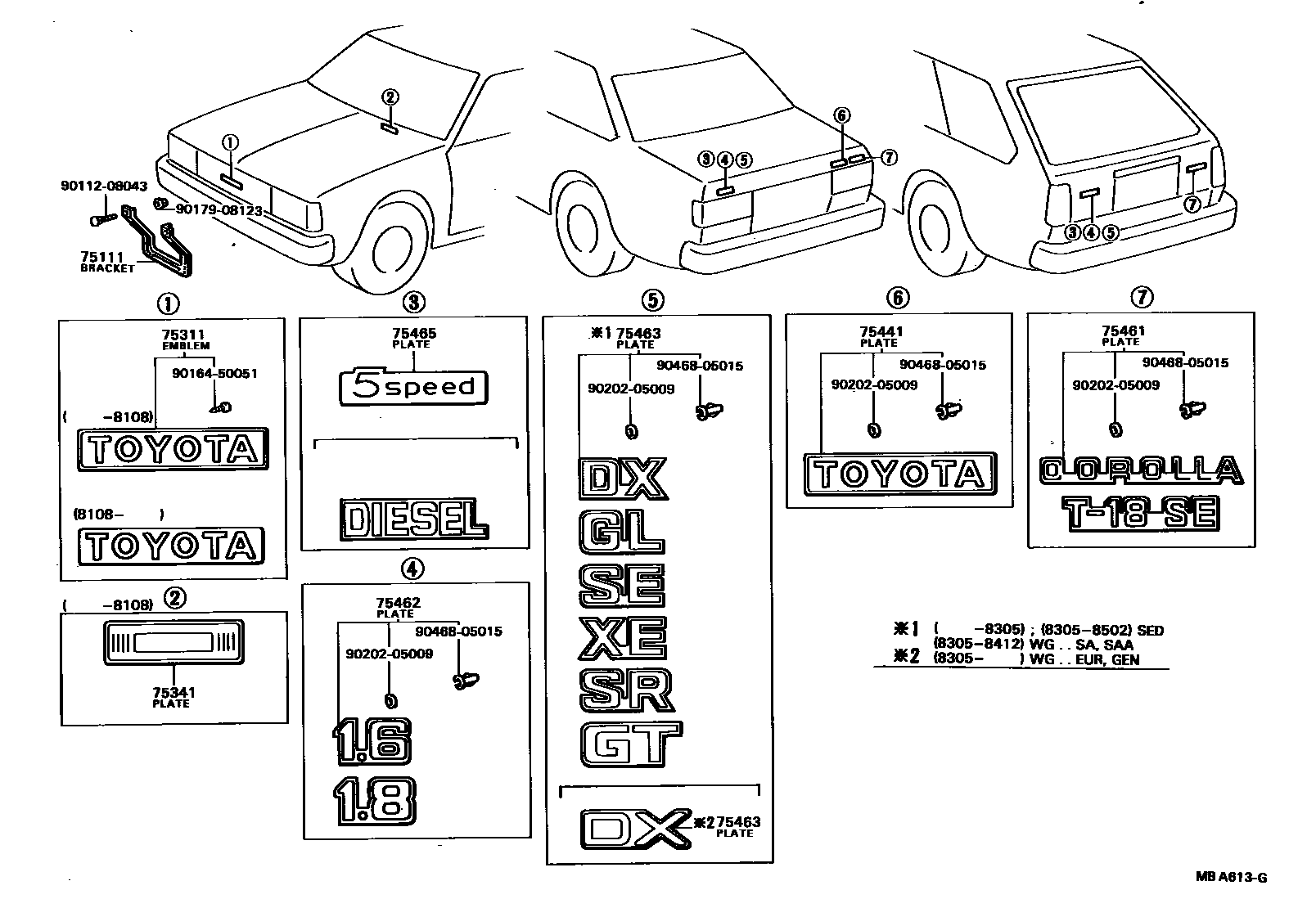

Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501
Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75111 | front license plate bracket | 75111-12040 |
| 75311 | Radiator grille (or front panel) plate | 75311-19845 · 75311-19855 · 75311-19865 · 75311-80001 · 75311-80015 · 75311-80016 · 75311-80026 |
| 75441 | No. 1 rear nameplate | 75441-12240 |
| 75461 | No. 2 rear nameplate (model mark) | 75441-12280 · 75442-12710 |
| 75462 | No. 3 rear nameplate (displacement) | 75444-12050 · 75444-12080 |
| 75463 | No. 4 rear nameplate (grade mark) | 75443-12130 · 75443-12140 · 75443-12150 · 75443-12240 · 75443-12280 · 75443-12330 · 75443-13020 · 75443-13021 · 75443-13022 · 75443-13040 · 75443-13070 · 75443-13080 |
| 75465 | No. 5 rear nameplate (organization) | 75441-30040 · 75444-12120 · 75445-12070 · 75445-13010 · 75445-13011 |
