Toyota COROLLA battery holder — Figure 7402

Toyota COROLLA EPC diagram 7402, battery holder, with 1 images and 3 PNC and OE references.

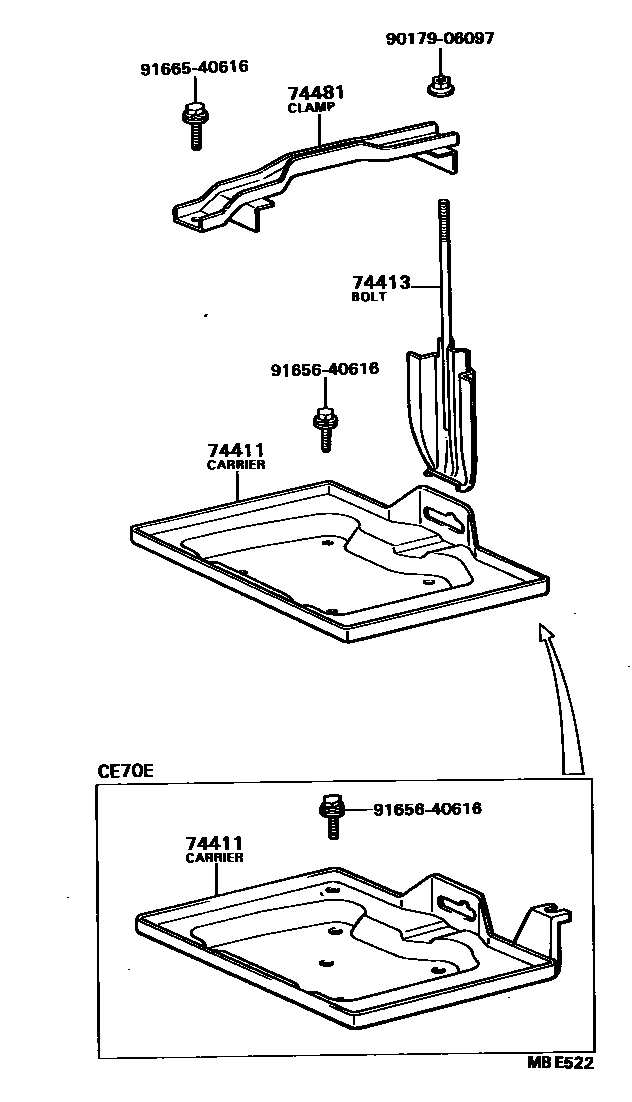

Toyota COROLLA battery holder EPC diagram — MBE522
battery holder — MBE522 (197908 – 999999)

PNC and OE references

PNCPart nameOE numbers
74411battery holder74403-12010 · 74411-12110 · 74411-12120 · 74411-12130 · 74412-12010 · 74431-14010 · 74431-14020 · 74431-14050
74413Battery clamp bolt74402-12010 · 74407-12060 · 74407-12070 · 74407-12080
74481Battery fixing clip74404-12110 · 74404-12130 · 74404-12140 · 74404-12150 · 74404-12160 · 74404-12180 · 74406-12010 · 74406-12020
