Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102

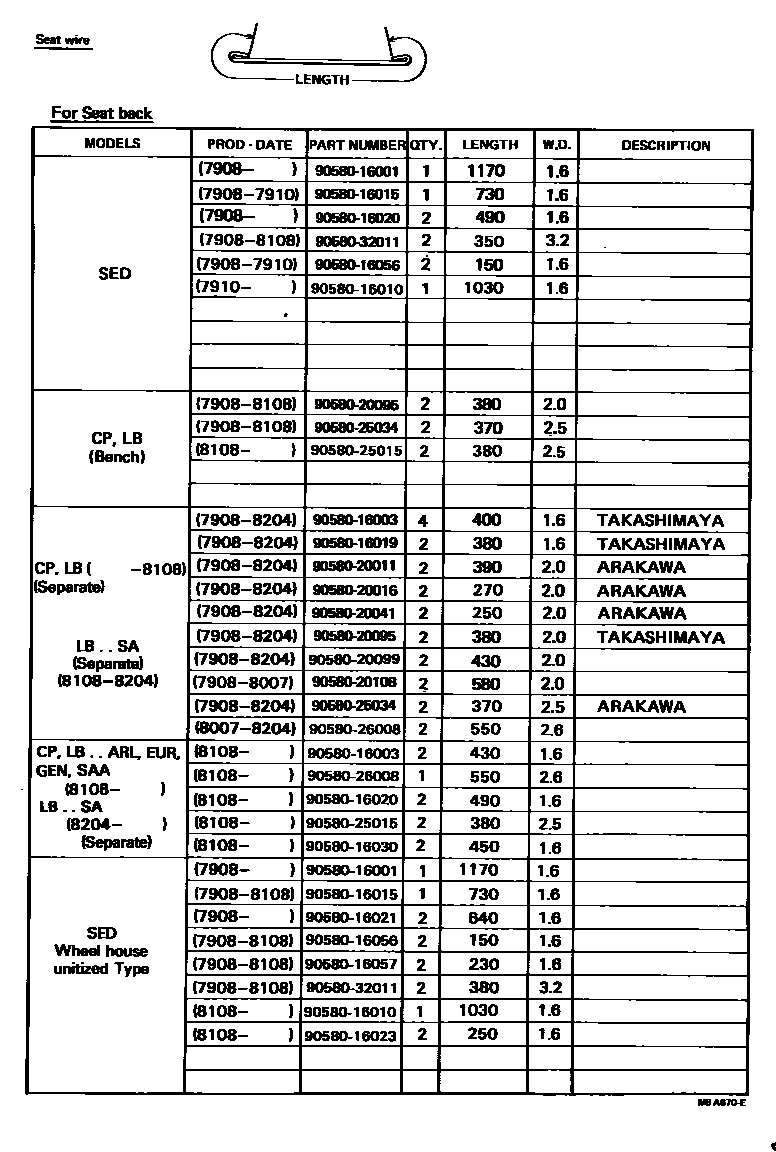

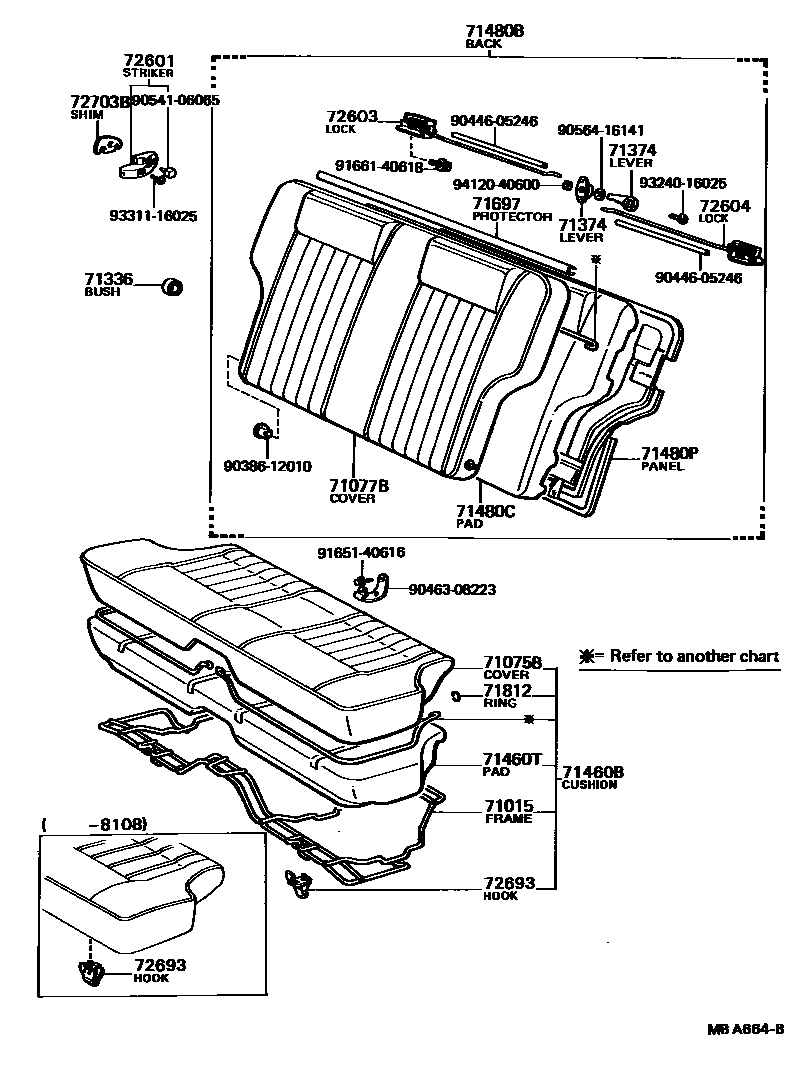

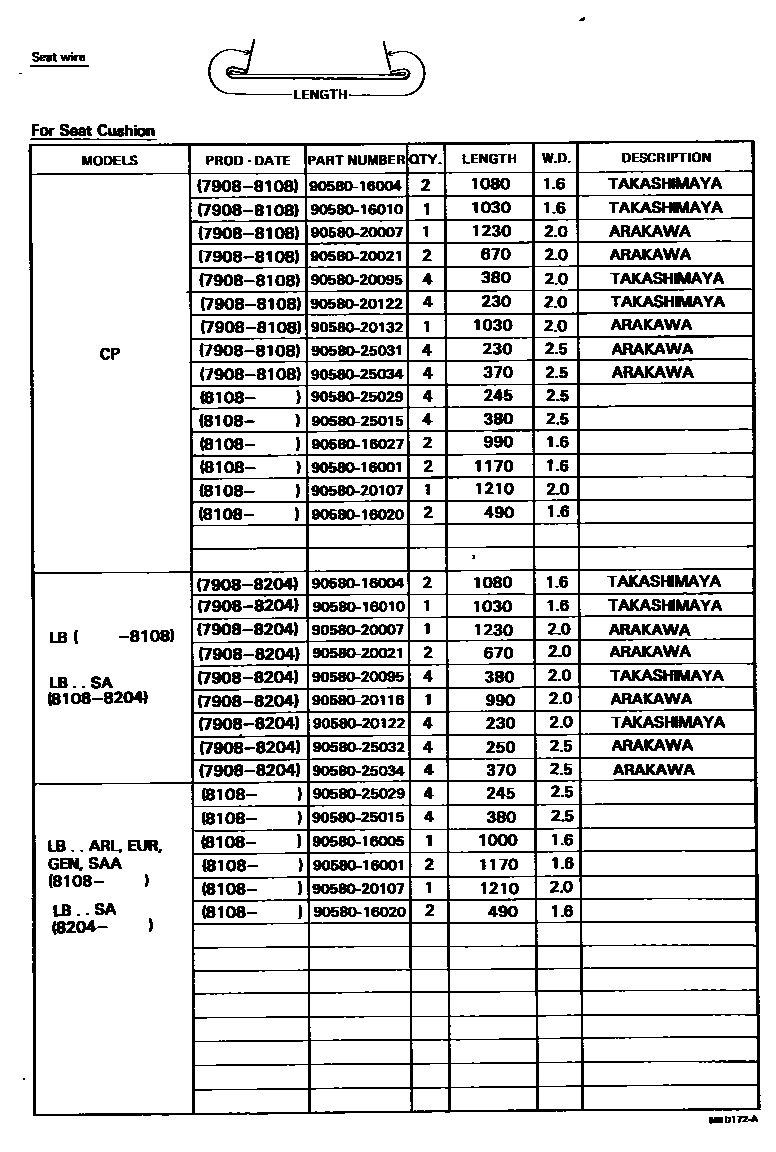

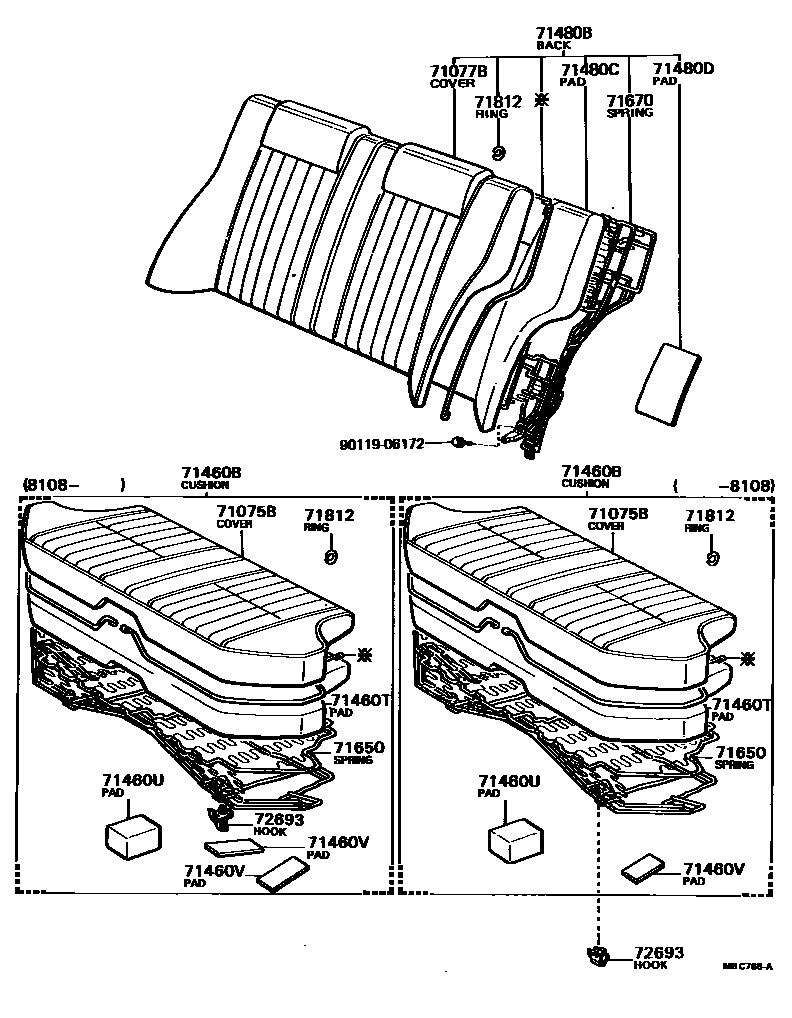

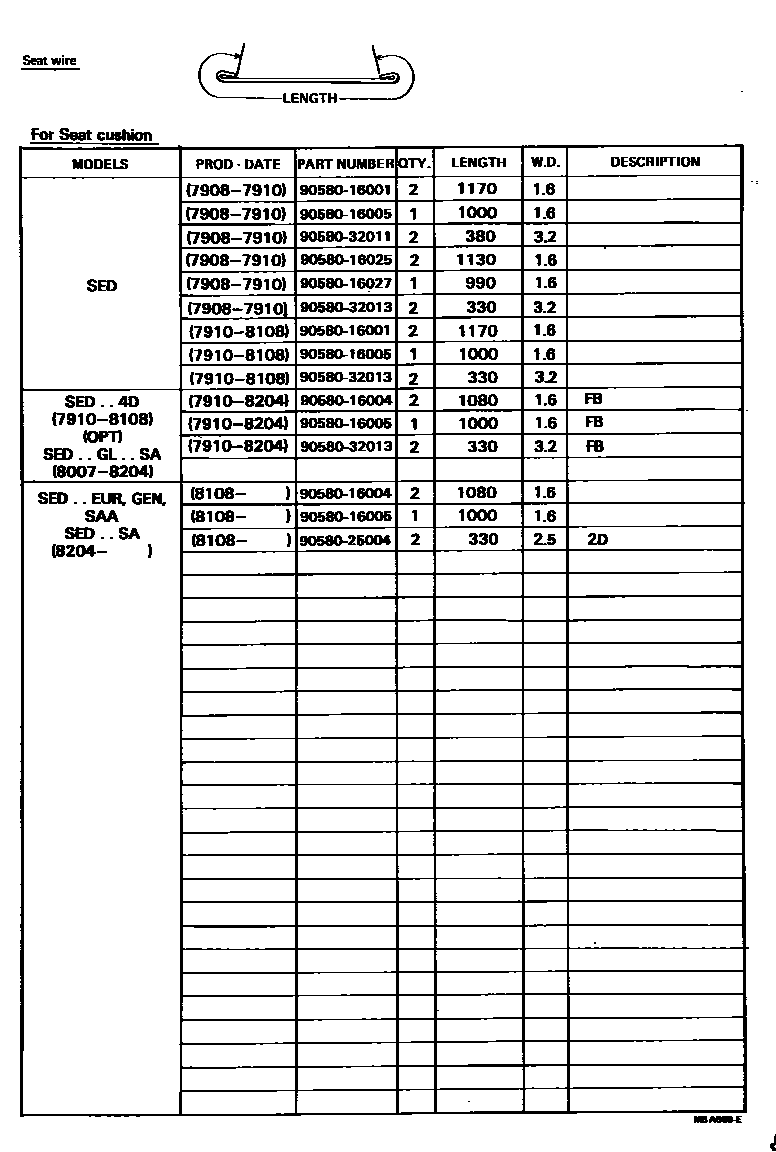

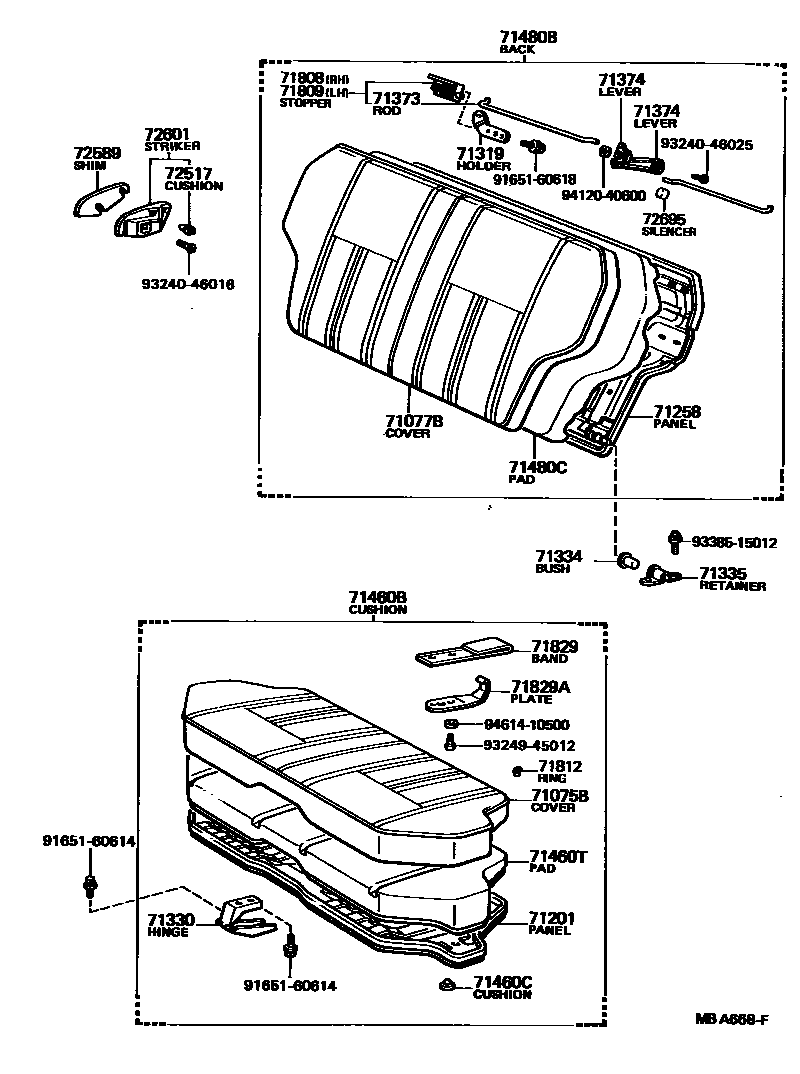

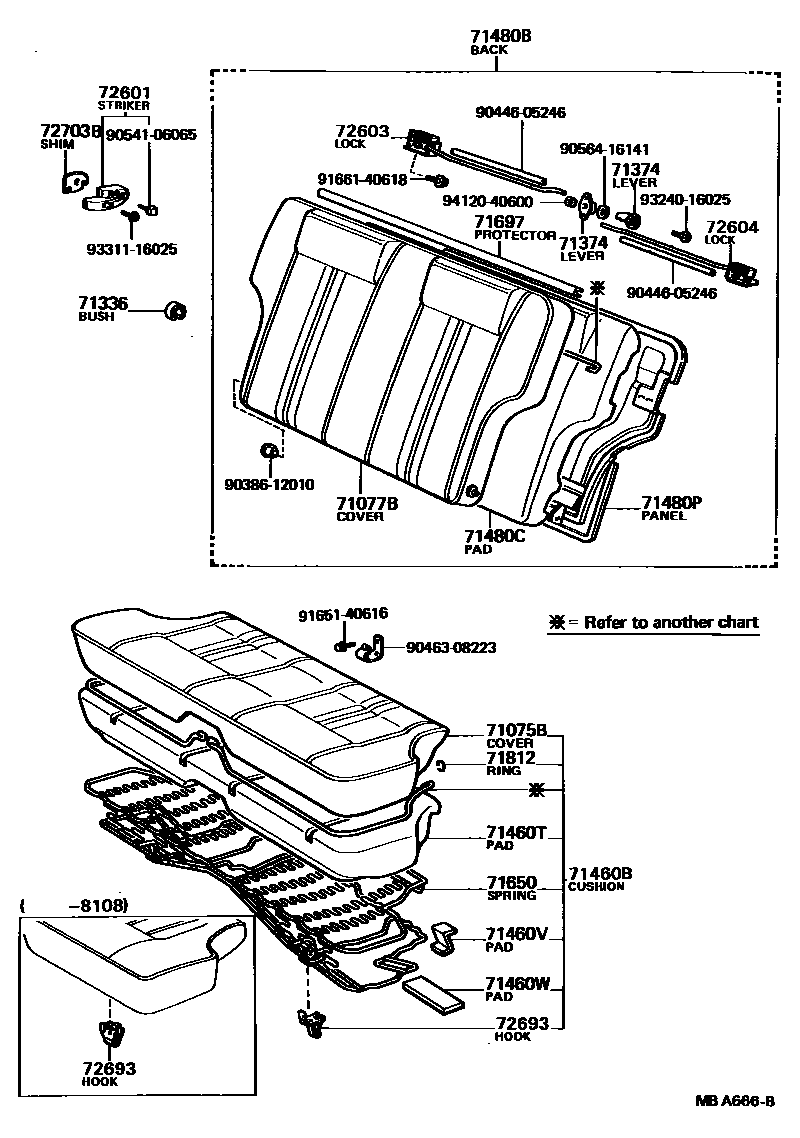

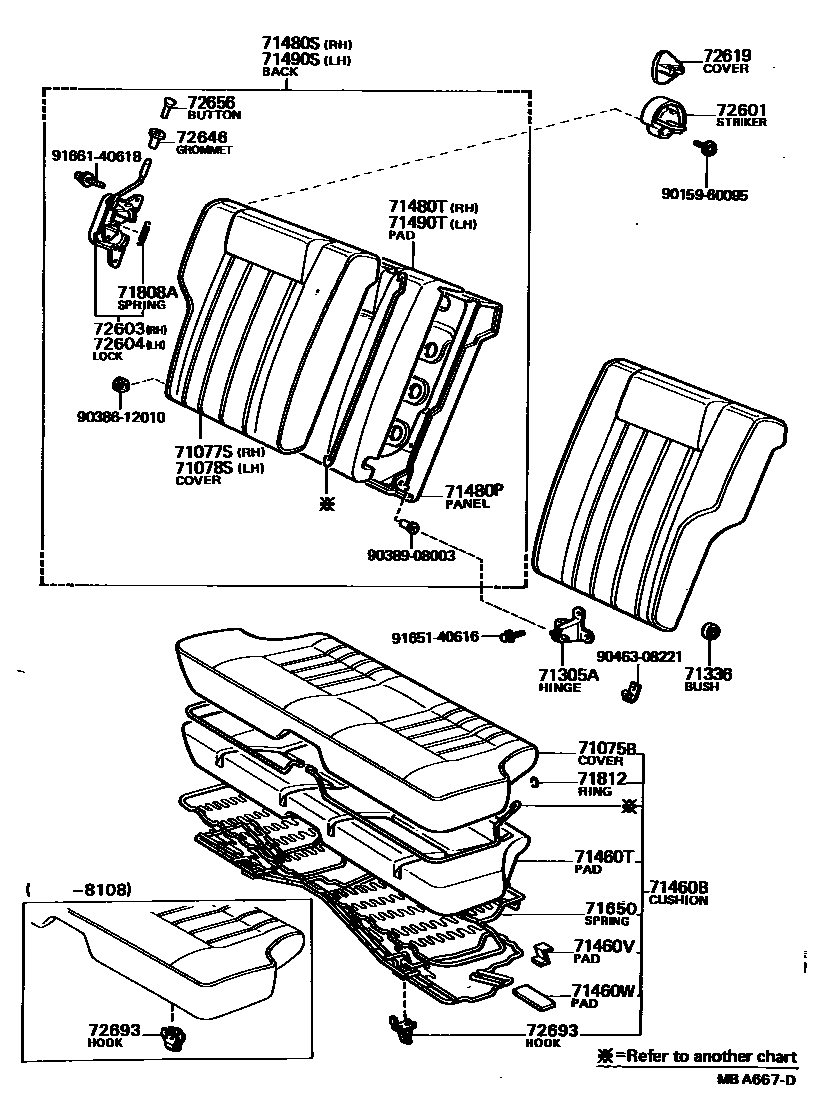

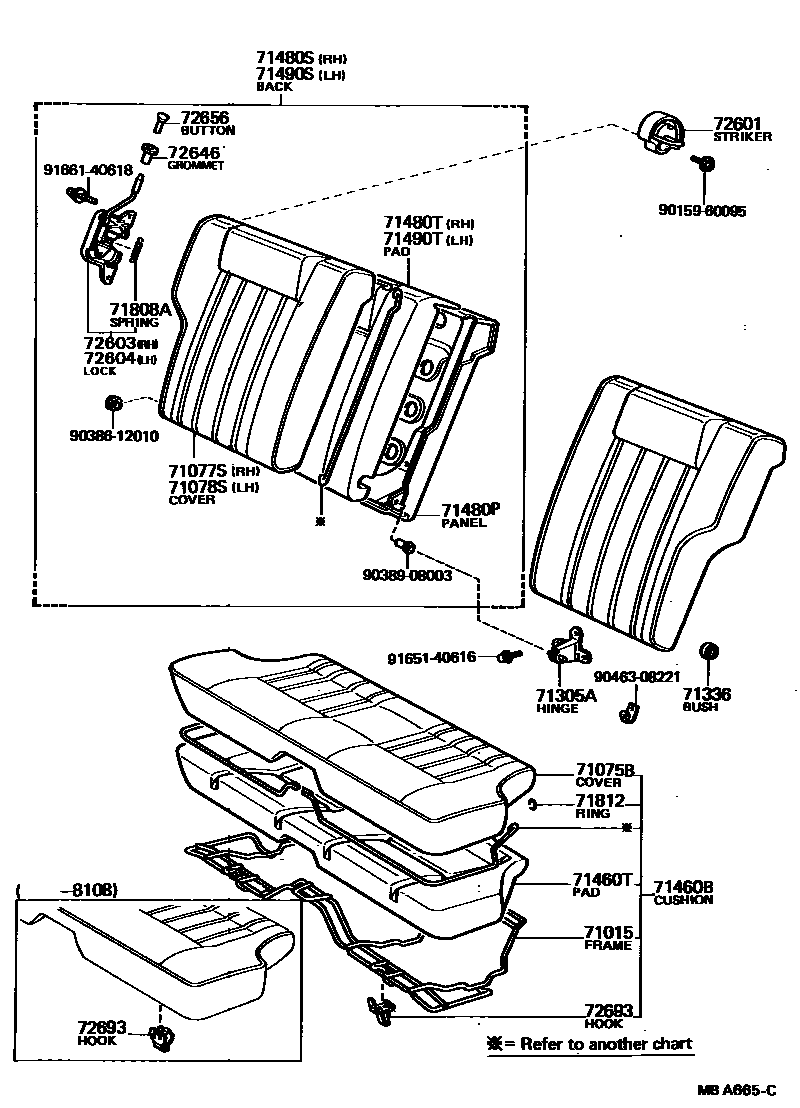

Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 9 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015 | Rear seat cushion frame sub-assembly | 71015-12220 |
| 71201 | Rear seat cushion panel sub-assembly | 71201-13070 |
| 71258 | Rear seat back panel sub-assembly | 71202-13090 · 71202-13100 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-12020 |
| 71319 | Rear seat back retainer | 71398-13010 |
| 71330 | Rear seat cushion hinge assembly | 71301-13030 |
| 71334 | Rear seat cushion pivot bushing | 71331-13010 |
| 71335 | Rear seat backrest pivot upper seat ring | 71327-13010 |
| 71336 | Rear seat back hinge bushings or spacers | 71332-12010 |
| 71373 | Rear seat back lock lever | 72625-13010 · 72626-13010 |
| 71374 | Rear seat back lever control lever | 71374-13020 · 71383-13010 · 72637-13030 · 72661-13010 |
| 71460C | Seat cushion (for rear seat cushion) | 90541-09011 |
| 71460T | Rear No. 1 seat cushion cushion sub-assembly | 71405-12150 · 71405-12151 · 71405-12160 · 71405-12161 · 71611-12320 · 71611-12330 · 71611-12331 · 71611-13090 · 71611-13110 |
| 71460U | Rear No. 2 seat cushion cushion sub-assembly | 71614-12300 |
| 71460V | Rear seat No. 3 seat cushion muffler | 71621-12240 · 71621-12250 |
| 71460W | Seat cushion muffler for rear seat No. 4 | 71622-12070 |
| 71480C | Rear No. 1 seat back cushion sub-assembly (for bench seat) | 71407-12130 · 71407-12131 · 71651-12300 · 71651-13090 · 71651-13110 |
| 71480D | Backrest cushion for rear seat No. 2 (for bench seat) | 71665-12030 |
| 71480P | Rear seat back panel sub-assembly | 71202-12030 · 71202-12040 · 71203-12020 |
| 71480T | Rear right seat back cushion (for split seats) | 71651-12310 · 71651-12340 |
| 71490T | Rear left seat back cushion (for split seats) | 71652-12180 · 71652-12190 |
| 71650 | Rear seat cushion spring assembly | 71650-12170 · 71650-12171 · 71650-12180 · 71650-12181 · 71650-12190 |
| 71670 | Rear seat back spring assembly (for bench seat) | 71670-12140 · 71670-12141 · 71670-12150 · 71670-12151 · 71670-12180 · 71670-12181 · 71670-12190 |
| 71697 | Rear seat back edge protective cover | 71697-12010 |
| 71808 | Rear right seat backrest block sub-assembly | 72630-13040 · 72630-13060 |
| 71808A | Rear seat back limit spring | 90506-08003 |
| 71809 | Rear left seat backrest block sub-assembly | 72640-13040 · 72640-13060 |
| 71829A | Rear seat cushion strap support plate | 71897-13020 |
| 72517 | Rear seat backrest stop cushion | 90541-06006 |
| 72589 | Rear seat back stop gasket | 72669-13020 |
| 72601 | Rear seat lock sub-assembly | 72601-12030 · 72601-12040 · 72602-12010 · 72602-12020 |
| 72603 | Rear right seat back lock sub-assembly | 72630-12030 · 72630-12040 |
| 72604 | Rear left seat back lock sub-assembly | 72640-12030 · 72640-12040 |
| 72619 | Rear seat back lock cover | 72615-12010 · 72616-12010 |
| 72693 | Rear seat cushion hook | 72693-12010 · 72693-22010 |
| 72695 | Rear seat back lock control lever silencer | 72695-13011 |
| 72703B | Rear seat backrest stop lock gasket | 72669-12010 |
