Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

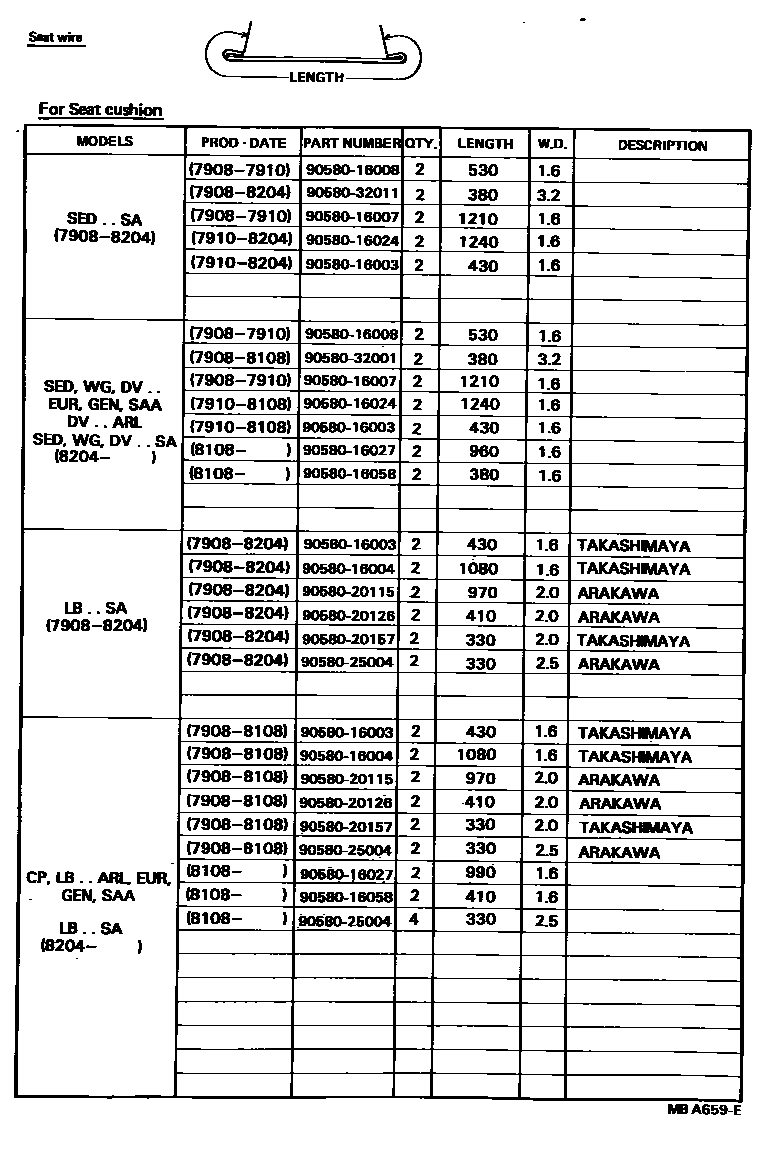

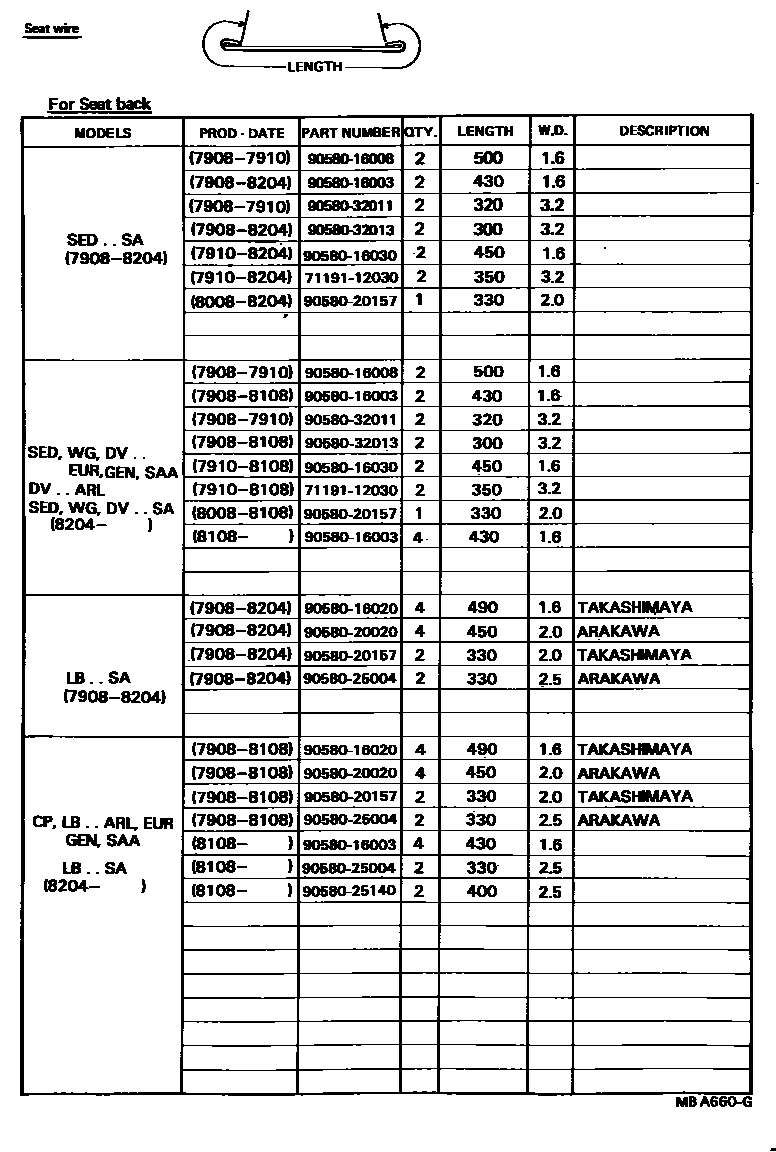

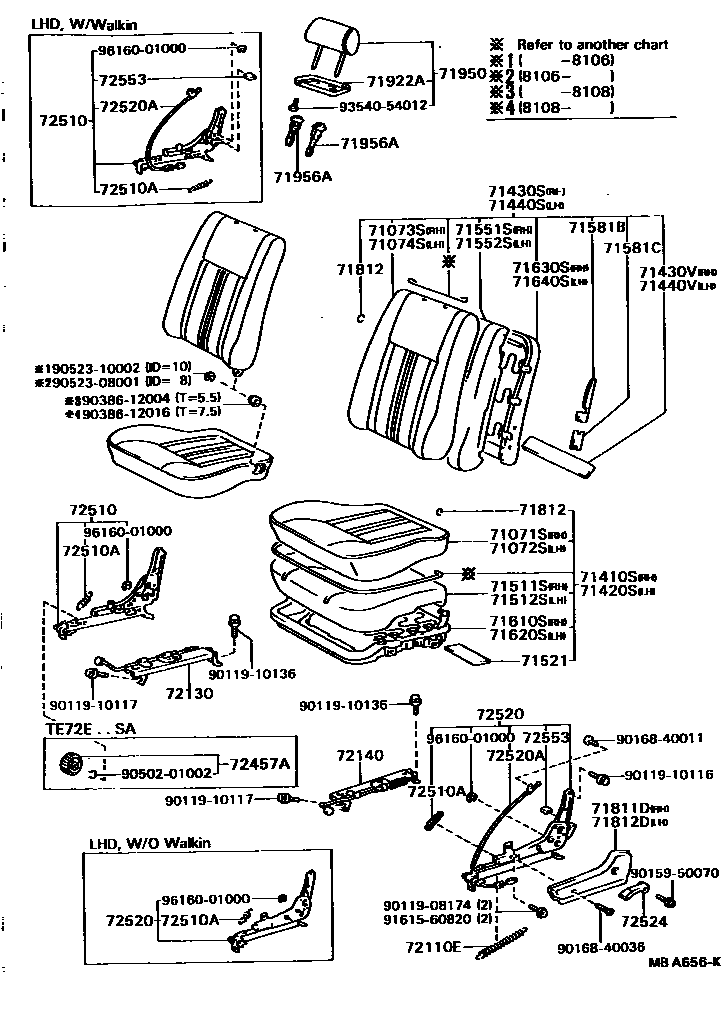

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 3 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71430V | No. 3 seat back cushion on the right side of the front row (for separate type) | 71581-12020 |
| 71440V | Front left seat No. 3 seat back cushion (for split seats) | 71581-12020 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-12291 · 71511-12300 · 71511-12330 · 71511-12331 · 71511-12360 · 71511-12371 · 71511-12390 · 71511-12400 |
| 71512S | Front left seat cushion cushion (for split seats) | 71511-12291 · 71511-12300 · 71511-12330 · 71511-12331 · 71511-12360 · 71511-12371 · 71511-12390 · 71511-12400 |
| 71521 | Front A seat cushion muffler | 71521-12160 |
| 71551S | Front right seat back cushion (for split seats) | 71403-10050 · 71403-12050 · 71551-12300 · 71551-12301 · 71551-12321 · 71551-12350 · 71551-12370 |
| 71552S | Front left seat back cushion (for split seats) | 71403-10050 · 71403-12050 · 71551-12300 · 71551-12301 · 71551-12321 · 71551-12350 · 71551-12370 |
| 71581B | Front B seat back corner cushions | 71582-12080 |
| 71581C | Front C seat back corner cushions | 71583-12030 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-12110 · 71610-12111 · 71610-12120 · 71610-12130 · 71610-12131 · 71610-12140 · 71610-12150 · 71610-16010 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-12110 · 71620-12111 · 71620-12120 · 71620-12130 · 71620-12131 · 71620-16010 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-10051 · 71630-12180 · 71630-12200 · 71630-12210 · 71630-12310 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-10051 · 71640-12170 · 71640-12190 · 71640-12200 · 71640-12270 |
| 71812 | Clip (for front seat cushion cover) | 90468-18071 |
| 72110E | No. 1 tensioning spring (for seat slide rail) | 90507-18001 · 90507-18003 |
| 72130 | Right seat inner slide rail assembly | 72130-12120 · 72130-12141 · 72130-12150 · 72130-12161 · 72130-12170 · 72130-12180 · 72130-12200 · 72130-12210 · 72130-12211 · 72130-12220 · 72130-12221 · 72130-12230 · 72130-12240 |
| 72140 | Left seat inner slide rail assembly | 72140-12100 · 72140-12111 · 72140-12130 · 72140-12141 · 72140-12150 · 72140-12160 · 72140-12170 · 72140-12190 · 72140-12191 · 72140-12200 · 72140-12201 · 72140-12210 · 72140-12220 |
| 72510 | Front right seat backrest tilt adjuster assembly | 72010-12090 · 72010-12130 · 72010-12160 |
| 72510A | Tension spring No. 1 (for seat back recliner) | 90506-18015 |
| 72520 | Left seat back tilt adjuster assembly | 72020-12110 · 72020-12260 |
| 72520A | Adjuster to seat rail cable | 72210-12050 · 72210-12060 · 72210-12070 · 72210-12080 |
| 72553 | Seat back tilt pedal cover | 72553-12020 · 72553-12030 |
