Toyota COROLLA 行李箱门和行李箱锁 — Figure 6105

Toyota COROLLA EPC diagram 6105, 行李箱门和行李箱锁, with 2 images and 14 PNC and OE references.

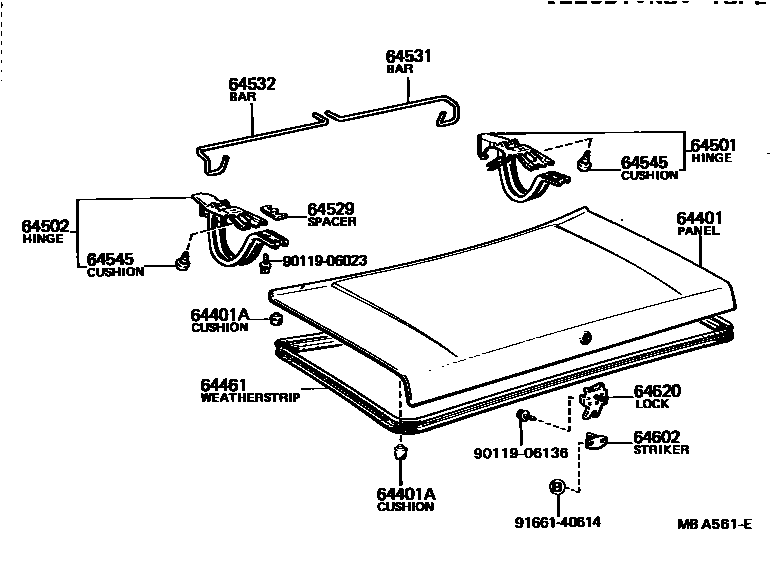

Toyota COROLLA 行李箱门和行李箱锁 EPC diagram — MBA561E
行李箱门和行李箱锁 — MBA561E (197908 – 198502)

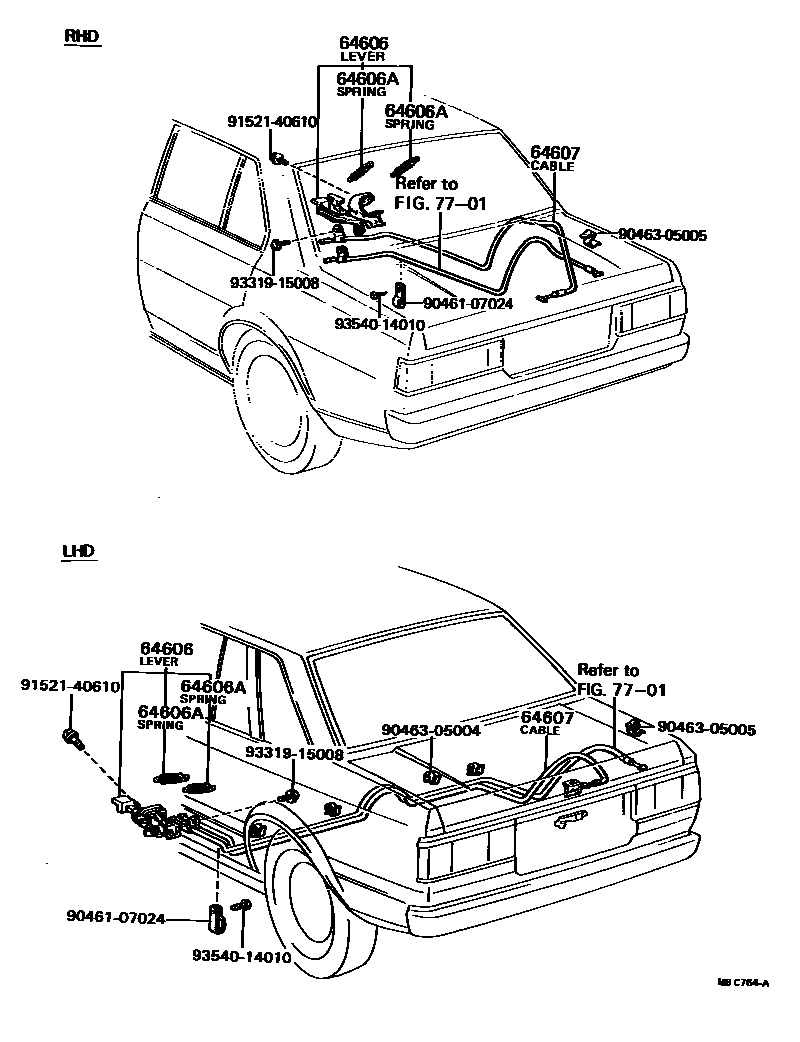

Toyota COROLLA 行李箱门和行李箱锁 EPC diagram — MBC764A
行李箱门和行李箱锁 — MBC764A (198108 – 198502)

PNC and OE references

PNCPart nameOE numbers
64401Trunk door panel sub-assembly64401-12906
64401ACushion pad (for luggage compartment door panel)90541-07003 · 90541-09114
64461Trunk door seal64461-12100
64501Trunk door right hinge sub-assembly64510-12140
64502Trunk door left hinge sub-assembly64520-12140
64529Trunk door hinge spacer64529-20010
64531Trunk door right hinge torsion bar64531-12110
64532Trunk door left hinge torsion bar64532-12090
64545Trunk door hinge cushion90541-09013 · 90541-09014
64602Trunk door lock buckle sub-assembly64620-22030
64606Trunk door lock opening lever sub-assembly64606-12030 · 64606-12040
64606ATension spring (for trunk door lock opening lever)90506-09004
64607Trunk door lock control cable sub-assembly64607-12060 · 64607-12110
64620Trunk door lock assembly64610-12020 · 64610-20030
