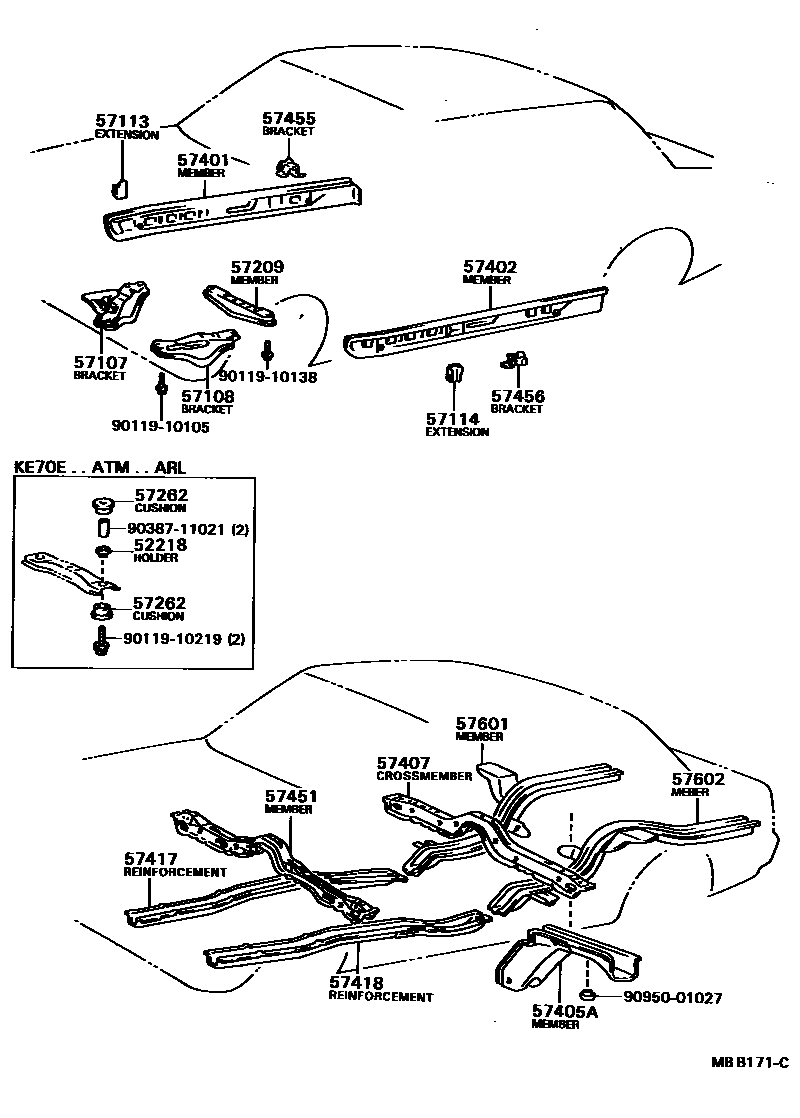

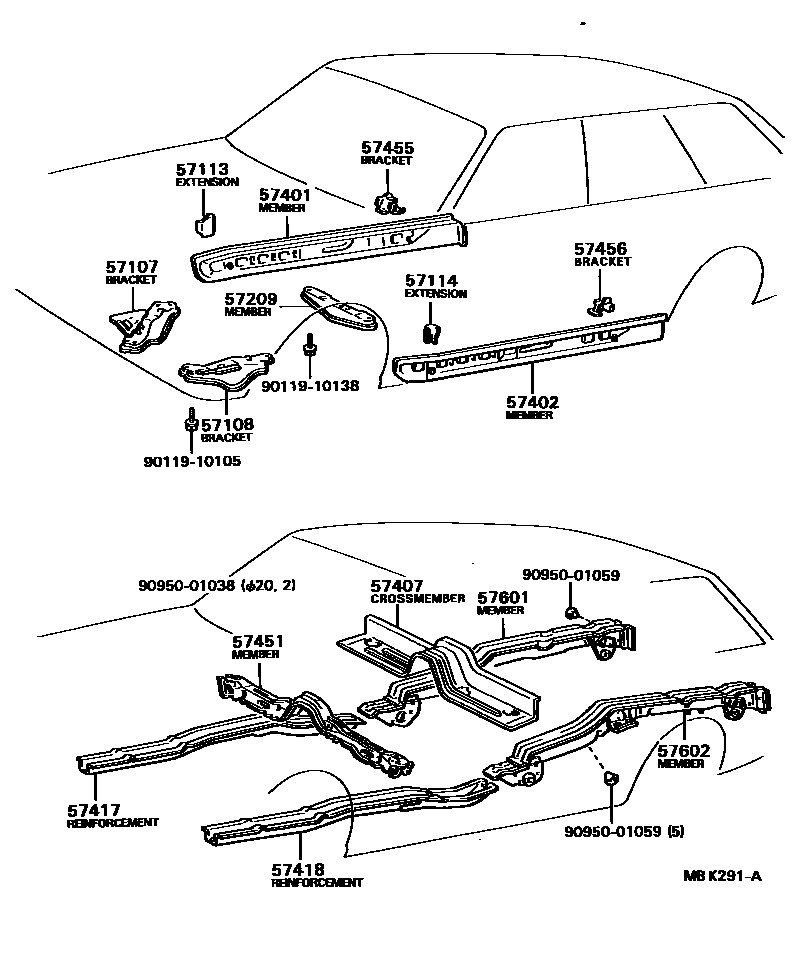

Toyota COROLLA Floor stringers — Figure 5305
Toyota COROLLA EPC diagram 5305, Floor stringers, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52218 | Body No. 1 mounting bolt spacer fastener | 52228-12010 |
| 57107 | Right support rod bracket sub-assembly | 57107-12020 · 57107-12030 |
| 57108 | Left support rod bracket sub-assembly | 57108-12020 · 57108-12030 |
| 57113 | Right front longitudinal beam extension | 57113-12010 · 57113-12020 · 57113-12040 |
| 57114 | Left front longitudinal beam extension | 57114-12010 · 57114-12020 · 57114-12040 |
| 57209 | Engine rear support beam sub-assembly | 57209-12080 · 57209-12090 · 57209-12100 · 57209-12110 · 57209-12140 · 57209-12150 · 57209-12151 · 57209-12160 · 57209-12170 · 57209-12200 · 57209-12210 · 57209-12230 · 57209-12250 · 57209-12260 · 57209-13030 |
| 57262 | Engine rear support beam cushion | 57264-12010 |
| 57401 | Main floor right longitudinal beam sub-assembly | 57401-12090 · 57401-12100 · 57401-12110 · 57401-12120 · 57401-12130 · 57401-12140 · 57401-12900 · 57401-12901 · 57401-12902 |
| 57402 | Main floor left longitudinal beam sub-assembly | 57402-12090 · 57402-12100 · 57402-12110 · 57402-12120 · 57402-12130 · 57402-12140 · 57402-12900 · 57402-12901 · 57402-12902 |
| 57405A | Center floor No. 2 beam sub-assembly | 57405-12900 |
| 57407 | Center floor No. 1 beam sub-assembly | 57407-12010 · 57407-13050 |
| 57417 | Front floor lower right reinforcement | 57505-12020 |
| 57418 | Front floor lower left reinforcement | 57506-12040 |
| 57451 | front floor cross member | 57408-12020 · 57451-12050 |
| 57455 | Front right seat outer mounting bracket | 57455-12020 |
| 57456 | Front left seat outer mounting bracket | 57456-12020 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-12900 · 57601-12901 · 57601-12902 · 57601-12903 · 57601-12904 · 57601-12905 · 57601-12906 · 57601-12907 · 57601-12908 · 57601-12909 · 57601-13071 · 57601-13081 · 57601-13090 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57601-12909 · 57602-12900 · 57602-12901 · 57602-12902 · 57602-12903 · 57602-12904 · 57602-12905 · 57602-12906 · 57602-12907 · 57602-12908 · 57602-12909 · 57602-13060 · 57602-13070 · 57602-13080 |
