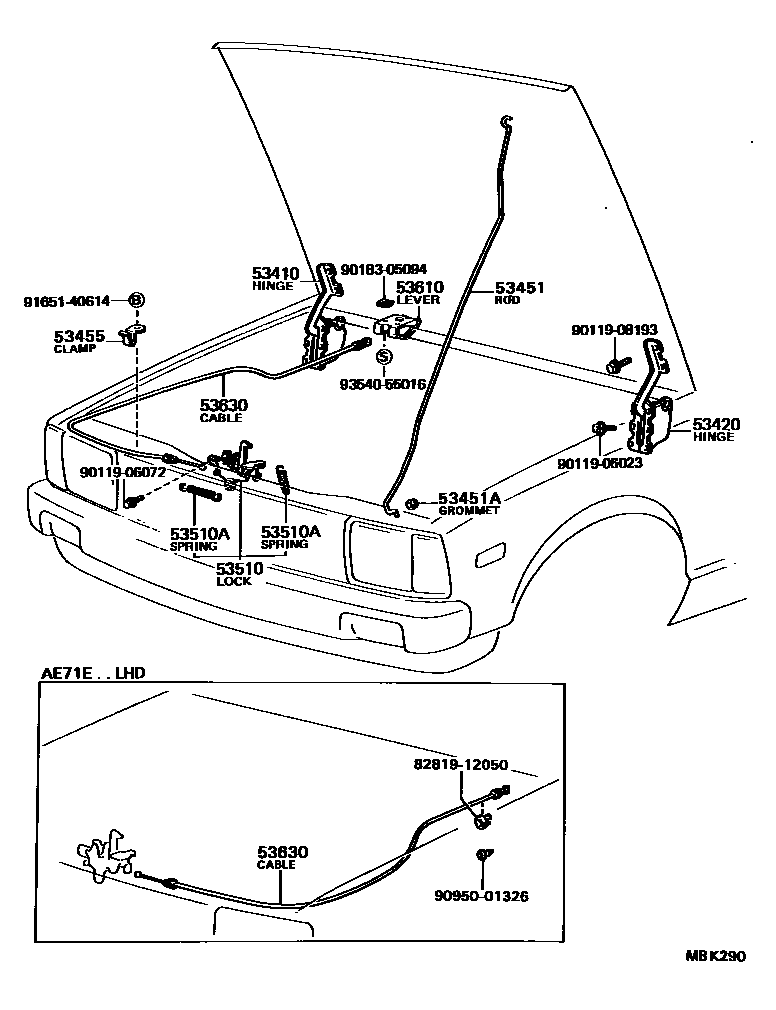

Toyota COROLLA 发动机盖锁和铰链 — Figure 5303
Toyota COROLLA EPC diagram 5303, 发动机盖锁和铰链, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-12040 |
| 53420 | Engine cover left hinge assembly | 53410-12040 |
| 53451 | Engine cover support rod | 53451-12020 · 53451-12060 |
| 53451A | Gasket (for engine cover support rod) | 90480-15002 |
| 53455 | Engine cover support rod clip | 53455-12020 |
| 53510 | Engine cover lock assembly | 53510-12160 · 53510-12170 · 53510-12180 · 53510-12190 · 53510-12200 · 53510-12210 |
| 53510A | Tension spring (for hood lock) | 90506-09008 · 90506-23004 |
| 53630 | Engine hood lock control cable assembly | 53630-12110 · 53630-12140 · 53630-12230 |
