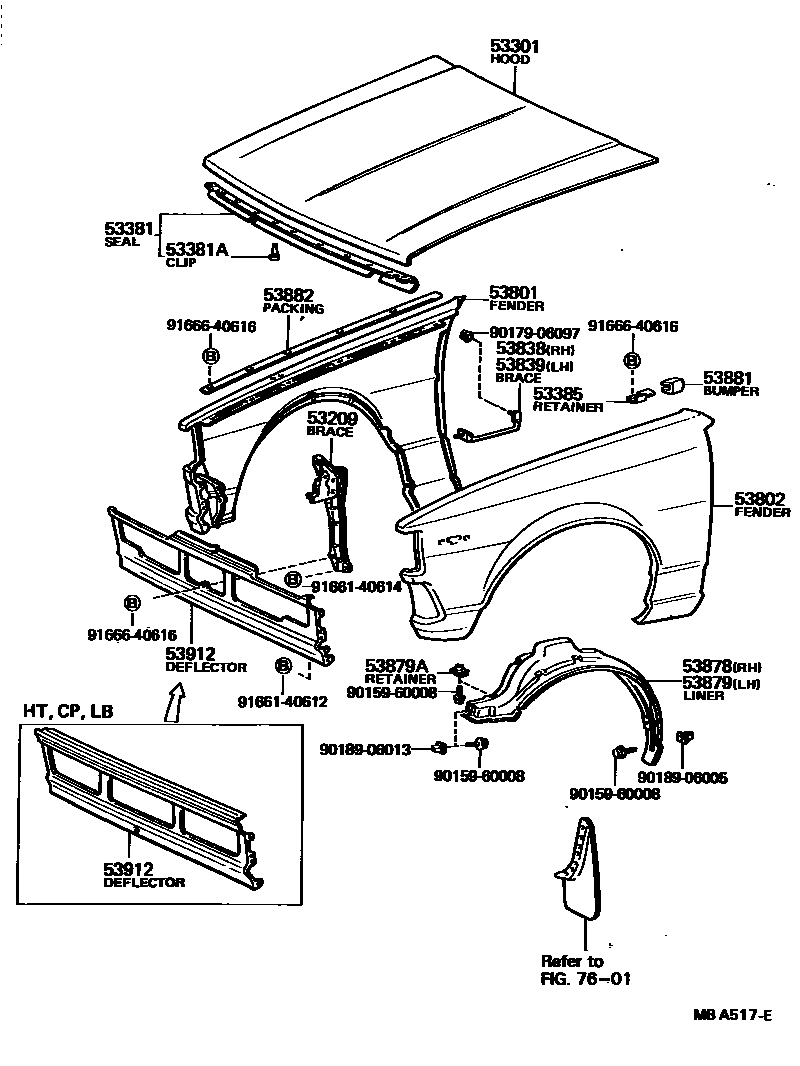

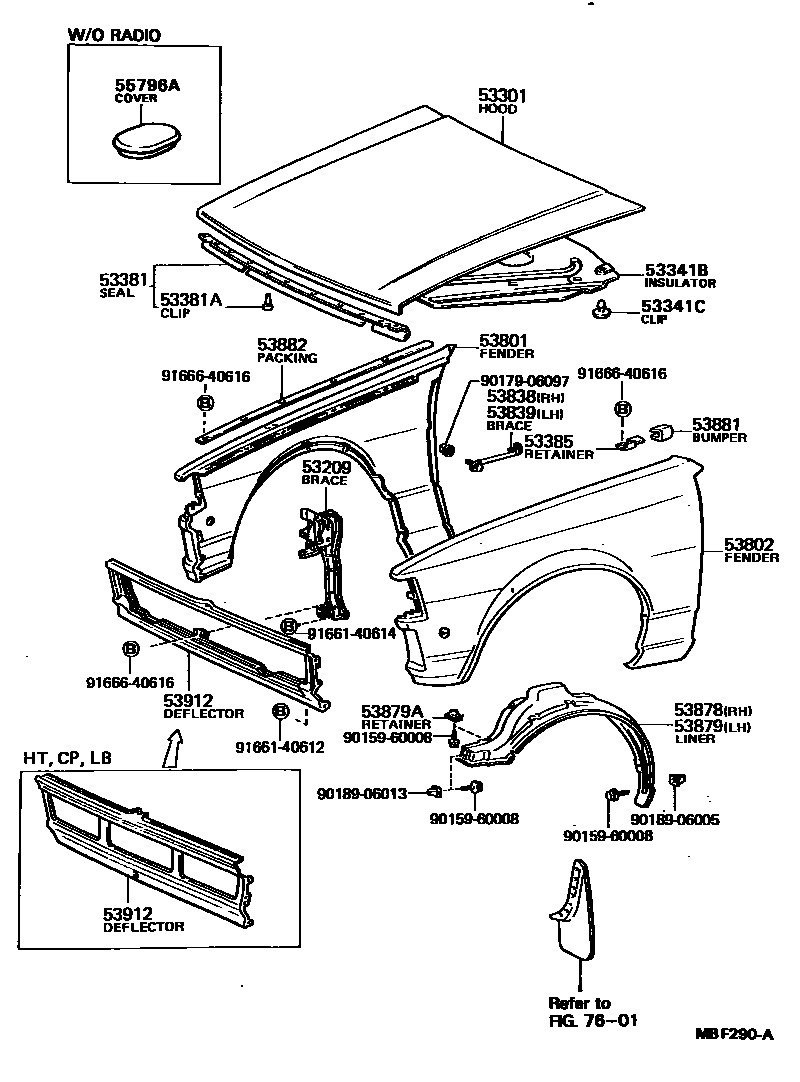

Toyota COROLLA 发动机盖和前翼子板 — Figure 5302
Toyota COROLLA EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53209 | Engine cover lock bracket sub-assembly | 53208-12040 · 53208-12050 · 53208-12060 · 53208-12070 · 53208-12120 · 53208-12130 · 53208-12150 · 53208-12160 · 53208-12180 · 53208-12190 · 53208-12270 · 53208-12280 |
| 53301 | Engine cover sub-assembly | 53301-12200 · 53301-12210 · 53301-12240 · 53301-12250 · 53301-12290 · 53301-12300 · 53301-12310 · 53301-12320 · 53301-12330 · 53301-12450 |
| 53341B | engine cover gasket | 53341-12020 |
| 53341C | Clip (for engine cover gasket) | 90467-12018 |
| 53381 | Engine cover to radiator bracket seal | 53381-12110 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-08008 · 90467-08011 |
| 53385 | Engine cover buffer block fixing | 53385-14010 · 53386-14010 |
| 53801 | Right front fender sub-assembly | 53801-12830 · 53801-12850 · 53801-12860 · 53801-1A110 · 53801-1A130 · 53801-1A150 · 53801-1A160 · 53801-1A180 · 53801-1A230 · 53801-1A231 · 53801-1A250 · 53801-1A251 · 53801-1A270 · 53801-1A271 · 53801-1A281 · 53801-1A320 · 53801-1A350 · 53801-1A360 · 53801-1A390 · 53801-1A400 · 53801-1A440 · 53801-1A450 · 53801-1A480 · 53801-1A490 · 53801-1A700 · 53801-1A701 · 53801-1A710 · 53801-1A711 · 53801-1A720 · 53801-1A730 · 53801-1A820 · 53801-1A830 |
| 53802 | Left front fender sub-assembly | 53802-12850 · 53802-12870 · 53802-1A110 · 53802-1A120 · 53802-1A140 · 53802-1A160 · 53802-1A170 · 53802-1A210 · 53802-1A260 · 53802-1A261 · 53802-1A280 · 53802-1A281 · 53802-1A300 · 53802-1A301 · 53802-1A310 · 53802-1A311 · 53802-1A370 · 53802-1A380 · 53802-1A410 · 53802-1A420 · 53802-1A440 · 53802-1A470 · 53802-1A500 · 53802-1A510 · 53802-1A670 · 53802-1A671 · 53802-1A700 · 53802-1A701 · 53802-1A710 · 53802-1A730 · 53802-1A830 · 53802-1A840 |
| 53838 | Right front fender stay | 53851-12010 · 53851-12020 · 53851-12040 |
| 53839 | Left front fender stay | 53852-12010 · 53852-12020 · 53852-12040 |
| 53878 | Right front fender lining | 53875-12040 · 53875-12050 |
| 53879 | Left front fender lining | 53876-12040 · 53876-12050 |
| 53879A | Front fender lining fixing parts | 53879-22010 |
| 53881 | fender to engine cover buffer block | 53384-14010 · 53384-16010 |
| 53882 | Front fender main seal | 53882-12040 |
| 53912 | Front bumper stone guard | 53901-12060 · 53901-12080 · 53901-12090 · 53901-12100 · 53901-12110 · 53911-12100 · 53911-12110 · 53911-12120 · 53911-12130 · 53911-12180 · 53911-12191 · 53911-12200 · 53911-12210 |
| 55796A | radio antenna hole cover | 55796-12020 |
