Toyota COROLLA Steering Wheel — Figure 4504

Toyota COROLLA EPC diagram 4504, Steering Wheel, with 7 images and 12 PNC and OE references.

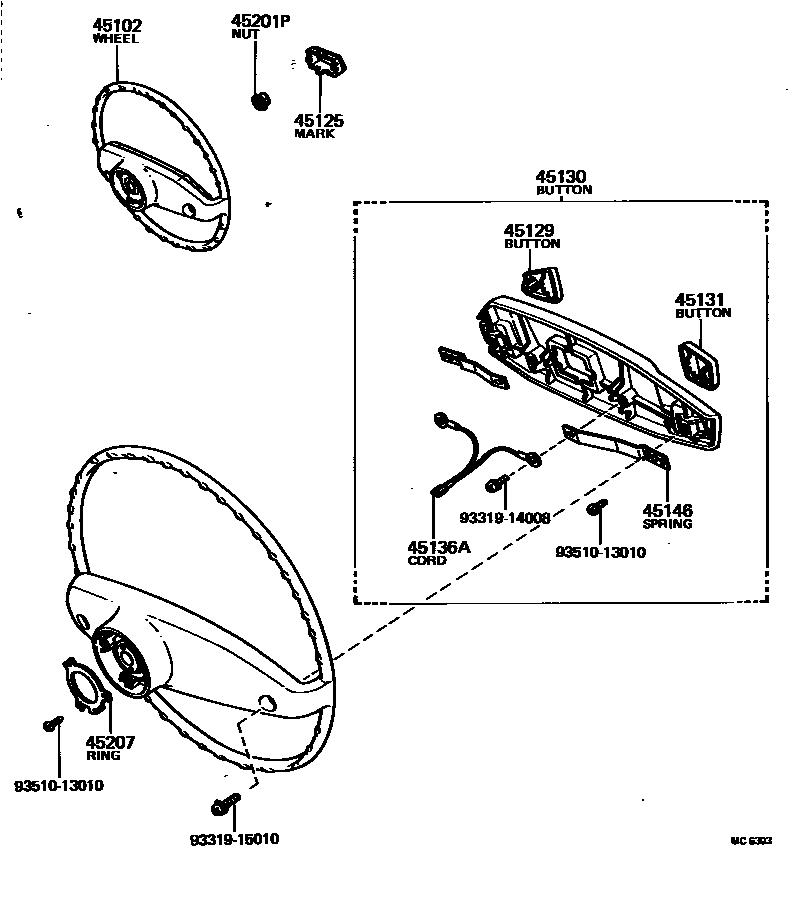

Toyota COROLLA Steering Wheel EPC diagram — MC6303
Steering Wheel — MC6303 (197908 – 198204)

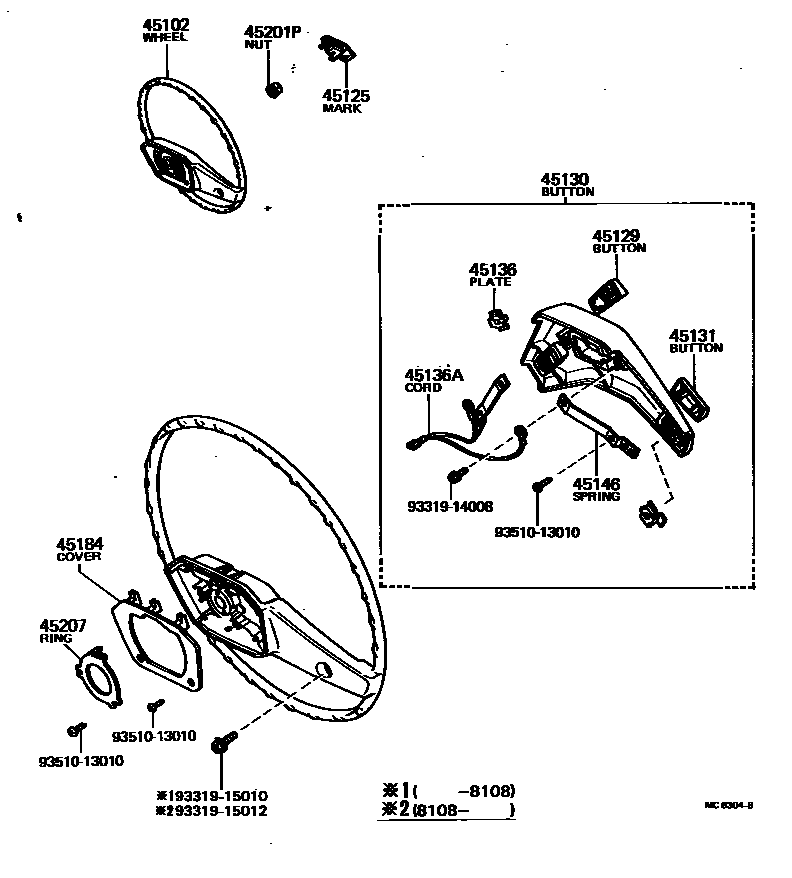

Toyota COROLLA Steering Wheel EPC diagram — MC6304B
Steering Wheel — MC6304B (197908 – 999999)

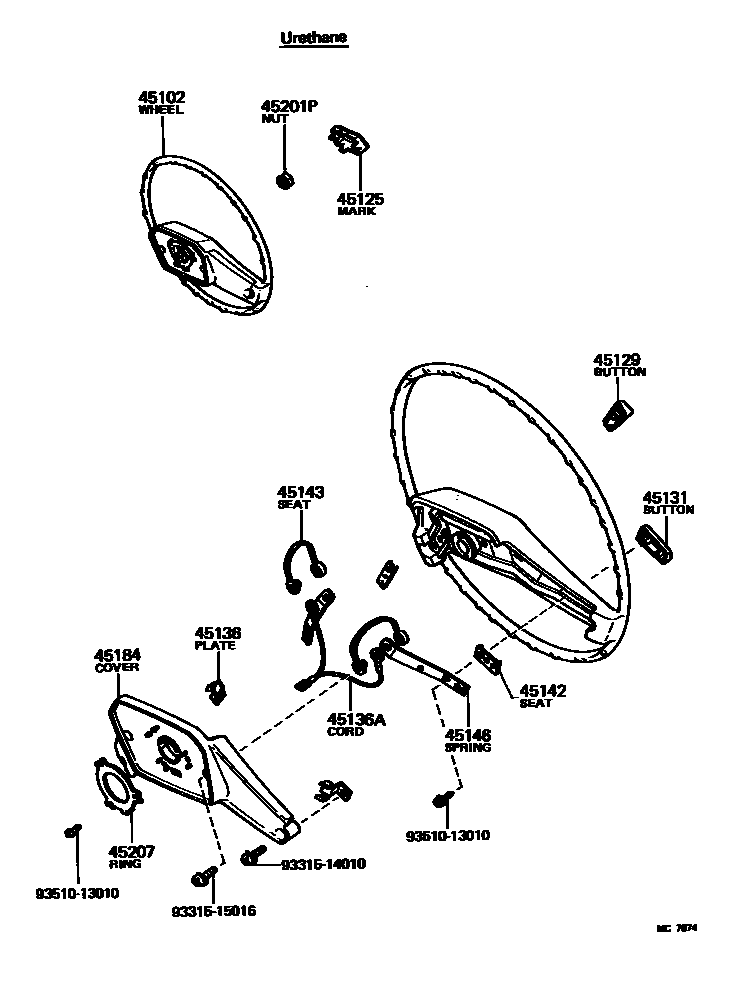

Toyota COROLLA Steering Wheel EPC diagram — MC7874
Steering Wheel — MC7874 (197908 – 198410)

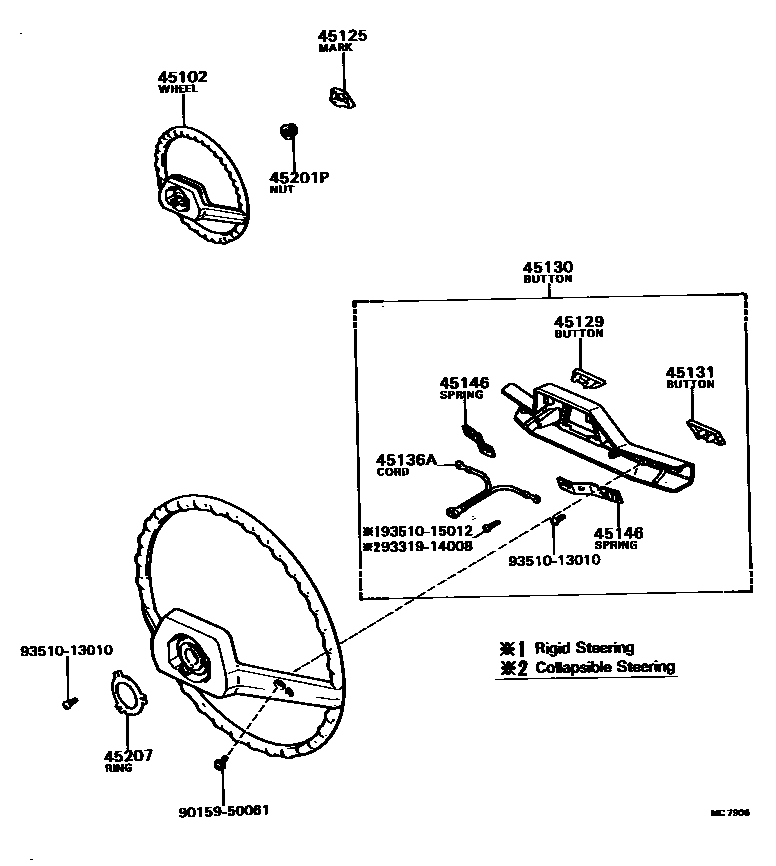

Toyota COROLLA Steering Wheel EPC diagram — MC7906
Steering Wheel — MC7906 (198108 – 198308)

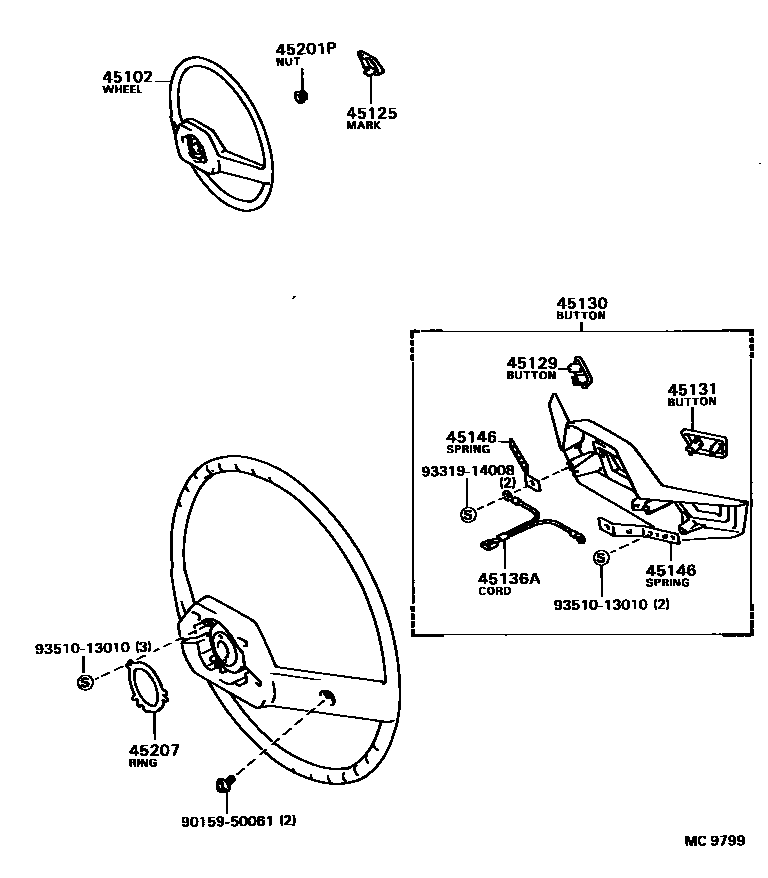

Toyota COROLLA Steering Wheel EPC diagram — MC9799
Steering Wheel — MC9799 (198305 – 999999)

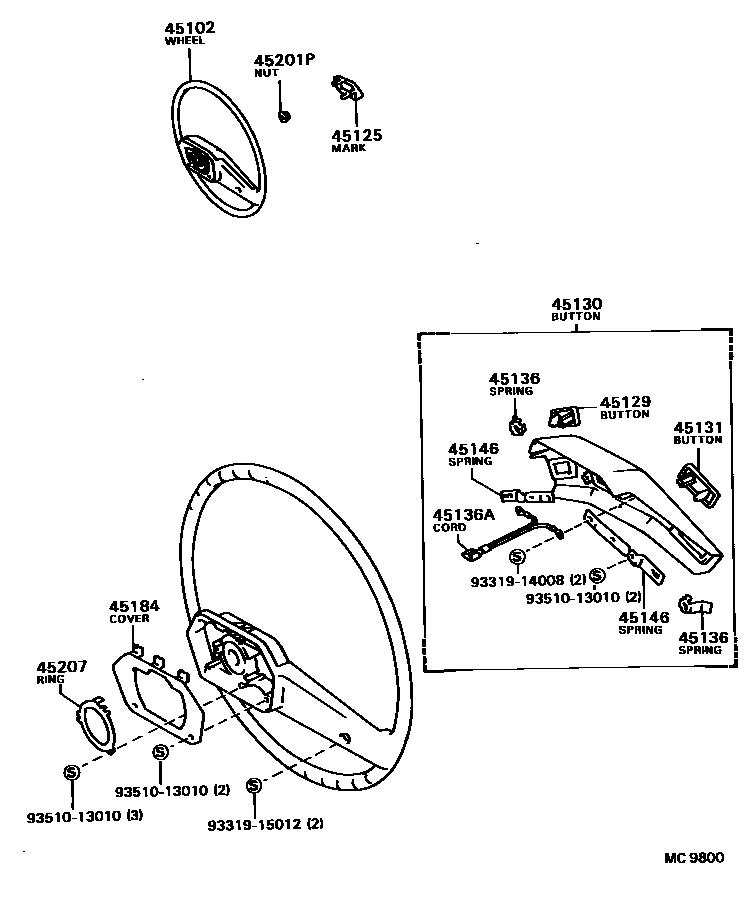

Toyota COROLLA Steering Wheel EPC diagram — MC9800
Steering Wheel — MC9800 (198305 – 999999)

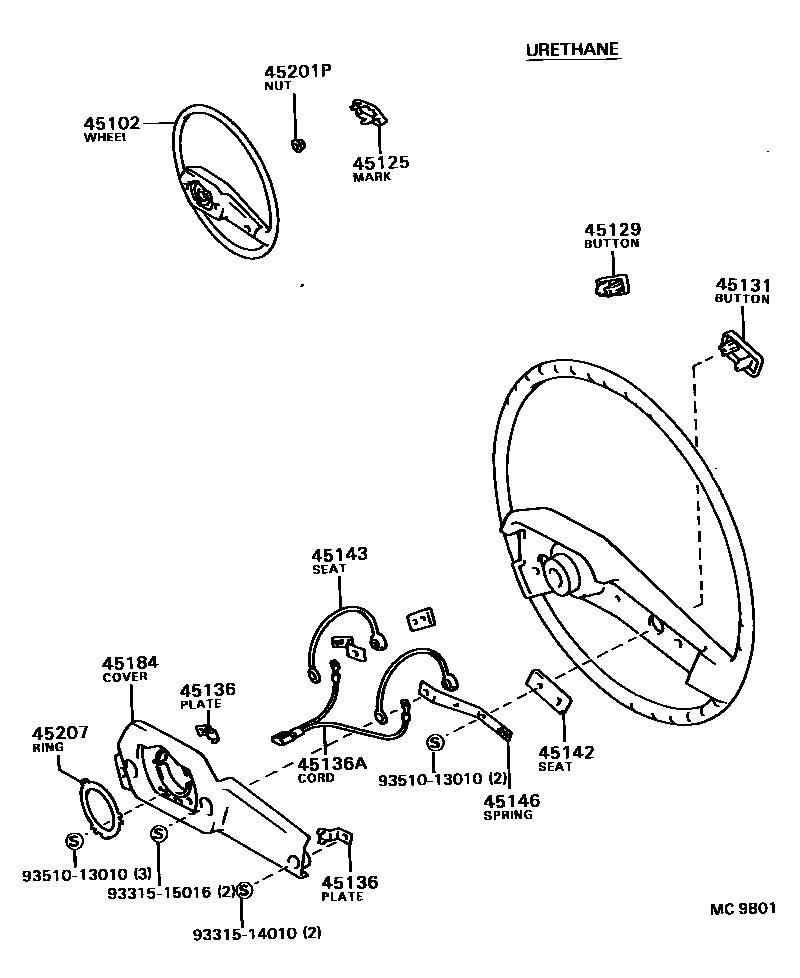

Toyota COROLLA Steering Wheel EPC diagram — MC9801
Steering Wheel — MC9801 (198305 – 999999)

PNC and OE references

PNCPart nameOE numbers
45102Steering wheel sub-assembly45100-12121 · 45100-12133 · 45100-12310 · 45100-12320
45125Steering wheel trim cover markings45125-12170 · 45125-12340
45129Speaker button No. 245131-12061 · 45131-12111 · 45131-12140 · 45131-12150 · 45131-12170 · 45131-12200 · 45131-12210 · 45131-12220
45130Speaker button assembly45130-12111 · 45130-12220 · 45130-12230
45131Speaker button No. 145129-12020 · 45129-12030 · 45129-12040 · 45129-12050 · 45129-12070 · 45129-12100 · 45129-12110 · 45129-12120
45136horn button contact piece45136-12090 · 45136-12100
45136AWire (for speaker contact ring)90945-02026 · 90945-02040 · 90945-02042 · 90945-02061
45142No. 1 horn button contact seat45142-12020
45143No. 2 horn button contact seat45142-12030
45146Horn button contact spring45146-12021 · 45146-12060 · 45146-12070 · 45146-12080
45201PSteering wheel fixing nut90179-12086
45207Speaker contact ring45176-14030 · 45176-20030
