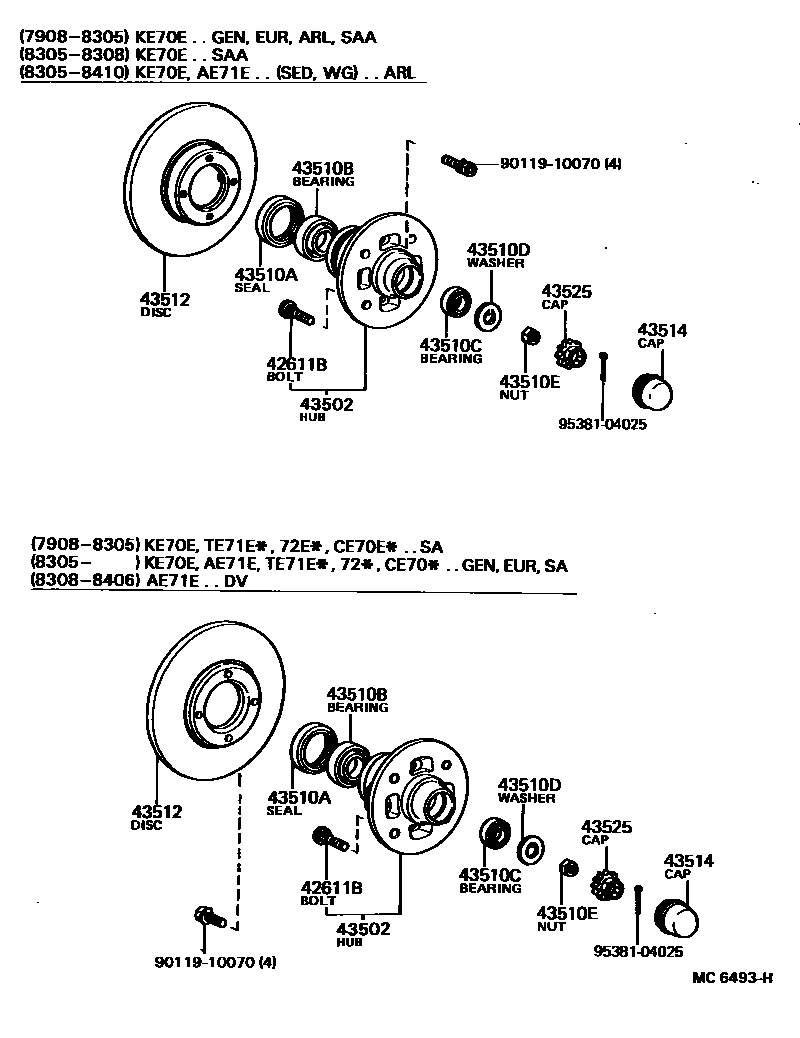

Toyota COROLLA Front Axle Hub — Figure 4303
Toyota COROLLA EPC diagram 4303, Front Axle Hub, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42611B | Hub bolts (for front axle) | 90942-02036 · 90942-02048 |
| 43502 | Front axle hub sub-assembly | 43502-12040 · 43502-12060 · 43502-12070 |
| 43510A | Oil seal (for front axle hub) | 90311-41123 |
| 43510B | Roller tapered bearing (for front axle inner bearing) | 90368-29068 |
| 43510C | Roller tapered bearing (for front axle outer bearing) | 90368-17017 |
| 43510D | Jaw washer (for steering knuckle washer) | 90214-16010 |
| 43510E | Nut (for steering knuckle) | 90170-16137 |
| 43512 | front brake disc | 43512-12100 · 43512-12110 · 43512-12120 · 43512-12140 · 43512-12190 · 43512-20032 |
| 43514 | Front hub grease cap | 43514-20010 |
| 43525 | Front wheel adjustment lock cover | 43525-20011 |
