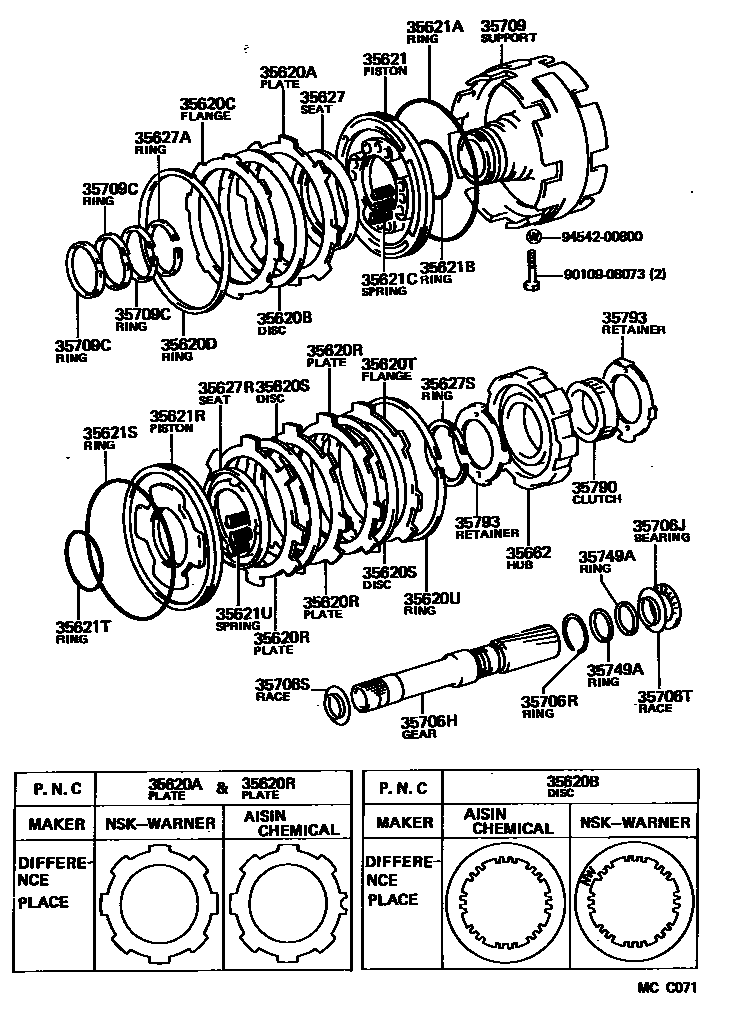

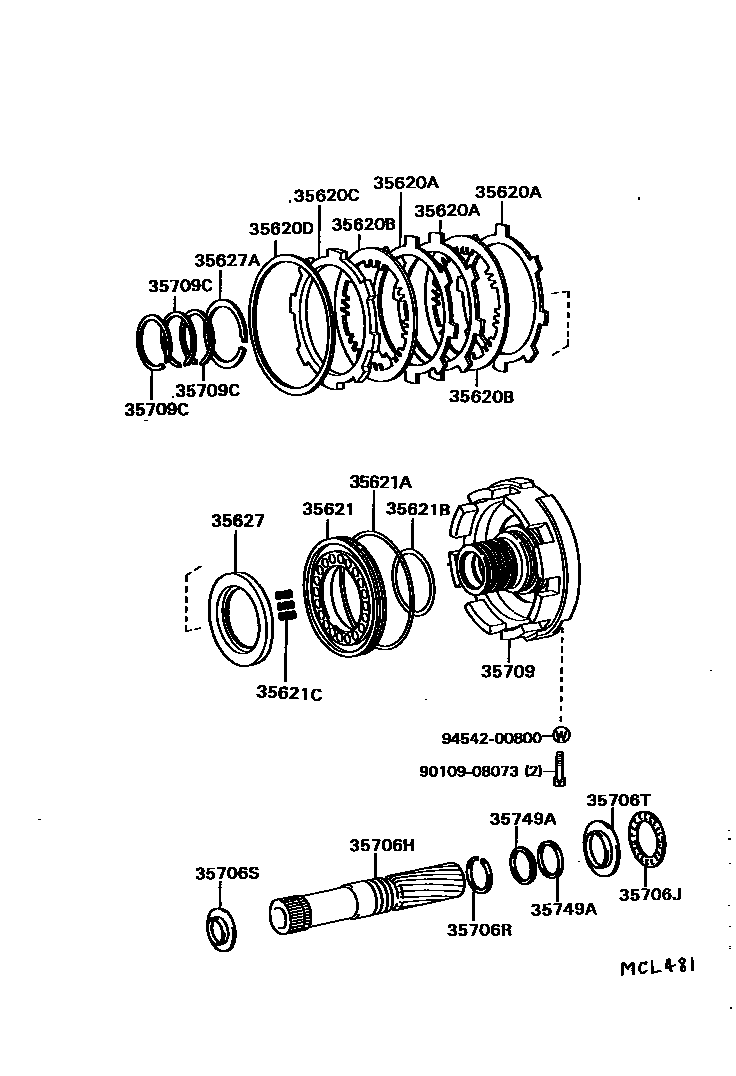

Toyota COROLLA 中央支架和行星太阳齿轮(ATM) — Figure 3508
Toyota COROLLA EPC diagram 3508, 中央支架和行星太阳齿轮(ATM), with 2 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35620A | Clutch disc (for brakes) | 35634-22060 · 35634-22090 · 35648-30010 |
| 35620B | Clutch disc (for brakes) | 35677-22020 · 35677-22030 · 35677-22050 · 35677-30030 · 35677-30100 |
| 35620C | Clutch flange (for brake) | 35675-22010 |
| 35620D | Ring (for brake) | 90521-99139 |
| 35620R | Clutch disc (for rear brake) | 35634-22060 · 35634-22090 |
| 35620S | Clutch disc (for rear brake) | 35677-22040 · 35677-30020 |
| 35620T | Clutch flange (for rear brake) | 35675-22010 |
| 35620U | Ring (for rear wheel brake) | 90521-99139 |
| 35621 | Brake piston No. 1 | 35621-22010 · 35621-30010 · 35624-22010 |
| 35621A | Outer O-ring (for brake piston) | 90301-99007 · 90301-99192 |
| 35621B | Inner O-ring (for brake piston) | 90301-57188 |
| 35621C | Spring (for brake piston return) | 90501-10671 |
| 35621R | Brake piston (for rear wheel brake) | 35621-22010 · 35621-30010 · 35624-22010 |
| 35621S | Outer ring (for rear brake piston) | 90301-99007 · 90301-99192 |
| 35621T | Inner O-ring (for rear brake piston) | 90301-57188 |
| 35621U | Spring (for rear brake piston return) | 90501-10671 |
| 35627 | Brake return spring seat | 35627-22010 |
| 35627A | Shaft snap ring (for brake return spring seat) | 90520-52262 |
| 35627R | Brake return spring seat (for rear wheel brake) | 35627-22010 |
| 35627S | Shaft snap ring (for rear wheel brake return spring seat) | 90520-52262 |
| 35662 | brake hub | 35662-22011 · 35662-30010 |
| 35706H | Planetary gear train sun gear sub-assembly | 35706-22010 · 35706-22011 · 35706-30030 |
| 35706J | Thrust needle roller bearing (for planetary gear train sun gear) | 90374-23012 |
| 35706R | Shaft snap ring (for planetary gear train sun gear) | 90520-34001 · 90520-34260 |
| 35706S | Front thrust bearing race (for planetary gear train sun gear) | 35789-22030 |
| 35706T | Rear thrust bearing race (for planetary gear train sun gear) | 35789-22010 |
| 35709 | Middle bracket sub-assembly | 35709-12011 · 35709-22011 · 35709-30021 |
| 35709C | Oil protection ring (for intermediate bracket) | 35617-16010 · 35617-22020 |
| 35749A | Sun gear shaft oil ring | 35749-22010 |
| 35790 | One-way clutch assembly | 35791-30020 |
| 35793 | One way clutch retaining ring | 35793-22011 |
