Toyota COROLLA 制动带和多片式离合器(ATM) — Figure 3507

Toyota COROLLA EPC diagram 3507, 制动带和多片式离合器(ATM), with 3 images and 53 PNC and OE references.

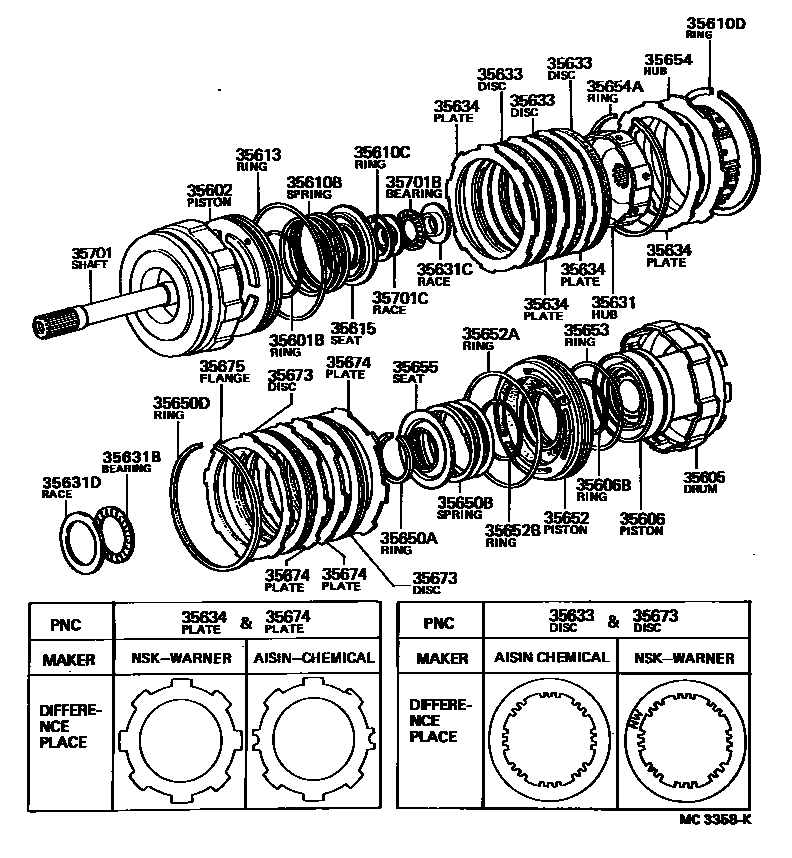

Toyota COROLLA 制动带和多片式离合器(ATM) EPC diagram — MC3358K
制动带和多片式离合器(ATM) — MC3358K (197908 – 198101)

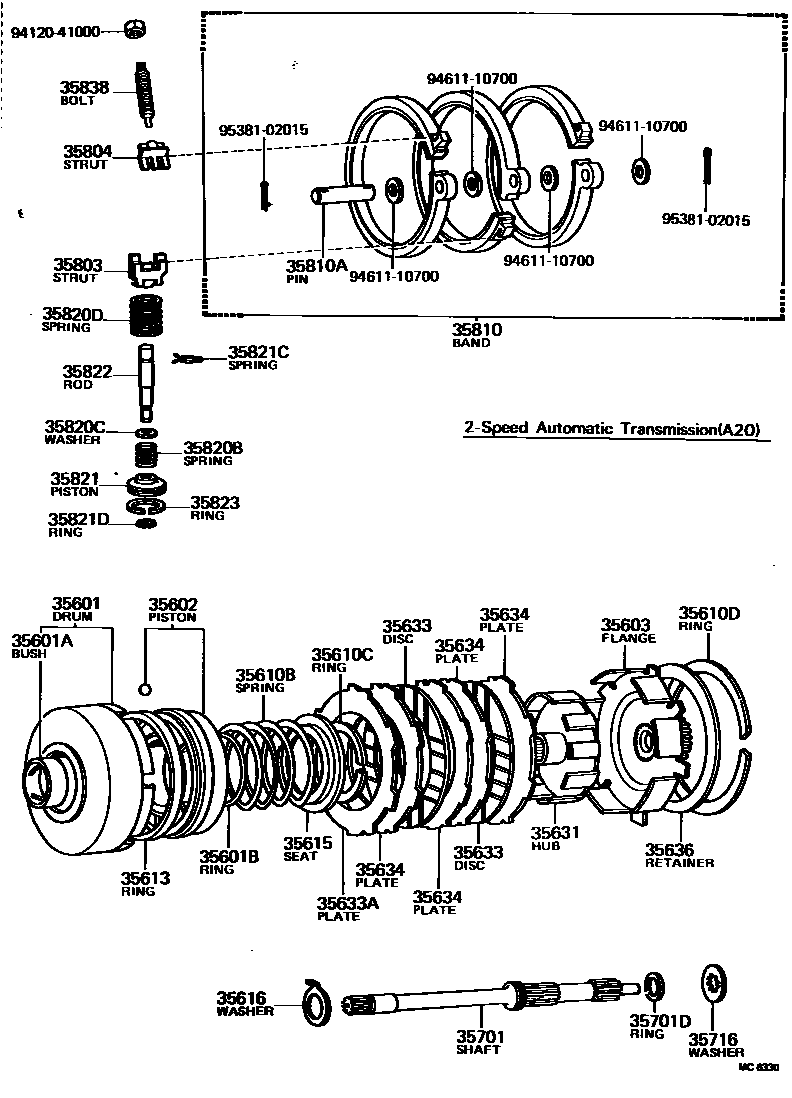

Toyota COROLLA 制动带和多片式离合器(ATM) EPC diagram — MC6330
制动带和多片式离合器(ATM) — MC6330 (197908 – 198108)

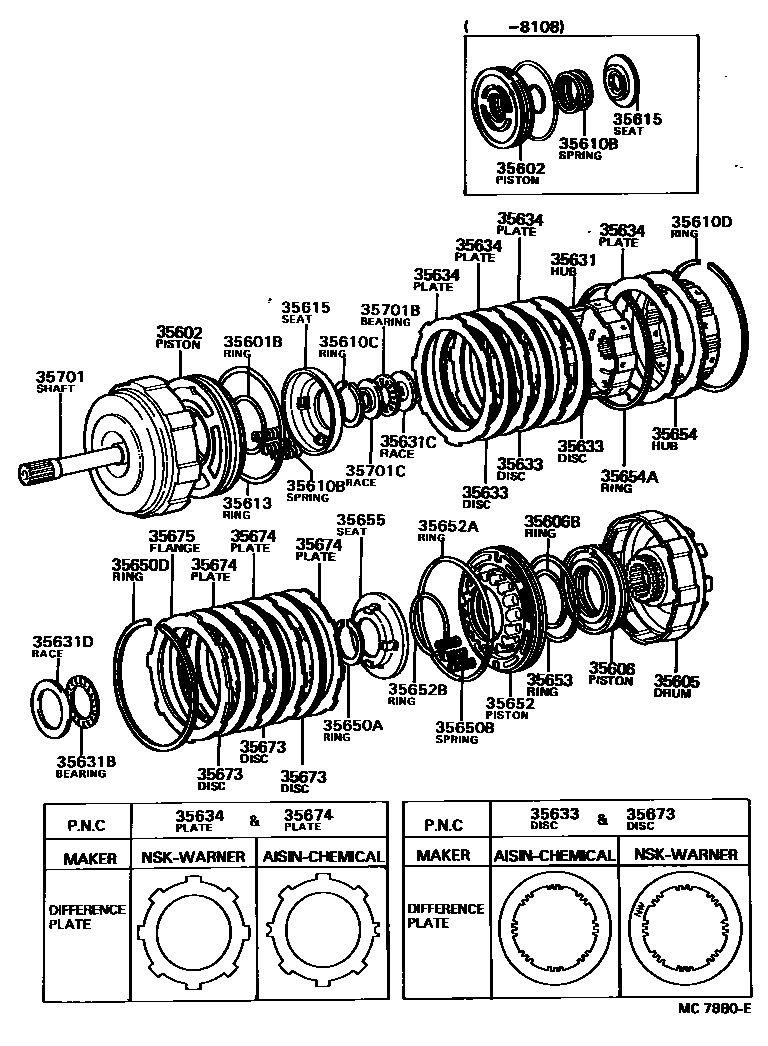

Toyota COROLLA 制动带和多片式离合器(ATM) EPC diagram — MC7880E
制动带和多片式离合器(ATM) — MC7880E (198101 – 999999)

PNC and OE references

PNCPart nameOE numbers
35601Clutch drum sub-assembly35601-12010
35601ABimetallic bushing (for clutch drum)90999-73038
35601BO-ring (for front clutch drum)90301-47100 · 90301-57188
35602Front clutch piston sub-assembly35602-12020 · 35602-12031 · 35602-12040 · 35602-22010
35603Clutch flange sub-assembly with low speed sun gear35603-12010
35605Rear clutch drum sub-assembly with second gear sun gear35605-22010 · 35605-22011 · 35605-30021
35606Rear clutch piston sub-assembly35606-22010
35606BInner O-ring (for rear clutch piston)90301-57188
35610BCompression spring (for front clutch piston return)90501-10671 · 90501-55620 · 90501-60672
35610CShaft snap ring (for front clutch piston return spring)90520-39261 · 90520-52077
35610DHole snap ring (for front multi-plate clutch)90521-99093 · 90521-99139
35613Clutch piston outer oil ring35653-30010 · 90301-99016 · 90301-99192
35615Clutch piston return spring seat35615-12010 · 35615-22010 · 35615-30020
35616Clutch drum thrust washer35616-12011
35631Clutch hub (for multi-plate clutches)35631-12011 · 35631-22010 · 35631-30040 · 35631-30050
35631BThrust bearing (for front clutch hub)90374-28014
35631CFront thrust bearing race (for front clutch hub)35789-22050
35631DRear thrust bearing race (for front clutch hub)35789-22020
35633Clutch disc (for front clutch)35633-12011 · 35677-22020 · 35677-22030 · 35677-22050 · 35677-30030
35633Afront clutch cushion35672-12010
35634front clutch plate35634-12010 · 35634-22040 · 35634-22070
35636Clutch flange retainer35636-12010
35650AShaft snap ring (for rear clutch piston return spring)90520-39261
35650BCompression spring (for rear clutch piston return)90501-10671 · 90501-60672
35650DHole snap ring (for rear multi-plate clutch)90521-99139
35652No. 2 rear clutch piston35602-12030 · 35602-12031 · 35602-22010 · 35607-20021
35652AOuter O-ring (for rear clutch)90301-99016 · 90301-99192
35652BInner O-ring (for rear clutch piston)90301-57188
35653Rear clutch outer oil ring90301-84184
35654rear clutch hub35654-22010
35654AHole snap ring (for rear clutch hub)90521-99146
35655Rear clutch piston return spring seat35615-22010 · 35615-30020
35673rear clutch disc35677-22020 · 35677-22030 · 35677-22050 · 35677-30030
35674rear clutch plate35634-22040 · 35634-22070 · 35634-30070
35675rear clutch flange35675-22010 · 35675-30020 · 35675-30030
35701Input shaft sub-assembly35701-12011 · 35701-12020 · 35701-22010 · 35701-22011 · 35701-22021 · 35701-22022 · 35711-12010
35701BRear thrust needle roller bearing (for input shaft)90374-23012
35701CRear thrust bearing race (for input shaft)35789-22010
35701DRing (for input shaft)35712-12010
35716No. 1 low speed sun gear thrust washer35716-12010 · 35717-12010
35803Low speed brake belt oil supply spool sub-assembly35803-12010
35804Low speed brake belt anchor slider sub-assembly35804-12011
35810Transmission brake band assembly (for front)35810-12013
35810AStraight pin with hole (for brake band)90255-07008
35820BInternal compression spring (for low-speed servo piston)90501-26317
35820CFlat washer (for low-speed assist piston return spring)90201-08255
35820DCompression spring (for low-speed assist piston return)90501-26318
35821Low speed assist piston35821-20010
35821CLow speed gear assist piston spring lock retainer spring90524-08010
35821DLocking E-ring (for low-speed power assist piston spring)96160-00400
35822Low gear assist piston rod35822-12010
35823Booster piston ring35823-20010
35838Brake strap anchor bolt35838-12010
