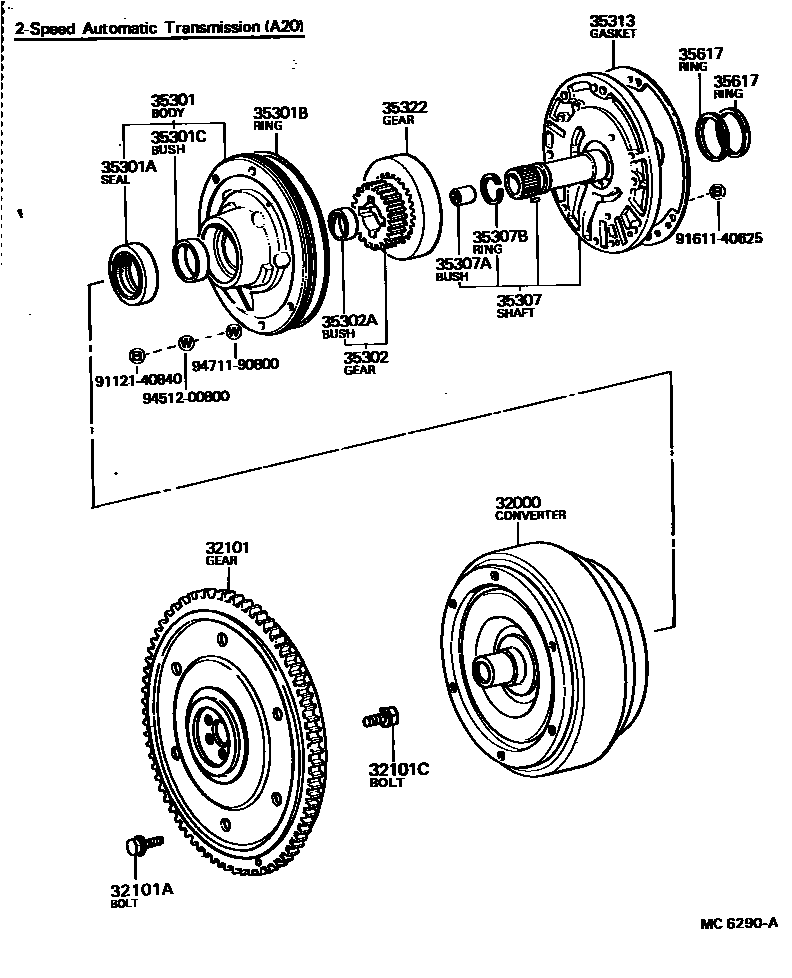

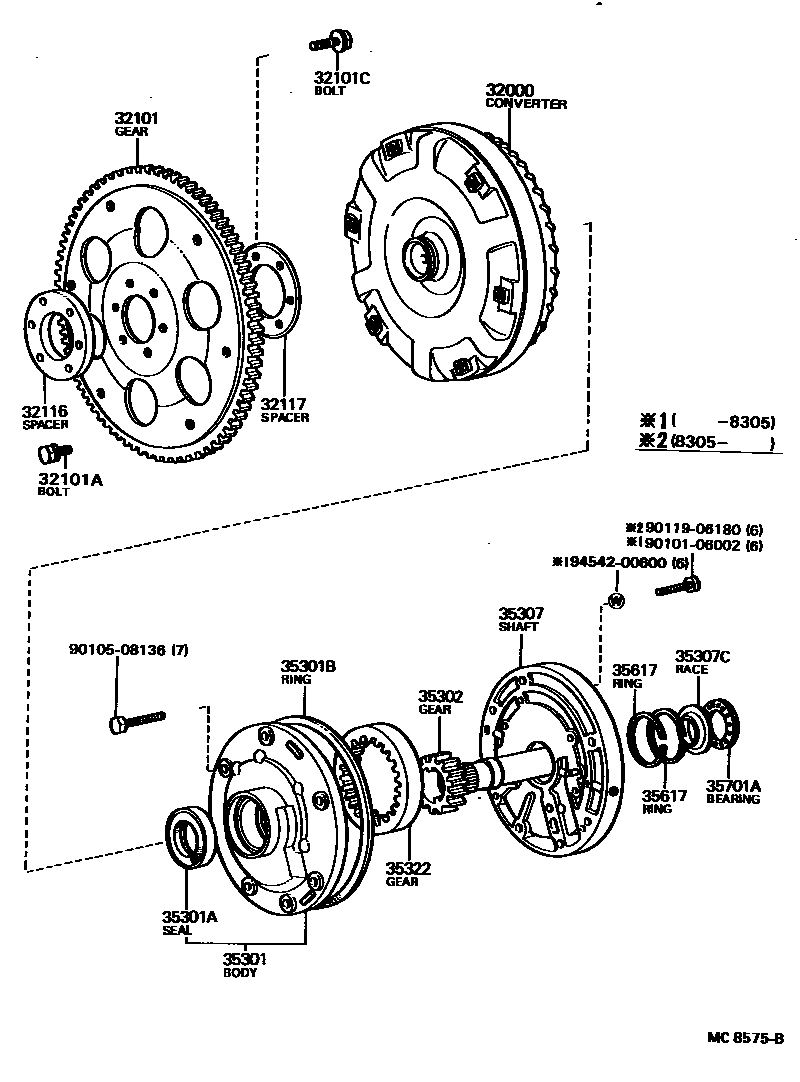

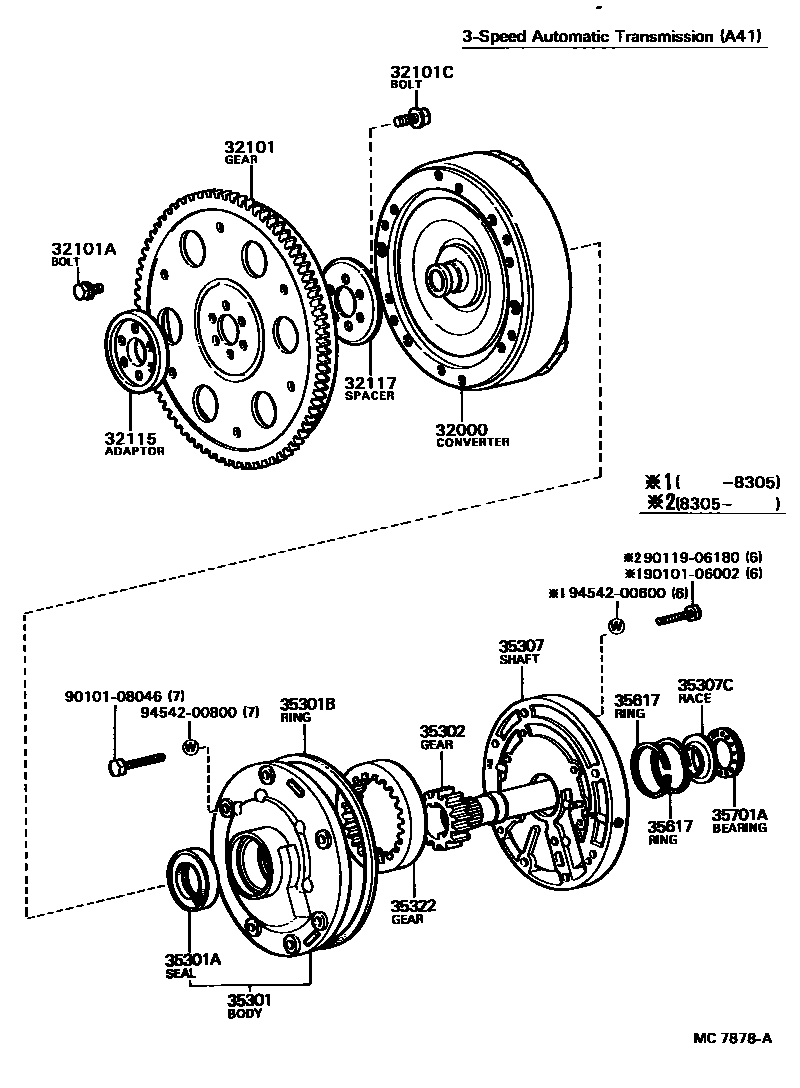

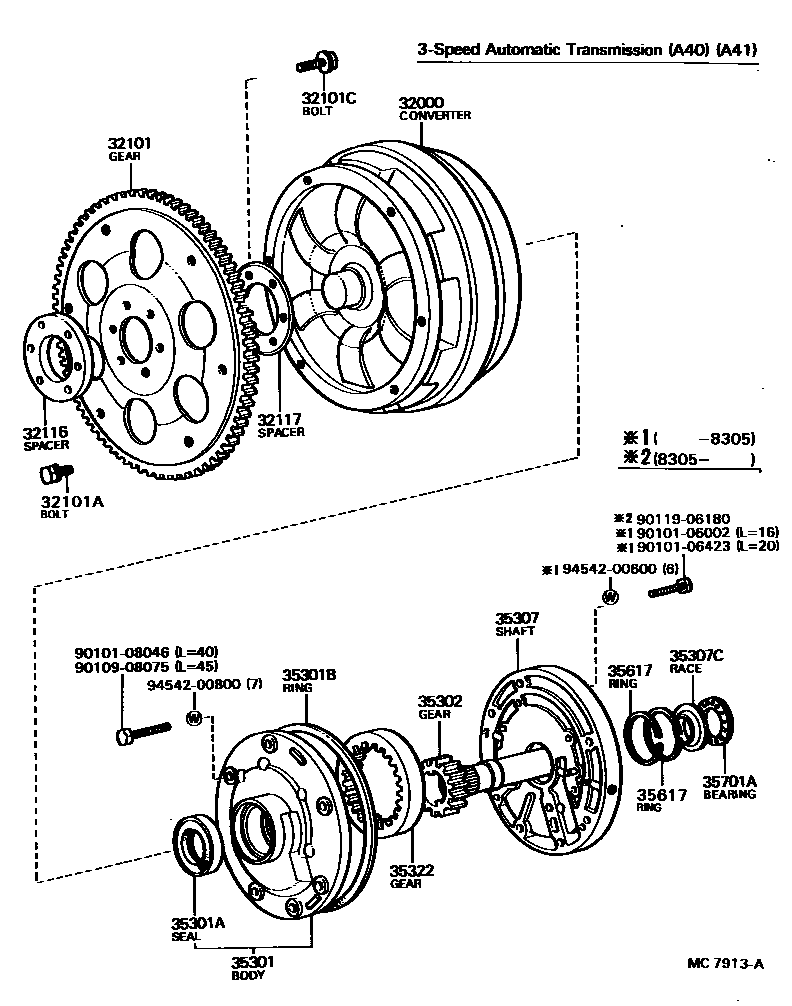

Toyota COROLLA 变矩器、前油泵和链条(ATM) — Figure 3502
Toyota COROLLA EPC diagram 3502, 变矩器、前油泵和链条(ATM), with 4 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32000 | Torque converter assembly | 32000-12012 · 32000-12030 · 32000-12050 · 32000-12060 · 32000-12061 · 32000-14080 |
| 32101 | Transmission plate and ring gear sub-assembly | 32101-12020 · 32101-12030 · 32101-12040 · 32101-14030 · 32101-22030 |
| 32101A | Bolts (for securing transmission plate and torque converter) | 90109-08090 · 90119-08223 |
| 32101C | Hexagonal bolts (used to fix the transmission plate) | 90105-10006 · 90105-10046 · 90105-10048 · 90119-10078 |
| 32115 | crankshaft adapter | 32115-12010 |
| 32116 | Front transmission plate spacer | 32116-12010 · 32116-14011 |
| 32117 | Rear transmission plate spacer | 32117-12010 · 32117-12020 · 32117-14011 |
| 35301 | Front oil pump body sub-assembly | 35301-12010 · 35301-22011 · 35301-22012 · 35301-30030 |
| 35301A | Oil seal (for front oil pump) | 90311-38020 · 90311-38129 · 90311-42083 |
| 35301B | O-ring (for front oil pump body) | 35147-22010 · 90301-99010 · 90301-99102 |
| 35301C | Bimetallic bushing (for front oil pump body) | 90999-73036 |
| 35302 | Front oil pump driving gear sub-assembly | 35302-12010 · 35321-22010 |
| 35302A | Bimetallic bushing (for front oil pump driving gear) | 90999-73037 |
| 35307 | Stator shaft sub-assembly | 35307-12012 · 35307-22011 · 35370-12011 · 35370-12020 · 35370-12021 · 35370-22010 · 35370-22011 · 35370-22030 |
| 35307A | Bimetallic bushing (for stator shaft) | 90999-73047 |
| 35307B | Shaft snap ring (for stator shaft) | 90520-25116 |
| 35307C | Thrust bearing race (for stator shaft) | 35789-22010 |
| 35313 | Front oil pump cover gasket | 35313-12011 |
| 35322 | Front oil pump driven gear | 35322-22010 · 35322-31010 |
| 35617 | Clutch drum oil ring | 35617-12010 · 35617-16010 · 35617-22010 · 35617-22011 · 35617-32010 |
| 35701A | Front thrust bearing (for input shaft) | 90374-23012 |
