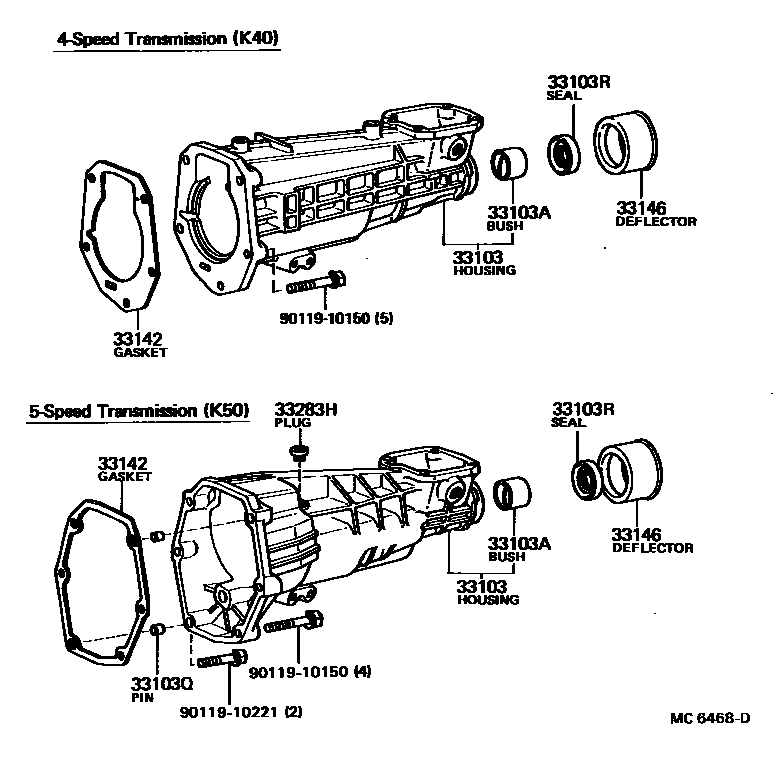

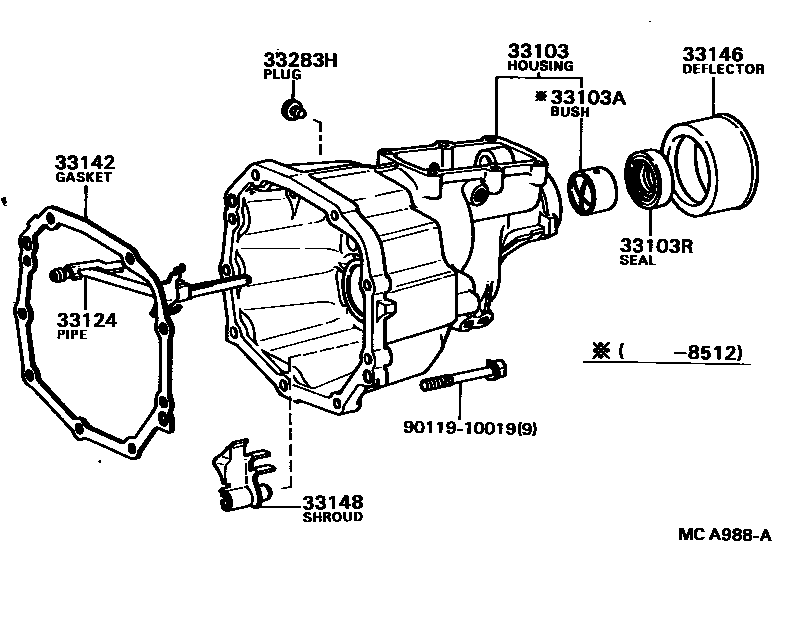

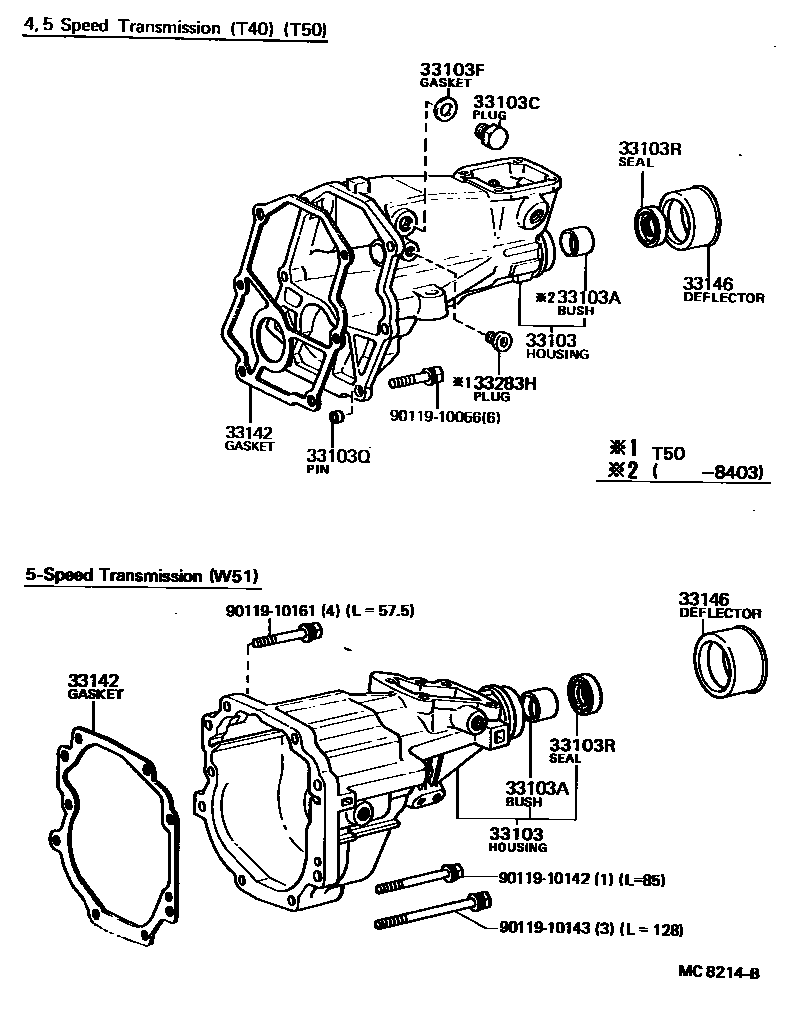

Toyota COROLLA Extended shell (MTM) — Figure 3303
Toyota COROLLA EPC diagram 3303, Extended shell (MTM), with 3 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33103 | Extended shell sub-assembly (MTM) | 33103-12070 · 33103-12090 · 33103-12091 · 33103-12130 · 33103-14030 · 33103-14031 · 33103-14040 · 33103-14041 · 33103-20100 · 33103-20101 · 33103-20120 · 33103-20130 · 33103-22090 |
| 33103A | Bushing (for manual transmission extension housing) | 90999-72022 · 90999-72023 · 90999-72024 · 90999-73062 |
| 33103C | No. 1 screw plug (for extension housing) | 90109-18001 · 90341-18006 · 90341-18049 |
| 33103F | Gasket (for No. 1 extension housing plug) | 12157-10010 · 90430-18007 · 90430-18008 |
| 33103Q | Ring pin (for extension housing) | 90253-13017 |
| 33103R | Oil seal (for manual transmission extension housing) | 90311-32010 · 90311-32086 · 90311-38040 · 90311-38043 |
| 33124 | Oil collecting pipe (MTM) | 33106-22010 |
| 33142 | Extended shell liner (MTM) | 33142-10021 · 33142-12020 · 33142-14010 · 33142-20020 · 33142-22010 |
| 33146 | Extension housing dust cover (MTM) | 33146-12010 · 33146-30010 |
| 33148 | No. 1 gear cover | 33148-22010 |
| 33283H | Headed straight thread plug | 90341-10065 |
