Toyota COROLLA 喷油泵总成 — Figure 2202

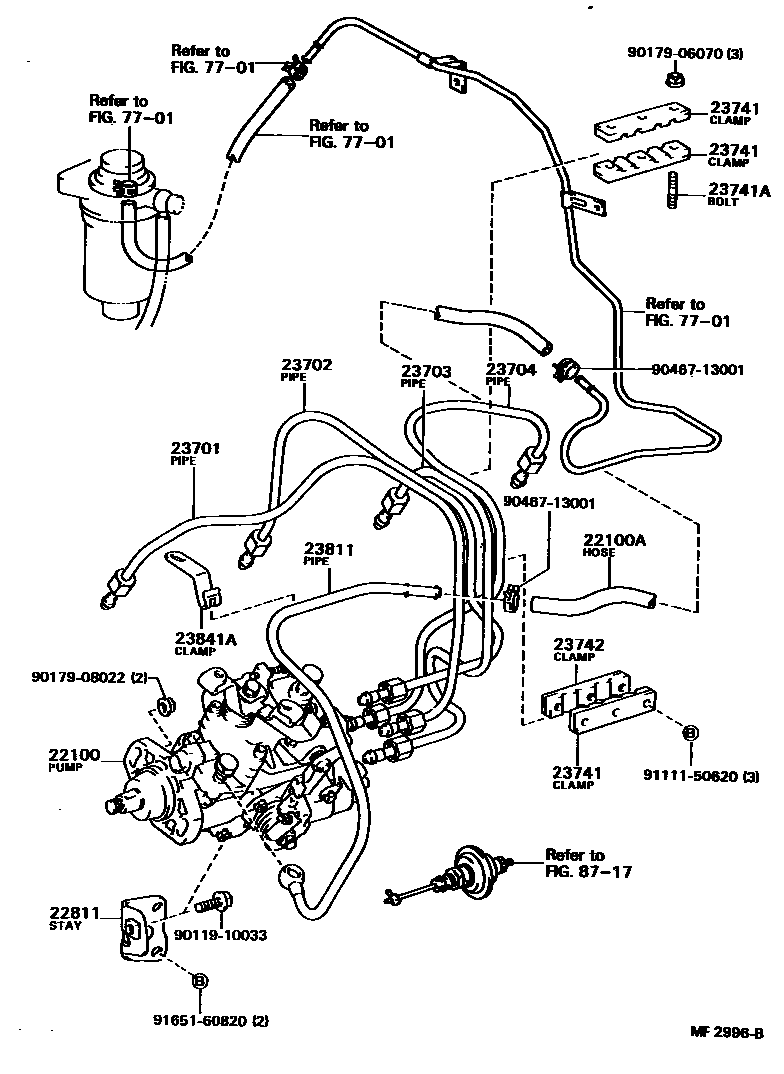

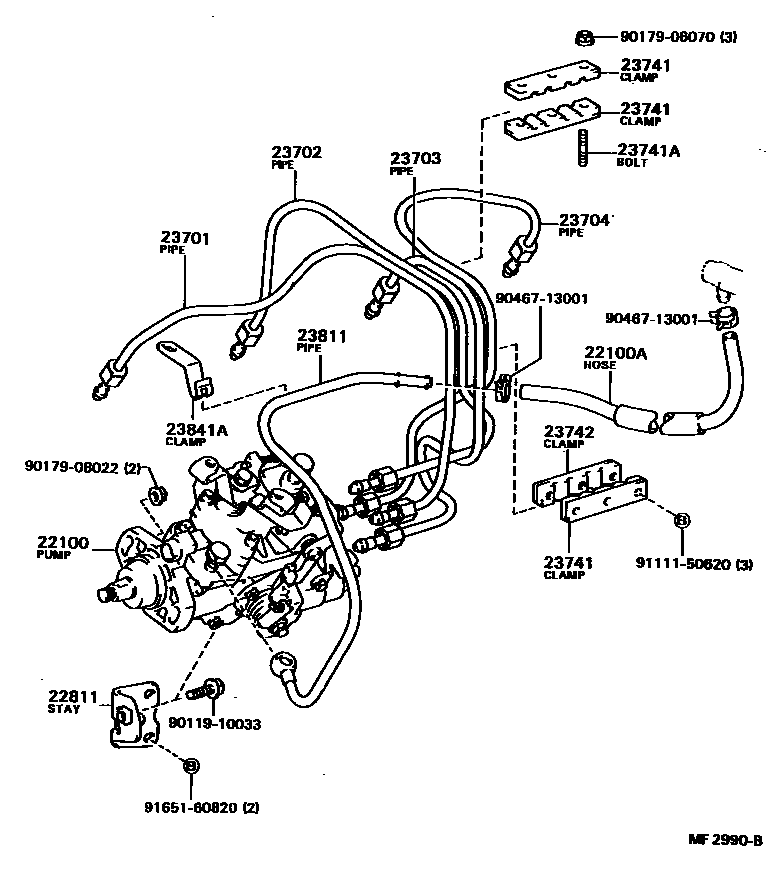

Toyota COROLLA EPC diagram 2202, 喷油泵总成, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22100 | Fuel injection pump or fuel supply pump assembly | 22100-64090 · 22100-64110 · 22100-64230 · 22100-64240 · 22100-64820 |
| 22100A | Fuel hose or fuel line (for injection pump to fuel filter) | 23271-64011 · 90447-14044 · 95332-08030 · 95333-08030 |
| 22811 | No. 1 fuel injection pump bracket | 22811-64010 |
| 23701 | No. 1 fuel injection pipe sub-assembly | 23701-64010 |
| 23702 | No. 2 fuel injection pipe sub-assembly | 23702-64020 |
| 23703 | No. 3 fuel injection pipe sub-assembly | 23703-64010 |
| 23704 | No. 4 fuel injection pipe sub-assembly | 23704-64020 |
| 23741 | No. 1 fuel injection pipe clamp | 23741-64010 |
| 23741A | Stud bolts (for fuel injection pipe clamp) | 92122-60622 |
| 23742 | No. 2 fuel injection pipe clamp | 23742-64010 |
| 23811 | Fuel pipe (for fuel filter to injection pump) | 23811-64011 |
| 23841A | No. 1 fuel pipe clamp (for fuel injection pump) | 90929-01018 |
