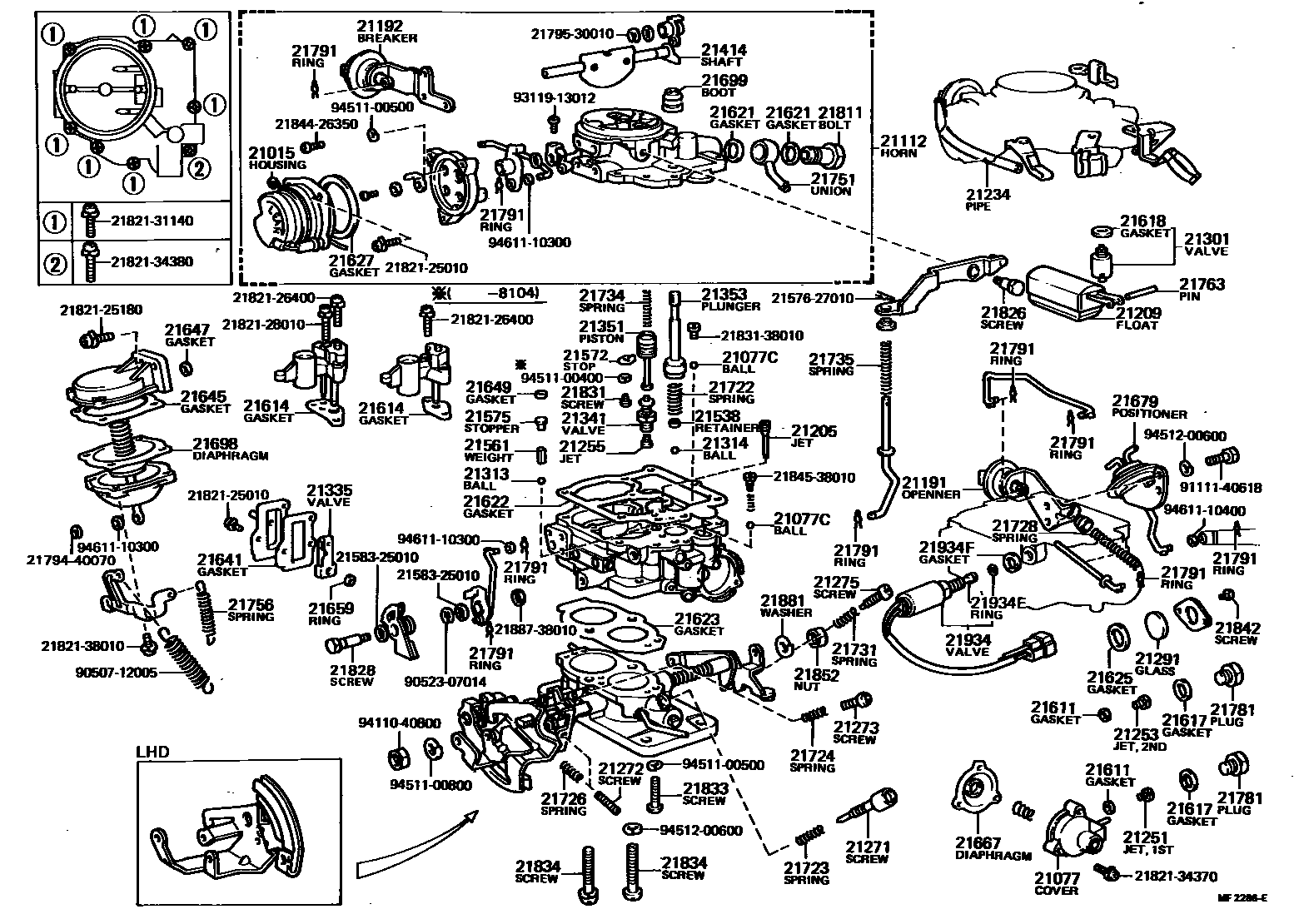

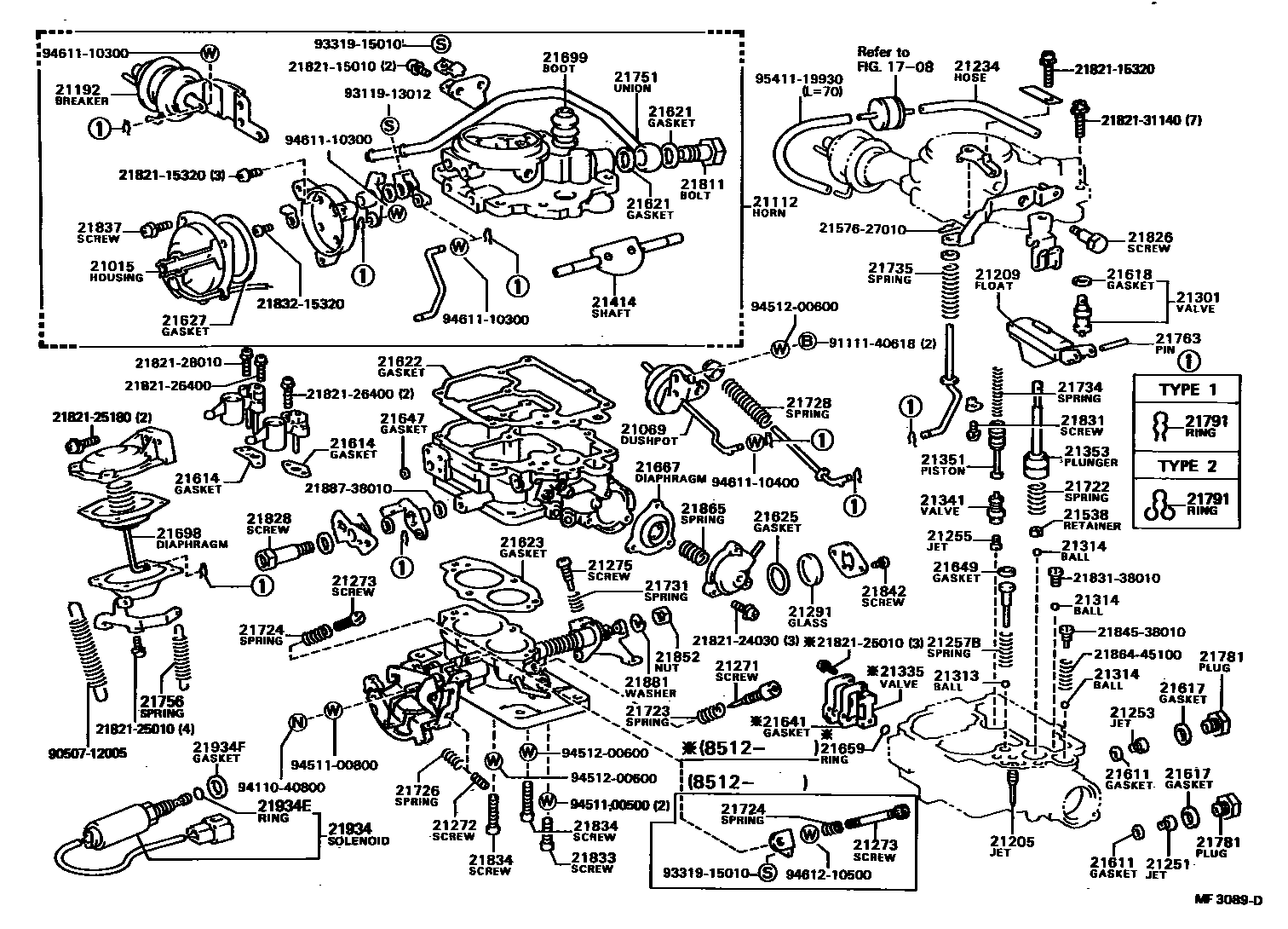

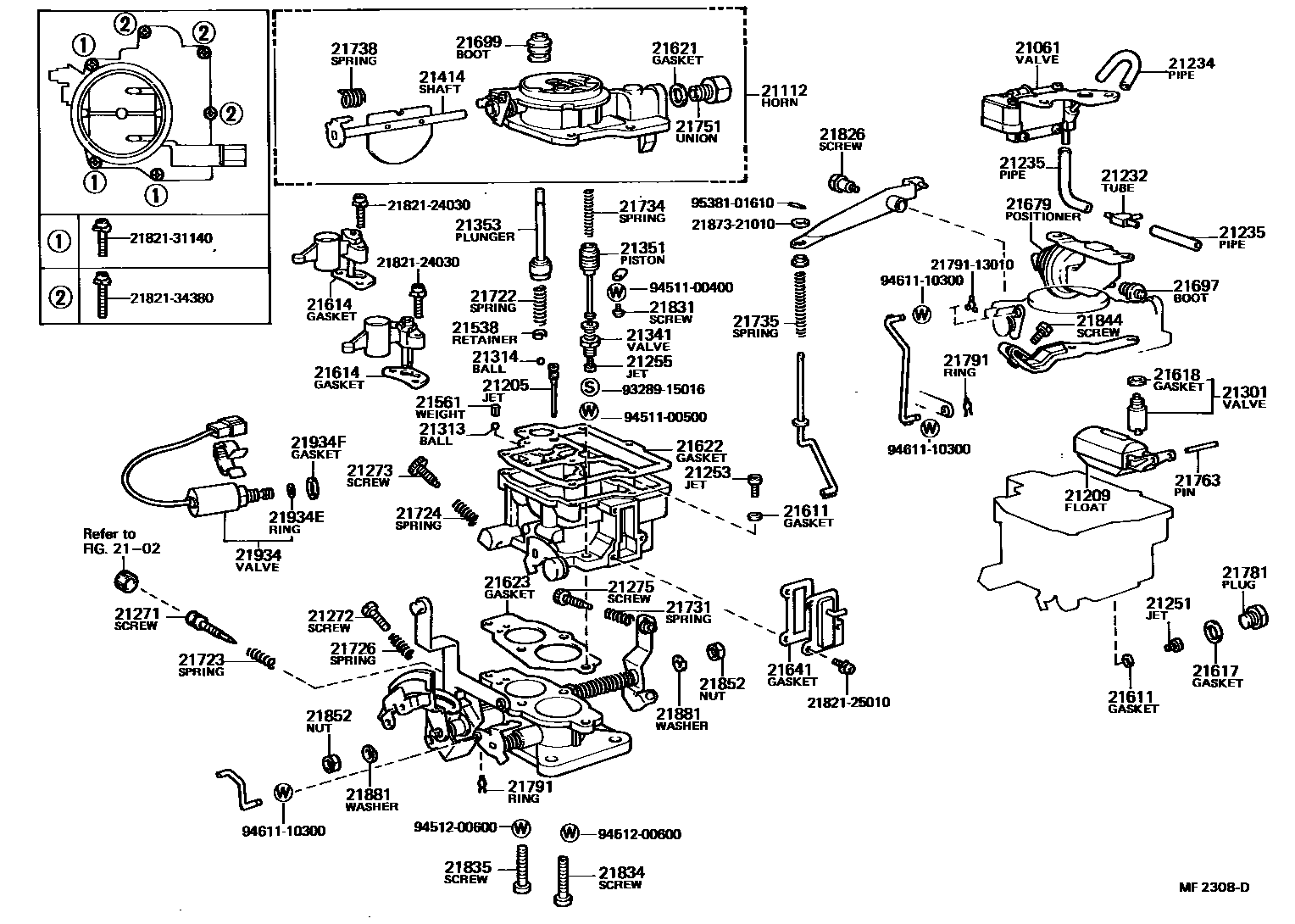

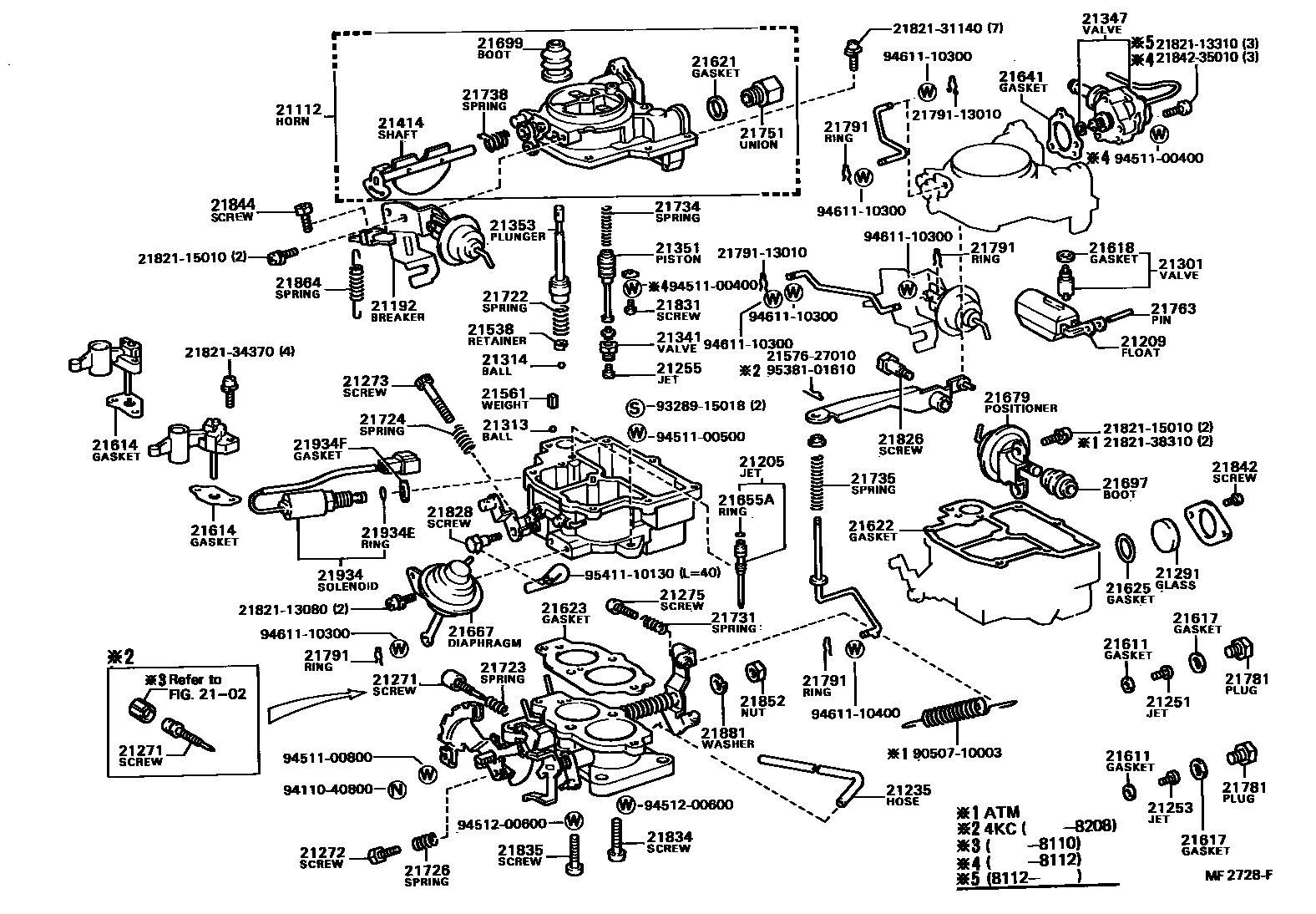

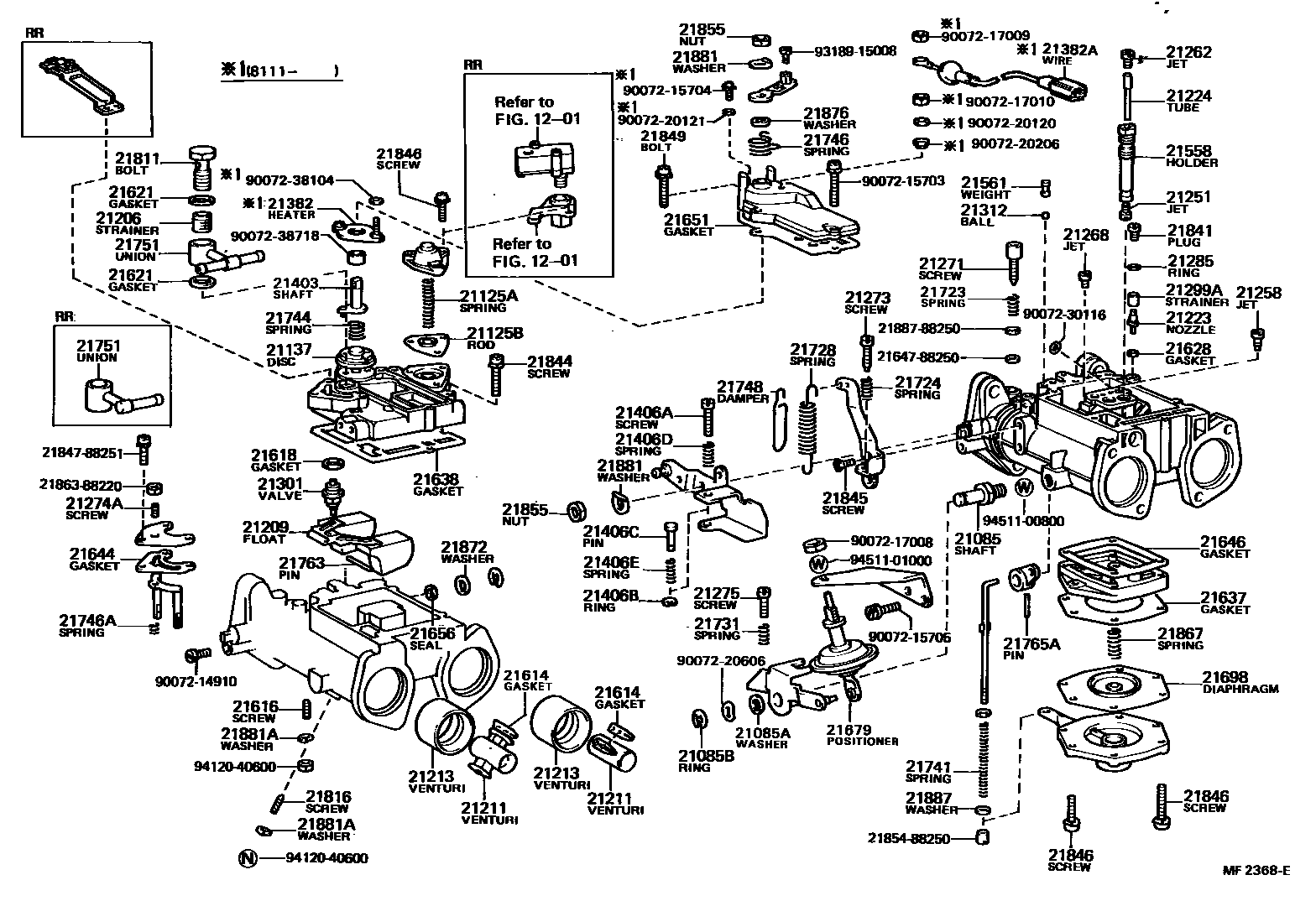

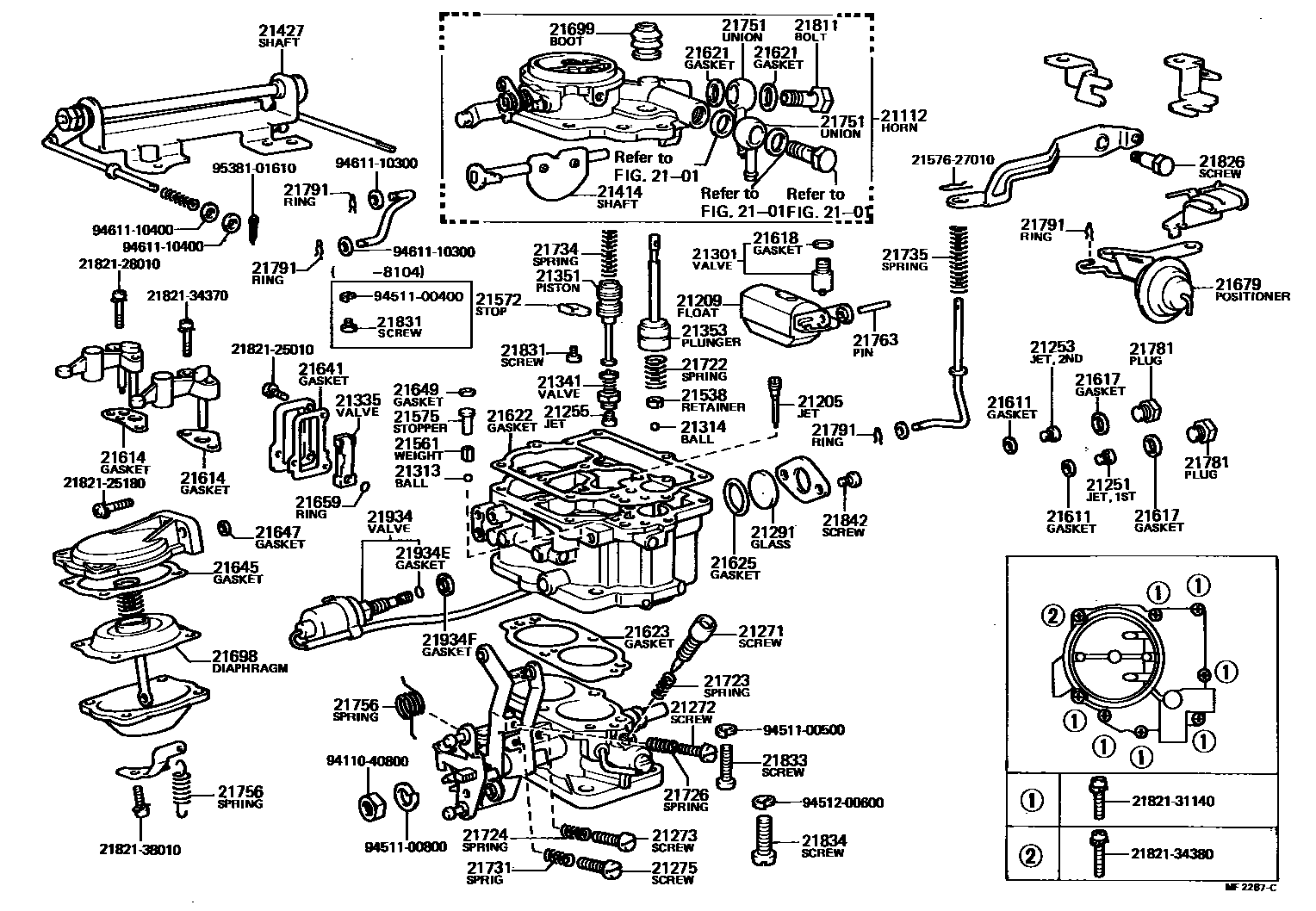

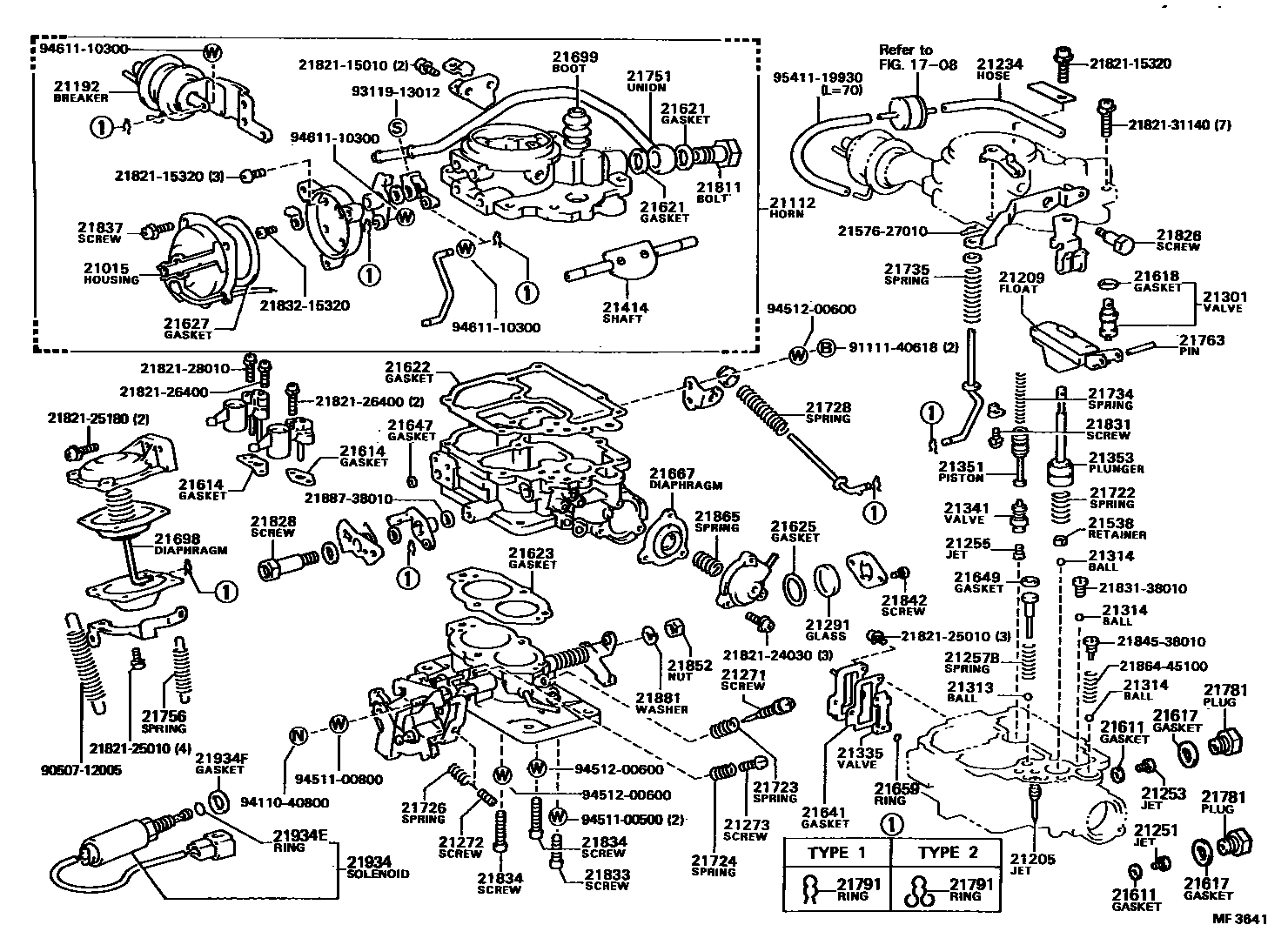

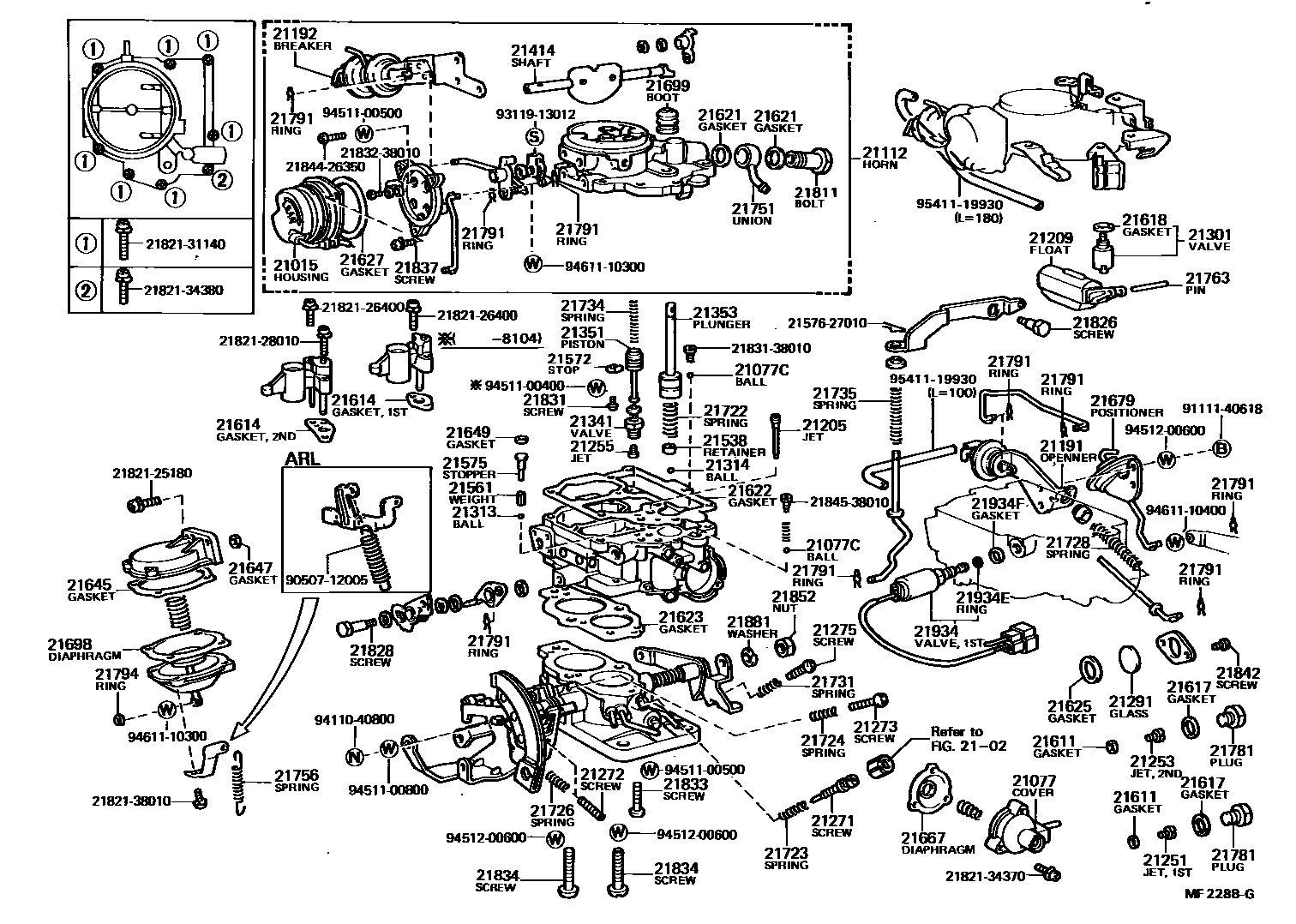

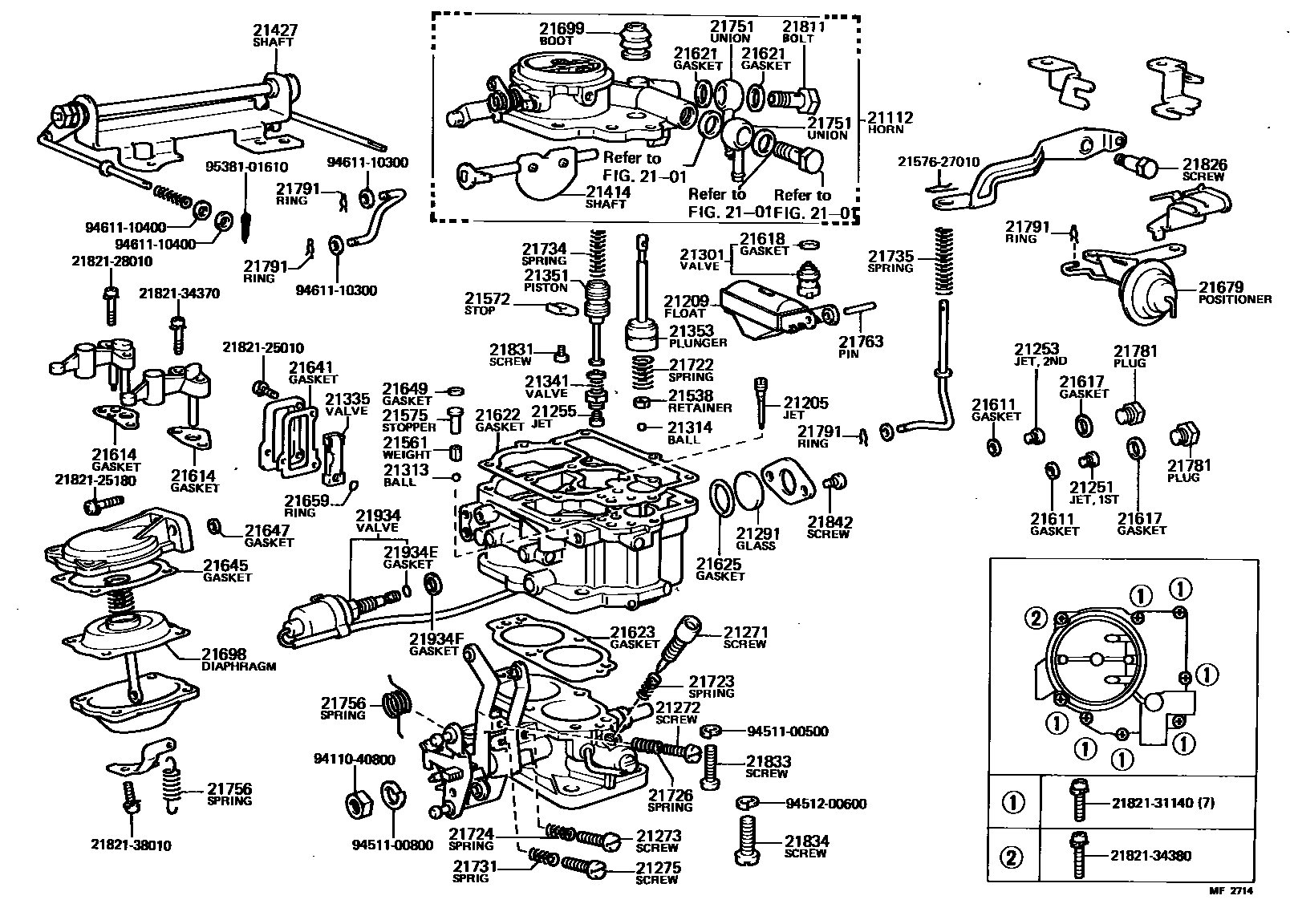

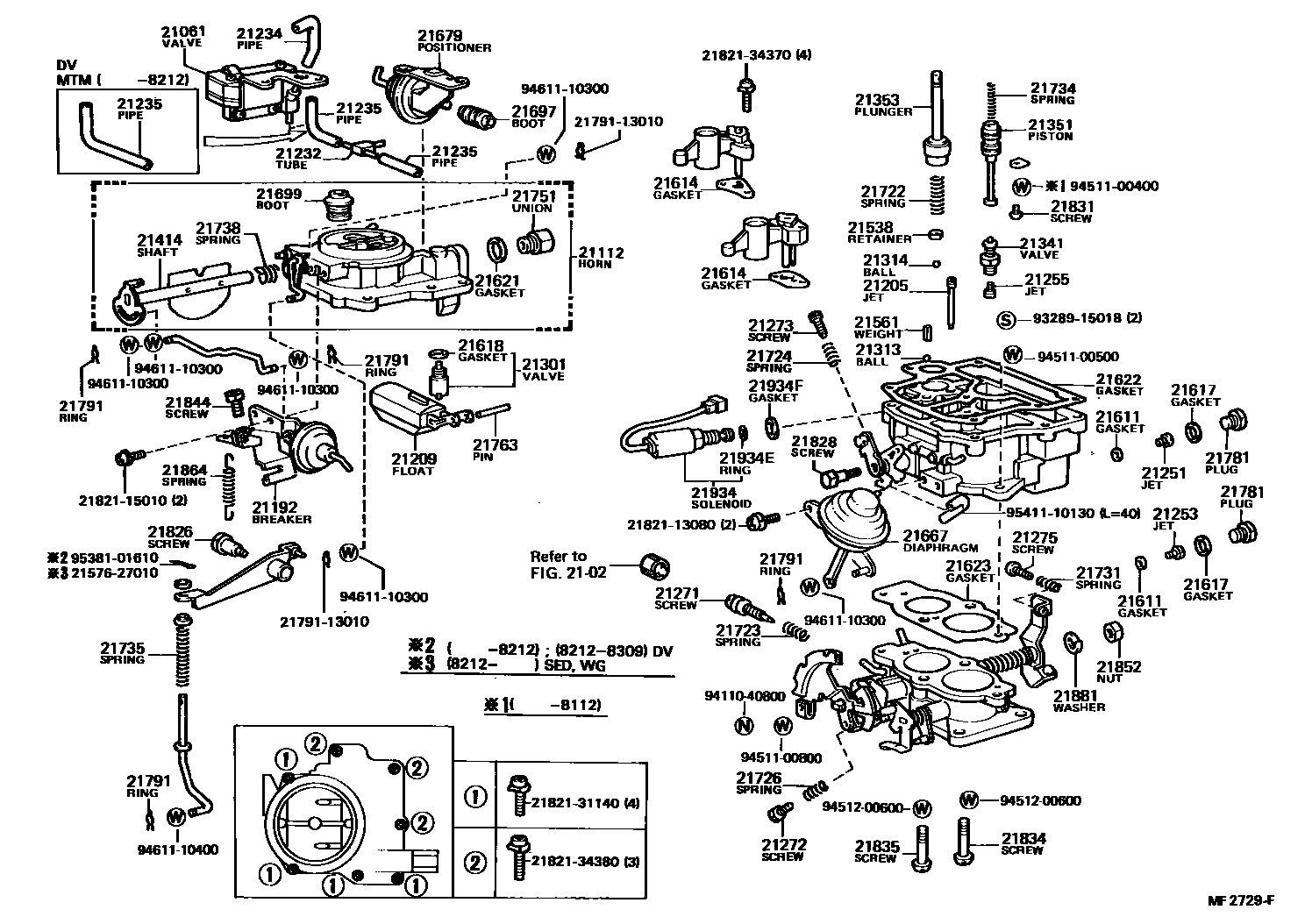

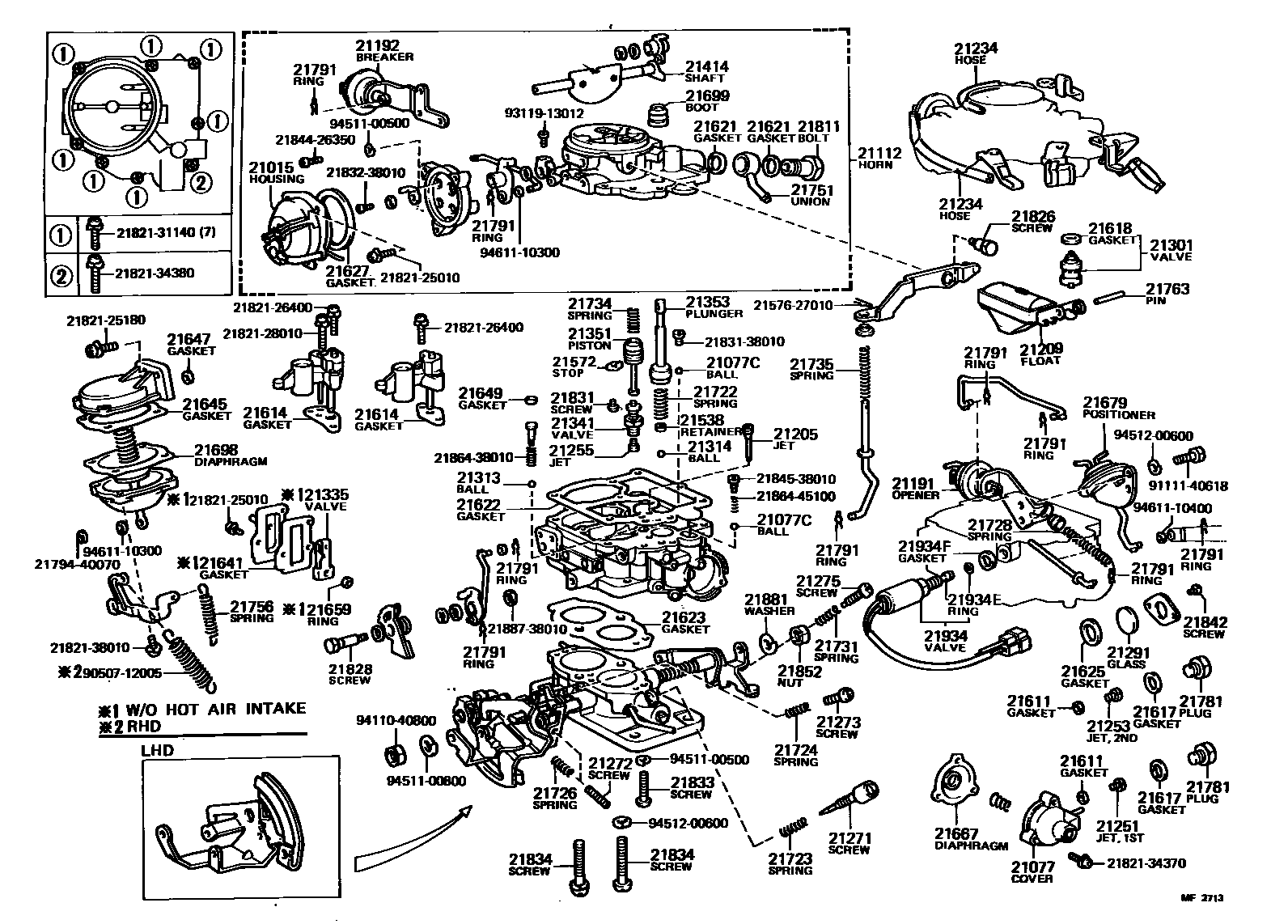

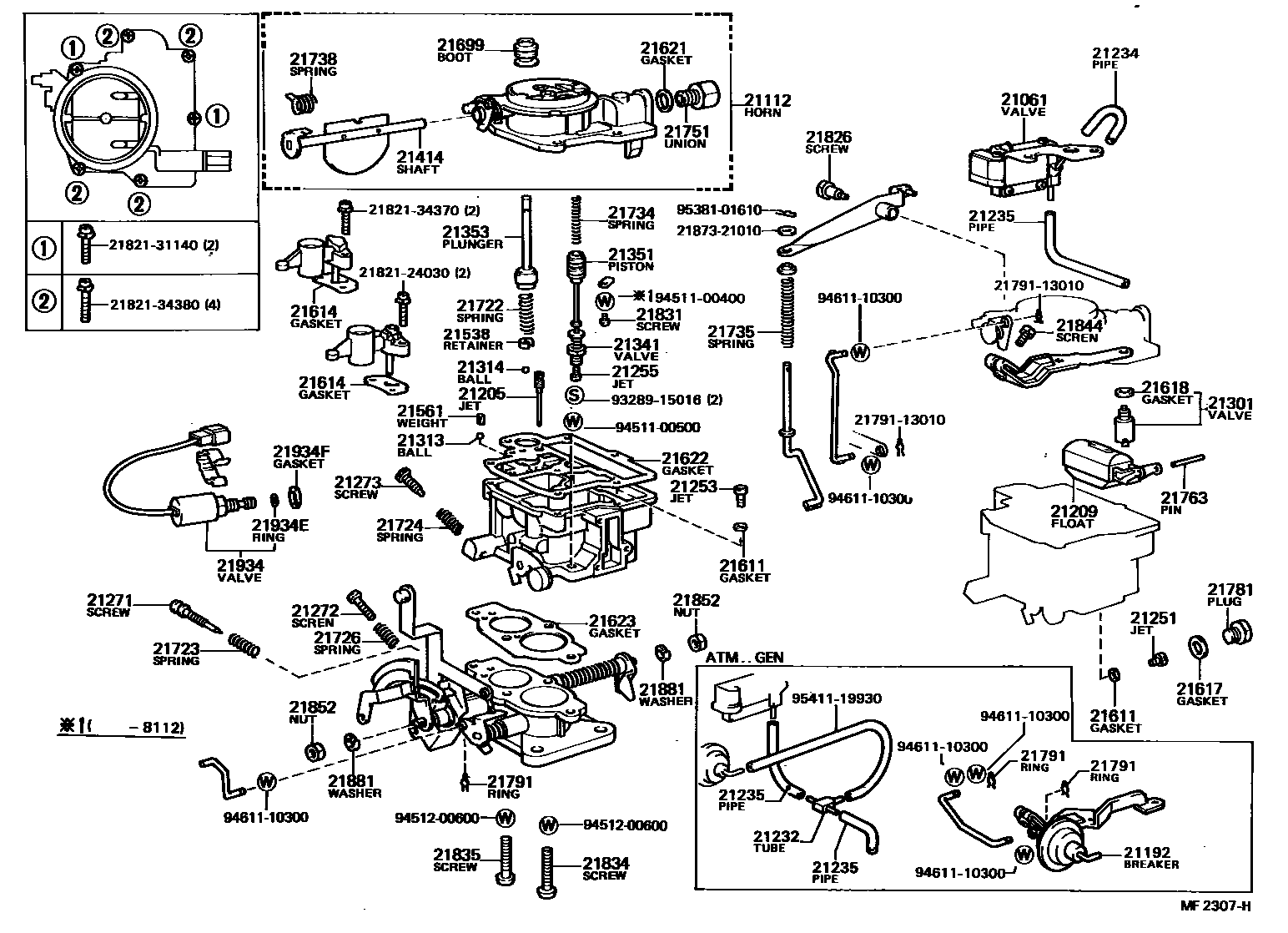

Toyota COROLLA 化油器 — Figure 2103
Toyota COROLLA EPC diagram 2103, 化油器, with 12 images and 140 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 21015 | Coil housing sub-assembly | 21015-15050 · 21015-28060 · 21015-28120 · 21015-2A051 |
| 21061 | Thermostat valve sub-assembly | 21061-13050 · 21061-13060 · 21061-13460 · 21061-24470 · 21061-24500 |
| 21069 | Deceleration buffer sub-assembly | 21069-15040 · 21069-15290 |
| 21077 | Cover (for auxiliary accelerator pump) | 21077-26350 |
| 21077C | Steel ball (for auxiliary accelerator pump) | 21314-11020 |
| 21085 | Throttle valve opener rod shaft | 21485-88250 |
| 21085A | Washer (throttle opener rod shaft) | 90072-20117 |
| 21085B | E-ring (throttle opener rod shaft) | 90072-52304 |
| 21112 | Air intake bell mouth | 21112-13060 · 21112-13150 · 21112-13160 · 21112-13310 · 21112-13340 · 21112-16080 · 21112-16081 · 21112-26850 · 21112-26851 · 21112-26860 · 21112-26861 · 21112-26880 · 21112-26881 · 21112-28120 · 21112-28121 · 21112-28122 · 21112-28130 · 21112-28141 · 21112-28230 · 21112-2A051 · 21112-2A090 · 21112-2A100 |
| 21125A | Spring (for diaphragm cover) | 21867-88250 · 21867-88251 |
| 21125B | Rod (for diaphragm cover) | 21707-88251 |
| 21137 | carburetor starter plate | 21138-88254 |
| 21191 | opener | 21191-18040 · 21191-26460 · 21191-28120 |
| 21192 | breaker | 21192-13040 · 21192-13310 · 21192-14130 · 21192-26400 · 21192-28120 · 21192-28230 |
| 21205 | Idle speed measuring hole assembly | 21205-13060 · 21205-13080 · 21205-13250 · 21205-13290 · 21205-13310 · 21205-13430 · 21205-14010 · 21205-24510 · 21205-26800 · 21205-27040 · 90999-44044 |
| 21206 | Filter sub-assembly | 21294-88110 |
| 21209 | Float sub-assembly | 21209-13310 · 21209-15020 · 21209-24480 · 21209-27040 · 21209-88220 |
| 21211 | first small venturi | 21211-88252 |
| 21213 | The first large venturi | 21213-88112 |
| 21223 | Injection pump nozzle | 21223-88255 |
| 21224 | main bleeder pipe | 21224-88110 |
| 21232 | tube | 21232-13050 |
| 21234 | pipe or hose | 21234-13080 · 21234-13150 · 21234-24230 · 21249-13090 · 95411-19930 |
| 21235 | Connecting pipe or connecting hose | 21235-13050 · 21235-13051 · 21235-13080 · 21235-13310 · 21235-13311 · 21235-24231 |
| 21251 | first main measuring hole | 21251-88230 · 90999-41082 · 90999-41099 · 90999-41102 · 90999-41104 · 90999-41105 · 90999-41106 · 90999-41107 · 90999-41108 · 90999-41110 · 90999-41112 · 90999-41113 · 90999-41116 |
| 21253 | Deputy main measuring hole | 90999-42132 · 90999-42138 · 90999-42150 · 90999-42153 · 90999-42156 · 90999-42162 · 90999-42165 · 90999-42168 · 90999-42177 |
| 21255 | Power measuring hole | 90999-43040 · 90999-43044 · 90999-43047 · 90999-43050 · 90999-43053 · 90999-43055 · 90999-43060 · 90999-43075 · 90999-43080 |
| 21257B | Spring (for accelerating the nozzle) | 21864-26020 |
| 21258 | Idle speed measuring hole | 21258-88251 |
| 21262 | Main air release hole | 21262-88201 |
| 21268 | starter measuring hole | 21267-88252 |
| 21271 | Idle speed adjustment screw | 21271-13270 · 21271-15120 · 21271-15230 · 21271-24012 · 21271-24100 · 21271-24390 · 21271-24470 · 21271-25201 · 21271-26100 · 21271-26371 · 21271-26440 · 21271-44010 · 21271-88251 |
| 21272 | First gear idle speed adjustment screw | 21273-50010 · 21273-51010 · 21828-25180 · 93119-14014 · 93119-14016 |
| 21273 | Throttle adjustment screw | 21273-13390 · 21273-14130 · 21273-24230 · 21273-24231 · 21273-88250 · 21844-33010 |
| 21274A | Float adjustment screw | 21274-88220 |
| 21275 | Adjustment screw | 21273-88250 · 21275-24360 · 21275-24361 · 21842-28090 · 21844-33010 · 93119-14014 · 93119-14016 |
| 21285 | O-ring (for injection pump injector plug) | 21285-88101 |
| 21291 | oil level gauge glass | 21291-34320 · 21291-60200 |
| 21299A | pump strainer | 21299-88250 |
| 21301 | Needle valve sub-assembly | 21301-13080 · 21301-13310 · 21301-14010 · 21301-15020 · 21301-15080 · 21301-15160 · 21301-24360 · 21301-24501 · 21301-28080 · 21301-28081 · 21301-28082 · 21301-28150 · 21301-88220 |
| 21312 | steel ball | 21311-88110 |
| 21313 | No. 1 steel ball (for oil drain counterweight) | 21313-11020 |
| 21314 | No. 2 steel ball (for pump plunger) | 21314-11020 · 21314-60010 |
| 21335 | thermostat valve | 21335-25010 · 21335-26040 · 21335-38310 |
| 21341 | enrichment valve | 21304-30010 · 21341-24030 |
| 21347 | Solenoid valve | 21347-13310 |
| 21351 | enrichment piston | 21351-24230 · 21351-33080 |
| 21353 | pump plunger | 21305-22011 · 21353-24010 · 21353-33010 |
| 21382 | heater | 21382-88250 |
| 21382A | Wiring harness (for heater) | 90072-58016 · 90072-58017 |
| 21403 | Starter shaft sub-assembly | 21403-88251 |
| 21406A | 1st throttle screw | 21275-88250 |
| 21406B | E-ring (for first throttle valve) | 96160-00300 |
| 21406C | first throttle pin | 90072-24108 |
| 21406D | No. 1 compression spring (for first throttle valve) | 21724-88251 |
| 21406E | No. 2 compression spring (for first throttle valve) | 21865-88250 |
| 21414 | choke shaft | 21054-13310 · 21054-15050 · 21054-15230 · 21054-24010 · 21054-24440 · 21054-26401 · 21054-31280 |
| 21427 | choke connector shaft | 21403-26860 |
| 21538 | One way ball fixing | 21538-31010 |
| 21558 | Main measuring hole fixing piece | 21558-88110 |
| 21561 | Pump drain counterweight | 21561-22010 · 21561-25010 · 21561-88220 |
| 21572 | Enrichment piston block | 21572-33080 |
| 21575 | Stopper B (for oil drain counterweight) | 21575-25010 · 21575-33011 |
| 21611 | Main gage hole gasket | 21611-22010 |
| 21614 | Venturi gasket | 21614-22010 · 21614-24360 · 21614-33010 · 21614-33080 · 21614-88251 |
| 21616 | Small venturi set screw | 21824-88210 |
| 21617 | Main oil gallery plug gasket | 21617-30010 |
| 21618 | Needle seat gasket | 21618-14010 · 21618-24030 · 21618-88220 |
| 21621 | Oil pipe joint gasket | 21621-88110 · 21633-24030 |
| 21622 | Air intake bell gasket | 21622-16090 · 21622-24360 · 21622-24440 · 21622-26510 · 21622-33083 |
| 21623 | Body hem pads | 21623-13080 · 21623-24300 · 21623-25180 · 21623-31141 |
| 21625 | oil level gauge gasket | 21655-60200 |
| 21627 | Coil housing gasket | 21627-28090 · 21627-34080 |
| 21628 | Acceleration nozzle screw gasket | 21628-88101 |
| 21637 | plunger sleeve gasket | 21637-88101 |
| 21638 | Float chamber rod gasket | 21638-88251 |
| 21641 | Gasket (for thermostat valve cover) | 21641-13310 · 21641-23010 · 21641-23012 |
| 21644 | Float adjustment chamber cover gasket | 21644-88250 |
| 21645 | Diaphragm cover gasket | 21645-33080 |
| 21646 | No. 1 diaphragm housing gasket | 21646-88111 |
| 21647 | Diaphragm housing cover gasket | 21649-33080 |
| 21649 | Gasket (for pump drain weight stop) | 21641-33011 |
| 21651 | Spray chamber cover gasket | 21649-88250 |
| 21655A | O-ring (for idle speed measuring hole) | 21655-44101 |
| 21656 | Throttle shaft seal | 21657-88110 |
| 21659 | O-ring (for thermostat valve) | 21641-24030 |
| 21667 | Diaphragm | 21667-13010 · 21667-13290 · 21667-38011 · 21667-38310 · 21667-72080 |
| 21679 | locator | 21068-88250 · 21679-13011 · 21679-13060 · 21679-13310 · 21679-13340 · 21679-13430 · 21679-26850 · 21679-26851 · 21679-28060 · 21679-28080 · 21679-2A050 |
| 21697 | Dust boot (for sliding link) | 21699-41010 |
| 21698 | Diaphragm | 21669-15320 · 21669-25010 · 21669-26040 · 21707-88220 |
| 21699 | Dust boot (for pump plunger) | 21699-21061 · 21699-28080 · 21699-28150 |
| 21722 | Pump damping spring | 21722-22010 |
| 21723 | Idle speed adjustment spring | 21723-21030 · 21724-88110 |
| 21724 | Throttle valve adjustment spring | 21723-14130 · 21723-21030 · 21724-88251 · 21864-24230 |
| 21726 | First gear idle speed adjustment spring | 21723-21030 · 21724-26850 · 21726-40010 |
| 21728 | Throttle return spring | 21729-88250 · 21756-25181 |
| 21731 | Deceleration buffer or positioner adjustment spring | 21723-21030 · 21724-26850 · 21724-88251 · 21864-24010 |
| 21734 | Thickening piston spring | 21734-12070 · 21734-13280 · 21734-13290 · 21734-13310 · 21734-22050 · 21734-24010 · 21734-24030 · 21734-24500 · 21734-26510 · 21734-33080 · 21734-33081 |
| 21735 | Pump rod spring | 21735-15270 · 21735-21032 · 21735-22010 · 21735-24360 |
| 21738 | Choke pressure reducing spring | 21738-24030 · 21738-24060 |
| 21741 | pump spring | 21741-88110 |
| 21744 | Carburetor starter disc spring | 21738-88250 |
| 21746 | starter return spring | 21737-88252 |
| 21746A | Float adjustment spring | 21746-88220 |
| 21748 | Throttle return spring damper | 21748-88250 |
| 21751 | Oil pipe joint | 21751-24034 · 21751-88250 · 21755-88250 · 21894-15081 · 21894-26350 · 90405-06003 · 90405-06166 · 90405-06167 |
| 21756 | Return spring (for throttle shaft) | 21756-15080 · 21756-26850 · 21756-26851 · 21756-33080 |
| 21763 | floating lever pin | 21763-26350 · 21763-31280 · 21763-38010 · 21763-88111 |
| 21765A | Throttle valve pin | 21765-88250 |
| 21781 | Main oil gallery screw plug (for carburetor measuring hole) | 21781-15230 · 21781-30020 |
| 21791 | No. 1 snap ring (for carburetor connecting rod) | 21791-13010 · 21791-60010 |
| 21794 | No. 1 retaining ring (for throttle shaft) | 21794-40070 |
| 21811 | Oil pipe joint bolt | 21811-11060 · 21811-88110 |
| 21816 | No. 1 Mini Venturi Set Screw | 21832-88110 |
| 21826 | Pump rod fixing screw | 21826-31012 |
| 21828 | First gear idle speed fixing screw | 21828-13310 · 21845-15230 · 21845-26400 |
| 21831 | Enrichment piston limit screw | 21821-15060 · 21842-33010 |
| 21833 | No. 1 fixing screw (for carburetor body assembly) | 21833-33010 |
| 21834 | No. 2 fixing screw (for carburetor body assembly) | 21834-31010 · 21834-31140 · 21844-26400 |
| 21835 | No. 3 fixing screw (for carburetor body assembly) | 21835-40010 |
| 21837 | Coil housing fixing screws | 21821-25010 |
| 21841 | Injection pump injector screw plug | 21829-88101 |
| 21842 | Fixing screw (for carburetor oil level gauge clamp assembly) | 21842-33010 |
| 21844 | Choke lever screw | 21844-24230 · 21844-88110 |
| 21845 | Screws (for rod assembly) | 21845-88111 |
| 21846 | Diaphragm housing fixing screws | 21847-88220 · 21847-88252 · 21849-88220 |
| 21849 | Combustion chamber cover butterfly bolt | 21847-88250 |
| 21852 | Throttle lever retaining nut | 21852-30010 |
| 21855 | Throttle shaft nut | 21854-88110 |
| 21864 | Spring (for first throttle arm) | 21864-13080 · 21864-13290 |
| 21865 | spring | 21865-15230 |
| 21867 | diaphragm spring | 21867-88110 |
| 21872 | Throttle shaft washer | 21872-88250 |
| 21876 | carburetor starter gasket | 21876-88250 |
| 21881 | Lock washer (for throttle shaft) | 21881-60010 · 21881-88110 |
| 21881A | No. 2 lock washer | 94511-00600 |
| 21887 | Washer (for securing connecting rod) | 21887-88110 |
| 21934 | Throttle solenoid valve | 21062-13310 · 21062-14130 · 21062-14131 · 21062-24360 · 21062-25180 · 21062-26850 · 21062-26860 |
| 21934E | O-ring (for solenoid valve) | 21655-44101 |
| 21934F | padding | 21617-10010 · 21649-38010 |
