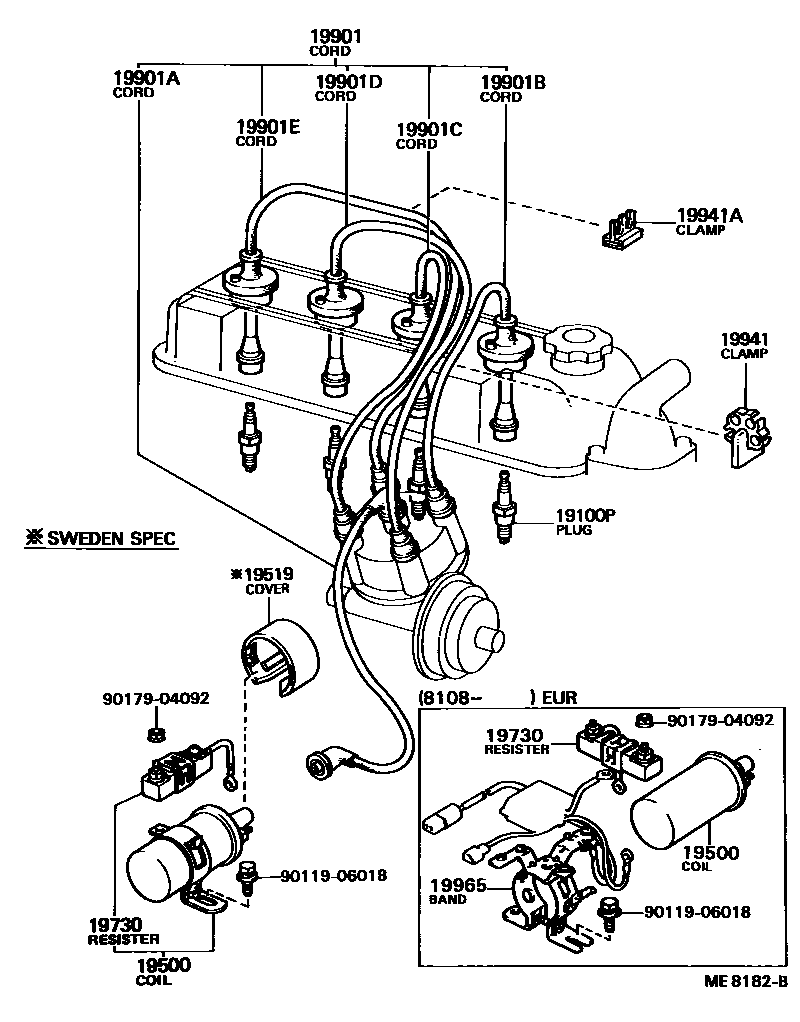

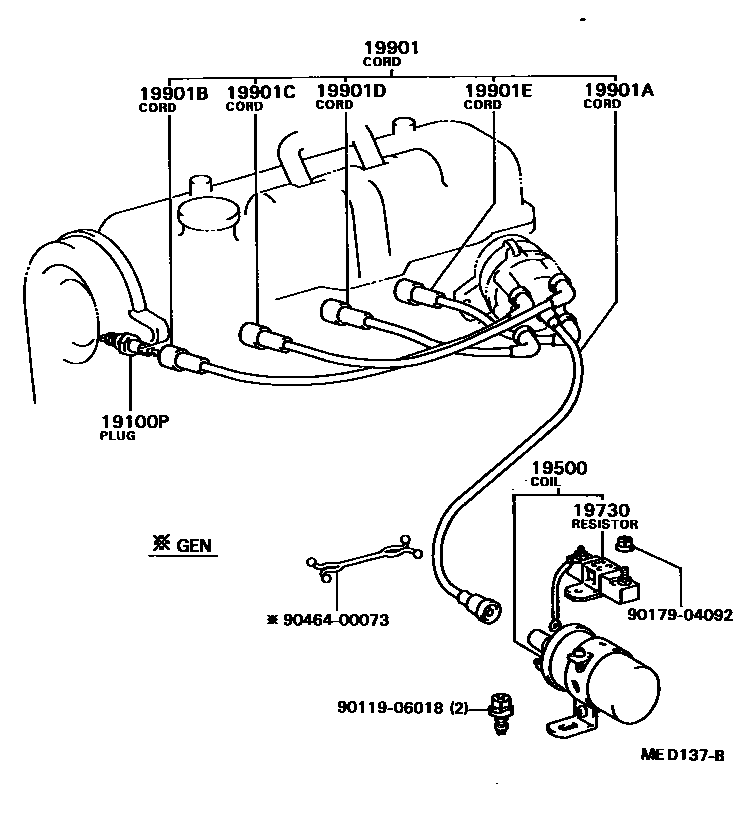

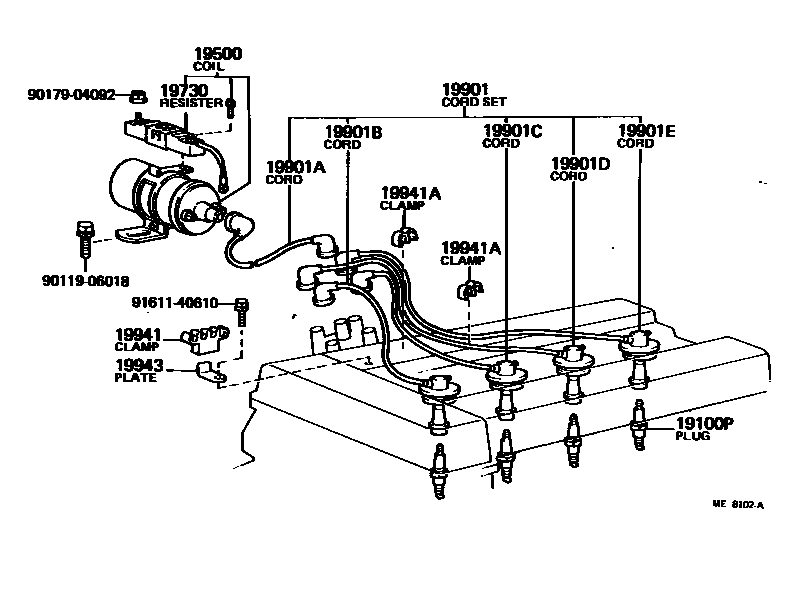

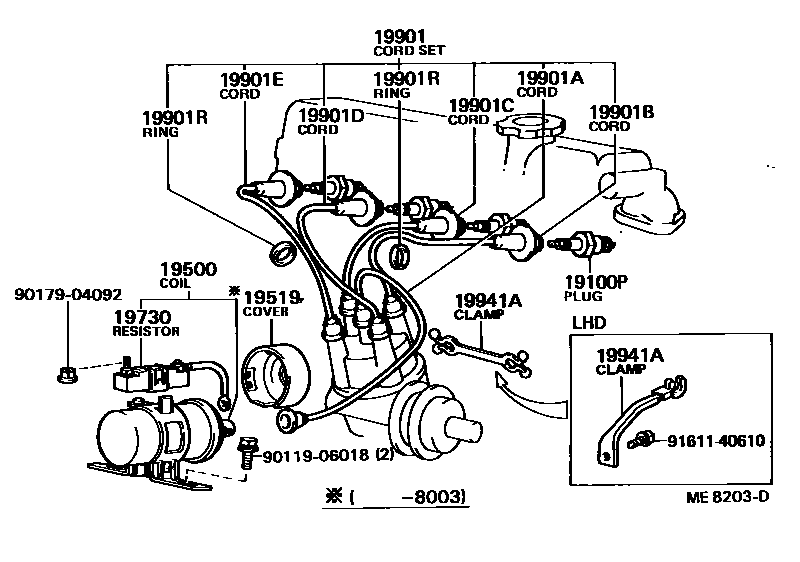

Toyota COROLLA 点火线圈和火花塞 /电热塞 — Figure 1901
Toyota COROLLA EPC diagram 1901, 点火线圈和火花塞 /电热塞, with 5 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100P | spark plug | 90919-01056 · 90919-01059 · 90919-01064 · 90919-01065 · 90919-01084 |
| 19500 | Ignition coil assembly | 90919-02083 · 90919-02087 · 90919-02098 · 90919-02103 · 90919-02116 · 90919-02118 · 90919-02129 · 90919-02151 · 90919-02161 |
| 19519 | Ignition coil cover | 19519-38030 |
| 19730 | Ignition coil resistor | 90919-04027 · 90919-04032 · 90919-04033 · 90919-04035 |
| 19850 | Glow plug assembly | 19850-64010 |
| 19850B | Screw seal (for glow plug) | 90189-04024 |
| 19871 | Glow plug connector No. 1 | 19871-64010 · 19871-64021 |
| 19901 | Coil and spark plug assembly with damper wire | 90919-21070 · 90919-21178 · 90919-21185 · 90919-21187 · 90919-21191 · 90919-21219 · 90919-21256 · 90919-21273 · 90919-21287 · 90919-21329 · 90919-21331 · 90919-21383 |
| 19901A | coil damping line | 90919-13048 · 90919-13084 · 90919-13097 · 90919-13105 · 90919-13125 · 90919-13170 · 90919-13258 |
| 19901B | No. 1 spark plug damper wire | 90072-76848 · 90919-12084 · 90919-12243 · 90919-12252 · 90919-12265 · 90919-12506 |
| 19901C | No. 2 spark plug damper wire | 90072-76849 · 90919-12083 · 90919-12242 · 90919-12253 · 90919-12266 · 90919-12409 · 90919-12507 |
| 19901D | No. 3 spark plug damper wire | 90072-76850 · 90919-12083 · 90919-12242 · 90919-12254 · 90919-12267 · 90919-12508 |
| 19901E | No. 4 spark plug damper wire | 90072-76851 · 90919-12084 · 90919-12243 · 90919-12255 · 90919-12268 · 90919-12269 · 90919-12410 · 90919-12509 |
| 19901R | Rubber spark plug damping wire ring | 90202-11067 |
| 19941 | No. 1 damping wire clip | 19941-88260 · 90464-00002 · 90464-00053 |
| 19941A | Clamp (for damping wire) | 19941-13010 · 90464-00001 · 90464-00073 · 90464-00208 |
| 19943 | No. 1 damping wire clip support plate | 19943-88260 |
| 19965 | No. 1 ignition coil band | 90919-03081 |
