Toyota COROLLA 歧管喷气系统 — Figure 1706

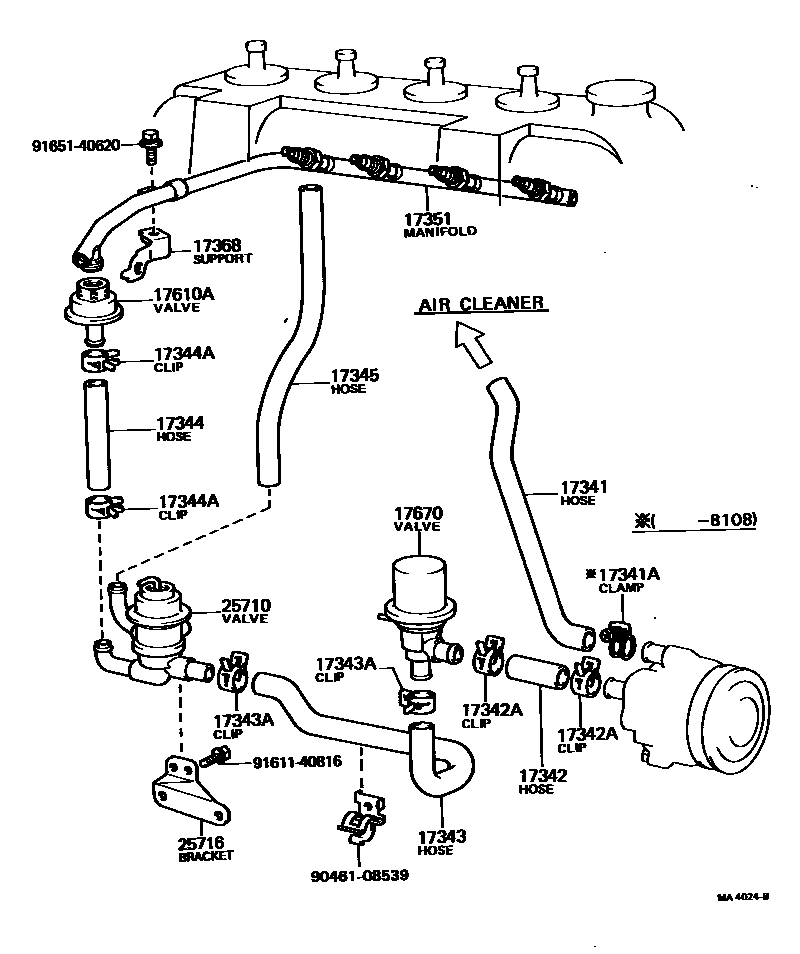

Toyota COROLLA EPC diagram 1706, 歧管喷气系统, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17341 | Hoses No. 1 (for air injection systems) | 17341-26050 |
| 17341A | No. 1 clip or clip (for No. 1 air injection system hose) | 96111-10300 |
| 17342 | Hoses No. 2 (for air injection systems) | 90445-31008 |
| 17342A | No. 2 clip or clip (for No. 2 air injection system hose) | 90467-26001 |
| 17343 | No. 3 hose (for air injection system) | 17342-26031 |
| 17343A | No. 3 clip or clip (for No. 3 air injection system hose) | 90467-26001 |
| 17344 | No. 4 hose (for air injection system) | 90445-27005 |
| 17344A | No. 4 clamp or clip (for No. 4 air injection system hose) | 90467-23001 |
| 17345 | No. 5 hose (for air injection system) | 90445-27013 |
| 17351 | jet manifold | 17351-28060 |
| 17368 | Air tube support | 17368-18040 · 17368-26020 |
| 17610A | Check valve (for air injection systems) | 90917-10045 |
| 17670 | Air bypass valve assembly | 17670-26030 |
| 25710 | Air switch valve assembly | 25710-26020 |
| 25716 | Air switch valve bracket | 25716-25010 |
