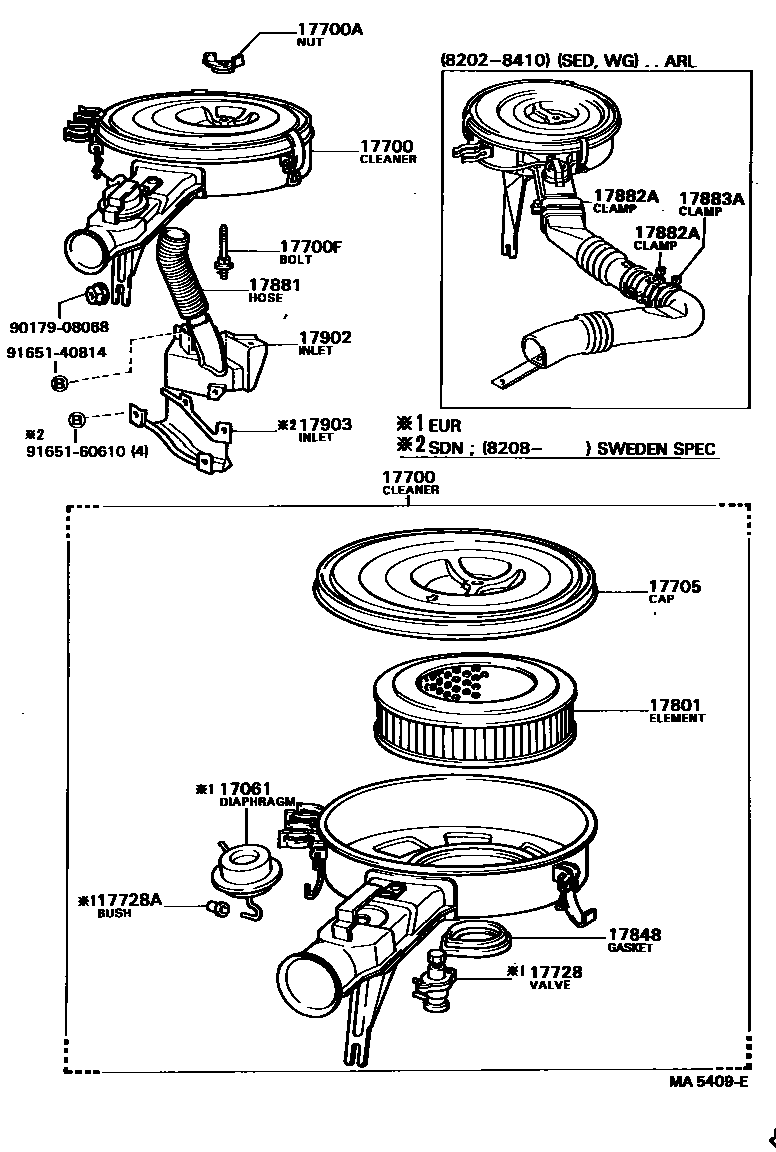

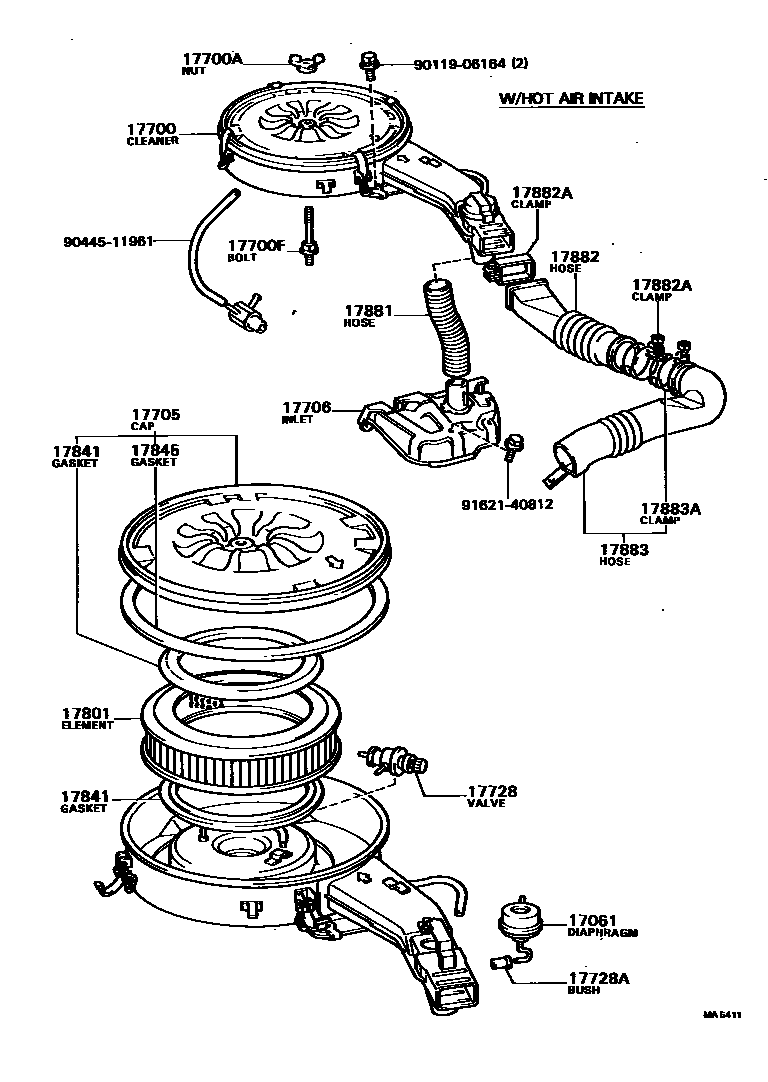

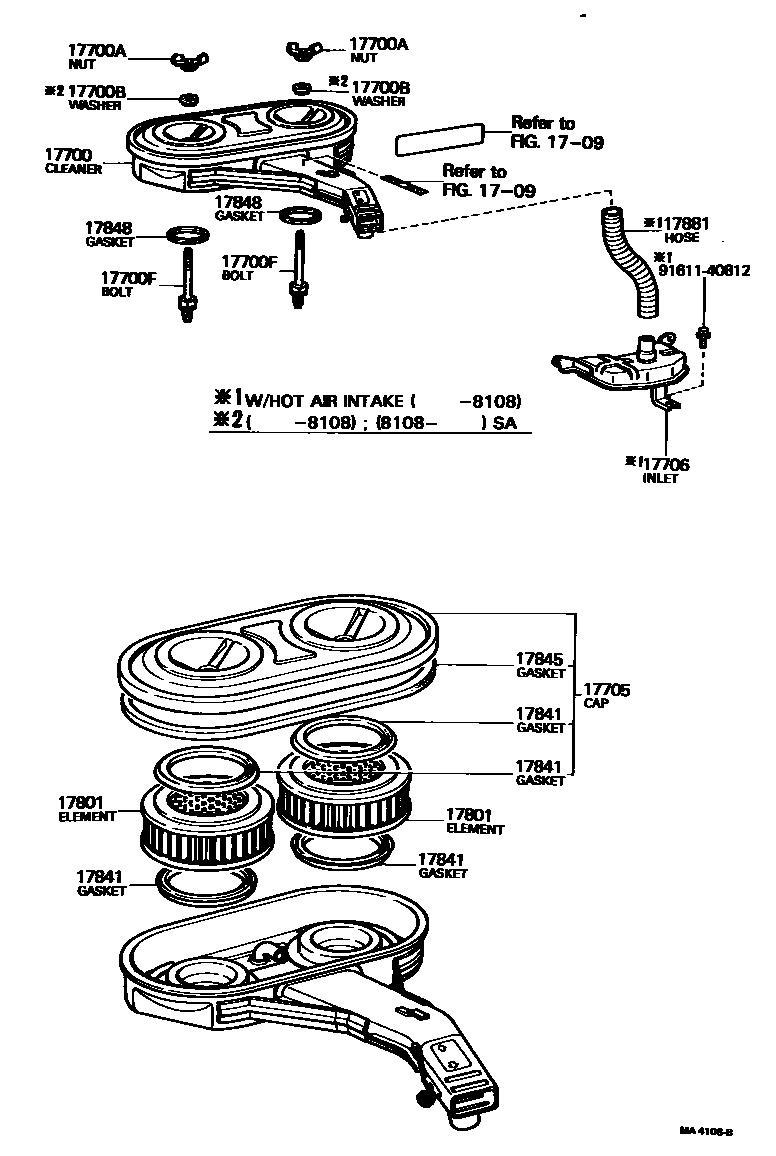

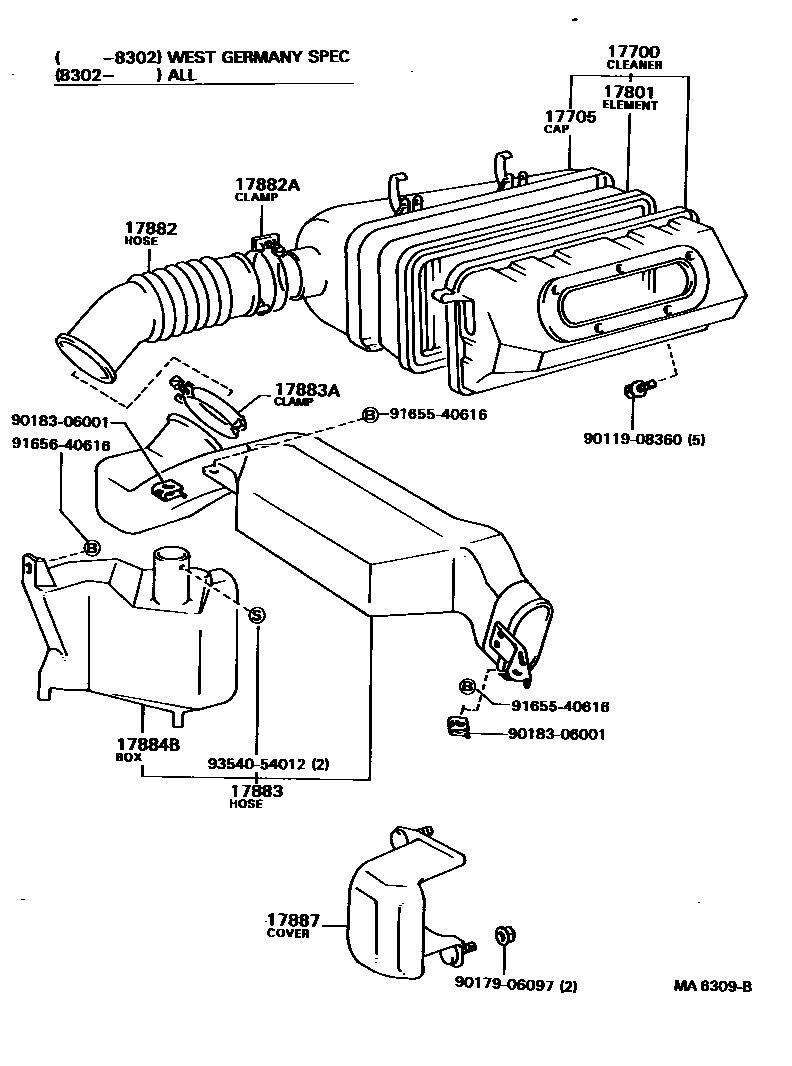

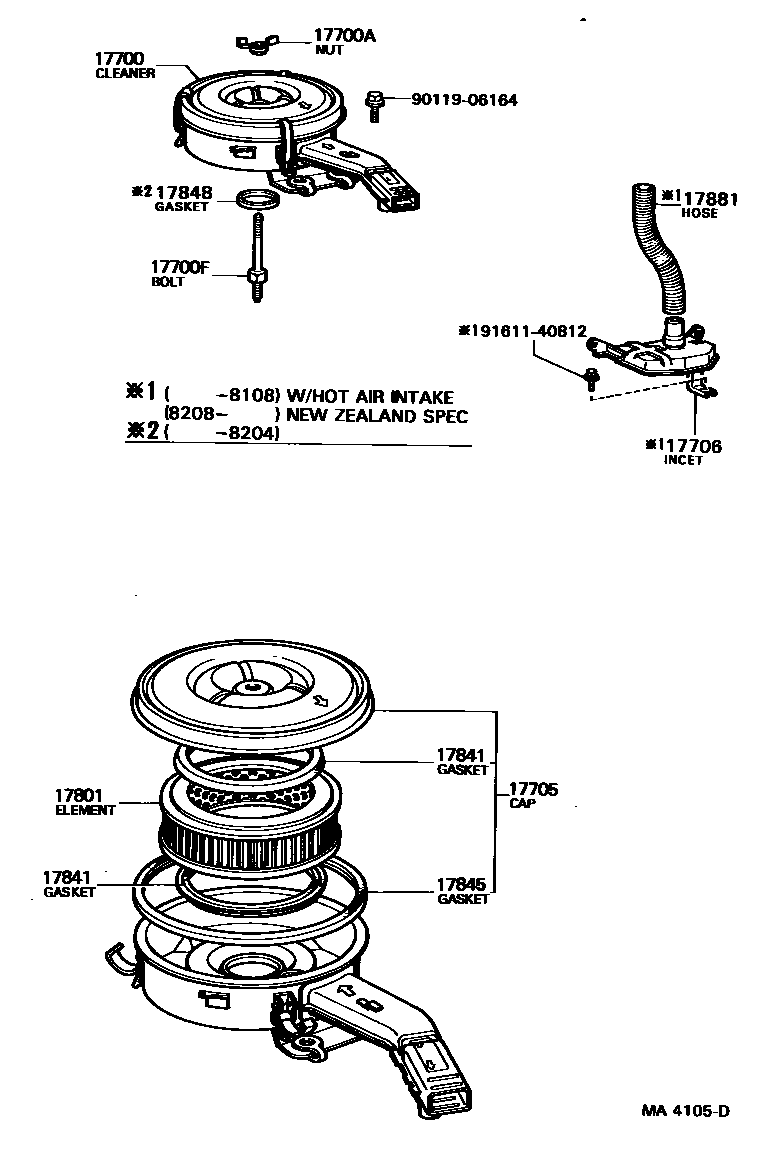

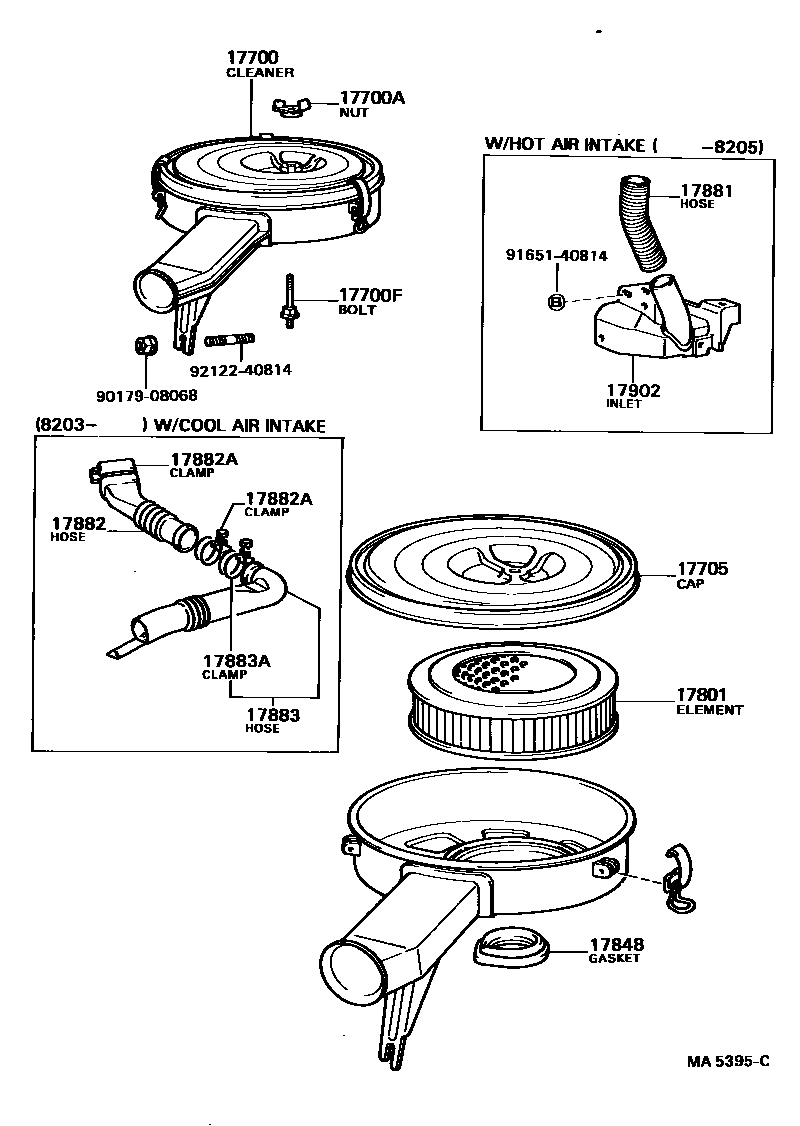

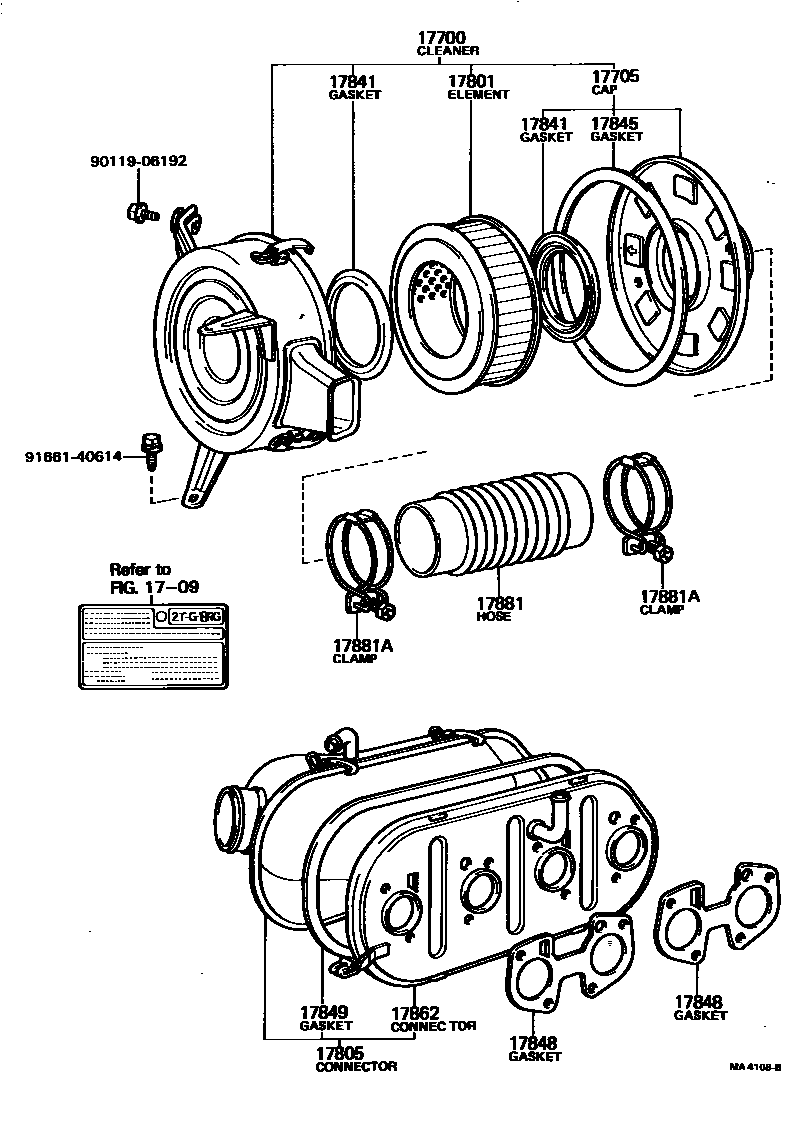

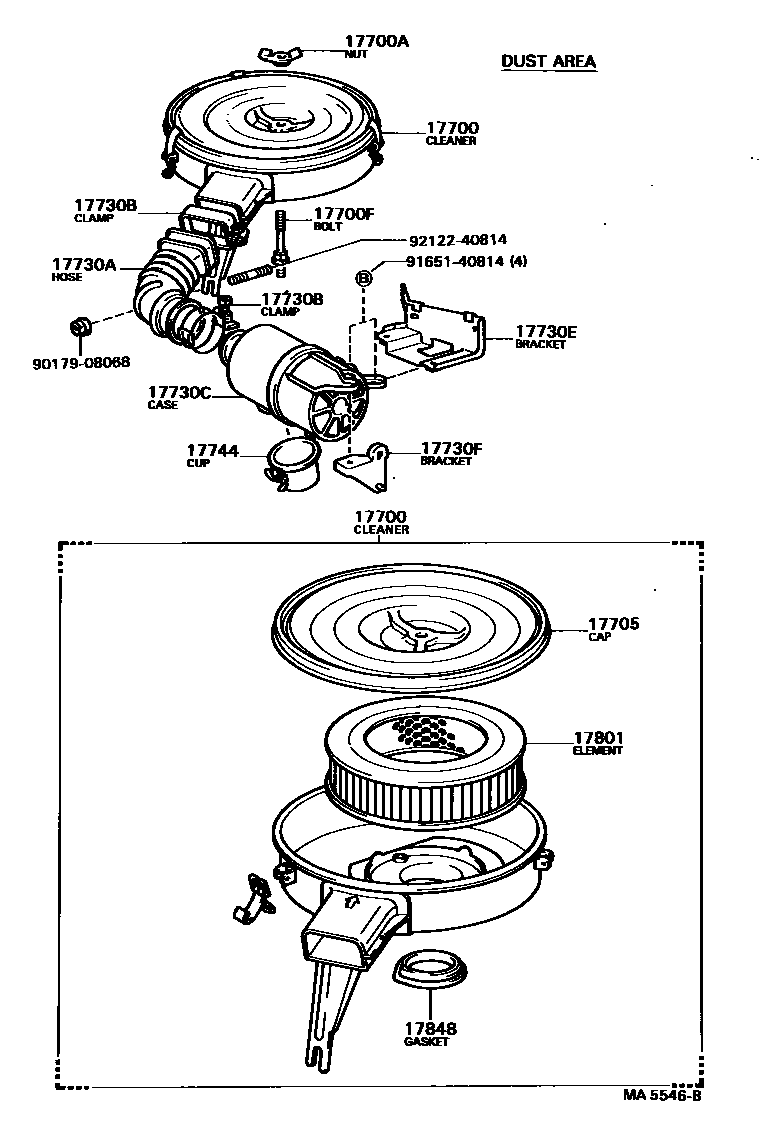

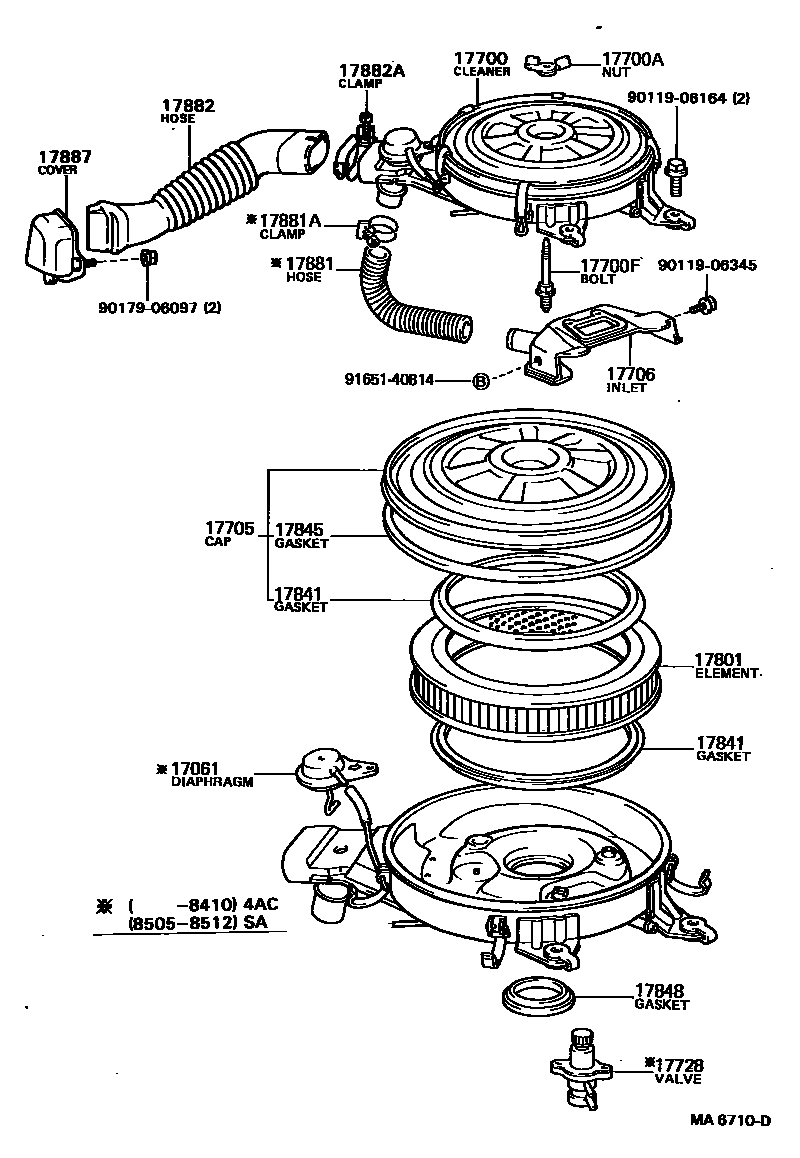

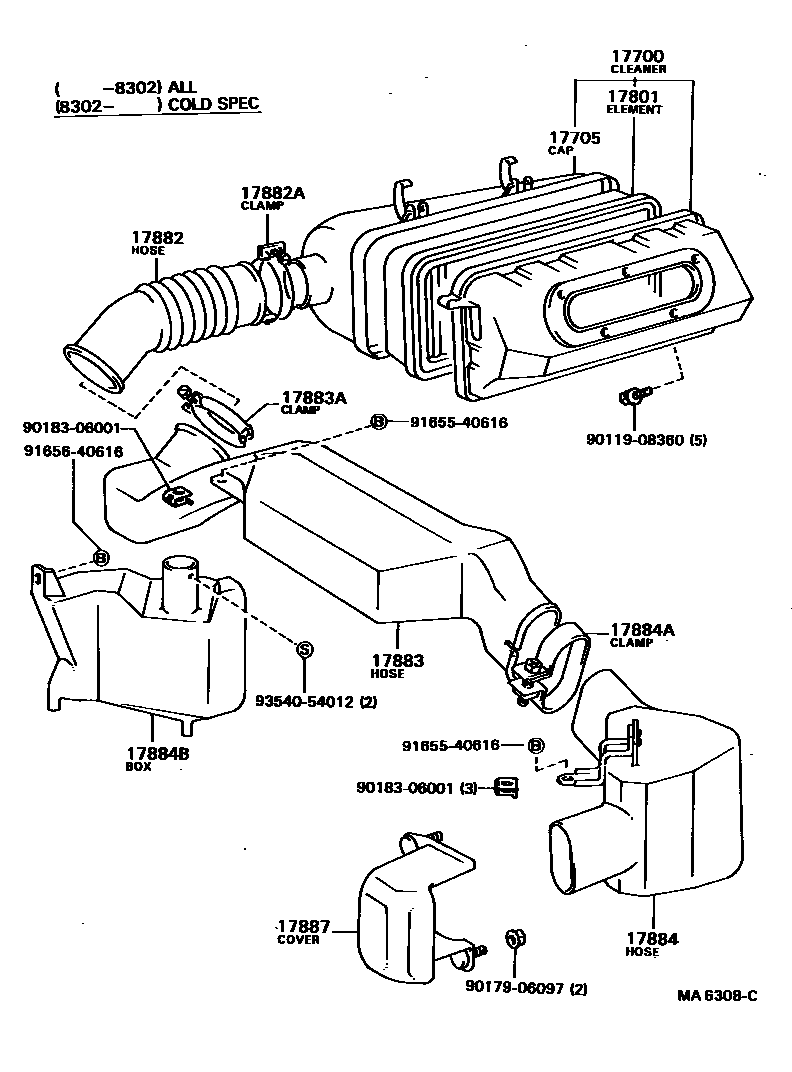

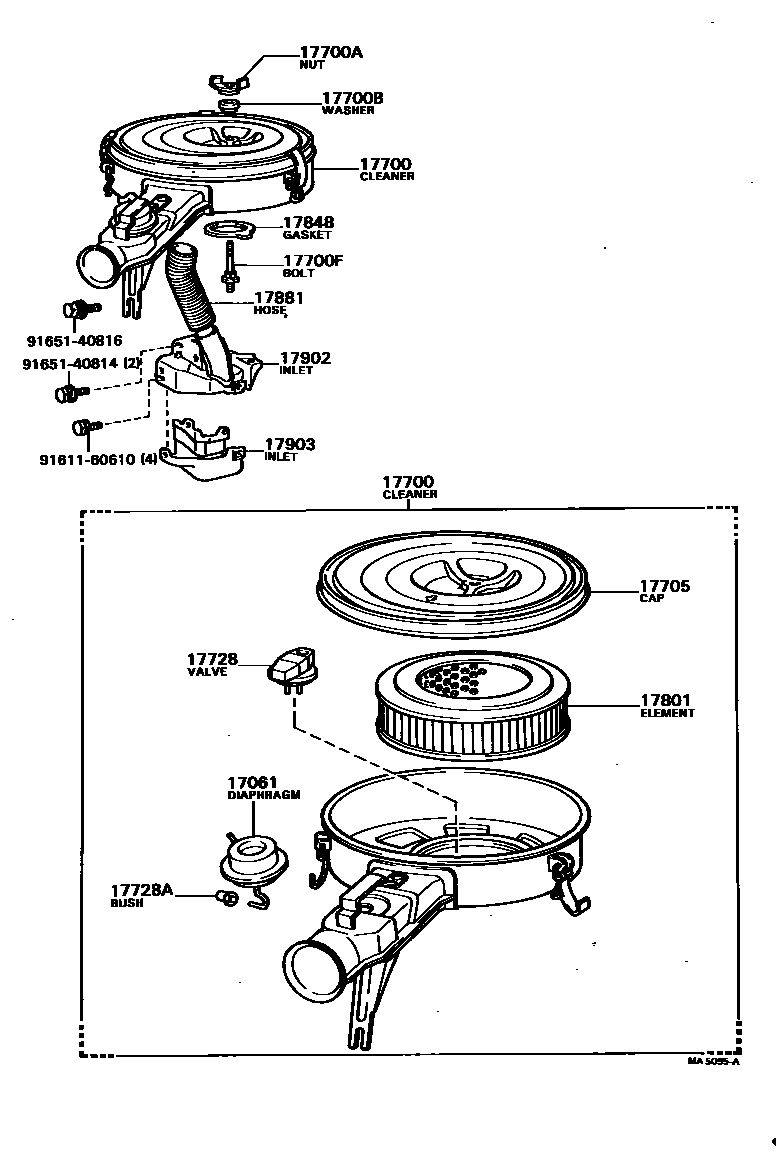

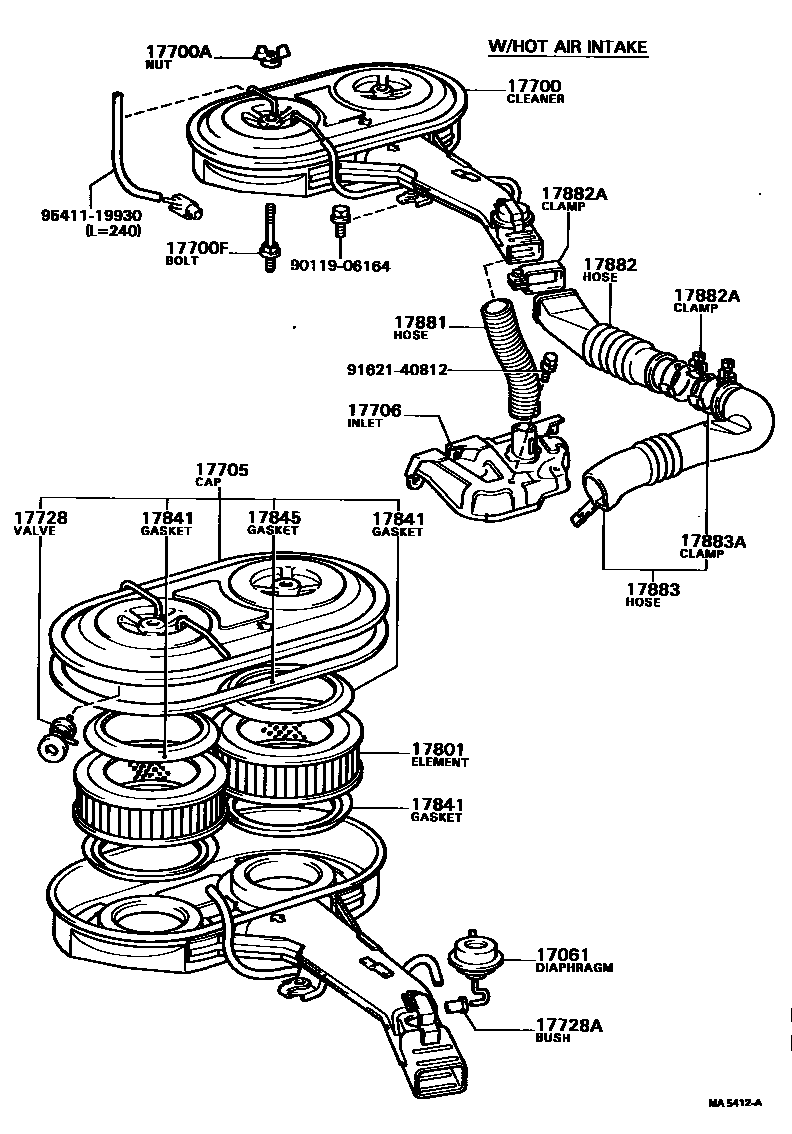

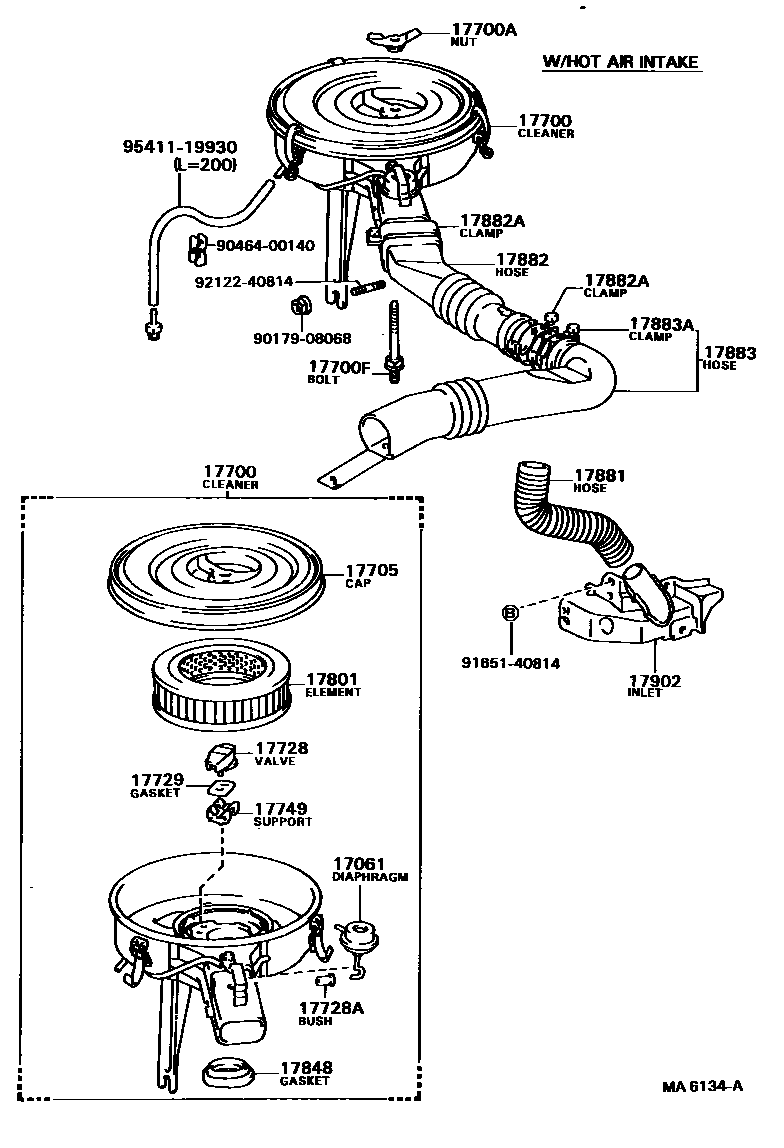

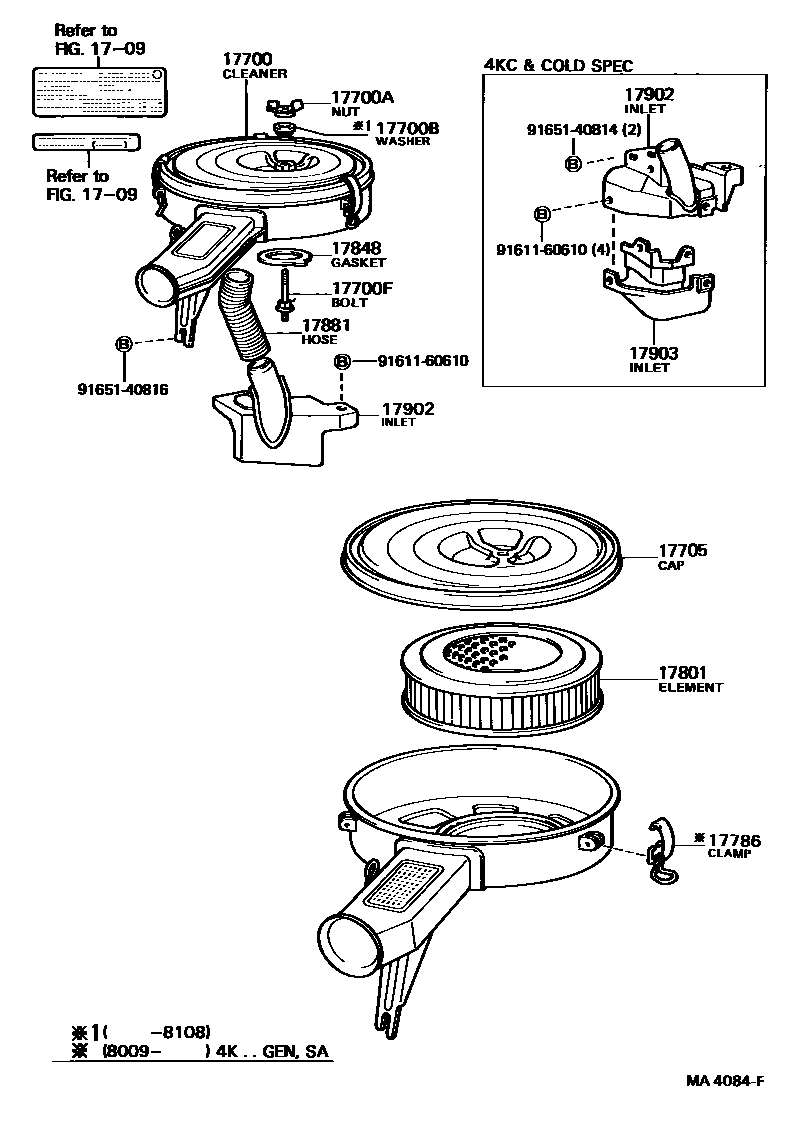

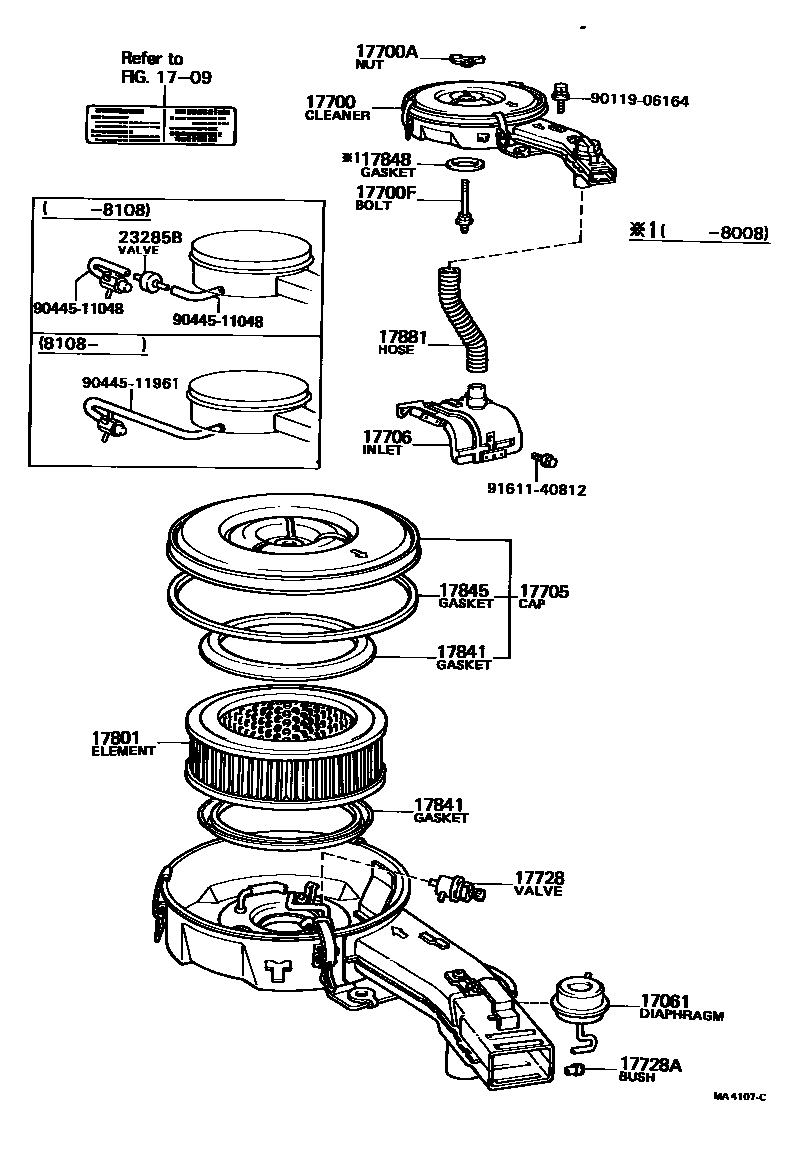

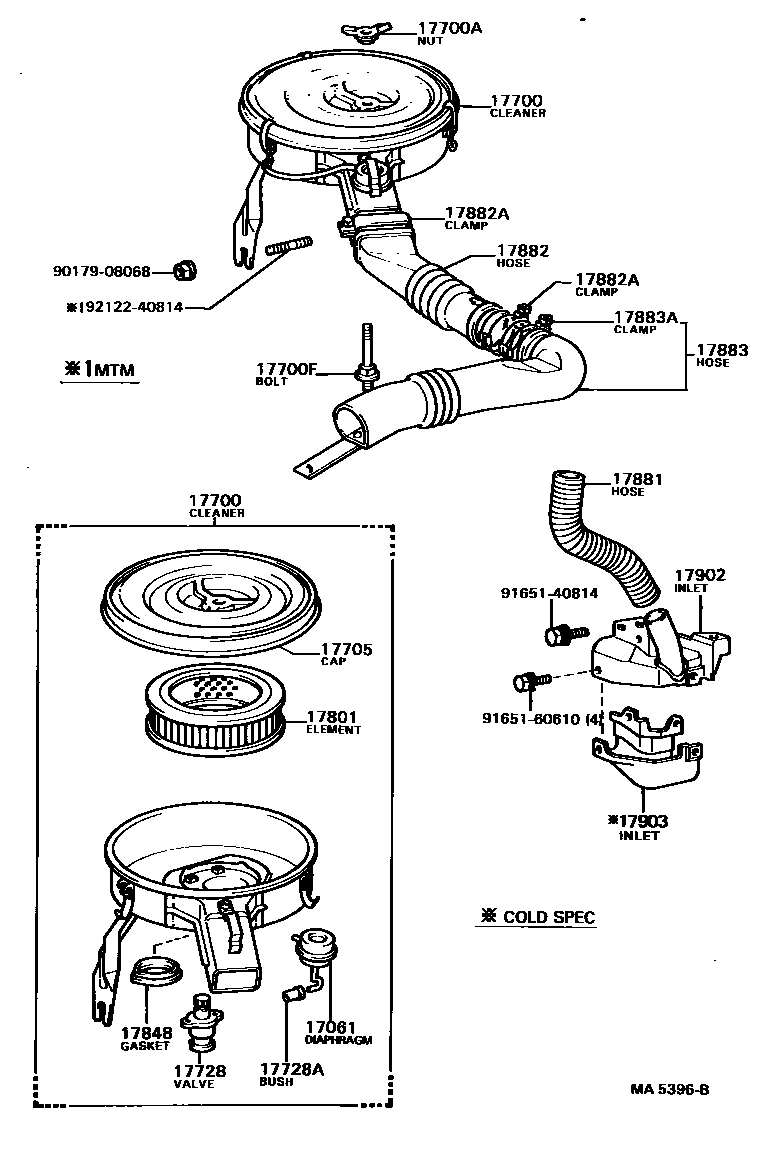

Toyota COROLLA Air Cleaner — Figure 1703
Toyota COROLLA EPC diagram 1703, Air Cleaner, with 16 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17061 | Diaphragm sub-assembly | 17061-13010 · 17061-13020 · 17061-15040 · 17061-26010 |
| 17700 | air filter assembly | 17700-13130 · 17700-13150 · 17700-13151 · 17700-13170 · 17700-13191 · 17700-13220 · 17700-13221 · 17700-13230 · 17700-13240 · 17700-13250 · 17700-13270 · 17700-13280 · 17700-13310 · 17700-13420 · 17700-13450 · 17700-13460 · 17700-16110 · 17700-16120 · 17700-26180 · 17700-26190 · 17700-26201 · 17700-26211 · 17700-26250 · 17700-26270 · 17700-26280 · 17700-26290 · 17700-26300 · 17700-26320 · 17700-28030 · 17700-28031 · 17700-64010 |
| 17700A | Wing nut (for air cleaner) | 90175-06003 · 94271-00600 |
| 17700B | Gasket (for air cleaner) | 90210-06023 |
| 17700F | Stud bolt (for securing air filter) | 90116-06024 · 90116-06106 · 90116-06142 · 90116-06222 · 90116-06230 |
| 17705 | Air filter cover sub-assembly | 17705-13011 · 17705-13031 · 17705-13050 · 17705-13060 · 17705-15060 · 17705-25012 · 17705-25013 · 17705-26011 · 17705-26080 · 17705-26090 · 17705-26100 · 17705-37010 · 17705-64010 |
| 17706 | No. 2 air filter air inlet sub-assembly | 17752-25010 · 17752-26021 · 17752-27020 · 17901-28010 · 17902-15050 · 17902-27032 |
| 17728 | thermostat valve | 17728-13030 · 17728-15020 · 17728-24011 · 17728-26030 · 17728-26040 · 17728-28010 · 17728-28030 |
| 17728A | Bushing | 90386-03001 |
| 17729 | thermostat valve gasket | 17729-34010 |
| 17730A | Coarse filter hose | 17881-13070 |
| 17730B | Hose clamp (for primary filter hose) | 90460-01029 · 96111-10600 |
| 17730C | Coarse filter housing | 17736-13010 |
| 17730E | No. 1 coarse filter holder | 17741-13010 |
| 17730F | No. 2 coarse filter bracket | 17742-13010 |
| 17744 | Coarse filter cup | 17744-13010 · 17744-16010 |
| 17749 | Thermostat valve bracket | 17749-34010 |
| 17786 | Air filter clip | 17786-26010 |
| 17801 | Air filter element sub-assembly | 17801-13010 · 17801-13020 · 17801-15010 · 17801-24010 · 17801-24020 · 17801-25010 · 17801-31080 · 17801-64010 |
| 17805 | Intake connecting pipe sub-assembly | 17860-88228 |
| 17841 | filter liner | 17841-15010 · 17841-24011 · 17841-24020 · 17841-31020 |
| 17845 | air cleaner cover gasket | 17845-25010 · 17845-26010 · 17845-37010 · 17845-42010 · 17845-61011 |
| 17848 | Gasket from air cleaner to carburetor | 17848-13010 · 17848-88250 · 90430-63001 · 90430-63187 |
| 17849 | Intake connecting pipe gasket | 17849-88221 |
| 17862 | No. 2 air intake connecting pipe | 17806-88223 |
| 17881 | No. 1 air cleaner hose | 17881-13010 · 17881-13050 · 17881-26010 · 17881-26020 · 17881-27010 · 17881-34040 · 17881-63010 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90072-46002 · 96111-10460 |
| 17882 | No. 2 air cleaner hose | 17881-12030 · 17881-12040 · 17881-28020 · 17881-64010 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90460-01003 · 90460-01005 · 90460-01022 · 90460-65001 · 96111-10560 |
| 17883 | No. 3 air cleaner hose | 17880-64020 · 17882-12010 · 17882-64010 |
| 17883A | Clamp (for No. 3 air cleaner hose) | 90460-60001 · 90460-65001 |
| 17884 | No. 4 air cleaner hose | 17883-64010 · 17883-64020 |
| 17884A | Clamp (for No. 4 air cleaner hose) | 17781-64010 |
| 17884B | No. 1 air filter housing | 17884-64010 |
| 17887 | air cleaner hose cover | 17887-15010 · 17887-64010 |
| 17902 | No. 1 hot air intake sub-assembly | 17167-13030 · 17167-13040 · 17167-24020 · 17895-24010 |
| 17903 | No. 2 hot air intake sub-assembly | 17168-13020 · 17168-24010 |
| 23285B | No. 1 one-way valve | 90917-10053 |
