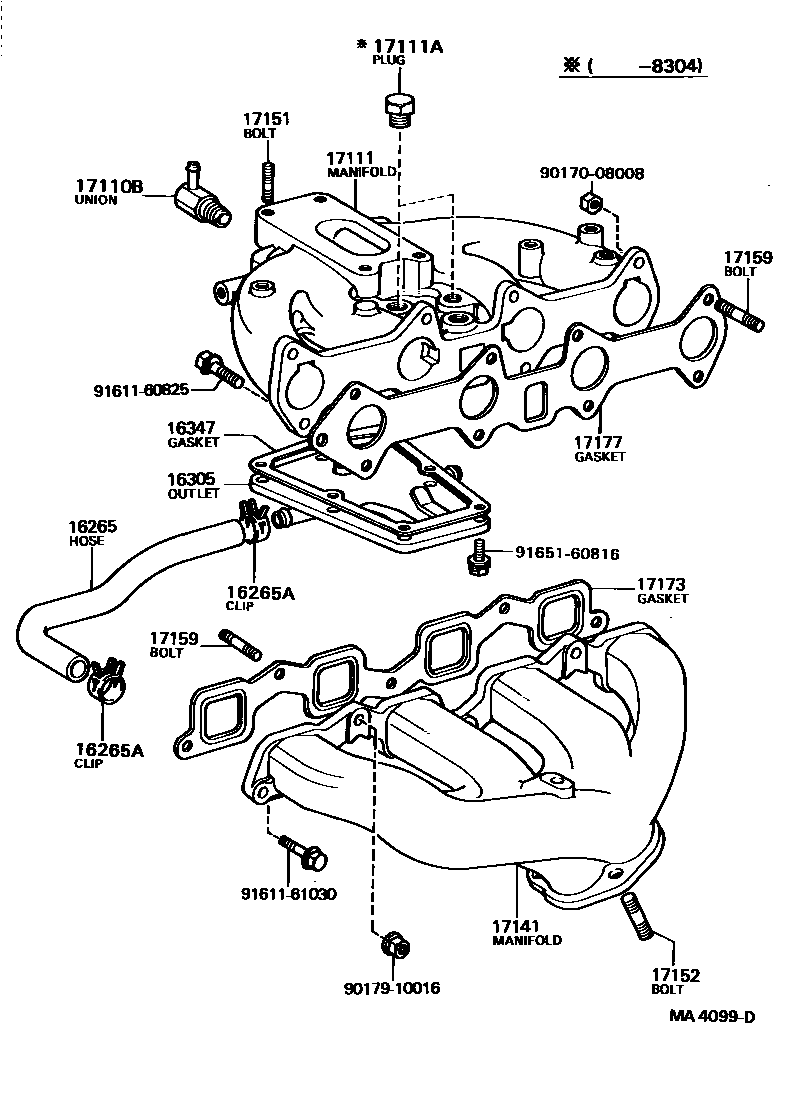

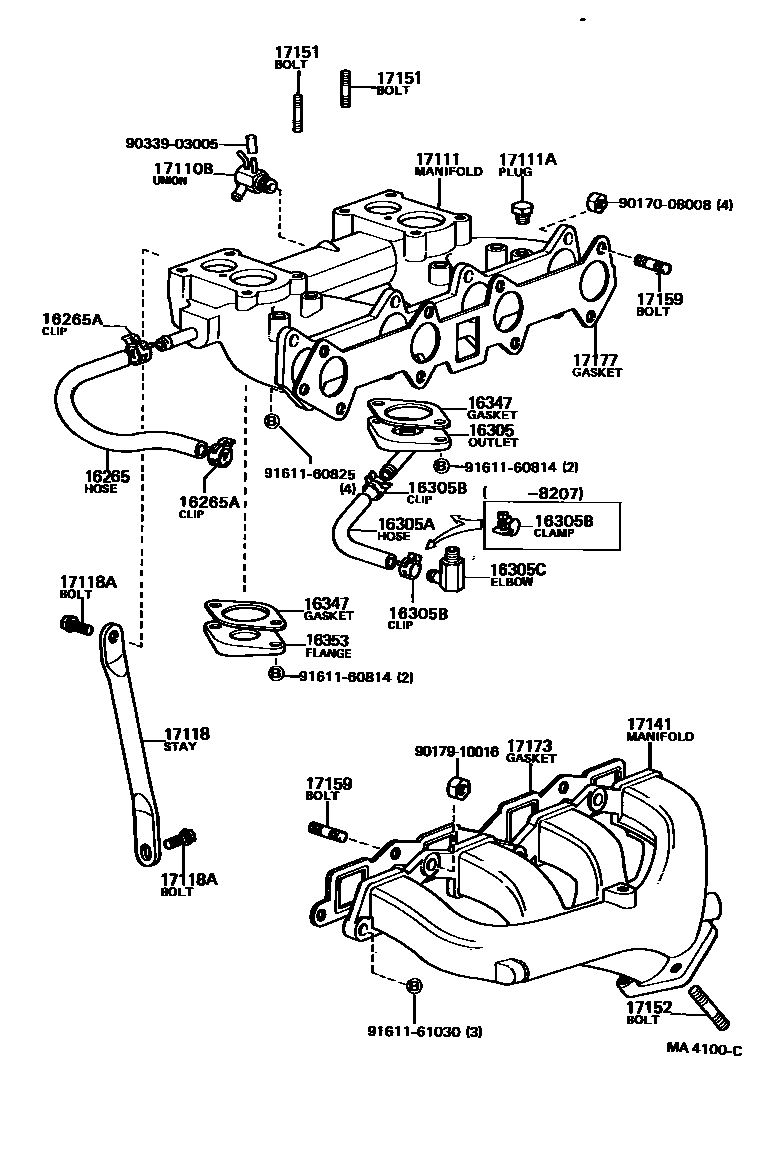

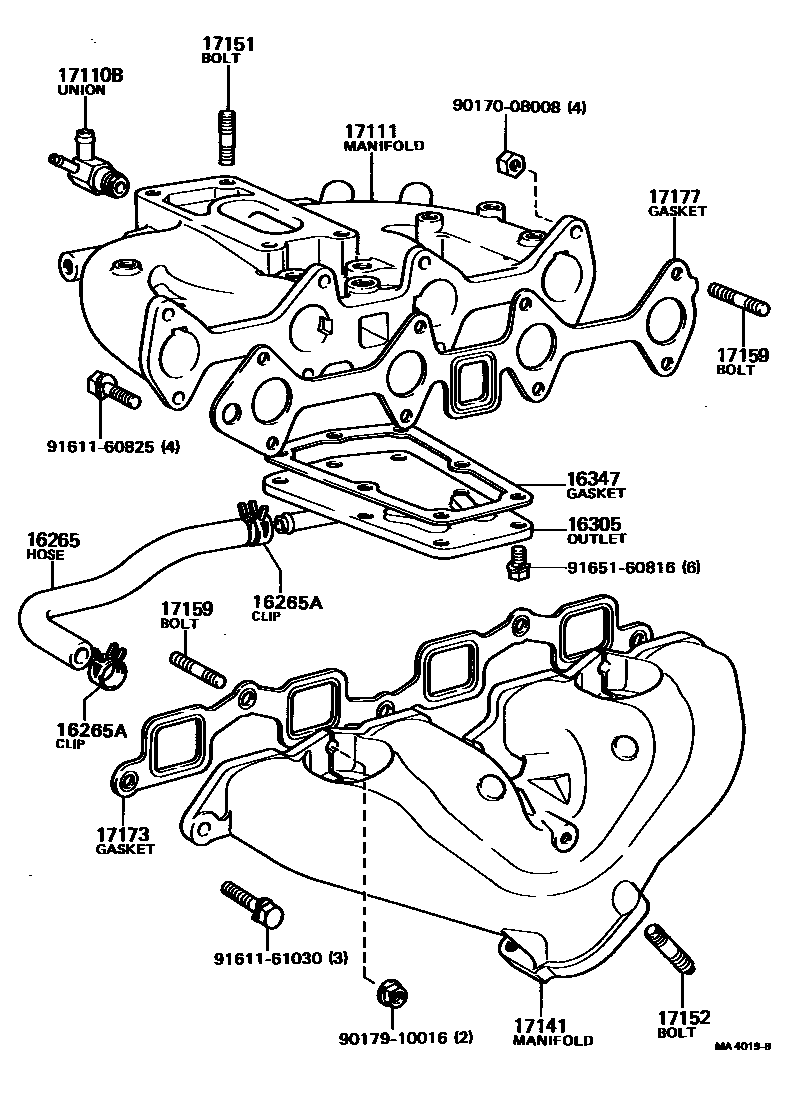

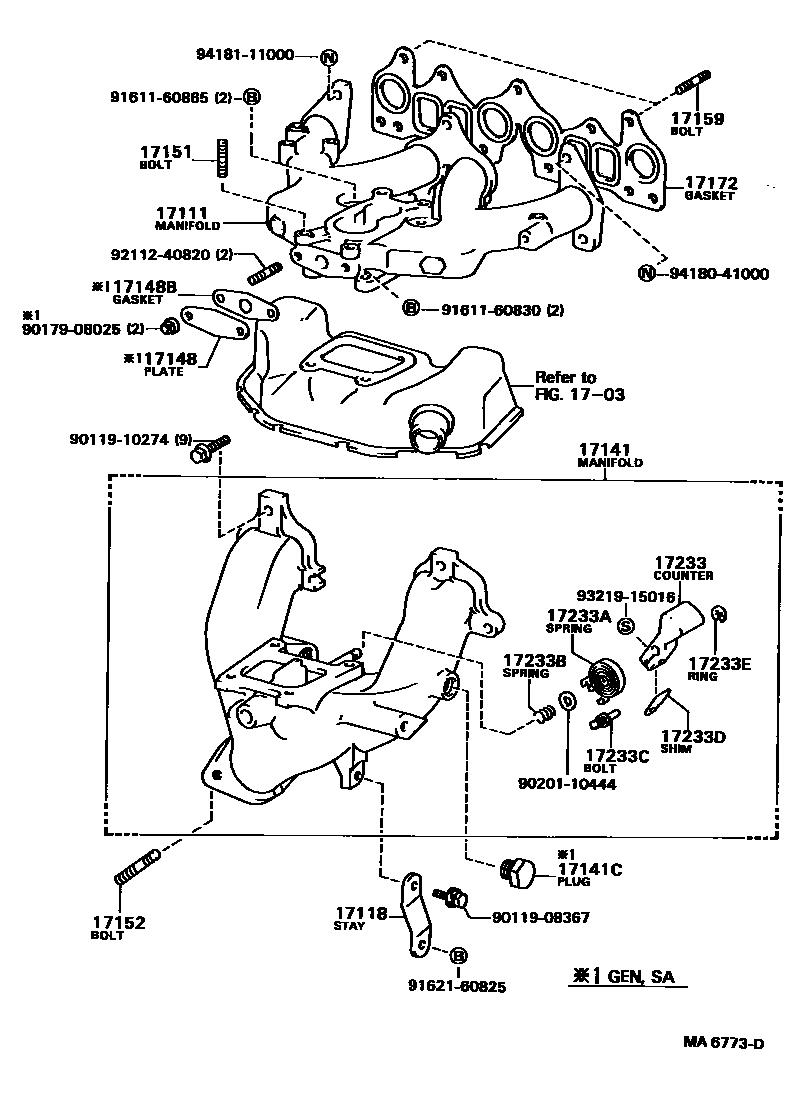

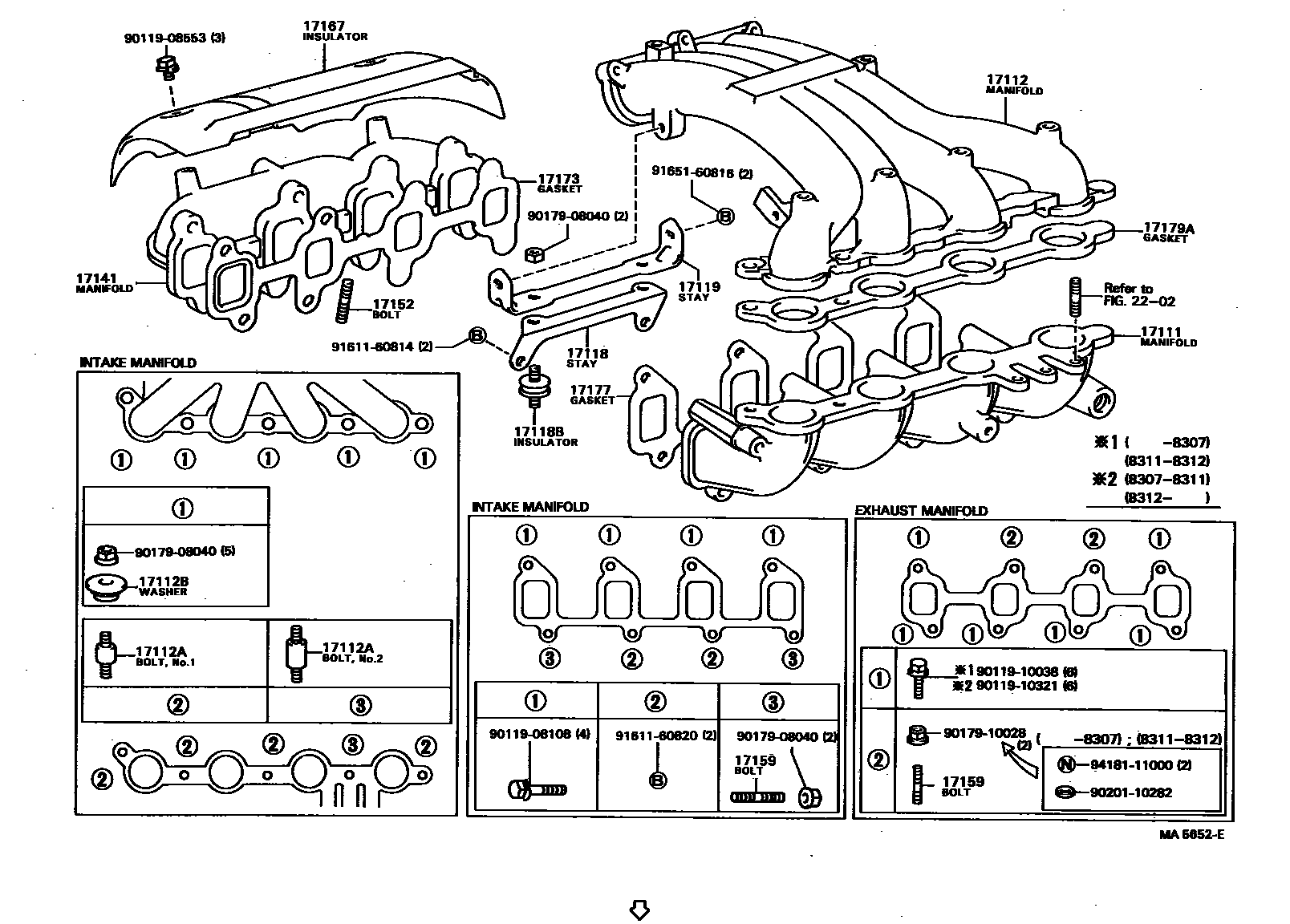

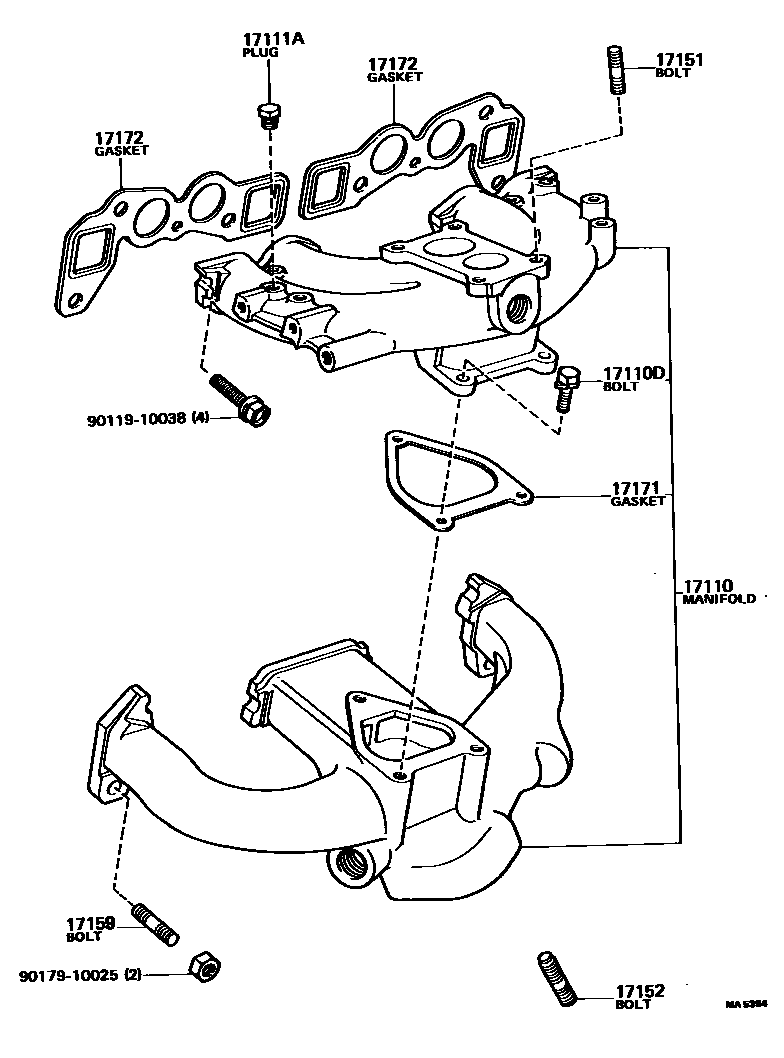

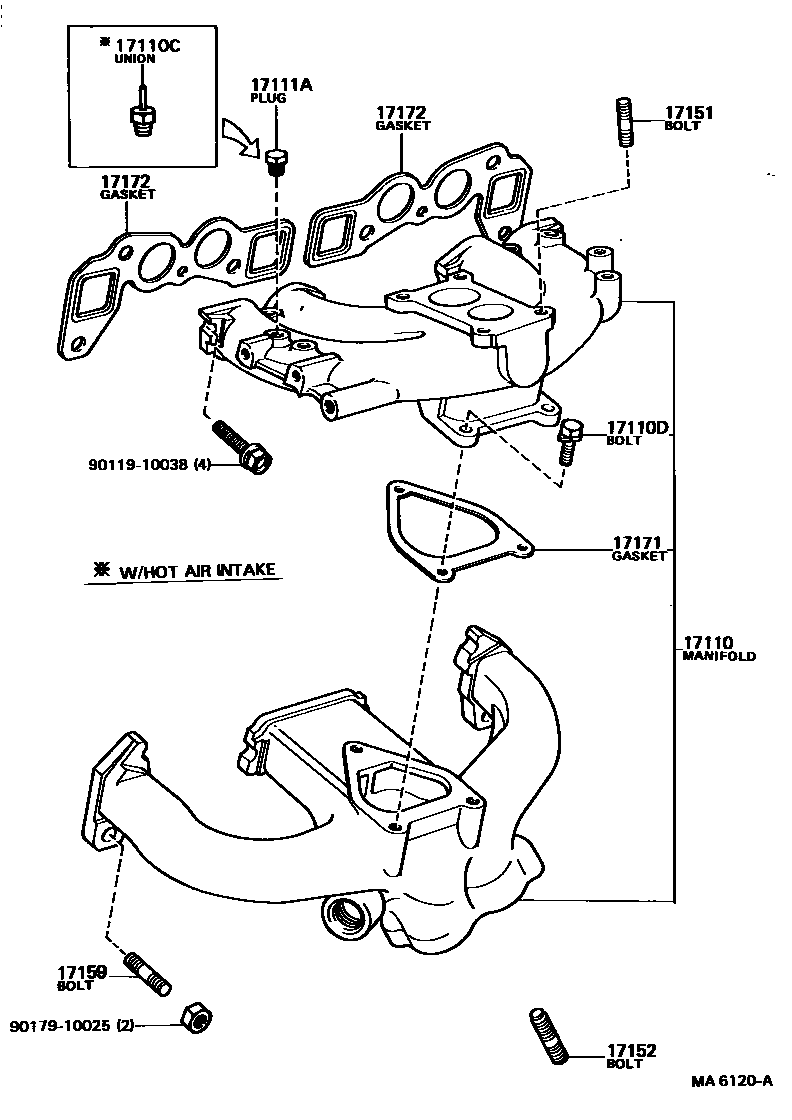

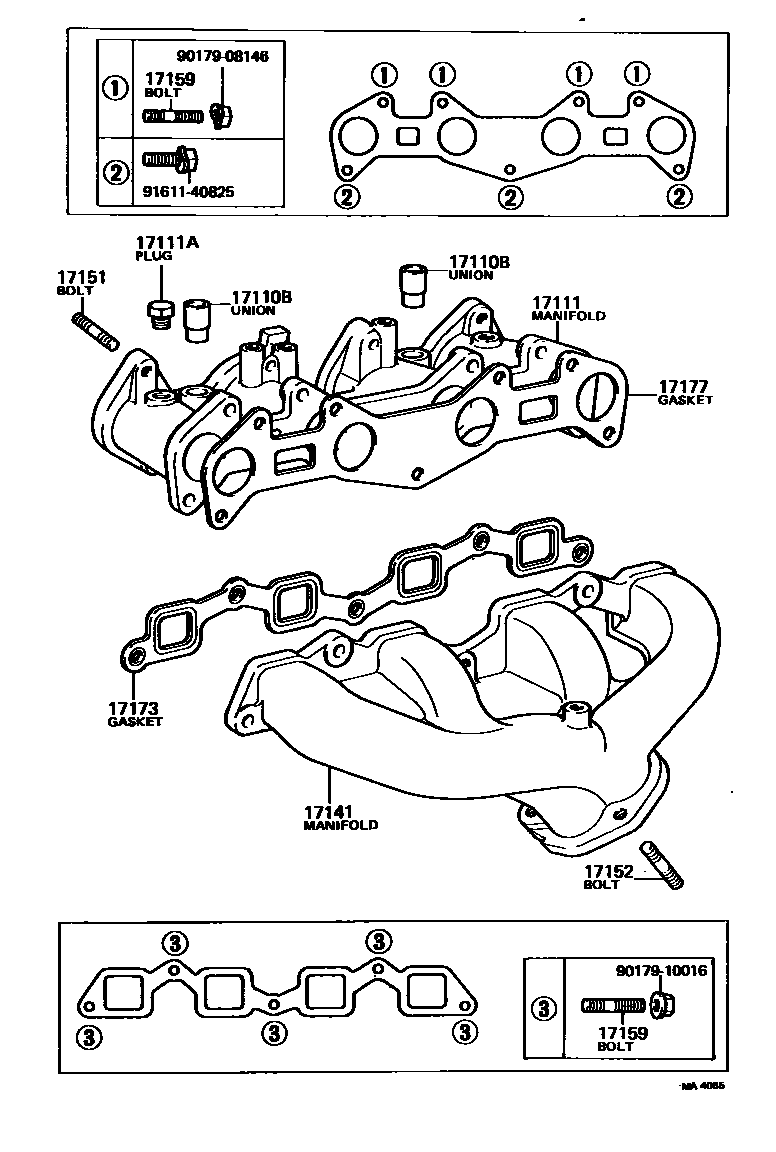

Toyota COROLLA Manifold — Figure 1701
Toyota COROLLA EPC diagram 1701, Manifold, with 8 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16265 | Intake manifold water hose | 16261-26011 · 90445-21611 · 90445-21748 |
| 16265A | Hose clamp or clip (for intake manifold water hose) | 90467-20004 · 90467-20005 |
| 16305 | Water bypass outlet sub-assembly | 16305-25011 · 16305-25020 |
| 16305A | Water bypass outlet hose | 16261-25010 |
| 16305B | Water bypass outlet hose clamp | 90467-20005 · 96111-10220 |
| 16305C | Water bypass outlet hose elbow | 90407-14051 |
| 16347 | water bypass liner | 16347-25011 · 16347-25012 · 16347-41010 · 16347-41011 |
| 16353 | water bypass flange | 16353-25020 |
| 17110 | Manifold assembly | 17110-13030 · 17110-13071 · 17110-13072 · 17110-13100 · 17110-13110 |
| 17110B | Fitting (for vent hose to manifold) | 90072-40606 · 90404-53018 · 90404-53033 · 90404-53043 · 90407-09001 |
| 17110C | Fitting (for air cleaner to manifold) | 90404-51010 · 90917-11023 |
| 17110D | Bolts (for intake manifold to exhaust manifold) | 91611-60822 |
| 17111 | Intake Manifold | 17111-16010 · 17111-25901 · 17111-26051 · 17111-64010 · 17111-88222 |
| 17111A | No. 1 screw plug | 90072-34107 · 90345-51025 · 90345-53002 · 90345-53007 |
| 17112 | No. 2 intake manifold | 17112-64010 |
| 17112A | Stud bolts (used to secure the No. 2 intake manifold) | 90116-08148 · 90116-08149 |
| 17112B | Sealing gasket (used to secure the No. 2 intake manifold) | 90210-08021 |
| 17118 | Manifold stays | 17118-15030 · 17118-26010 · 17118-64010 |
| 17118A | Studs (for manifold stays) | 91619-61220 · 91659-61228 |
| 17118B | Intake manifold heat shield | 17853-64010 |
| 17119 | No. 2 manifold stay | 17139-64010 |
| 17141 | exhaust manifold | 17140-16070 · 17141-26012 · 17141-26061 · 17141-27011 · 17141-64010 · 17141-64011 |
| 17141C | Headed straight thread plug | 90341-20086 |
| 17148 | Exhaust manifold plate (for EGR intake) | 25617-14010 |
| 17148B | EGR air intake gasket | 25629-15011 |
| 17151 | Studs (for manifold to carburetor) | 90116-08008 · 90116-08009 · 90116-08010 · 90116-08023 · 90116-08110 · 92112-40832 · 92122-40832 |
| 17152 | Studs (for manifold to exhaust) | 90116-10017 · 90116-10056 · 90116-10058 · 92122-41022 |
| 17159 | Studs (for manifold to cylinder head) | 90116-08015 · 90116-08035 · 90116-10095 · 92112-61032 · 92122-41028 · 92122-60820 · 92122-61025 · 92122-61032 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-64020 |
| 17171 | Gasket (intake manifold to exhaust manifold) | 17171-13040 · 17171-24010 |
| 17172 | Gasket (manifold to cylinder head) | 17172-13020 · 17172-13021 · 17172-14010 · 17172-24011 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-25012 · 17173-64020 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17177-25030 · 17177-64010 · 17177-88220 |
| 17179A | No. 2 intake manifold gasket | 17179-64020 |
| 17233 | Counterweight | 17233-15010 |
| 17233A | No. 1 coil spring (for counterweight) | 90510-06001 |
| 17233B | No. 2 coil spring (for counterweight) | 90501-08022 |
| 17233C | Bolt (for counterweight) | 90109-10045 |
| 17233D | Spacers (for counterweight) | 90910-10005 |
| 17233E | E-ring (for counterweight) | 96160-00800 |
