Toyota COROLLA Ventilation Hose — Figure 1201
Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 5 images and 23 PNC and OE references.

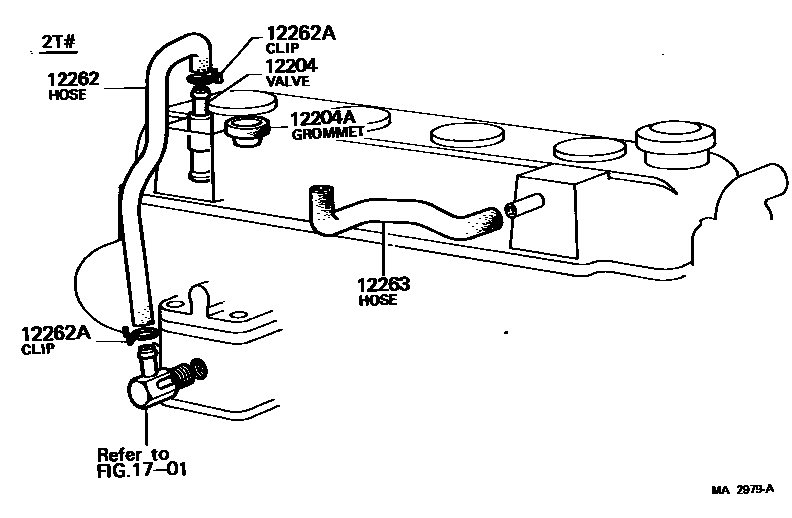

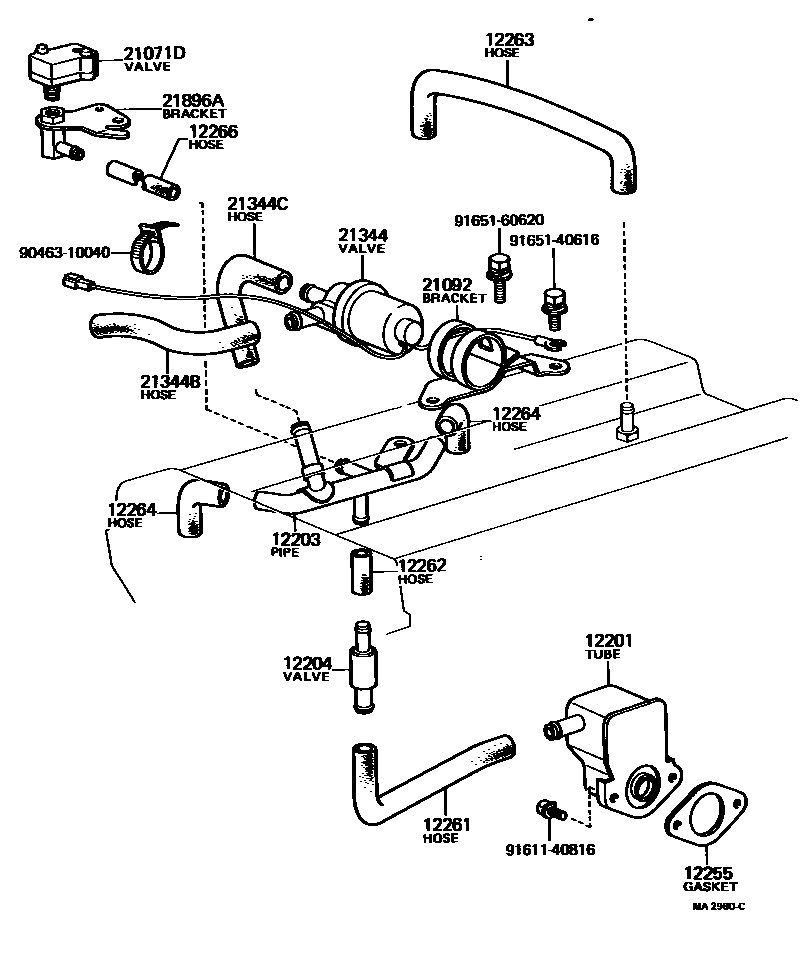

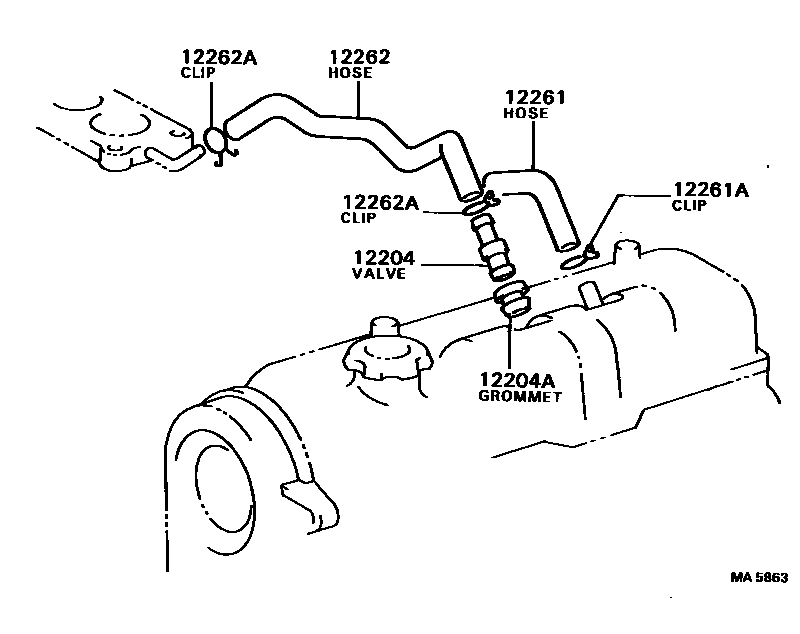

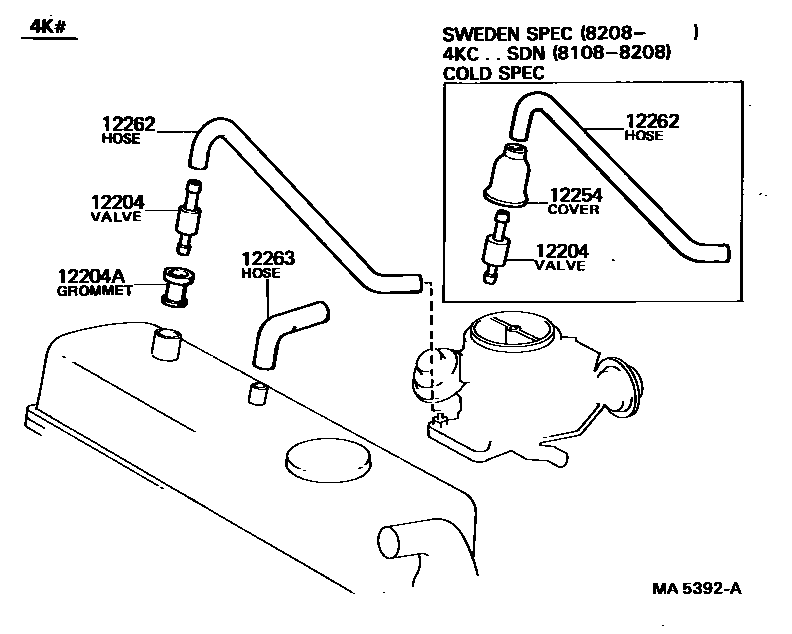

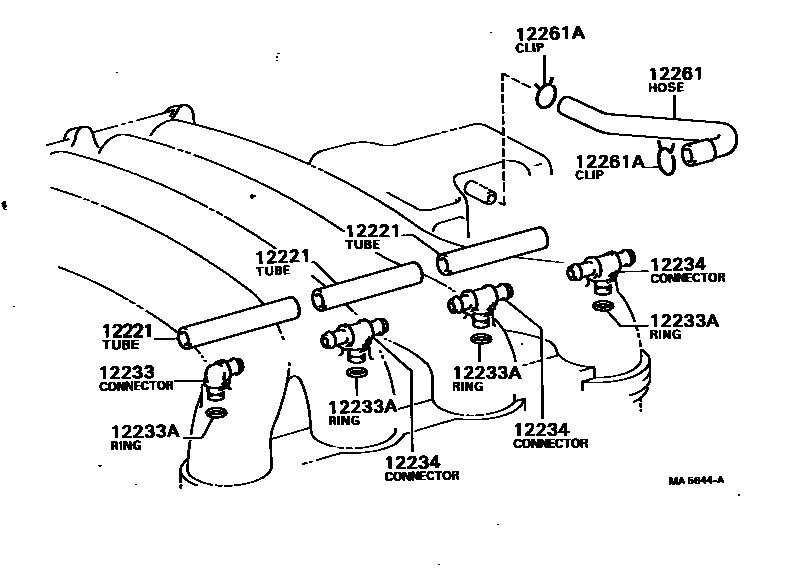

PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12201 | Ventilation pipe sub-assembly | 12201-25010 |
| 12203 | Ventilation pipe sub-assembly | 12203-88225 · 12203-88226 |
| 12204 | Ventilation valve sub-assembly | 12204-13021 · 12204-13030 · 12204-13060 · 12204-15020 · 12204-15022 · 12204-15030 · 12204-24011 · 12204-28010 · 12204-71010 · 12204-88251 |
| 12204A | Gasket (for ventilation system) | 90480-16003 · 90480-18001 · 90480-18180 |
| 12221 | Ventilation duct No. 1 | 12221-64010 |
| 12233 | Ventilation Connector No. 1 | 12233-64010 |
| 12233A | O-ring (for vent connector) | 96711-19008 |
| 12234 | Ventilation Connector No. 2 | 12234-64010 |
| 12254 | Ventilation valve cover | 12236-24010 |
| 12255 | Ventilation padding | 12255-25010 |
| 12261 | Ventilation Hose | 12261-15030 · 12261-64010 · 12262-88220 |
| 12261A | Clip or clip (for vent hose) | 90467-15120 · 90467-16010 |
| 12262 | Ventilation hose No. 2 | 12261-13030 · 12261-24021 · 12261-25012 · 12261-25021 · 12262-15050 · 12262-15060 · 90445-15004 |
| 12262A | Clamp (for vent hose No. 2) | 90467-13103 · 90467-16010 |
| 12263 | No. 3 ventilation hose | 12261-88220 · 12262-25010 · 12262-25020 · 90910-05130 |
| 12264 | No. 4 ventilation hose | 12264-88220 |
| 12266 | Hoses (vent pipe to thermostat valve) | 90072-44554 |
| 21071D | Thermostat valve sub-assembly (for ventilation hose) | 21071-41010 |
| 21092 | Throttle solenoid valve bracket sub-assembly | 21092-88232 |
| 21344 | Throttle solenoid valve | 21344-88250 |
| 21344B | No. 1 hose (solenoid valve to tee) | 17921-88220 |
| 21344C | No. 2 hose (solenoid valve to ventilation pipe) | 17922-88220 |
| 21896A | Thermostat valve bracket (for vent hose) | 21896-88250 |
