Toyota COROLLA Engine Mounting — Figure 1107

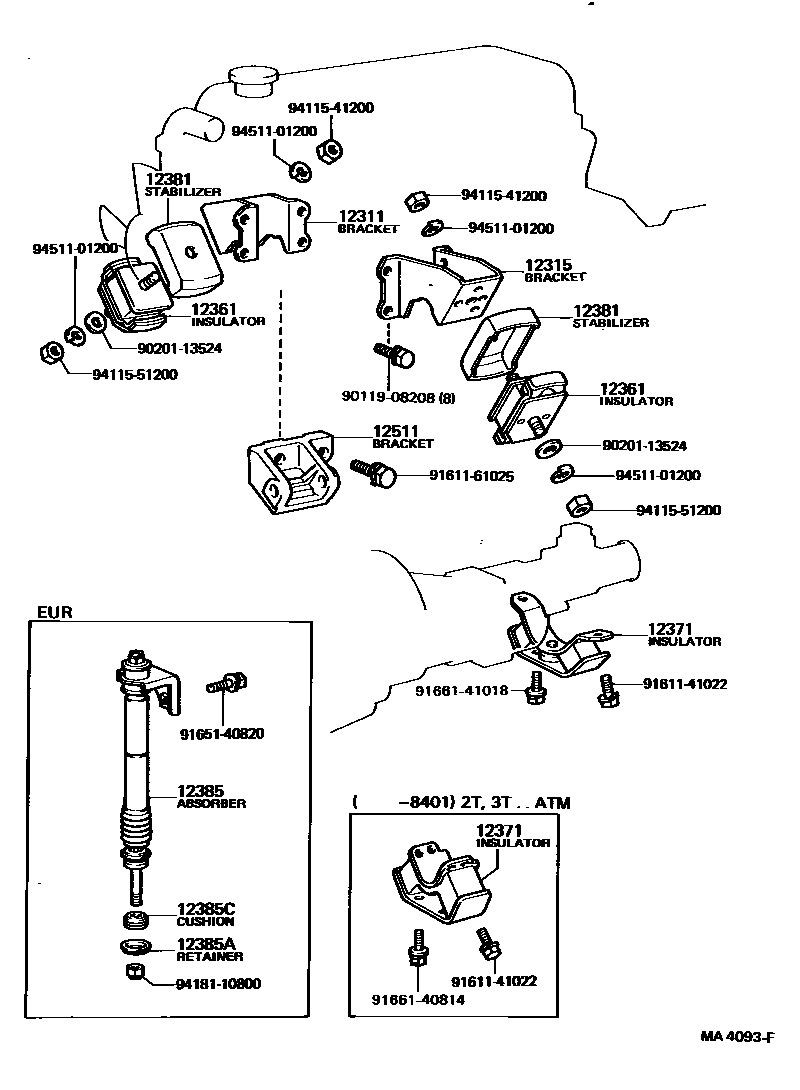

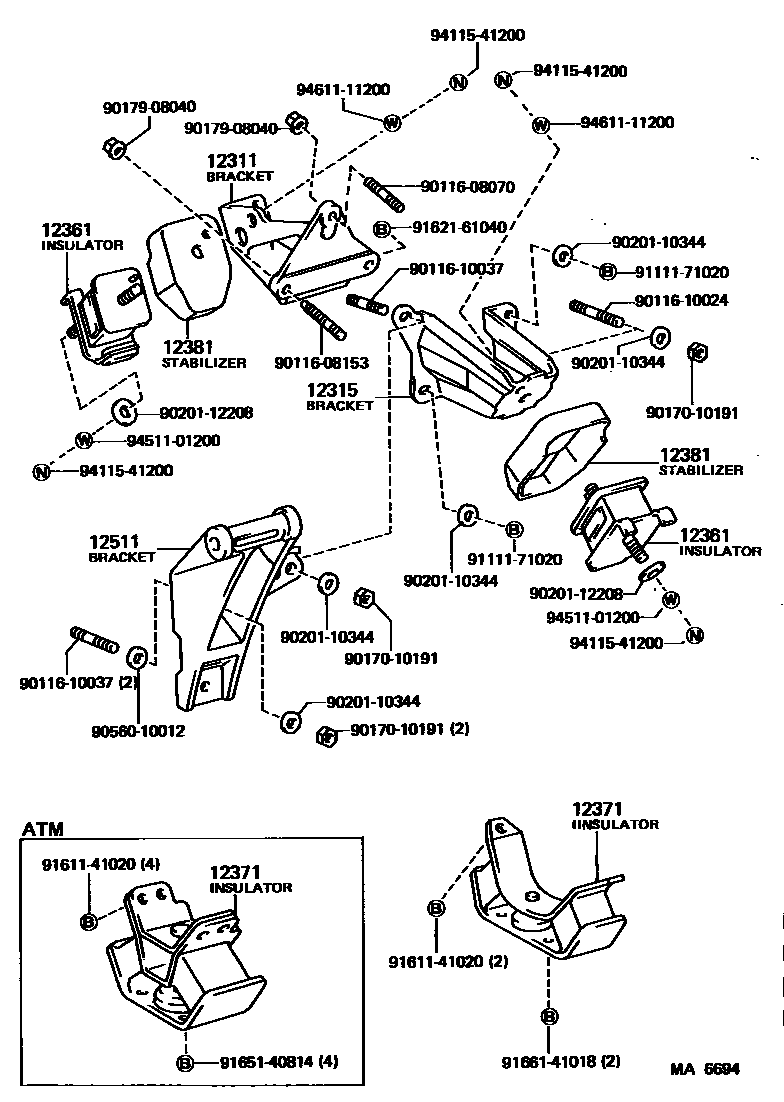

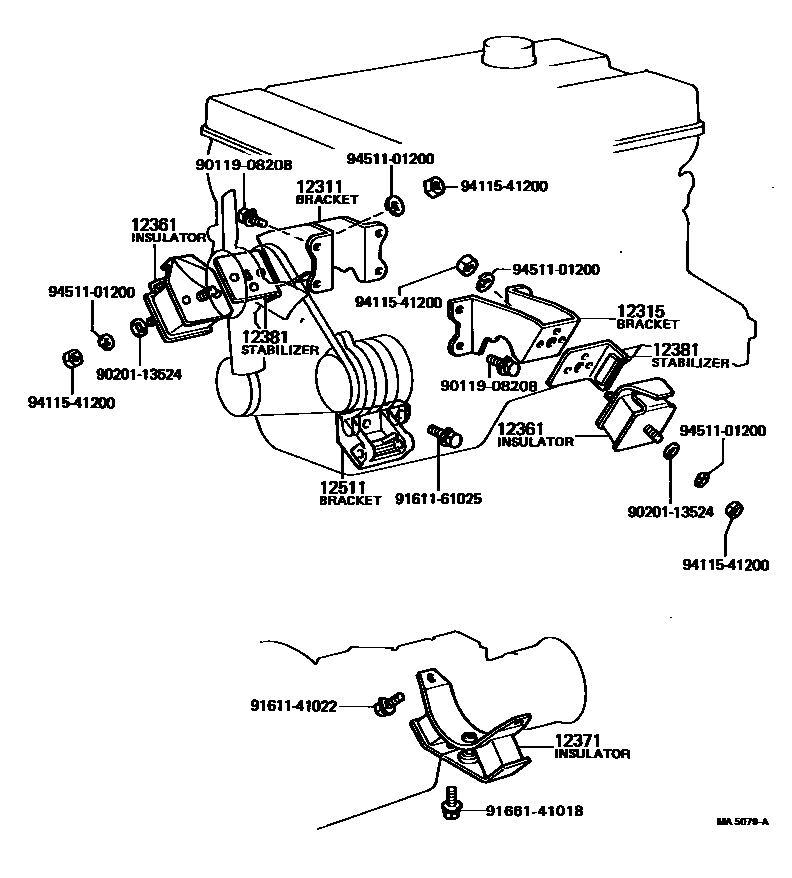

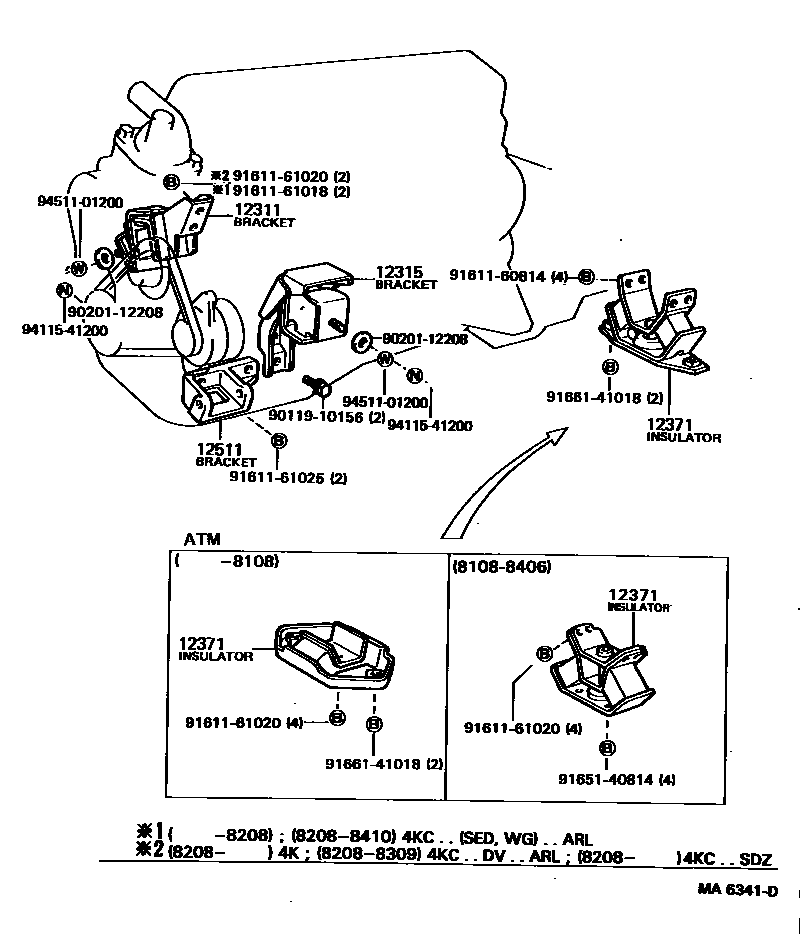

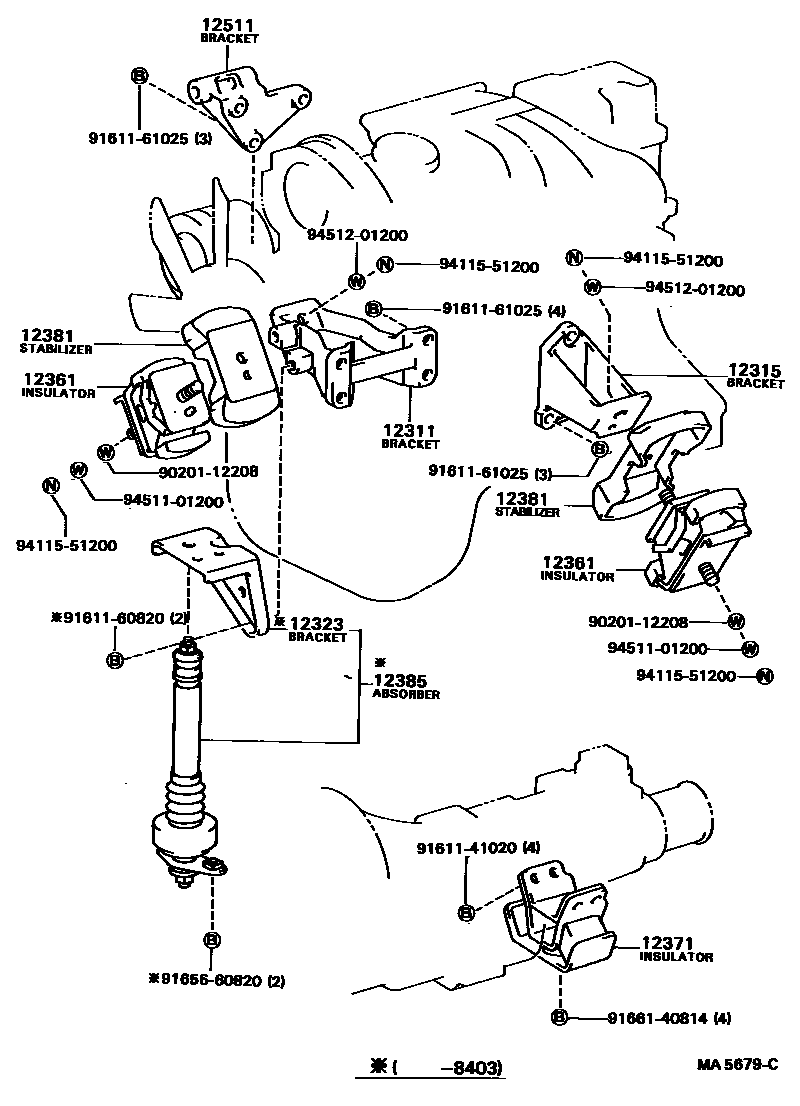

Toyota COROLLA EPC diagram 1107, Engine Mounting, with 5 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12311 | Engine Mounting Bracket No. 1, Front RH | 12301-13020 · 12311-15090 · 12311-25050 · 12311-25051 · 12311-25060 · 12311-26051 · 12311-26060 · 12311-64010 |
| 12315 | Engine No. 1 left front suspension bracket | 12302-12013 · 12302-13042 · 12302-13043 · 12312-25040 · 12312-25041 · 12312-25050 · 12312-25060 · 12315-15060 · 12315-64010 |
| 12323 | Engine mount shock absorber bracket | 12323-64020 |
| 12361 | Engine front mounting vibration isolation pad | 12361-15040 · 12361-18010 · 12361-18020 · 12361-25014 · 12361-64022 |
| 12371 | Engine No. 1 rear mount vibration isolation pad | 12371-13010 · 12371-13030 · 12371-16010 · 12371-16020 · 12371-33010 · 12371-34020 · 12371-34030 |
| 12381 | engine mount stabilizer bar | 12381-15040 · 12381-18010 · 12381-18020 · 12381-18030 · 12381-18040 · 12381-25010 · 12381-64010 |
| 12385 | Engine No. 1 mount shock absorber | 12307-64010 · 12308-28020 · 12308-28021 |
| 12385A | Shock absorber buffer pad | 90948-02003 |
| 12385C | shock absorber cushion | 90948-01014 |
| 12511 | No. 1 generator bracket | 12511-15011 · 12511-24011 · 12511-25010 · 12511-64011 |
