Toyota COROLLA Timing Gear Cover & Rear End Plate — Figure 1106

Toyota COROLLA EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 5 images and 26 PNC and OE references.

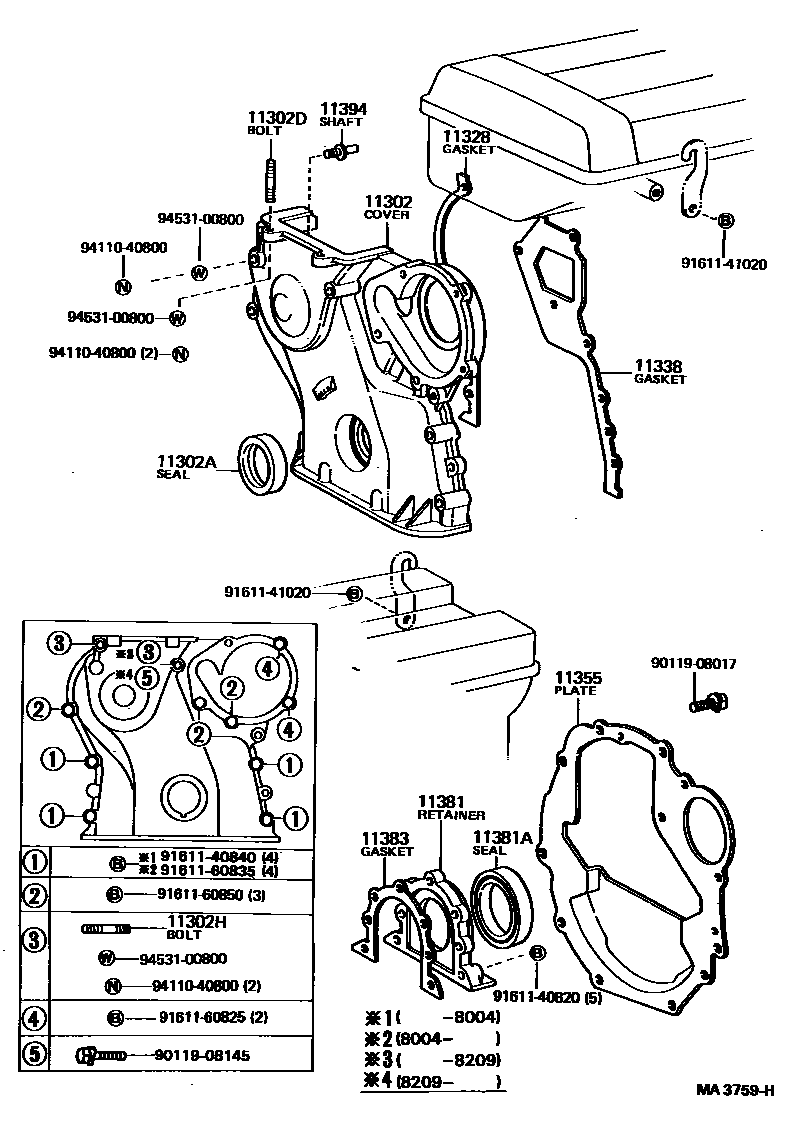

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — MA3759H
Timing Gear Cover & Rear End Plate — MA3759H (197908 – 198305)

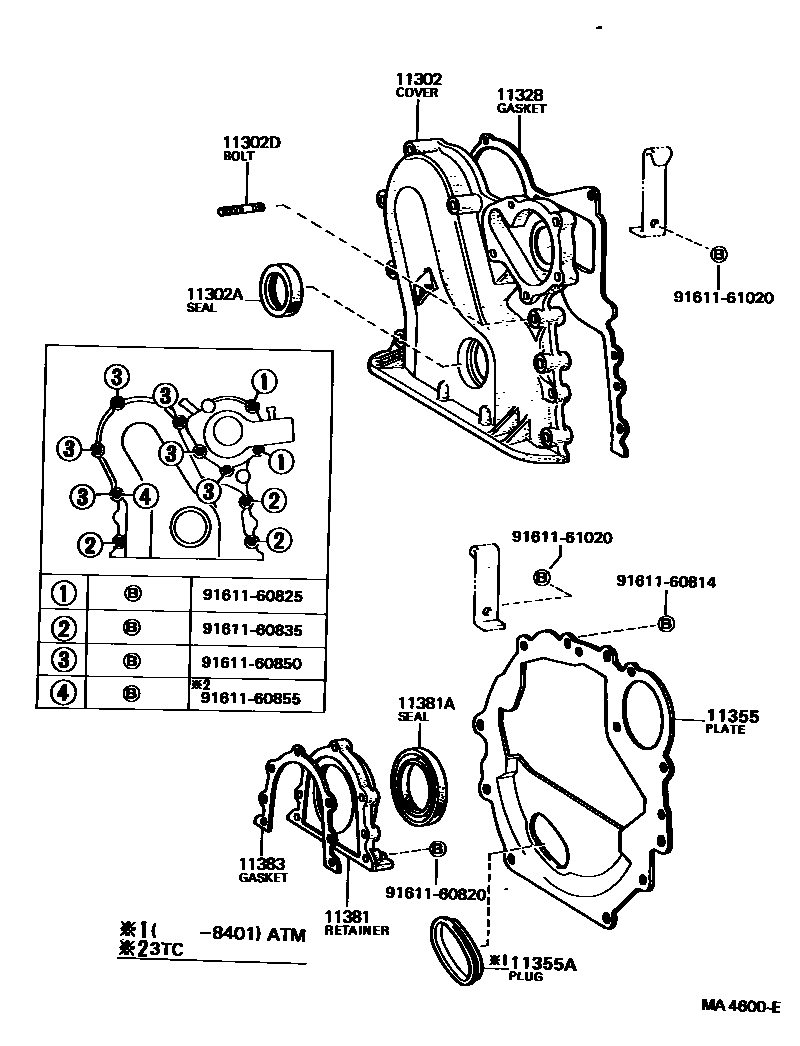

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — MA4600E
Timing Gear Cover & Rear End Plate — MA4600E (197908 – 198502)

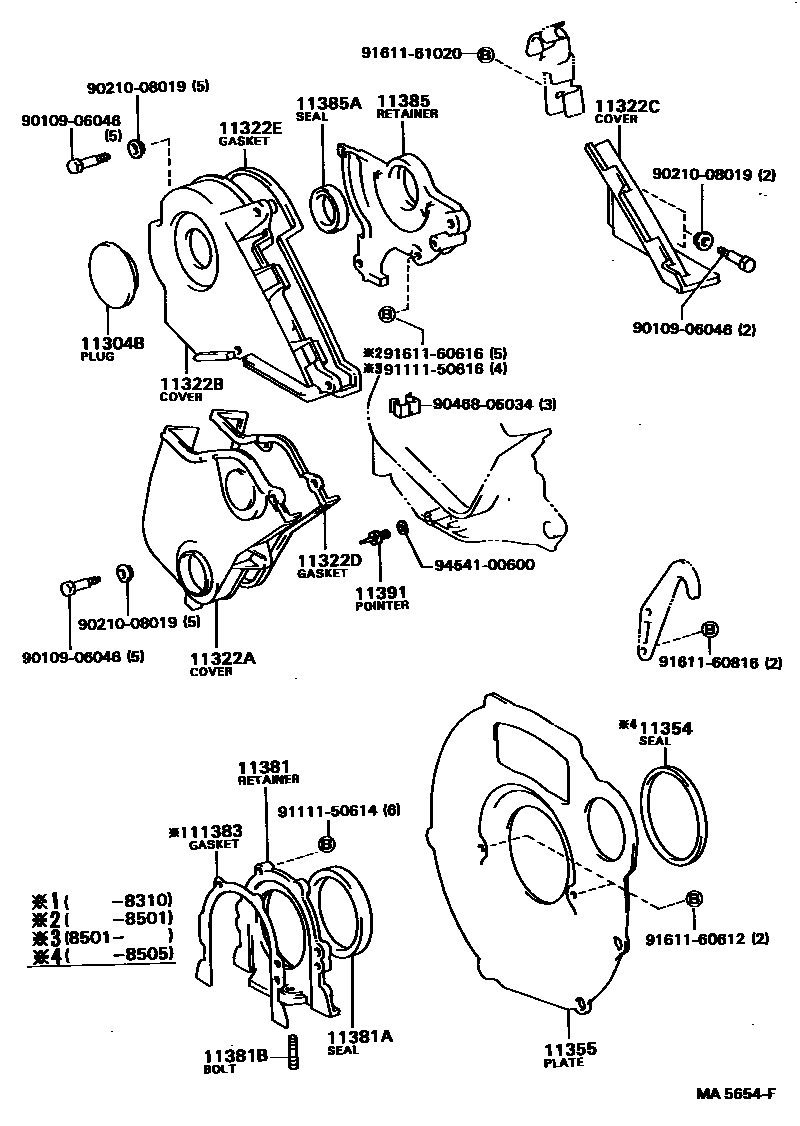

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — MA5654F
Timing Gear Cover & Rear End Plate — MA5654F (198210 – 999999)

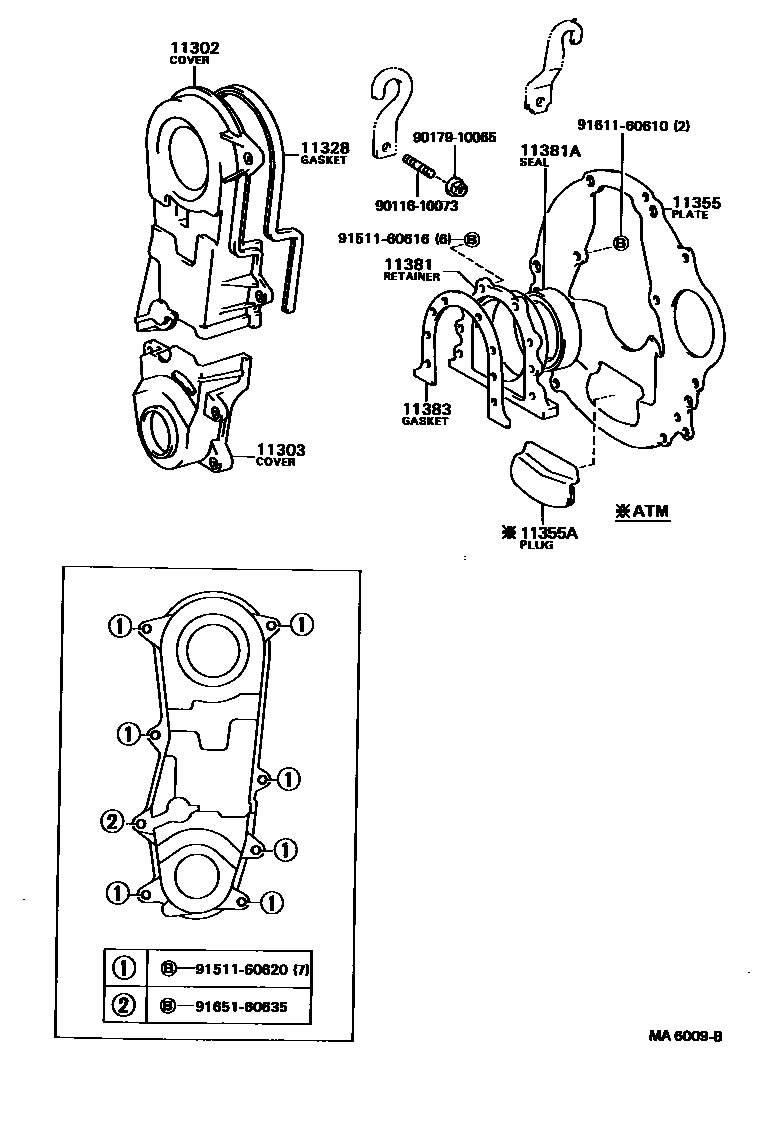

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — MA6009B
Timing Gear Cover & Rear End Plate — MA6009B (198305 – 999999)

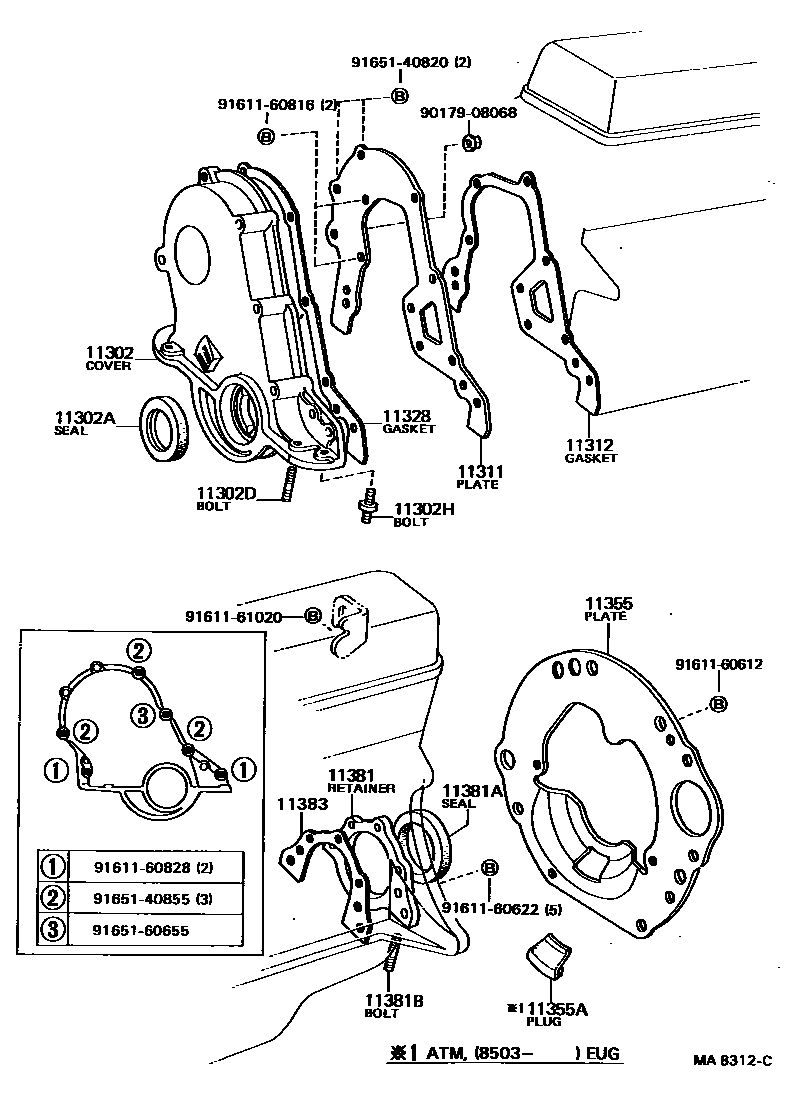

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — MA8312C
Timing Gear Cover & Rear End Plate — MA8312C (197908 – 999999)

PNC and OE references

PNCPart nameOE numbers
11302TIMING CHAIN OR BELT COVER SUB-ASSY11302-15020 · 11321-13030 · 11321-13040 · 11321-13041 · 11321-13042 · 11321-25010 · 11321-28010 · 11321-88220 · 11321-88221
11302AOil seal (for timing chain or timing belt cover)90311-38013 · 90311-38022
11302DStuds (for timing gear cover)90116-06012 · 90116-08015 · 90116-08057
11302HStuds (for timing gear cover)90072-11618 · 90116-06006
11303Crankshaft gear or crankshaft pulley cover sub-assembly11303-15020
11304BHalf-round plug (for No. 2 timing chain cover)90950-01357
11311front board11311-13010
11312front panel gasket11312-13010 · 11312-13011 · 11312-13040
11322ANo. 1 timing belt cover11321-64010
11322BNo. 2 timing belt cover11322-64010
11322CNo. 3 timing belt cover11323-64010 · 11323-64011
11322DNo. 1 timing belt cover gasket11328-64020
11322ENo. 2 timing belt cover gasket11329-64020
11328GASKET, TIMING GEAR OR CHAIN COVER11328-13010 · 11328-13011 · 11328-15020 · 11328-25011 · 11328-25012 · 11328-88220
11338No. 2 timing chain cover gasket11338-88220
11354Flywheel housing dust seal11354-64010
11355rear end plate11305-13010 · 11355-13010 · 11355-13011 · 11355-13012 · 11355-15021 · 11355-15031 · 11355-24041 · 11355-24042 · 11355-24043 · 11355-25011 · 11355-25012 · 11355-25022 · 11355-25023 · 11355-26020 · 11355-64010 · 11355-64011
11355AHole plug (for rear end plate)90950-01160 · 90950-01215 · 90950-01264 · 90950-01343
11381RETAINER, ENGINE REAR OIL SEAL11381-13010 · 11381-13011 · 11381-15010 · 11381-25010 · 11381-64010 · 11381-64011 · 11381-64012
11381ASEAL, ENGINE REAR OIL90311-70001 · 90311-70004 · 90311-75113 · 90311-90002 · 90311-90003
11381BStud bolts (for engine rear oil seal race)90116-06033 · 90116-06035
11383Engine rear oil seal seat gasket11383-13010 · 11383-15010 · 11383-25010 · 11383-64010
11385Camshaft oil seal race11382-64010 · 11382-64011
11385AOil seal (for camshaft)90311-38017 · 90311-38025
11391Timing pointer11391-64010
11394timing chain tensioner shaft11394-34010
