Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 5 images and 2 PNC and OE references.

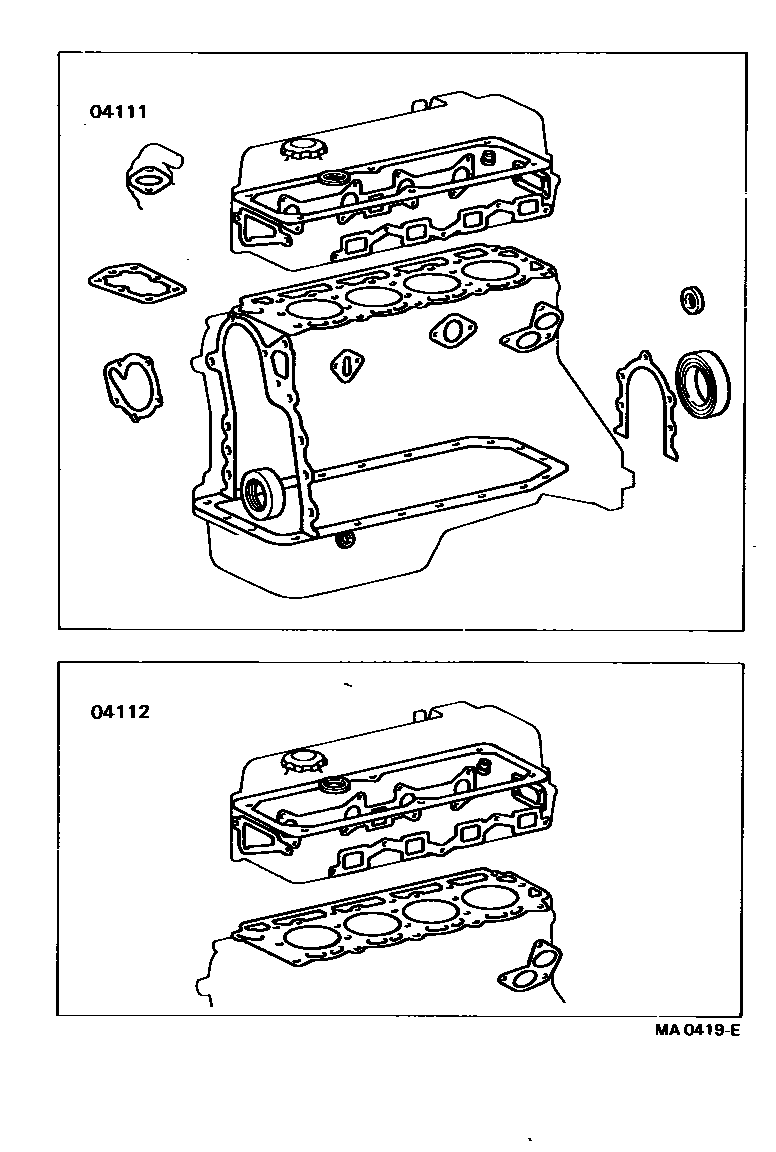

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — MA0419E
Engine Overhaul Gasket Kit — MA0419E (197908 – 198502)

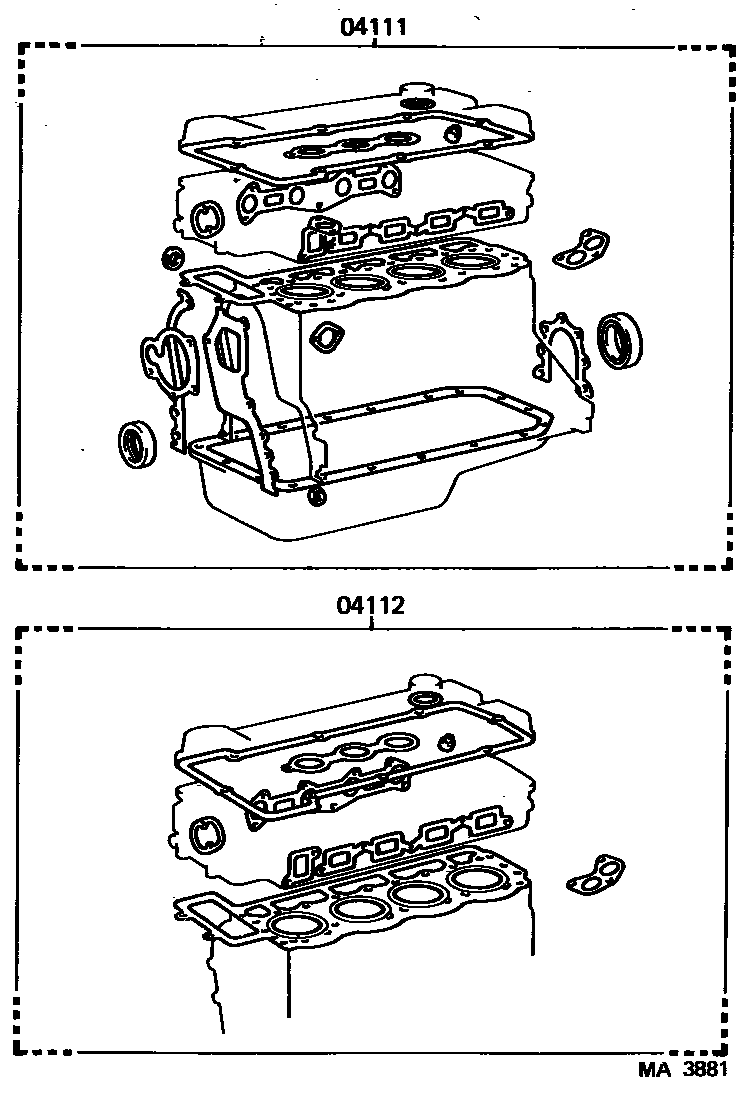

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — MA3881
Engine Overhaul Gasket Kit — MA3881 (197908 – 198305)

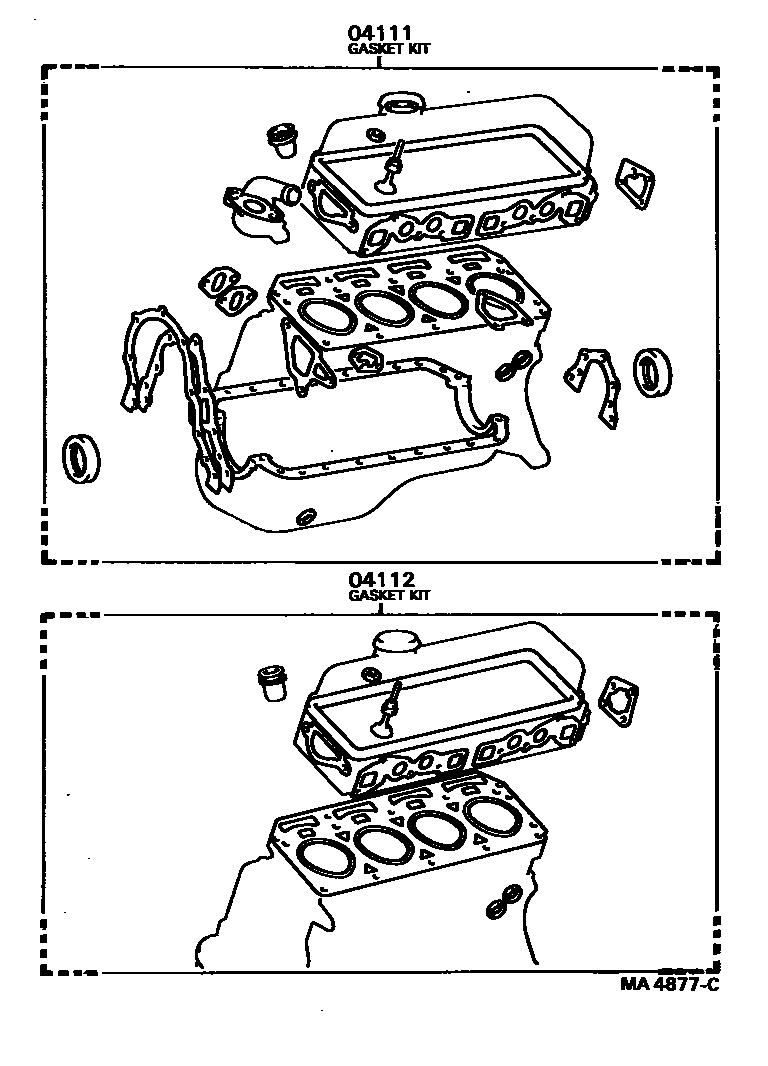

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — MA4877C
Engine Overhaul Gasket Kit — MA4877C (197908 – 999999)

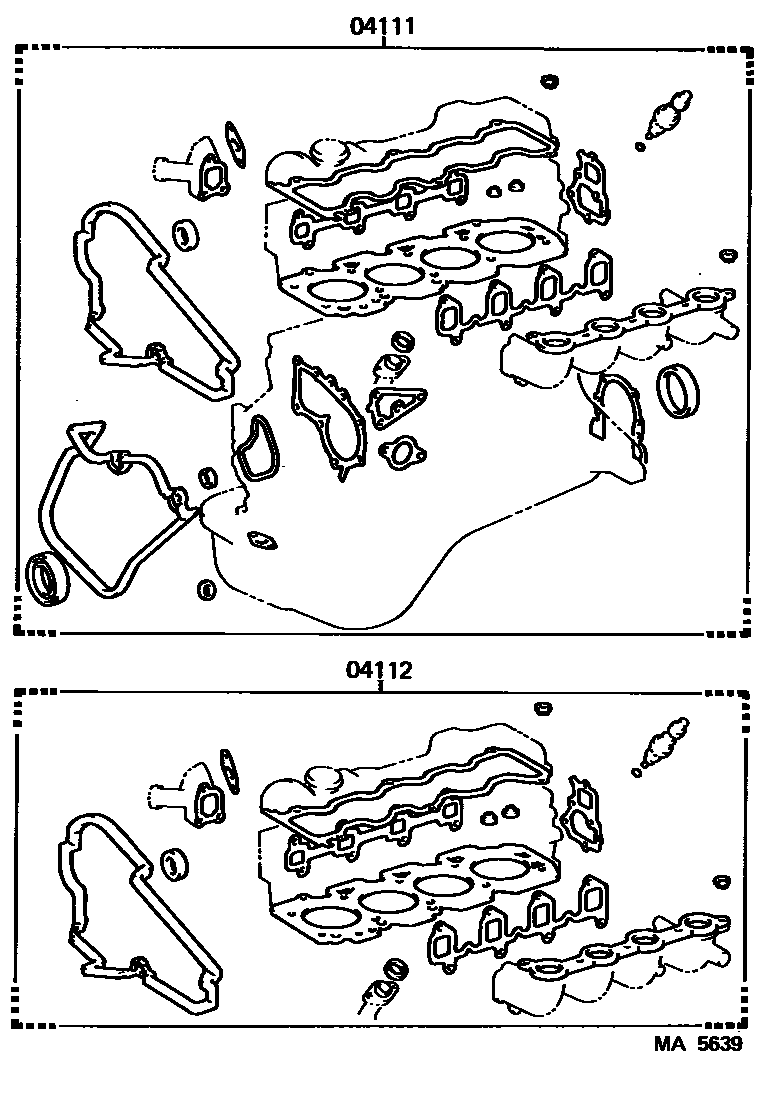

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — MA5639
Engine Overhaul Gasket Kit — MA5639 (198210 – 999999)

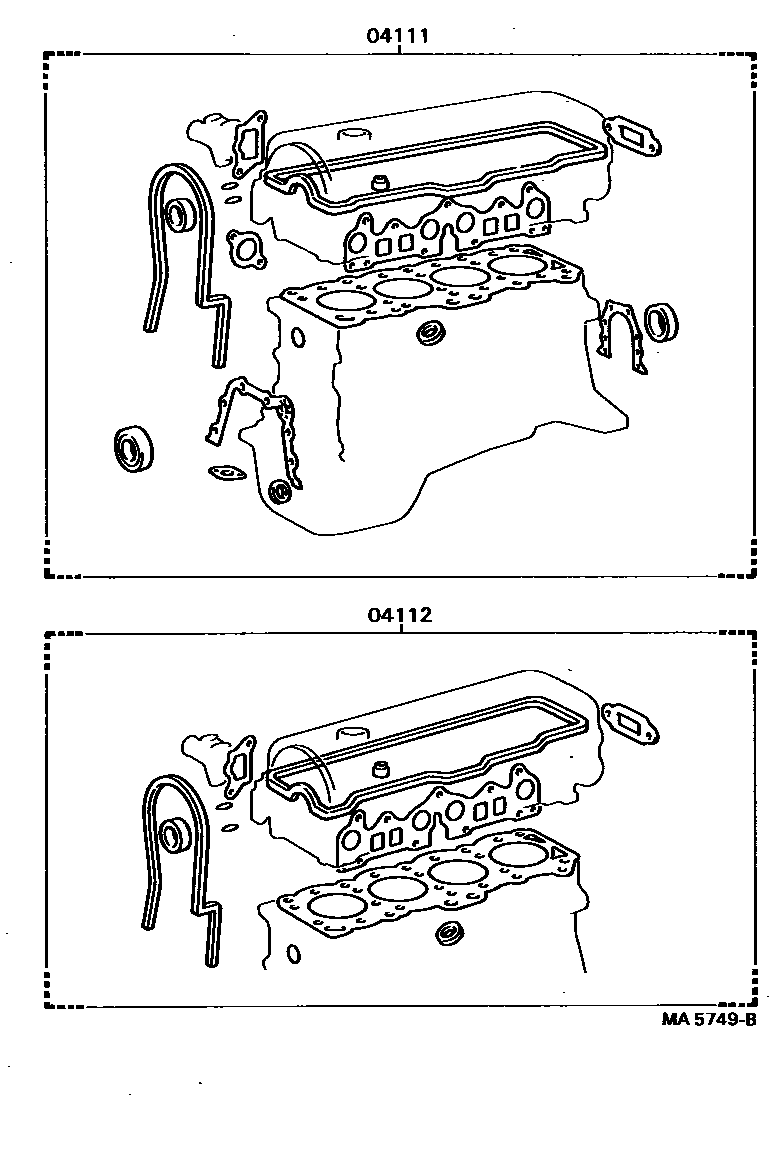

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — MA5749B
Engine Overhaul Gasket Kit — MA5749B (197908 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-13022 · 04111-13023 · 04111-13024 · 04111-13025 · 04111-13026 · 04111-13030 · 04111-13031 · 04111-13032 · 04111-13033 · 04111-16031 · 04111-16032 · 04111-27034 · 04111-27050 · 04111-27051 · 04111-28013 · 04111-28014 · 04111-28015 · 04111-28016 · 04111-28017 · 04111-64011 · 04111-64012 · 04111-64040 · 04111-64041 · 04111-64042 · 04111-64043
04112Engine valve grinding pad assembly04112-13011 · 04112-13012 · 04112-16030 · 04112-16031 · 04112-24043 · 04112-24044 · 04112-24045 · 04112-27032 · 04112-27033 · 04112-28013 · 04112-28014 · 04112-28015 · 04112-28016 · 04112-64010 · 04112-64040 · 04112-64041
