Toyota COROLLA Partial Engine Assembly — Figure 1101

Toyota COROLLA EPC diagram 1101, Partial Engine Assembly, with 2 images and 1 PNC and OE references.

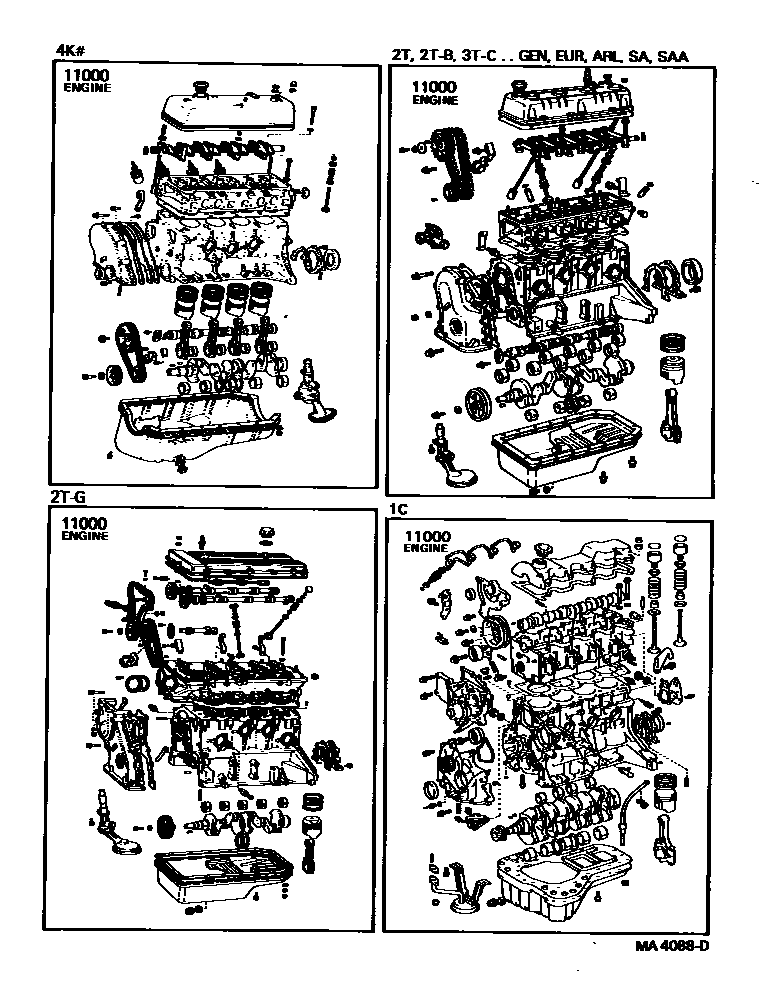

Toyota COROLLA Partial Engine Assembly EPC diagram — MA4088D
Partial Engine Assembly — MA4088D (197908 – 999999)

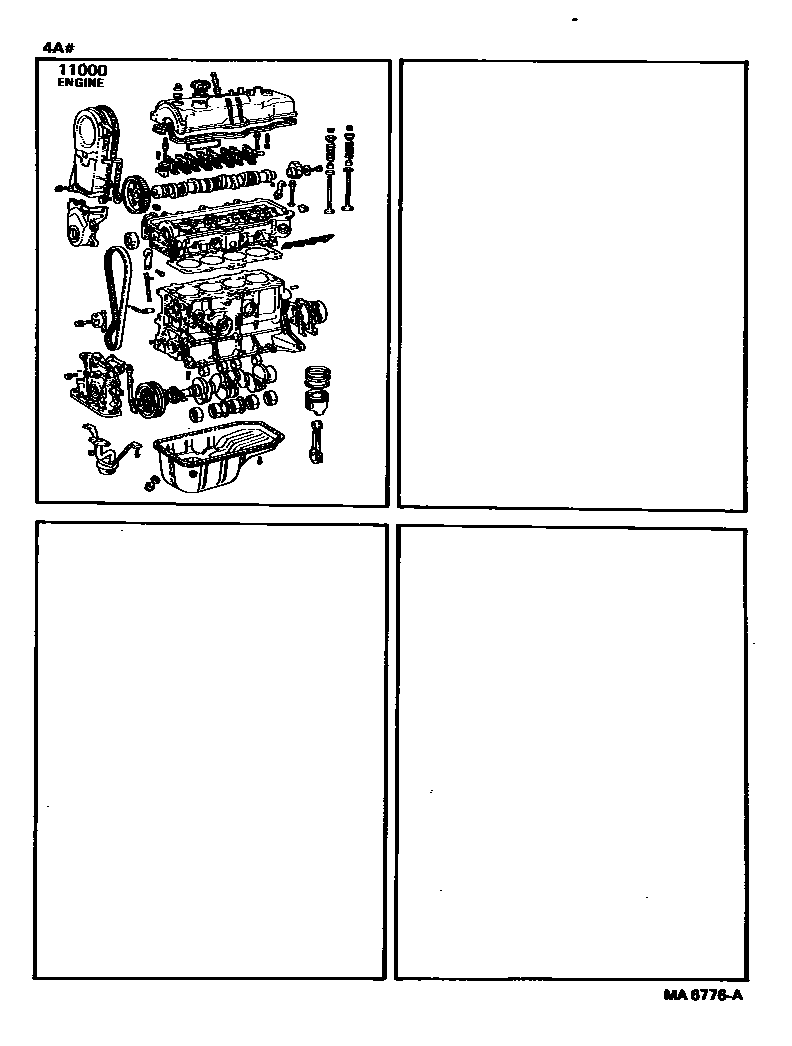

Toyota COROLLA Partial Engine Assembly EPC diagram — MA6776A
Partial Engine Assembly — MA6776A (198305 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-13050 · 19000-13080 · 19000-13140 · 19000-13150 · 19000-13160 · 19000-13170 · 19000-16070 · 19000-26134 · 19000-26136 · 19000-26139 · 19000-26144 · 19000-26146 · 19000-26243 · 19000-26244 · 19000-28070 · 19000-28072 · 19000-64020 · 19000-64022 · 19000-64023 · 19000-64260 · 19000-64261
