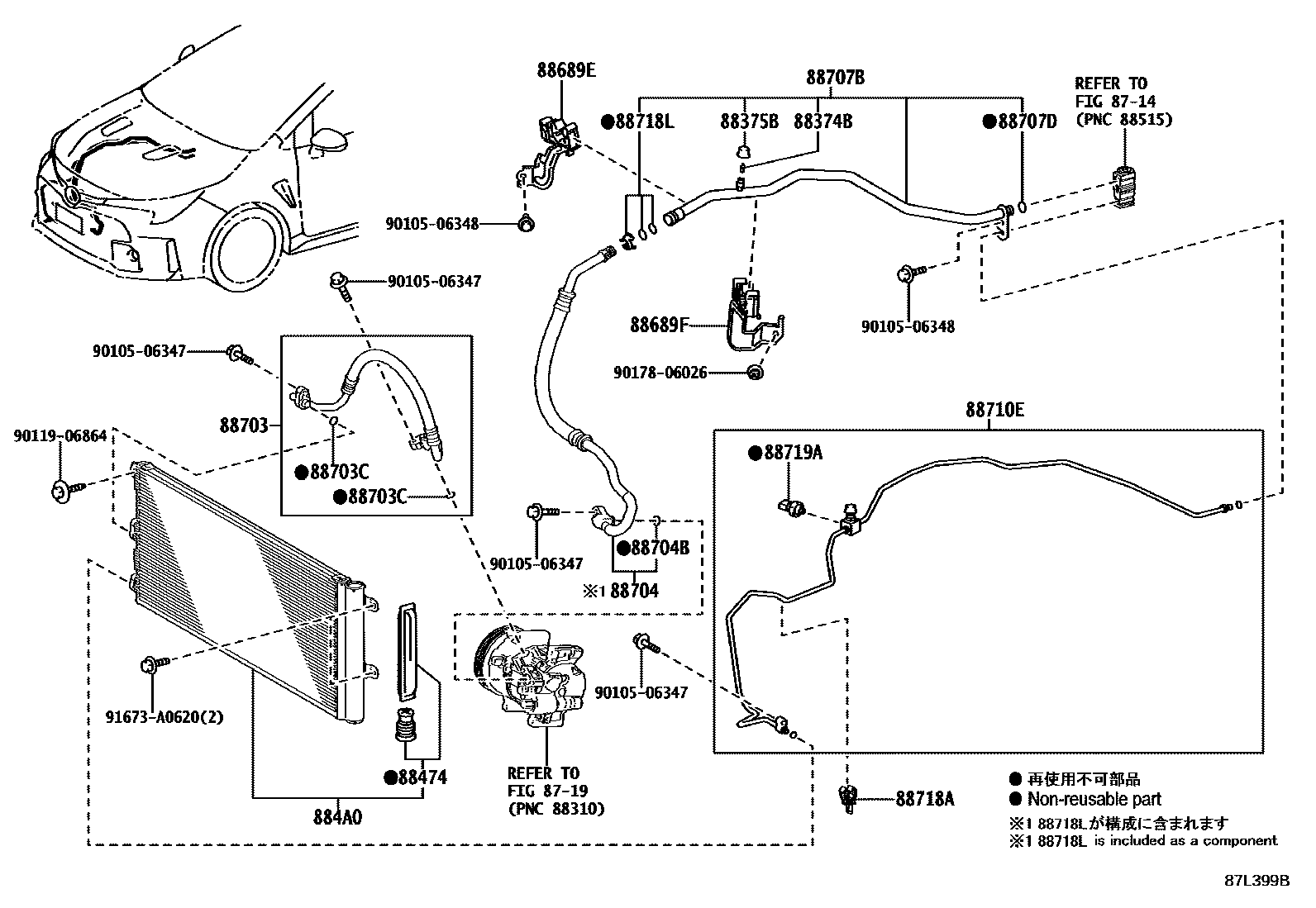

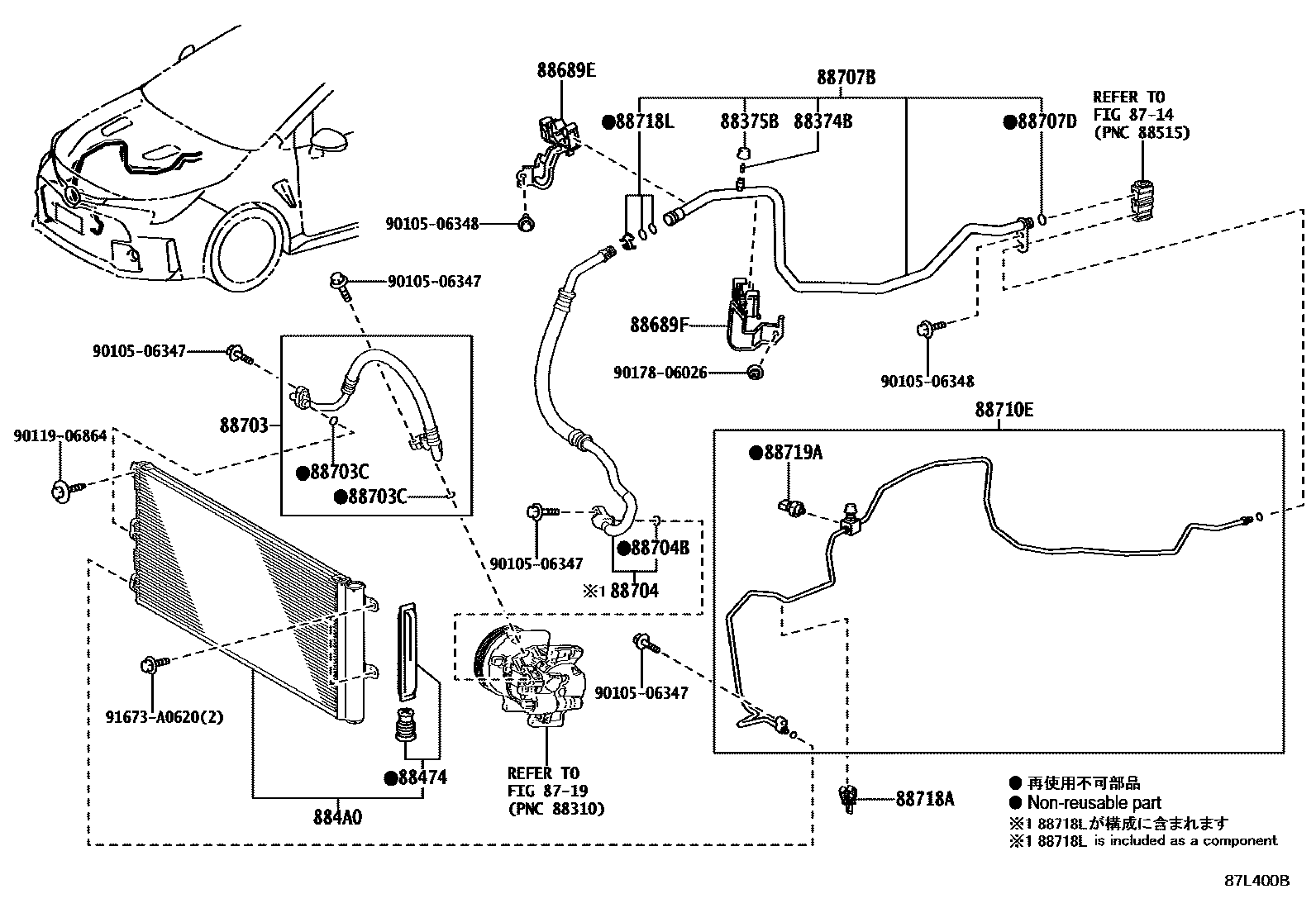

Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-30290 · 88375-30310 |
| 88474 | cooler dryer | 88474-12010 |
| 884A0 | Air conditioning condenser assembly | 884A0-52040 · 884A0-52050 |
| 88689E | Cooler Bracket No. 1 | 88688-12A20 |
| 88689F | Cooler bracket No. 2 | 88688-10560 |
| 88703 | Discharge hose sub-assembly | 88703-12B00 |
| 88703C | O-ring (for drain hose) | 90099-14120 |
| 88704 | Oil suction hose sub-assembly | 88704-12A70 |
| 88704B | O-ring (for suction hose) | 90099-14121 |
| 88707B | Suction pipe B sub-assembly | 88707-12370 · 88707-12410 · 88707-12450 |
| 88707D | O-ring (for suction pipe) | 90099-14121 |
| 88710E | Air conditioning pipe and accessories assembly | 88710-12C80 · 88710-12C90 · 88710-12D00 |
| 88718A | Clamp No. 1 (for cooler refrigerant pipe) | 88718-47110 |
| 88718L | Pipe clamp | 88718-52280 |
| 88719A | Air conditioning pressure sensor | 88719-11010 |
